LJ70LV-MRXW (1985)

Toyota Land Cruiser

Production Oct 1985 - Jan 1990
Engine 2LT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8510- )2LT

Click highlighted areas on diagram

diagram 04175 17021A 17025A 17201 17294 17294A 17294A 9052304002
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-54010

2LT..LJ7#

 1
17021A - BOLT, STUD(FOR BEARING HOUSING)
90116-08158

2LT..LJ7#

 2
17025A - BOLT, STUD(FOR TURBINE HOUSING)
90116-08200

2LT..LJ7#

 4
17201 - TURBOCHARGER SUB-ASSY
17201-54030

2LT..LJ7#

 1
17294 - HOSE, ACTUATOR
90445-12111

2LT..LJ7#

 1
17294A - CLIP(FOR ACTUATOR HOSE)
96132-30600

2LT..LJ7#

 2
17294A - CLIP(FOR ACTUATOR HOSE)
96132-30600

2LT..LJ7#

 2
Common parts
90523-04002

ILLUST NO. 1 OF 2(8510- )2LT

Click highlighted areas on diagram

diagram 15407 15407A 15407B 15407B 15471 15474 15474A 15474B 15474B 15475 16347 17111 17114A 17114B 17118 17118A 17141 17141G 17151A 17152 17159 17159 17167 17168 17173 17177 17271 17272 17275 17277 17278 17279 17291 9011608128 9011908689 9011908714 9011908714 9011910269 9017908012 9017908012 9017908012 9017908150 9017908150 9017910070 9017910070 9161140820 9162140814 92112F0845
Part # Description Qty Price

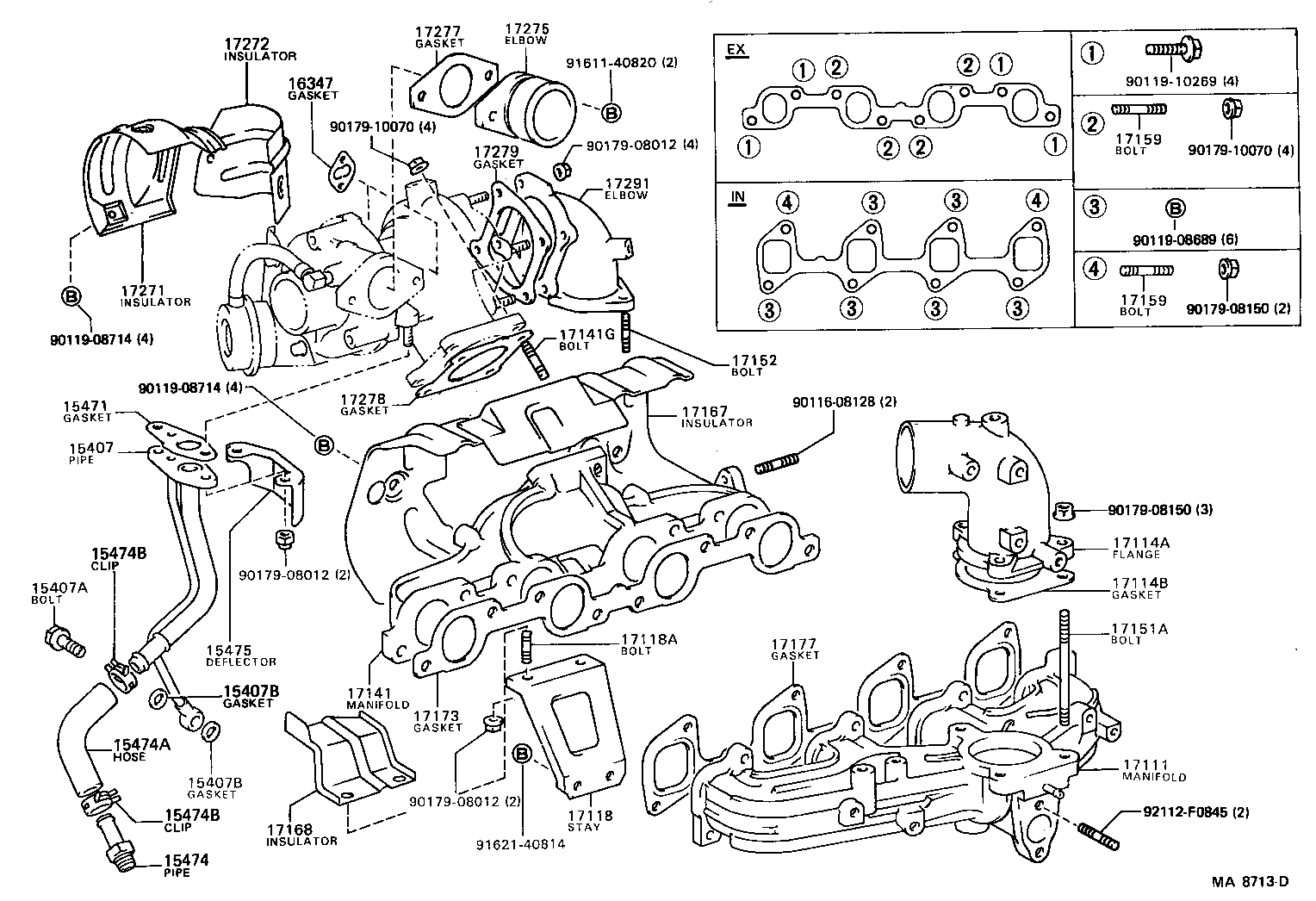

15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-54011

2LT..LJ7#

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-10006

2LT..LJ7#

 1
90401-10035

2LT..LJ7#

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-10035

2LT..LJ7#

 2
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90430-10035

2LT..LJ7#

 2
15471 - GASKET, TURBO OIL INLET
15471-54010

2LT..LJ7#

 1
15471-58010

2LT..LJ7#

 1
15474 - PIPE, TURBO OIL OUTLET
15476-54010

2LT..LJ7#

 1
15474A - HOSE, TURBO OIL OUTLET
90923-02080

2LT..LJ7#

 1
15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)
90467-26002

2LT..LJ7#

 2
15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE)
90467-26002

2LT..LJ7#

 2
15475 - DEFLECTOR, OIL
15475-54010

2LT..LJ7#

 1
16347 - GASKET, WATER BY-PASS
16347-58010

2LT..LJ7#

 1
16347-28010

2LT..LJ7#

 2
16347-42020

2LT..LJ7#

 1
17111 - MANIFOLD, INTAKE
17101-54050

2L#..LJ7#

 1
17101-54051

2LT..LJ7#

 1
17114A - FLANGE, INTAKE
17114-54020

2L#..LJ7#

 1
17114B - GASKET, INTAKE FLANGE
17116-54010

2L..LJ70

 1
26171-54011

2LT..LJ7#

 1
26171-54010

2LT..LJ7#

 1
17118 - STAY, MANIFOLD
17118-54011

2LT..LJ7#

 1
17118A - BOLT, STUD(FOR MANIFOLD STAY)
90116-08056

2LT..LJ7#

 2
17141 - MANIFOLD, EXHAUST
17141-54040

2L..LJ70

 1
17141-54022

2LT..LJ7#

 1
17141G - BOLT, STUD(FOR TURBOCHARGER)
90116-10094

2LT..LJ7#

 4
17151A - BOLT, STUD(FOR MANIFOLD TO VENTURI)
92112-40825

2LT..LJ7#

 3
92112-40820

2L#..LJ7#

 3
90116-08293

2LT..LJ7#

 3
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10088

2L#..LJ7#

L=47,4,S=14 & 22

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08053

2L..LJ70

INTAKE MANIFOLD SIDE

 2
90116-10061

2LT..LJ7#

EXHAUST MANIFOLD SIDE

 4
90116-10091

2L..LJ70

EXHAUST MANIFOLD SIDE

 2
90116-10140

2LT..LJ7#

EXHAUST MANIFOLD SIDE

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-08053

2L..LJ70

INTAKE MANIFOLD SIDE

 2
90116-10061

2LT..LJ7#

EXHAUST MANIFOLD SIDE

 4
90116-10091

2L..LJ70

EXHAUST MANIFOLD SIDE

 2
90116-10140

2LT..LJ7#

EXHAUST MANIFOLD SIDE

 4
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-54041

2L..LJ70

 1
17107-54011

2LT..LJ7#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-54011

2L..LJ70

 1
17166-54010

2LT..LJ7#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-54011

2L..LJ70

 1
17173-54020

2LT..LJ7#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-54012

2L#..LJ7#

 1
17271 - INSULATOR, TURBO, NO.1
17271-54040

2LT..LJ7#

 1
17272 - INSULATOR, TURBO, NO.2
17272-54020

2LT..LJ7#

 1
17275 - ELBOW, COMPRESSOR OUTLET
17275-54010

2LT..LJ7#

 1
17277 - GASKET, COMPRESSOR OUTLET
17277-54011

2LT..LJ7#

 1
17277-54010

2LT..LJ7#

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-54010

2LT..LJ7#

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-64010

2LT..LJ7#

 1
17291 - ELBOW, TURBINE OUTLET
17291-54040

2LT..LJ7#

 1
Common parts
90116-08128
90119-08689
90119-08714
90119-10269
90179-08012
90179-08150
90179-10070
91611-40820
91621-40814
92112-F0845

ILLUST NO. 1 OF 2(9001-9501)2LT

Click highlighted areas on diagram

diagram 1502 15407 15407A 15407B 15407B 15471 15474 15474A 15474B 15474B 17111 17114A 17114B 17118 17141 17141G 17151A 17152 17159 17159 17167 17168 17173 17177 17271 17272 17278 17279 17288 17291 9011608056 9011608056 9011608128 9011608260 9011908689 9011910269 9017908012 9017908012 9017908059 9017908150 9017908150 9017908150 9017908150 9017910070 9017910070 9033905018 9162140812 9162140812 9162140814
Part # Description Qty Price
Common parts
90116-08056
90116-08128
90116-08260
90119-08689
90119-10269
90179-08012
90179-08059
90179-08150
90179-10070
90339-05018
91621-40812
91621-40814
Linked diagrams
1502

ILLUST NO. 2 OF 2(9001-9501)2LT

Click highlighted areas on diagram

diagram 04175 16347 17021A 17021B 17025A 17201 17230A 17230B 17230B 17230C 17230D 17294 17294A 17294A 9052304002 9052304002
Part # Description Qty Price
Common parts
90523-04002
