LJ70LV-MRXW (1985)
Toyota Land Cruiser

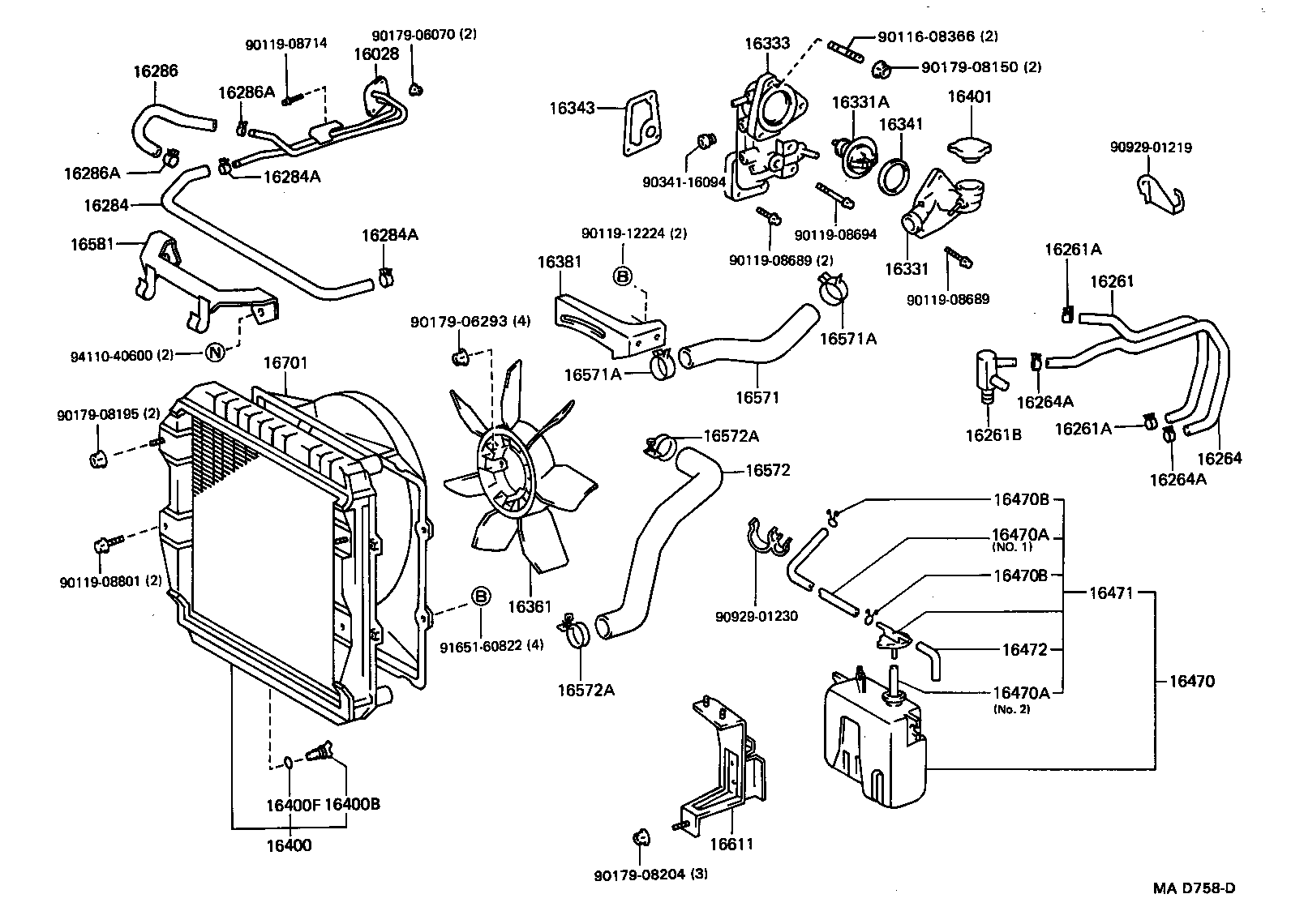

ILLUST NO. 1 OF 2(8510- )2LT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-54011 |
2LT..LJ7# |
1 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16028-54011 |
2LT..LJ7# |
1 | ||
| 16029 - PIPE SUB-ASSY, TURBO WATER, NO.3 | ||||
| 16029-54011 |
2LT..LJ7# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54030 |
2LT..LJ7# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2LT..LJ7# |
2 | ||
| 90467-15004 |
2LT..LJ7# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2LT..LJ7# |
2 | ||
| 90467-15004 |
2LT..LJ7# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-52015 |
2LT..LJ7# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54010 |
2LT..LJ7# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2LT..LJ7# |
2 | ||
| 90467-15004 |
2LT..LJ7# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2LT..LJ7# |
2 | ||
| 90467-15004 |
2LT..LJ7# |
2 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-54010 |
2LT..LJ7# |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15004 |
2LT..LJ7# |
2 | ||
| 90467-15022 |
2LT..LJ7# |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15004 |
2LT..LJ7# |
2 | ||
| 90467-15022 |
2LT..LJ7# |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-54011 |
2LT..LJ7# |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15004 |
2LT..LJ7# |
2 | ||
| 90467-15022 |
2LT..LJ7# |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15004 |
2LT..LJ7# |
2 | ||
| 90467-15022 |
2LT..LJ7# |
2 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16286-54011 |
2LT..LJ7# |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-15004 |
2LT..LJ7# |
2 | ||
| 90467-15022 |
2LT..LJ7# |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 90467-15004 |
2LT..LJ7# |
2 | ||
| 90467-15022 |
2LT..LJ7# |
2 | ||
| 16287 - HOSE, TURBO WATER, NO.4 | ||||
| 16287-54010 |
2LT..LJ7# |
1 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 90467-15004 |
2LT..LJ7# |
2 | ||
| 90467-15022 |
2LT..LJ7# |
2 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 90467-15004 |
2LT..LJ7# |
2 | ||
| 90467-15022 |
2LT..LJ7# |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54080 |
2LT..LJ7# |
1 | ||
| 16331-54081 |
2LT..LJ7# |
1 | ||
| 16331-54030 |
2L..LJ70 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03062 |
2L#..LJ7# *WAX 88-100 |
1 | ||
| 90916-03072 |
2LT..LJ7# *WAX 88-100 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-71010 |
2LT..LJ7#..LX,STD |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54050 |
2L..LJ70 |
1 | ||
| 16333-54100 |
2LT..LJ7# |
1 | ||
| 16333-54060 |
2LT..LJ7# |
1 | ||
| 16333-54061 |
2LT..LJ7# |
1 | ||
| 16333C - PLUG, W/HEAD TAPER SCREW | ||||
| 90345-53030 |
2LT..LJ7# |
1 | ||
| 16333P - UNION(FOR WATER OUTLET HOUSING) | ||||
| 90404-52004 |
2LT..LJ7# |
1 | ||
| 16334 - COVER, WATER OUTLET HOUSING | ||||
| 16334-54010 |
2LT..LJ7# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-35010 |
2LT..LJ7# |
1 | ||
| 16341-54011 |
2L..LJ70 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54011 |
2L..LJ70 |
1 | ||
| 16343-54021 |
2LT..LJ7# |
1 | ||
| 16343-54020 |
2LT..LJ7# |
1 | ||
| 16361 - FAN | ||||
| 16361-54010 |
2L..LJ70 |
1 | ||
| 16361-54020 |
2LT..LJ7# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54011 |
2L#..LJ7# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54490 |
2LT..LJ7# |
1 | ||
| 16400-54330 |
2L..LJ70 |
1 | ||
| 16400-54491 |
2LT..LJ7# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
2L#..LJ7#..LX,STD |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
2L#..LJ7#..LX,STD |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54070 |
2LT..LJ7# |
1 | ||
| 16470-54100 |
2L..LJ70 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2LT..LJ7# *H,L=520,NO.1,NO.2 |
1 | ||
| 90445-12078 |
2L..LJ70 *H,L=480,NO.1,NO.2 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2LT..LJ7# *H,L=520,NO.1,NO.2 |
1 | ||
| 90445-12078 |
2L..LJ70 *H,L=480,NO.1,NO.2 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L#..LJ7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L#..LJ7# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-54100 |
2LT..LJ7# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54100 |
2L..LJ70 |
1 | ||
| 16405-54130 |
2LT..LJ7# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-71030 |
2L#..LJ7# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54200 |
2L..LJ70 |
1 | ||
| 16571-54140 |
2LT..LJ7# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
2LT..LJ7# |
2 | ||
| 90467-37001 |
2L#..LJ70 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
2LT..LJ7# |
2 | ||
| 90467-37001 |
2L#..LJ70 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54210 |
2L..LJ70 |
1 | ||
| 16572-54110 |
2LT..LJ7# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
2L#..LJ7# RADIATOR SIDE |
1 | ||
| 96111-10500 |
2L#..LJ7# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
2L#..LJ7# RADIATOR SIDE |
1 | ||
| 96111-10500 |
2L#..LJ7# WATER PUMP SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54200 |
2LT..LJ7# |
1 | ||
| 16711-54250 |
2LT..LJ7# |
1 | ||
| 16711-54190 |
2L..LJ70 |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90179-06100 | ||||
| 90179-08044 | ||||
| 90340-16002 | ||||
| 90480-20014 | ||||
| 90929-01003 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91621-F0812 | ||||
| 91651-40816 | ||||
| 91651-40818 | ||||
| 91651-40820 | ||||
| 91656-40818 | ||||
| 91659-F1222 | ||||
| 93220-16012 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 8716 | ||||
(9001-9501)2LT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-08366 | ||||
| 90119-08689 | ||||
| 90119-08694 | ||||
| 90119-08714 | ||||
| 90119-08801 | ||||
| 90119-12224 | ||||
| 90179-06070 | ||||
| 90179-06293 | ||||
| 90179-08150 | ||||
| 90179-08195 | ||||
| 90179-08204 | ||||
| 90341-16094 | ||||
| 90929-01219 | ||||
| 90929-01230 | ||||
| 91651-60822 | ||||
| 94110-40600 | ||||
