LJ70LV-MRXW (1985)

Toyota Land Cruiser

Production Oct 1985 - Jan 1990
Engine 2LT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

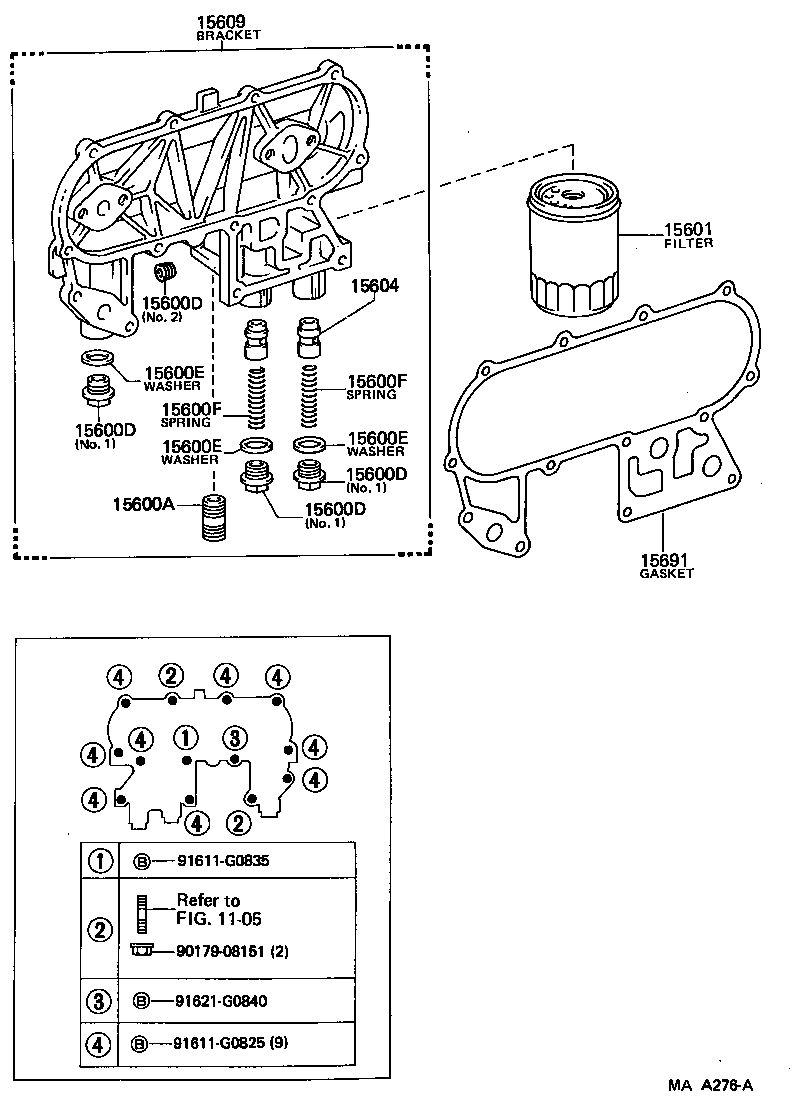

(8810- )2LT

Click highlighted areas on diagram

AUSTRIA SPEC

diagram 1105 15600A 15600D 15600D 15600D 15600D 15600E 15600E 15600E 15600F 15600F 15601 15604 15609 15691 9017908151 91611G0825 91611G0835 91621G0840
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
15116-54010

2L#..LJ7#

 1
90404-19011

2LT..LJ7#

 1
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L#..LJ7#

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L#..LJ7#

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L#..LJ7#

 3
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L#..LJ7#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2LT..LJ7#

 3
90430-18011

2L#..LJ7#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2LT..LJ7#

 3
90430-18011

2L#..LJ7#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2LT..LJ7#

 3
90430-18011

2L#..LJ7#

 3
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2L#..LJ7#

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2L#..LJ7#

 2
15601 - FILTER SUB-ASSY, OIL
15600-41010

2L#..LJ7#

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L#..LJ7#

 2
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-54012

2L..LJ70

 1
15609-54031

2LT..LJ7#

 1
15609-54032

2LT..LJ7#

 1
15691 - GASKET, OIL FILTER
15692-54030

2LT..LJ7#

 1
15692-54020

2LT..LJ7#

 1
15691-54012

2L#..LJ7#

 1
Common parts
90179-08151
91611-G0825
91611-G0835
91621-G0840
Linked diagrams
1105

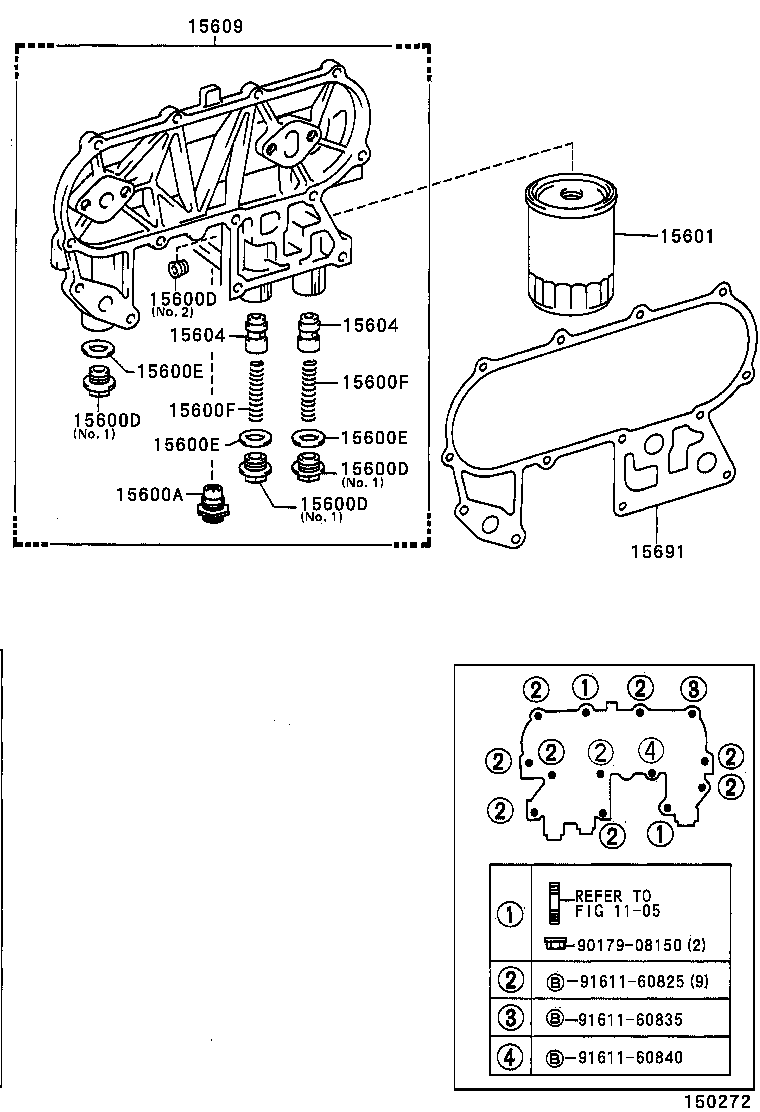

(9001-9501)2LT

Click highlighted areas on diagram

diagram 1105 15600A 15600D 15600D 15600D 15600D 15600E 15600E 15600E 15600F 15600F 15601 15604 15604 15609 15691 9017908150 9161160825 9161160835 9161160840
Part # Description Qty Price
Common parts
90179-08150
91611-60825
91611-60835
91611-60840
Linked diagrams
1105
