LJ70LV-MRXW (1990)
Toyota Land Cruiser

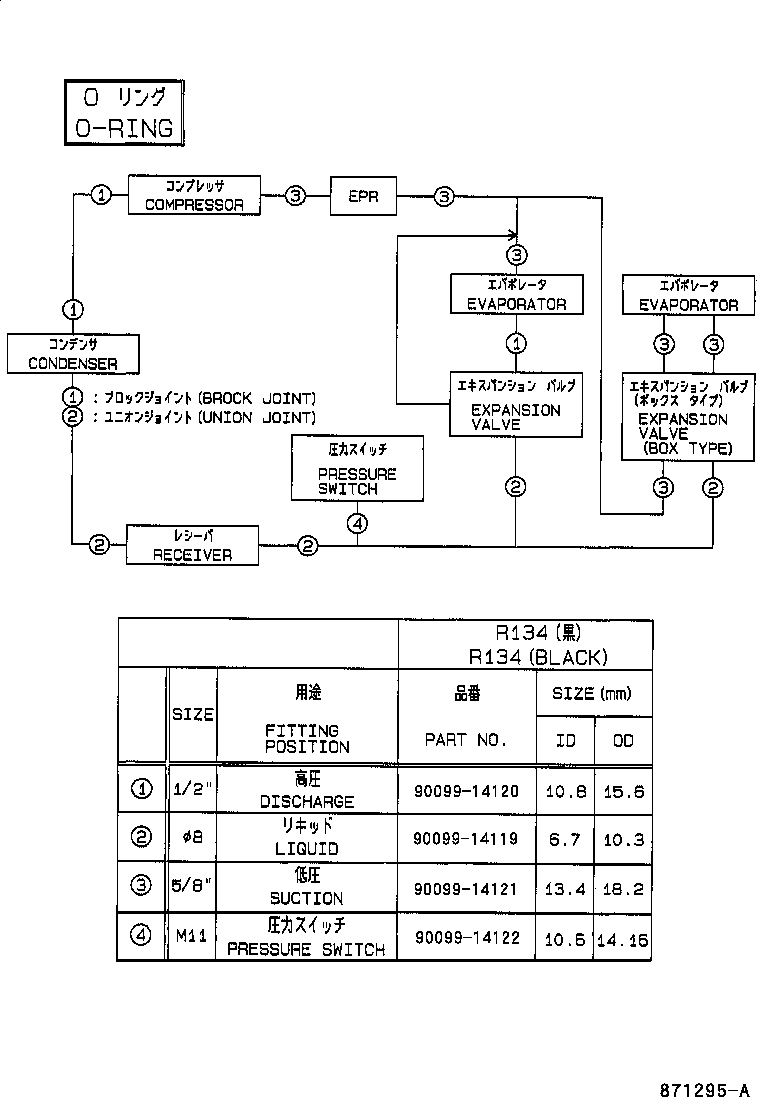

ILLUST NO. 3 OF 3(9001- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||

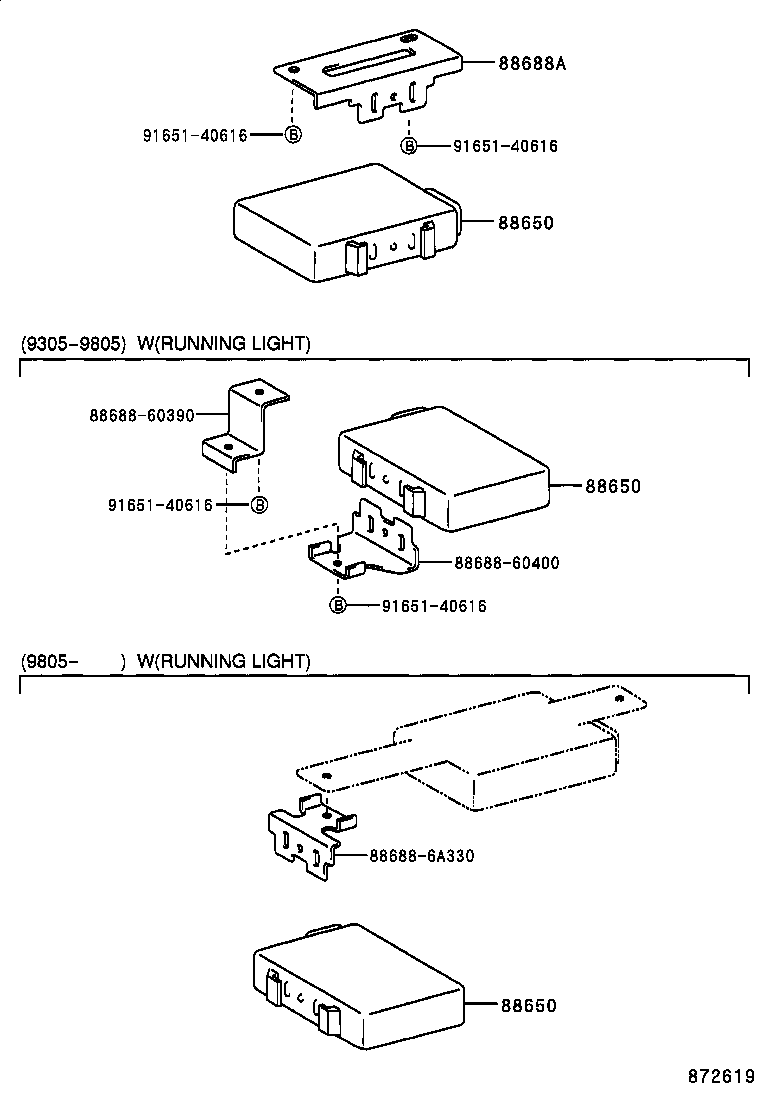

ILLUST NO. 2 OF 3(9001- )
AMPLIFIER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-60140 |
LJ70,73..LHD..(LX,STD) SINGLE AIR CONDITIONER,W(CUT SYSTEM) |
1 | ||
| 88650-60140 |
LJ7# SINGLE AIR CONDITIONER,W(CUT SYSTEM) |
1 | ||
| 88650-60150 |
HZJ7#,LJ70,73,PZJ73,75..LHD..(LX,STD) |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-60140 |
LJ70,73..LHD..(LX,STD) SINGLE AIR CONDITIONER,W(CUT SYSTEM) |
1 | ||
| 88650-60140 |
LJ7# SINGLE AIR CONDITIONER,W(CUT SYSTEM) |
1 | ||
| 88650-60150 |
HZJ7#,LJ70,73,PZJ73,75..LHD..(LX,STD) |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-60140 |
LJ70,73..LHD..(LX,STD) SINGLE AIR CONDITIONER,W(CUT SYSTEM) |
1 | ||
| 88650-60140 |
LJ7# SINGLE AIR CONDITIONER,W(CUT SYSTEM) |
1 | ||
| 88650-60150 |
HZJ7#,LJ70,73,PZJ73,75..LHD..(LX,STD) |
1 | ||
| 88688A - BRACKET, COOLER STABILIZER AMPLIFIER | ||||
| 88688-90K07 |
HZJ7#,LJ70,73,PZJ73,75..LHD..(LX,STD) |
1 | ||
| Common parts | ||||
| 88688-60390 | ||||
| 88688-60400 | ||||
| 88688-6A330 | ||||
| 91651-40616 | ||||

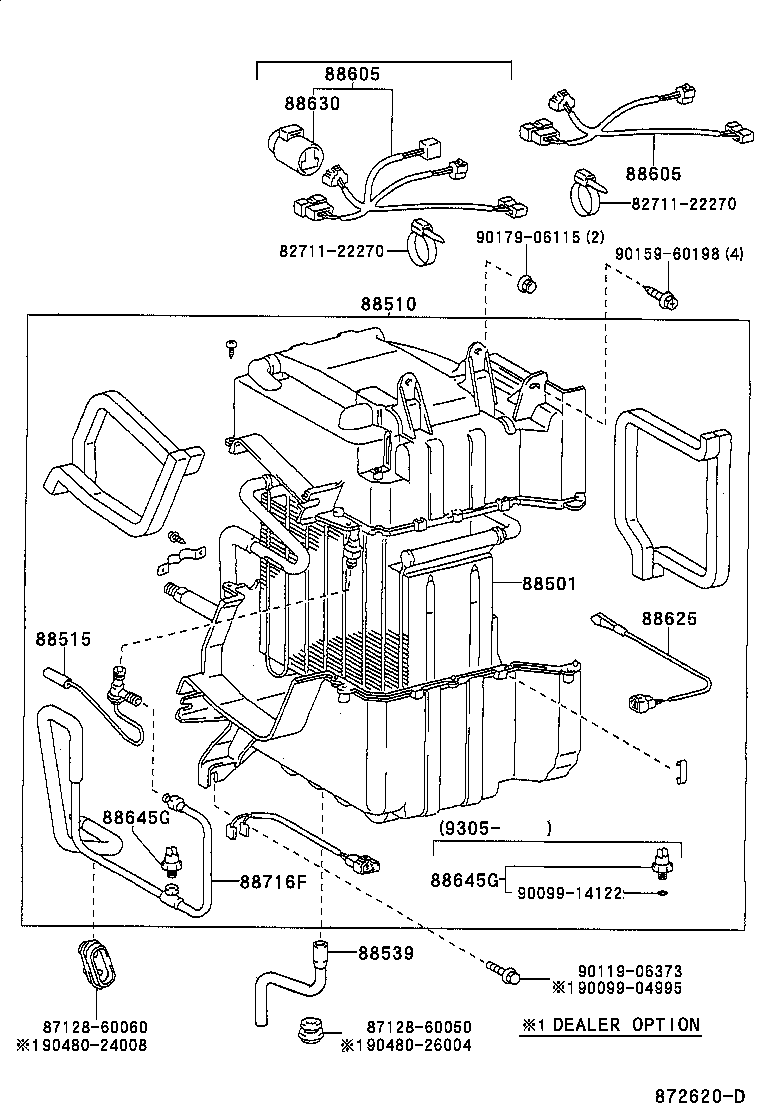

ILLUST NO. 1 OF 3(9001- )HZJ7#,LJ7#,PZJ73,75 ; (9305- )KZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60060 |
BJ73,HZJ7#,LJ70,73,PZJ73,75..LHD..(LX,STD,VM) |
1 | ||
| 88501-60060 |
BJ73,HZJ7#,LJ7#,PZJ75..LHD |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-60440 |
BJ73,HZJ7#,LJ7#,PZJ75..LHD |
1 | ||
| 88510-60440 |
BJ73,HZJ7#,LJ70,73,PZJ73,75..LHD..(LX,STD,VM) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-87004 |
BJ73,HZJ7#,LJ7#,PZJ75 |
1 | ||
| 88515-87004 |
BJ73,HZJ7#,LJ70,73,PZJ73,75 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-90K01 |
BJ73,HZJ7#,LJ70,73,PZJ73,75..LHD..(LX,STD,VM) |
1 | ||
| 88539-90K01 |
BJ73,HZJ7#,LJ7#,PZJ75..LHD |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-60580 |
LJ70,73..LHD..(LX,STD) |
1 | ||
| 88605-60640 |
LJ7# SINGLE AIR CONDITIONER,W(CUT SYSTEM) |
1 | ||
| 88605-60620 |
LJ70,73..LHD..(LX,STD) W(AIR CONDITIONER) |
1 | ||
| 88605-60640 |
HZJ7#,LJ7# DEALER OPTION |
1 | ||
| 88605-60581 |
LJ70,73..LHD..(LX,STD) |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-60580 |
LJ70,73..LHD..(LX,STD) |
1 | ||
| 88605-60640 |
LJ7# SINGLE AIR CONDITIONER,W(CUT SYSTEM) |
1 | ||
| 88605-60620 |
LJ70,73..LHD..(LX,STD) W(AIR CONDITIONER) |
1 | ||
| 88605-60640 |
HZJ7#,LJ7# DEALER OPTION |
1 | ||
| 88605-60581 |
LJ70,73..LHD..(LX,STD) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-20060 |
BJ73,HZJ7#,LJ70,73,PZJ73,75..LHD..(LX,STD,VM) |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-12020 |
BJ73,HZJ7#,LJ7#,PZJ75 |
1 | ||
| 88645-12020 |
BJ73,HZJ7#,LJ70,73,PZJ73,75..LHD..(LX,STD,VM) |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-12020 |
BJ73,HZJ7#,LJ7#,PZJ75 |
1 | ||
| 88645-12020 |
BJ73,HZJ7#,LJ70,73,PZJ73,75..LHD..(LX,STD,VM) |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-60540 |
BJ73,HZJ7#,LJ7#,PZJ75..LHD |
1 | ||
| 88716-60540 |
BJ73,HZJ7#,LJ70,73,PZJ73,75..LHD..(LX,STD,VM) FR |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 87128-60050 | ||||
| 87128-60060 | ||||
| 90099-04995 | ||||
| 90099-14122 | ||||
| 90119-06373 | ||||
| 90159-60198 | ||||
| 90179-06115 | ||||
| 90480-24008 | ||||
| 90480-26004 | ||||
