LJ70LV-MRXW (1990)
Toyota Land Cruiser
Production
Jan 1990
-
May 1993
Engine
2LT
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9001-9501)2LT

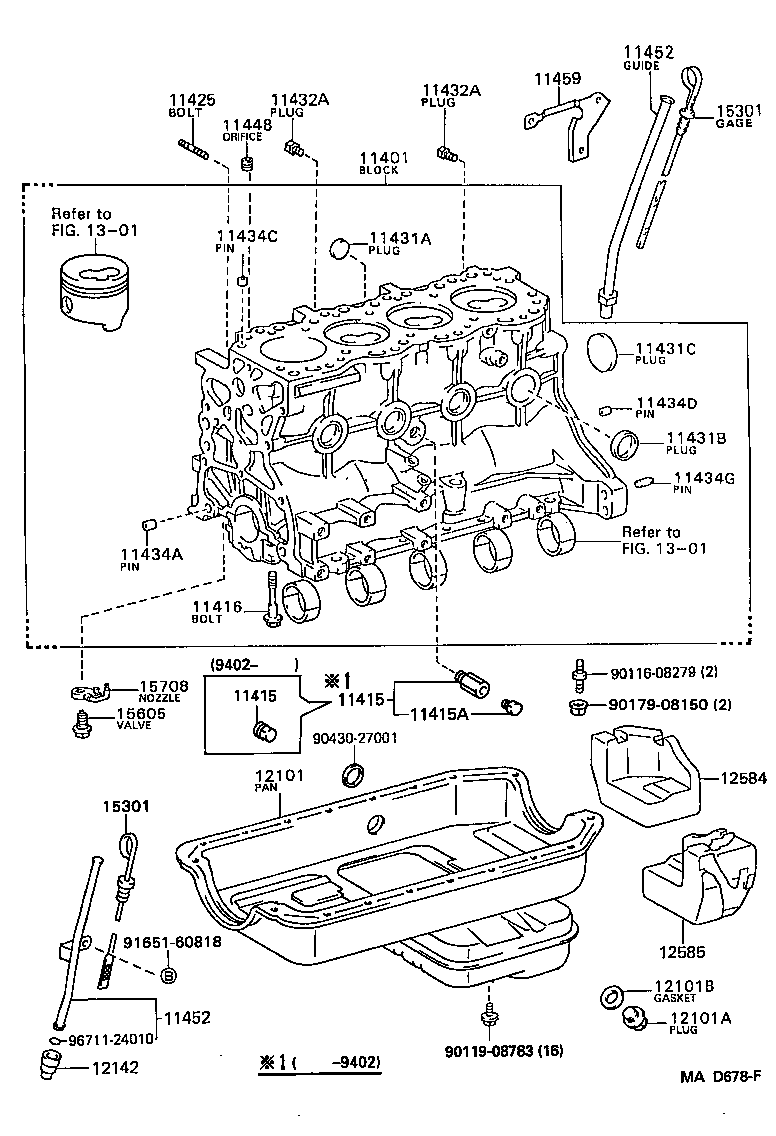

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-59355 |
2LT..LJ7# |
1 | ||
| 11401-59357 |
2LT..LJ7# |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-53828 |
2LT..LJ7# |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-53828 |
2LT..LJ7# |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 96432-23814 |
2LT..LJ7# |
1 | ||
| 90345-53030 |
2LT..LJ7# |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02061 |
2LT..LJ7# |
10 | ||
| 11425 - BOLT, STUD(FOR OIL FILTER) | ||||
| 90116-08157 |
2LT..LJ7# |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
2LT..LJ7# |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
2LT..LJ7# |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
2LT..LJ7# |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51006 |
2LT..LJ7# |
2 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51006 |
2LT..LJ7# |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90253-11021 |
2LT..LJ7# L=8,OD=11 |
2 | ||
| 90253-11001 |
2LT..LJ7# L=11,OD=11 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-15005 |
2LT..LJ7# L=7,OD=14.5 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90253-11021 |
2LT..LJ7# L=8,OD=11 |
2 | ||
| 90253-11001 |
2LT..LJ7# L=11,OD=11 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10192 |
2LT..LJ7# |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-54020 |
2LT..LJ7# |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-54080 |
2LT..LJ7# |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-54080 |
2LT..LJ7# |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 90929-01204 |
2LT..LJ7# |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-54192 |
2LT..LJ7# |
1 | ||
| 12101-54232 |
2LT..LJ7# |
1 | ||
| 12101-54230 |
2LT..LJ7# |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
2LT..LJ7# |
1 | ||
| 90341-12012 |
2LT..LJ7# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18026 |
2LT..LJ7# |
1 | ||
| 90430-12027 |
2LT..LJ7# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-54070 |
2LT..LJ7# |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-54070 |
2LT..LJ7# |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-54010 |
2LT..LJ7# |
4 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-54060 |
2LT..LJ7# |
4 | ||
| Common parts | ||||
| 90116-08279 | ||||
| 90119-08783 | ||||
| 90179-08150 | ||||
| 90430-27001 | ||||
| 91651-60818 | ||||
| 96711-24010 | ||||
| Linked diagrams | ||||
| 1301 | ||||
