LJ70LV-MRW (1984)

Toyota Land Cruiser

Production Nov 1984 - Oct 1985
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

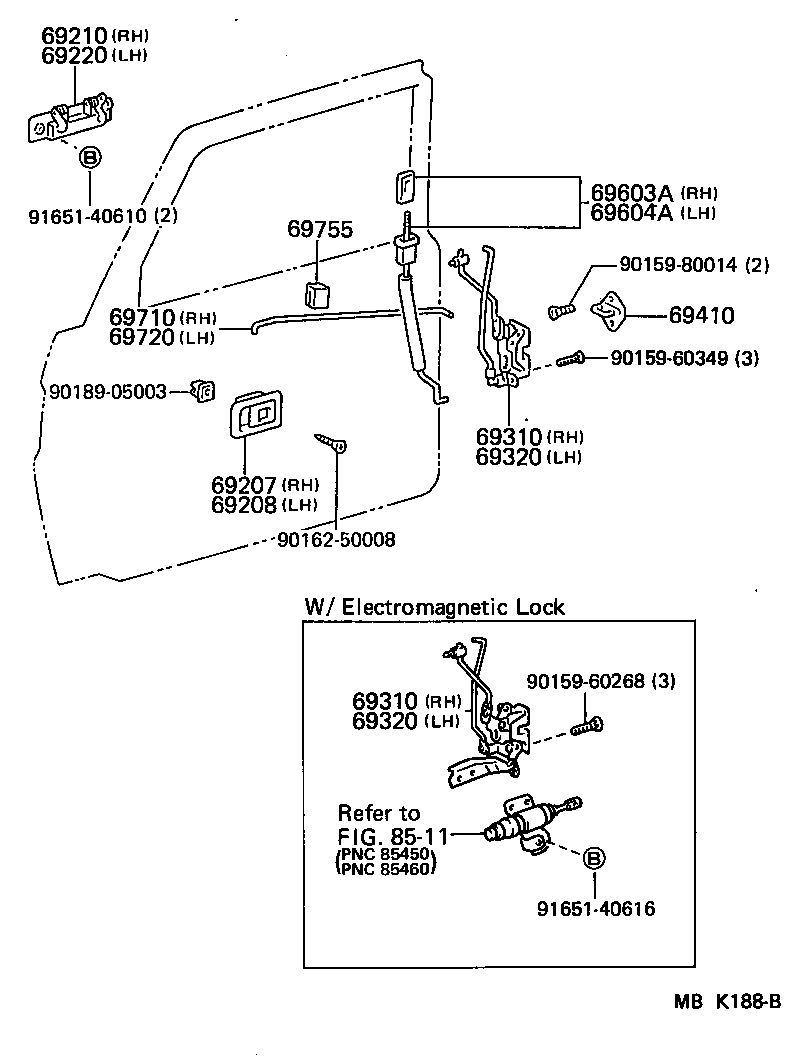

Click highlighted areas on diagram

diagram 69207 69208 69210 69220 69310 69310 69320 69320 69410 69603A 69604A 69710 69720 69755 8511 9015960268 9015960349 9015980014 9016250008 9018905003 9165140610 9165140616
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1004003

BJ7#,LJ7#,RJ7#

GRAY,GRAY

 1
69205-1004006

BJ7#,LJ7#,RJ7#

BROWN,SEPIA BROWN

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1004006

BJ7#,LJ7#,RJ7#

BROWN,SEPIA BROWN

 1
69206-1004003

BJ7#,LJ7#,RJ7#

GRAY,GRAY

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-90K00

BJ7#,LJ7#,RJ7#

PLATED

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-90K00

BJ7#,LJ7#,RJ7#

PLATED

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-90K00

BJ7#,LJ7#,RJ7#..LX,STD,VM

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-90K00

BJ7#,LJ7#,RJ7#..LX,STD,VM

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-90K00

BJ7#,LJ7#,RJ7#..LX,STD,VM

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-90K00

BJ7#,LJ7#,RJ7#..LX,STD,VM

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

BJ7#,LJ7#,RJ7#

 2
69603A - ROD SUB-ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69603-90K0006

BJ7#,LJ7#,RJ7#..LX,STD,VM

BROWN,SEPIA BROWN

 1
69603-90K0003

BJ7#,LJ7#,RJ7#..LX,STD,VM

GRAY,SHADOW GRAY

 1
69604A - ROD SUB-ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69604-90K0003

BJ7#,LJ7#,RJ7#..LX,STD,VM

GRAY,SHADOW GRAY

 1
69604-90K0006

BJ7#,LJ7#,RJ7#..LX,STD,VM

BROWN,SEPIA BROWN

 1
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-90K00

BJ7#,LJ7#,RJ7#

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-90K00

BJ7#,LJ7#,RJ7#

 1
69755 - SILENCER, FRONT DOOR LOCK LINK
69759-90K01

BJ7#,LJ7#,RJ7#

 2
Common parts
90159-60268
90159-60349
90159-80014
90162-50008
90189-05003
91651-40610
91651-40616
Linked diagrams
8511
