LJ70LV-MRW (1984)
Toyota Land Cruiser

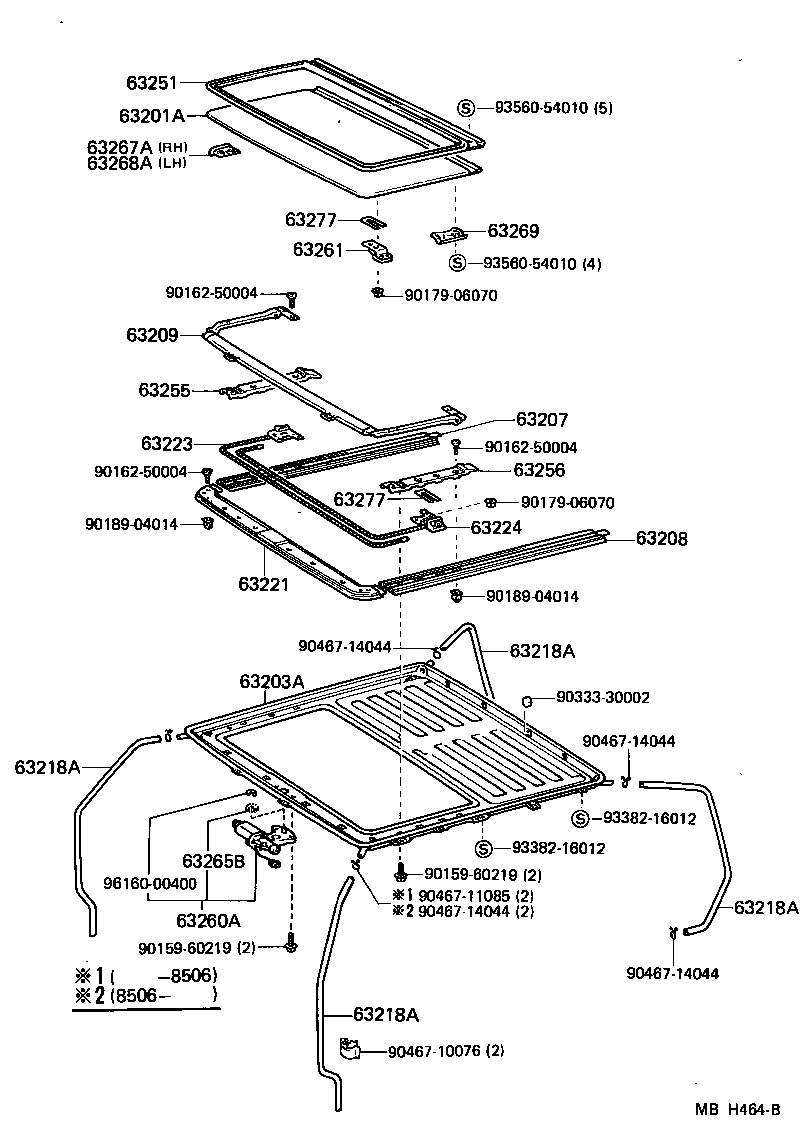

ILLUST NO. 2 OF 2(8411- )BJ70,71,LJ70,RJ70..HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63201A - PANEL SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63201-30010 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 63203A - HOUSING SUB-ASSY, SLIDING ROOF OR REMOVABLE ROOF | ||||
| 63203-90K00 |
BJ70,LJ70,RJ70..HT |
1 | ||
| 63207 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, RH | ||||
| 63207-22010 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 63208 - RAIL SUB-ASSY, SLIDING ROOF GUIDE, LH | ||||
| 63208-22010 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 63209 - PANEL SUB-ASSY, ROOF WIND DEFLECTOR | ||||
| 63209-30010 |
BJ70,LJ70,RJ70..HT |
1 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-90K02 |
BJ70,LJ70,RJ70..HT FR |
2 | ||
| 63249-90K00 |
BJ70,LJ70,RJ70..HT FR |
2 | ||
| 63249-90K01 |
BJ70,LJ70,RJ70..HT RR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-90K02 |
BJ70,LJ70,RJ70..HT FR |
2 | ||
| 63249-90K00 |
BJ70,LJ70,RJ70..HT FR |
2 | ||
| 63249-90K01 |
BJ70,LJ70,RJ70..HT RR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-90K02 |
BJ70,LJ70,RJ70..HT FR |
2 | ||
| 63249-90K00 |
BJ70,LJ70,RJ70..HT FR |
2 | ||
| 63249-90K01 |
BJ70,LJ70,RJ70..HT RR |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63249-90K02 |
BJ70,LJ70,RJ70..HT FR |
2 | ||
| 63249-90K00 |
BJ70,LJ70,RJ70..HT FR |
2 | ||
| 63249-90K01 |
BJ70,LJ70,RJ70..HT RR |
2 | ||
| 63221 - CASING, SLIDING ROOF CABLE GUIDE | ||||
| 63221-22010 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 63223 - CABLE, SLIDING ROOF DRIVE, RH | ||||
| 63223-30010 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 63224 - CABLE, SLIDING ROOF DRIVE, LH | ||||
| 63224-30010 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 63251 - WEATHERSTRIP, SLIDING ROOF PANEL OR REMOVABLE ROOF | ||||
| 63251-30010 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 63255 - COVER, SLIDING ROOF GUIDE RAIL, RH | ||||
| 63255-22020 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 63256 - COVER, SLIDING ROOF GUIDE RAIL, LH | ||||
| 63255-22020 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-90A02 |
LJ70,RJ70..HT |
1 | ||
| 63261 - SHOE, SLIDING ROOF, FRONT | ||||
| 63261-22010 |
BJ70,71,LJ70,RJ70..HT |
2 | ||
| 63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH | ||||
| 63267-30010 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63268-30010 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 63269 - RETAINER, SLIDING ROOF WEATHERSTRIP | ||||
| 63269-30010 |
BJ70,71,LJ70,RJ70..HT |
2 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-30010 |
BJ70,71,LJ70,RJ70..HT 73X28 |
1 | ||
| 63277-14020 |
BJ70,71,LJ70,RJ70..HT 48X28 |
1 | ||
| 63277 - SHIM, SLIDING ROOF RAIL | ||||
| 63277-30010 |
BJ70,71,LJ70,RJ70..HT 73X28 |
1 | ||
| 63277-14020 |
BJ70,71,LJ70,RJ70..HT 48X28 |
1 | ||
| Common parts | ||||
| 90159-60219 | ||||
| 90162-50004 | ||||
| 90179-06070 | ||||
| 90189-04014 | ||||
| 90333-30002 | ||||
| 90467-10076 | ||||
| 90467-11085 | ||||
| 90467-14044 | ||||
| 93382-16012 | ||||
| 93560-54010 | ||||
| 96160-00400 | ||||

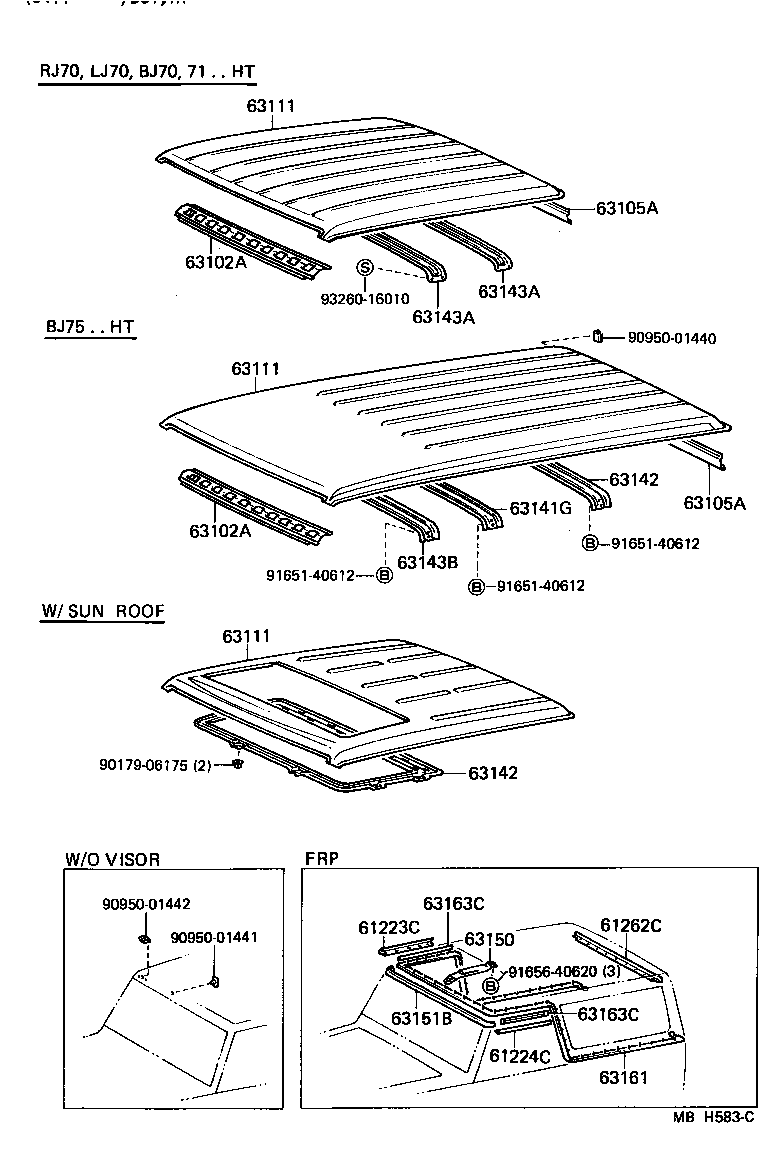

ILLUST NO. 1 OF 2(8411- )HT,SOT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-90K00 |
BJ70,75,LJ70,RJ70..HT |
1 | ||
| 63102A - PANEL SUB-ASSY, WINDSHIELD HEADER | ||||
| 63102-90K00 |
BJ70,75,LJ70,RJ70..HT |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-90K00 |
BJ70,71,75,LJ70,RJ70..HT |
1 | ||
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-90K00 |
BJ70,71,75,LJ70,RJ70..HT |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-90K00 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 63111-90K03 |
BJ70,71,LJ70,RJ70..HT W/SUN ROOF |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-90K00 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 63111-90K03 |
BJ70,71,LJ70,RJ70..HT W/SUN ROOF |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-90K00 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 63111-90K03 |
BJ70,71,LJ70,RJ70..HT W/SUN ROOF |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-30010 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-30010 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63141-90K00 |
BJ70,71,LJ70,RJ70..HT |
2 | ||
| 63143A - REINFORCEMENT, ROOF PANEL | ||||
| 63141-90K00 |
BJ70,71,LJ70,RJ70..HT |
2 | ||
| Common parts | ||||
| 90179-06175 | ||||
| 90950-01440 | ||||
| 90950-01441 | ||||
| 90950-01442 | ||||
| 91651-40612 | ||||
| 91656-40620 | ||||
| 93260-16010 | ||||
