LJ70LV-MRW (1984)
Toyota Land Cruiser

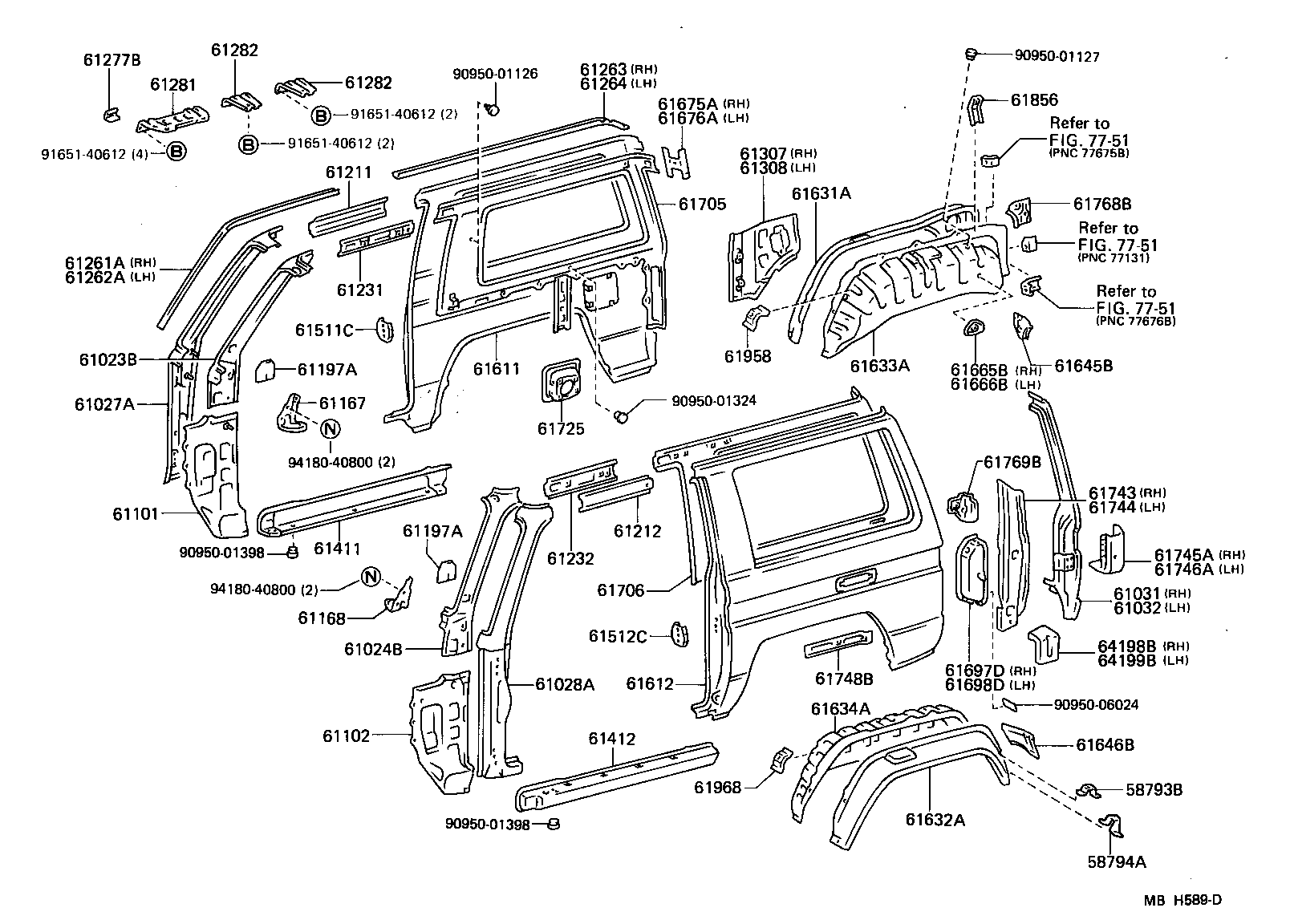

ILLUST NO. 1 OF 2(8411- )BJ70,71,LJ70,RJ70..HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-90K02 |
BJ70,71,75,LJ70,RJ70..HT |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-90K02 |
BJ70,71,75,LJ70,RJ70..HT |
1 | ||
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61027-90K00 |
BJ70,71,75,LJ70,RJ70..HT |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61028-90K00 |
BJ70,71,75,LJ70,RJ70..HT |
1 | ||
| 61031 - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER RH | ||||
| 61031-90K01 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 61032 - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LOWER LH | ||||
| 61032-90K00 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 61101-90K03 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 61102-90K03 |
BJ7#,LJ7#,RJ7# W/RADIO |
1 | ||
| 61102-90K02 |
BJ7#,LJ70,RJ70 |
1 | ||
| 61167 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61165-90K00 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 61168 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, LH | ||||
| 61166-90K00 |
BJ7#,LJ7#,RJ7# |
1 | ||
| 61197A - COVER, FRONT PILLAR, RH | ||||
| 61197-90K00 |
BJ7#,LJ7#,RJ7# |
3 | ||
| 61197A - COVER, FRONT PILLAR, RH | ||||
| 61197-90K00 |
BJ7#,LJ7#,RJ7# |
3 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-90K00 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-90K00 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-90K00 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-90K00 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61263-90K00 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 61262A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-90K00 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 61263 - CHANNEL, ROOF DRIP, REAR RH | ||||
| 61267-90K00 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 61264 - CHANNEL, ROOF DRIP, REAR LH | ||||
| 61268-90K00 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 61277B - JOINT, ROOF DRIP CHANNEL | ||||
| 61277-90K00 |
BJ70,71,75,LJ70,RJ70..HT..(LX,STD) |
4 | ||
| 61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1 | ||||
| 61281-90K00 |
BJ70,71,LJ70,RJ70..HT RH |
1 | ||
| 61289-90K00 |
BJ70,71,LJ70,RJ70..HT LH |
1 | ||
| 61282 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.2 | ||||
| 61282-90K00 |
BJ70,71,LJ70,RJ70..HT |
4 | ||
| 61282 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.2 | ||||
| 61282-90K00 |
BJ70,71,LJ70,RJ70..HT |
4 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-90K00 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-90K00 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-90K00 |
BJ70,71,LJ70,RJ70 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-90K00 |
BJ70,71,LJ70,RJ70 |
1 | ||
| 61511C - REINFORCEMENT, QUARTER LOCK PILLAR, RH | ||||
| 61503-20030 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 61512C - REINFORCEMENT, QUARTER LOCK PILLAR, LH | ||||
| 61503-20030 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-90K07 |
LJ70,RJ70..HT *FRG |
1 | ||
| 61611-90K17 |
BJ70,71,LJ70,RJ70..HT..(LX,STD) |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-90K07 |
LJ70,RJ70..HT *FRG |
1 | ||
| 61612-90K35 |
BJ70,71,LJ70,RJ70..HT..(LX,STD) |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-90K01 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-90K01 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 61645B - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 61646B - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 61665B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, | ||||
| 61665-12010 |
BJ70,71,LJ70,RJ70 |
1 | ||
| 61666B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, | ||||
| 61665-12010 |
BJ70,71,LJ70,RJ70 |
1 | ||
| 61675A - REINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH | ||||
| 61675-90K00 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 61676A - REINFORCE, SEAT BELT ANCHOR, NO.2 UPPER LH | ||||
| 61676-90K00 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 61697D - HOUSING, QUARTER PANEL END, RH | ||||
| 61065-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 61698D - HOUSING, QUARTER PANEL END, LH | ||||
| 61066-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-90K19 |
BJ70,LJ70,RJ70..HT W/SUN ROOF |
1 | ||
| 61705-90K03 |
BJ70,LJ70,RJ70..HT |
1 | ||
| 61705-90K00 |
BJ70,71,LJ70,RJ70..HT W/O RR SEAT |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-90K03 |
BJ70,LJ70,RJ70..HT |
1 | ||
| 61706-90K18 |
BJ70,LJ70,RJ70..HT W/SUN ROOF |
1 | ||
| 61706-90K00 |
BJ70,71,LJ70,RJ70..HT W/O RR SEAT |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61709-90K00 |
BJ70,71,73,LJ7#,RJ7# |
1 | ||
| 61725-90K02 |
BJ70,71,73,LJ7#,RJ7# W/FUEL FILLER DOOR OPENER |
1 | ||
| 61743 - REINFORCEMENT, BACK DOOR OPENING, INNER RH | ||||
| 61743-90K03 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 61744 - REINFORCEMENT, BACK DOOR OPENING, INNER LH | ||||
| 61744-90K03 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 61748B - REINFORCEMENT, ROOF SIDE, INNER REAR, LH | ||||
| 61749-90K00 |
BJ70,71,73,LJ7#,RJ7# |
1 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-90K00 |
BJ70,71,LJ70,RJ70..HT |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-90K00 |
BJ70,71,73,LJ7#,RJ7# |
1 | ||
| 61856 - BRACKET, REAR WASHER TANK, LOWER | ||||
| 61856-90K00 |
BJ70,71,73,LJ7#,RJ7#..HT |
1 | ||
| 64198B - BRACKET, LOWER BACK RAIL, INNER SIDE RH | ||||
| 64198-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| 64199B - BRACKET, LOWER BACK RAIL, INNER SIDE LH | ||||
| 64199-90K00 |
BJ7#,LJ7#,RJ7#..HT,SOT |
1 | ||
| Common parts | ||||
| 90950-01126 | ||||
| 90950-01127 | ||||
| 90950-01324 | ||||
| 90950-01398 | ||||
| 90950-06024 | ||||
| 91651-40612 | ||||
| 94180-40800 | ||||
| Linked diagrams | ||||
| 7751 | ||||

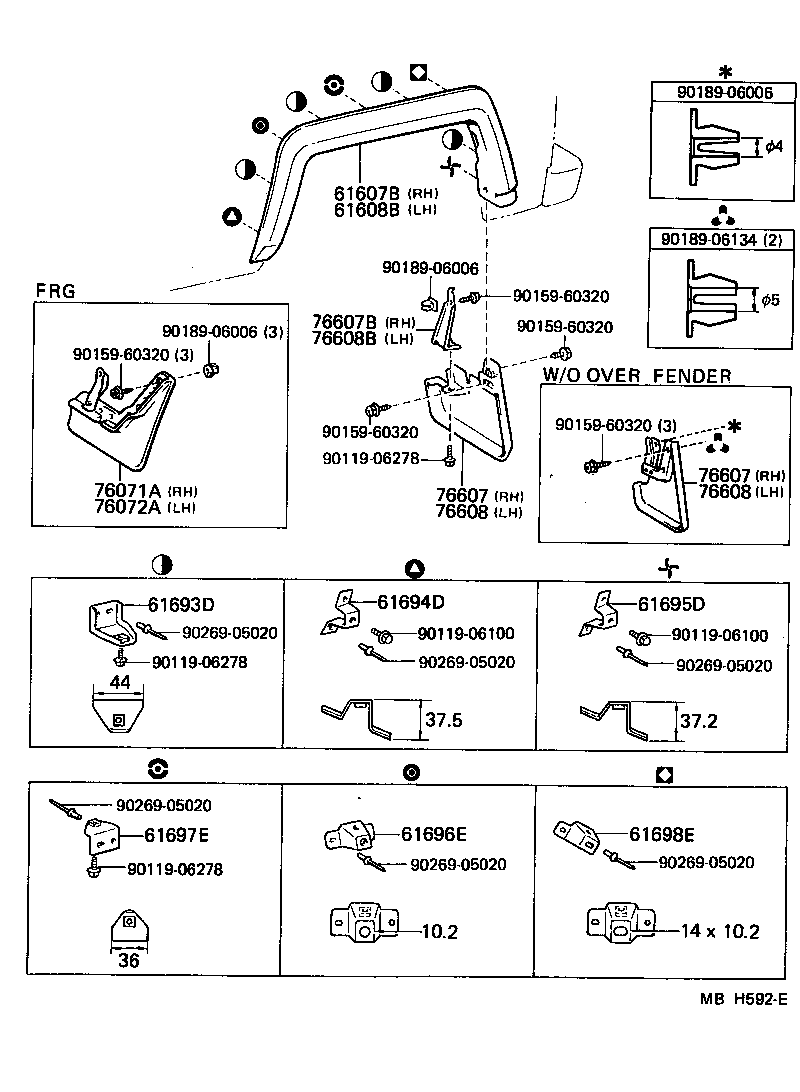

ILLUST NO. 2 OF 2(8411- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 76071A - MUDGUARD SUB-ASSY, QUARTER PANEL, FRONT RH | ||||
| 76071-90K00 |
LJ70,RJ70..HT *FRG |
1 | ||
| 76072A - MUDGUARD SUB-ASSY, QUARTER PANEL, FRONT LH | ||||
| 76072-90K00 |
LJ70,RJ70..HT *FRG |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-90K00 |
BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD,VM) |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-90K00 |
BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD,VM) |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-90K00 |
BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD,VM) |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-90K00 |
BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD,VM) |
1 | ||
| Common parts | ||||
| 90119-06100 | ||||
| 90119-06278 | ||||
| 90159-60320 | ||||
| 90189-06006 | ||||
| 90189-06134 | ||||
| 90269-05020 | ||||
