LJ70LV-MNXW (1990)
Toyota Land Cruiser

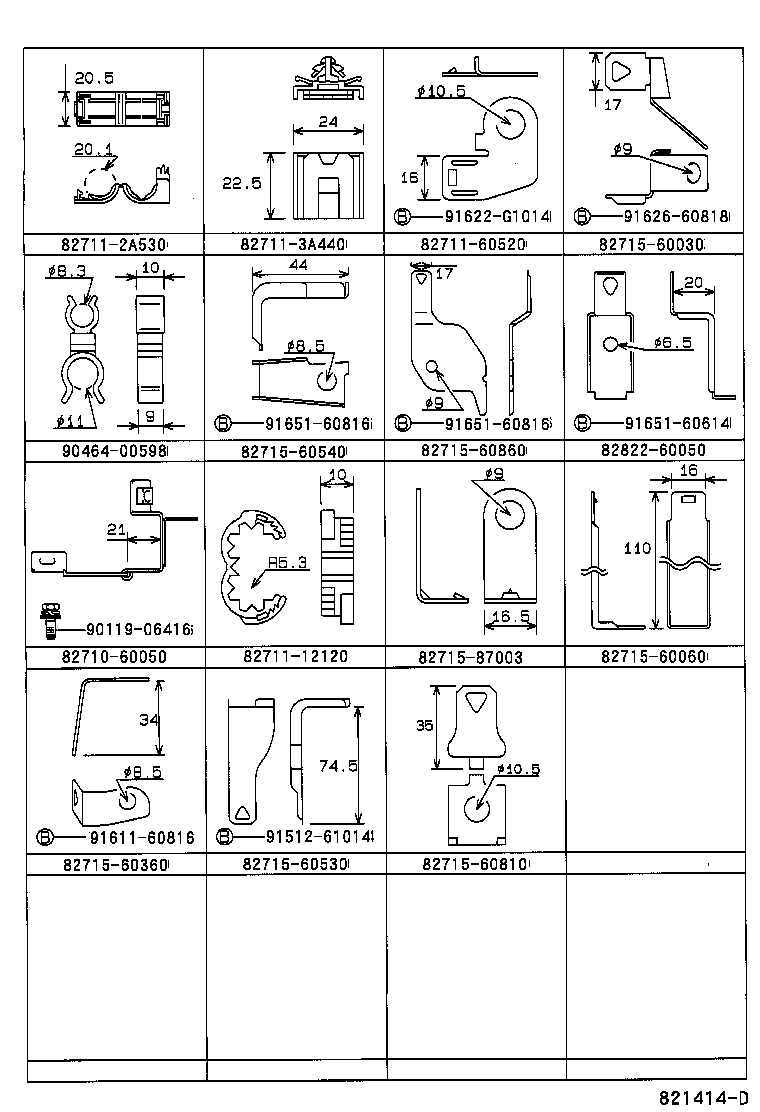

ILLUST NO. 4 OF 5(9001- )
CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-60050 | ||||
| 82711-12120 | ||||
| 82711-2A530 | ||||
| 82711-3A440 | ||||
| 82711-60520 | ||||
| 82715-60030 | ||||
| 82715-60060 | ||||
| 82715-60360 | ||||
| 82715-60530 | ||||
| 82715-60540 | ||||
| 82715-60810 | ||||
| 82715-60860 | ||||
| 82715-87003 | ||||
| 82822-60050 | ||||
| 90119-06416 | ||||
| 90464-00598 | ||||
| 91512-61014 | ||||
| 91611-60816 | ||||
| 91622-G1014 | ||||
| 91626-60818 | ||||
| 91651-60614 | ||||
| 91651-60816 | ||||

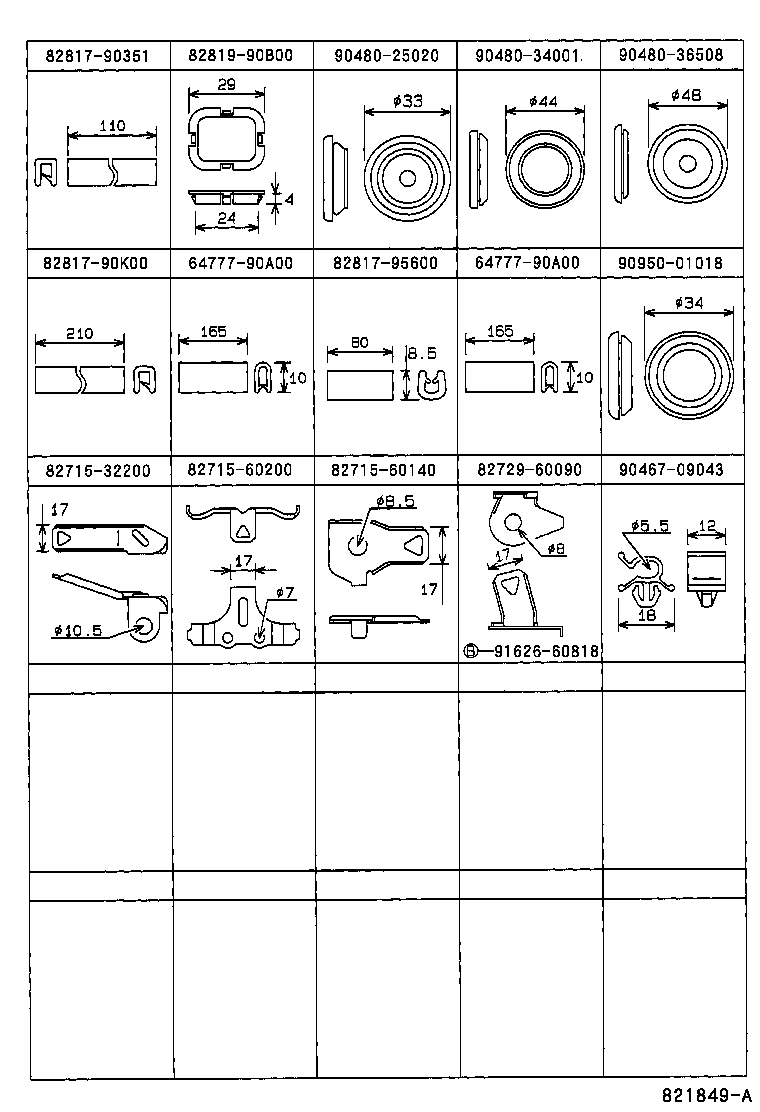

ILLUST NO. 5 OF 5(9001- )
PROTECTOR & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 64777-90A00 | ||||
| 82715-32200 | ||||
| 82715-60140 | ||||
| 82715-60200 | ||||
| 82729-60090 | ||||
| 82817-90351 | ||||
| 82817-90K00 | ||||
| 82817-95600 | ||||
| 82819-90B00 | ||||
| 90467-09043 | ||||
| 90480-25020 | ||||
| 90480-34001 | ||||
| 90480-36508 | ||||
| 90950-01018 | ||||
| 91626-60818 | ||||

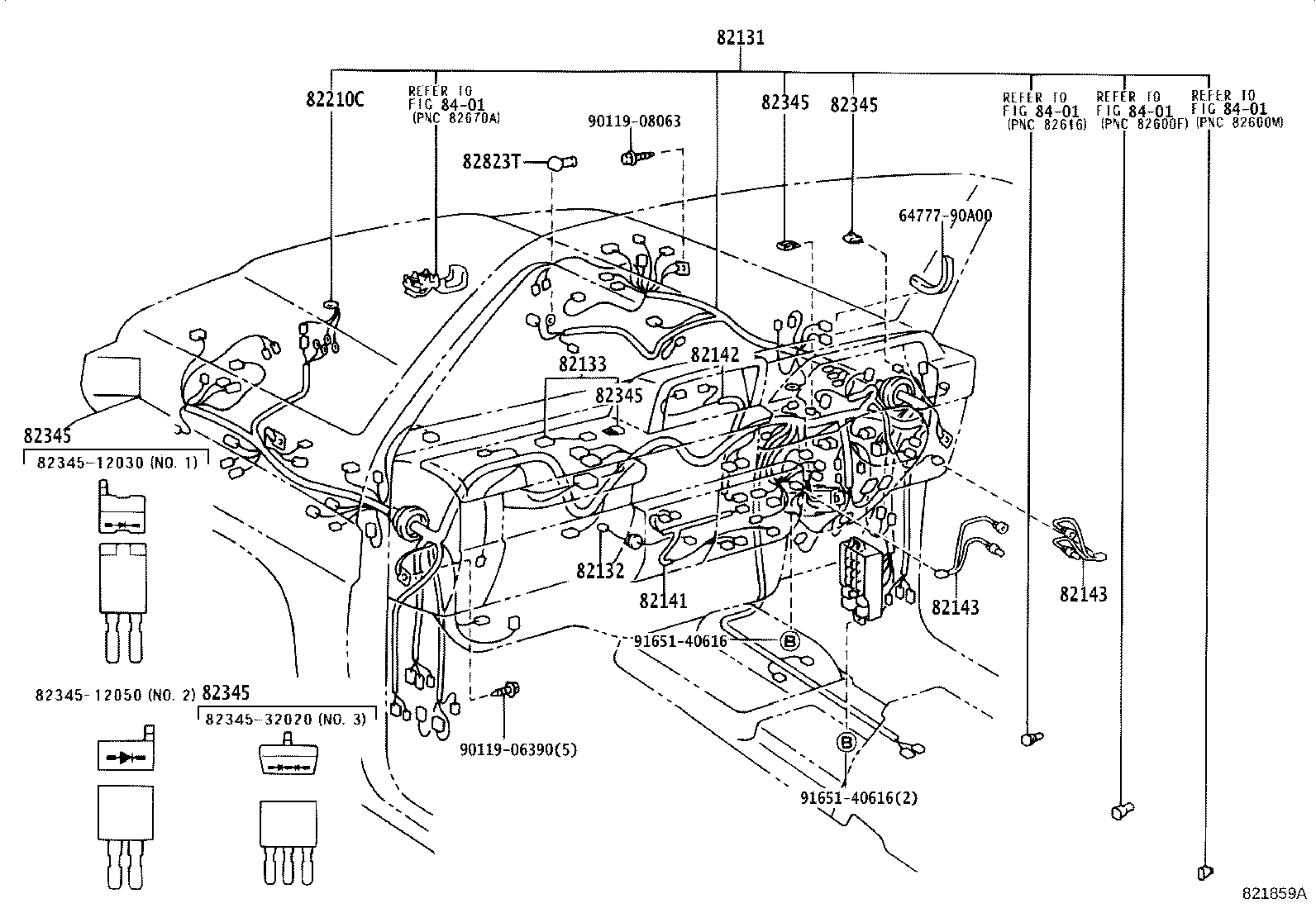

ILLUST NO. 2 OF 5(9001- )
COWL & INSTRUMENT PANEL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-60520 |
LJ70,73..LHD..(LX,VX) |
1 | ||
| 82131-60540 |
LJ70,73..LHD..LX NORWAY SPEC OR ICELAND SPEC |
1 | ||
| 82131-60550 |
LJ70,73..LHD..LX AUSTRIA SPEC |
1 | ||
| 82131-60540 |
LJ70,73..LHD..LX NORWAY SPEC OR DENMARK SPEC OR ICELAND SPEC |
1 | ||
| 82131-60521 |
LJ70,73..LHD..HT..(LX,STD) NORWAY SPEC OR DENMARK SPEC OR ICELAND SPEC |
1 | ||
| 82131-60551 |
LJ70,73..LHD..LX AUSTRIA SPEC |
1 | ||
| 82131-60521 |
LJ70,73..LHD..(LX,VX) |
1 | ||
| 82131-60522 |
LJ70,73..LHD..(LX,VX) |
1 | ||
| 82131-60552 |
LJ70,73..LHD..LX AUSTRIA SPEC |
1 | ||
| 82131-60553 |
LJ7#..LX AUSTRIA SPEC |
1 | ||
| 82131-60523 |
LJ7# |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-60020 |
LJ70..LHD..LX;LJ70..HT..(STD,VX);LJ73,RJ70..CBR,DSL |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-60090 |
BJ73,HZJ7#,LJ7#,RJ7#..LX,VM,VX |
1 | ||
| 82141-60091 |
BJ73,HZJ7#,LJ7#,RJ7#..LX,VM,VX |
1 | ||
| 82141-60092 |
BJ73,HZJ70,73,LJ7#,RJ7#..LX,VM,VX |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-90K04 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 82142-60031 |
HZJ75..PIC;LJ70..LHD..VX;LJ70..HT..(LX,STD);BJ73,HZJ70,73,LJ73,77,RJ7# W(THERMOMETER) |
1 | ||
| 82142-60020 |
BJ73,HZJ7#,LJ7#,PZJ75,RJ7# |
1 | ||
| 82142-90K05 |
PZJ75..PIC;LJ70..LHD..VX;LJ70..HT..(LX,STD);BJ73,HZJ7#,LJ73,77,PZJ70,73,RJ7# W(THERMOMETER) |
1 | ||
| 82142-60021 |
BJ73,HZJ7#,LJ7#,RJ7# |
1 | ||
| 82142-60030 |
PZJ75..PIC;LJ70..LHD..VX;LJ70..HT..(LX,STD);BJ73,HZJ7#,LJ73,77,RJ7# W(THERMOMETER) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08236 |
HZJ7#,LJ7#,PZJ7# |
1 | ||
| 90982-08261 |
LJ7# L=110,0.5 GREEN |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# NO.2 |
1 | ||
| 82345-32020 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# NO.3 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# NO.2 |
1 | ||
| 82345-32020 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# NO.3 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# NO.2 |
1 | ||
| 82345-32020 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# NO.3 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# NO.2 |
1 | ||
| 82345-32020 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# NO.3 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# NO.2 |
1 | ||
| 82345-32020 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# NO.3 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22060 |
HZJ7#,LJ7#,PZJ7# |
1 | ||
| 82823-17010 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 82823-22060 |
LJ7# |
1 | ||
| Common parts | ||||
| 64777-90A00 | ||||
| 90119-06390 | ||||
| 90119-08063 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

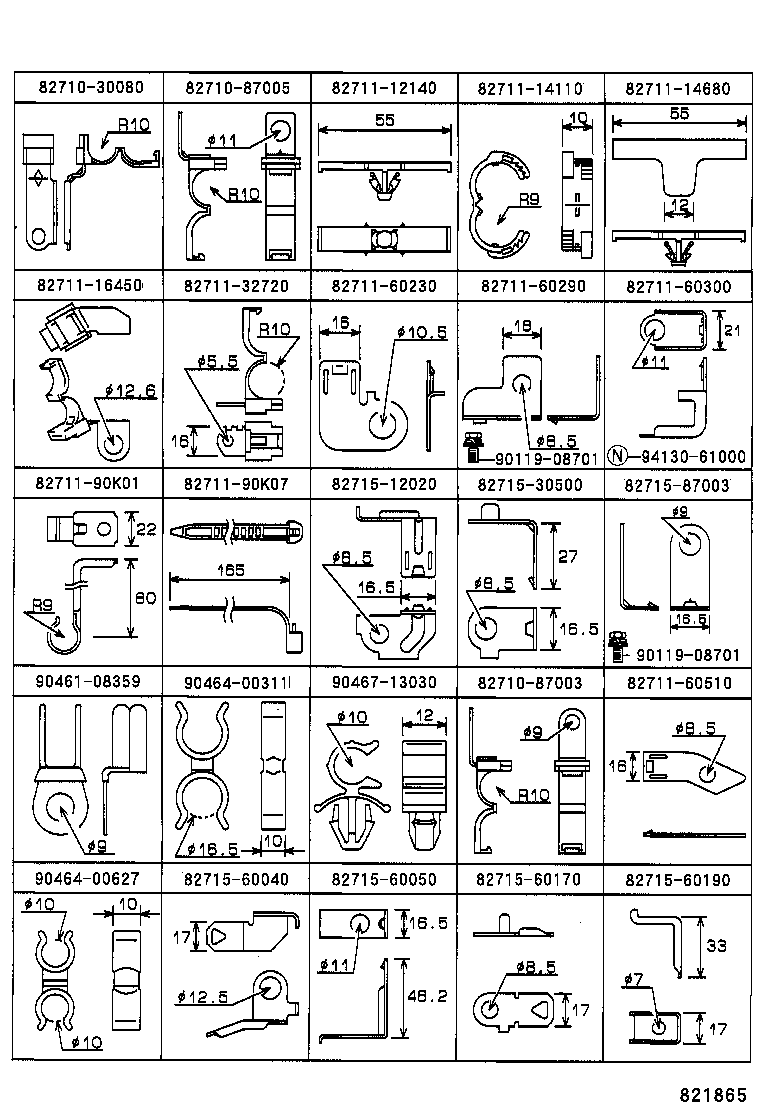

ILLUST NO. 4 OF 5(9001- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-30080 | ||||
| 82710-87003 | ||||
| 82710-87005 | ||||
| 82711-12140 | ||||
| 82711-14110 | ||||
| 82711-14680 | ||||
| 82711-16450 | ||||
| 82711-32720 | ||||
| 82711-60230 | ||||
| 82711-60290 | ||||
| 82711-60300 | ||||
| 82711-60510 | ||||
| 82711-90K01 | ||||
| 82711-90K07 | ||||
| 82715-12020 | ||||
| 82715-30500 | ||||
| 82715-60040 | ||||
| 82715-60050 | ||||
| 82715-60170 | ||||
| 82715-60190 | ||||
| 82715-87003 | ||||
| 90119-08701 | ||||
| 90461-08359 | ||||
| 90464-00311 | ||||
| 90464-00627 | ||||
| 90467-13030 | ||||
| 94130-61000 | ||||

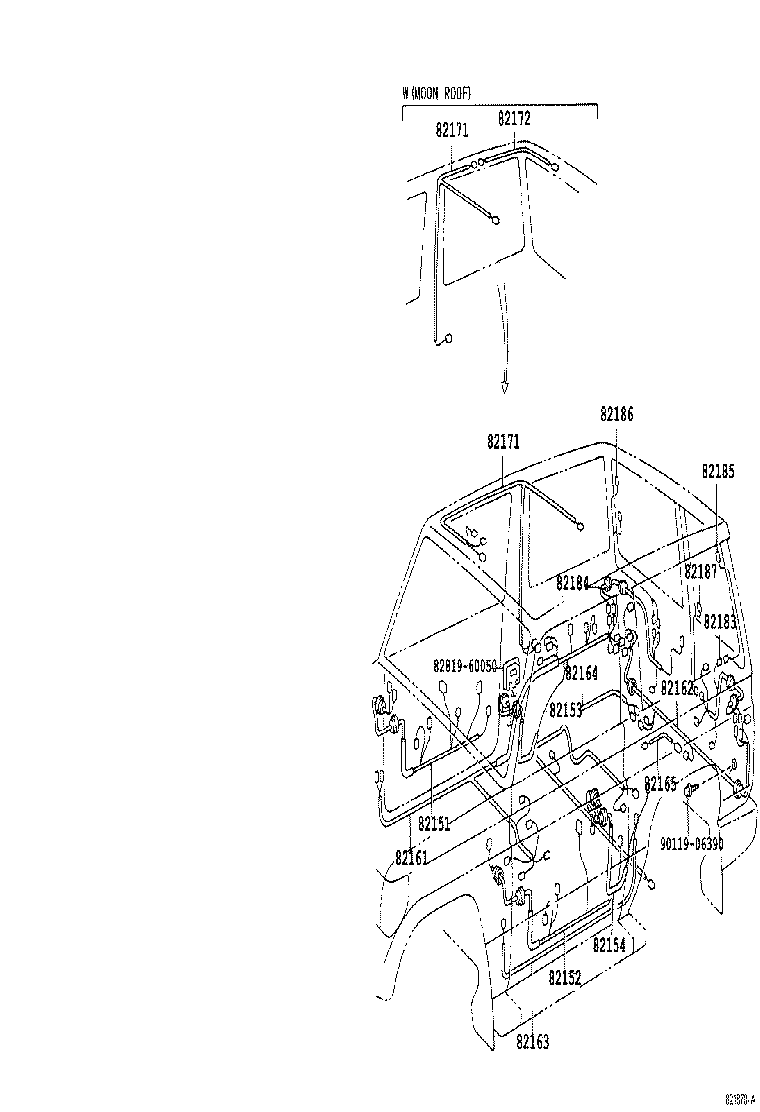

ILLUST NO. 3 OF 5(9001- )BJ73,HZJ7#,KZJ7#,LJ70,73,PZJ7#,RJ7#
ROOF,DOOR,FLOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82152-60090 |
RJ73;LJ70,73,RJ70..LHD..(LX,VX)..(CBR,DSL) |
1 | ||
| 82151-60100 |
RJ73;HZJ7#,LJ70,73,RJ70..LX..(CBR,DSL) W(*EL) |
1 | ||
| 82151-60100 |
HZJ70,73,LJ70,73,RJ7#..LX W(*EL) |
1 | ||
| 82152-60090 |
LJ70,73,RJ7#..LHD..LX W(POWER WINDOW & *EL) |
1 | ||
| 82152-60090 |
RJ73;LJ70,73,RJ70..LHD..LX..(CBR,DSL) W(POWER WINDOW & *EL) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-60060 |
RJ73;LJ70,73,RJ70..LHD..LX..(CBR,DSL) W(POWER WINDOW & *EL) |
1 | ||
| 82152-60080 |
HZJ70,73,LJ70,73,RJ7#..LX W(*EL) |
1 | ||
| 82152-60060 |
LJ70,73,RJ7#..LHD..LX W(POWER WINDOW & *EL) |
1 | ||
| 82152-60080 |
RJ73;HZJ7#,LJ70,73,RJ70..LX..(CBR,DSL) W(*EL) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-60110 |
HZJ70,LJ70,RJ70..LX,VX |
1 | ||
| 82161-60120 |
LJ70..LHD..VX;HZJ70,LJ70,RJ70..LX..(CBR,DSL) W(*FFA) OR W(THERMOMETER) OR W(MOON ROOF) |
1 | ||
| 82161-60121 |
LJ70..LHD..VX;HZJ70,LJ70,RJ70..LX..(CBR,DSL) W(*FFA) OR W(THERMOMETER) OR W(MOON ROOF) |
1 | ||
| 82161-60111 |
HZJ70,LJ70,RJ70..LX,VX |
1 | ||
| 82161-60112 |
HZJ70,LJ70,RJ70..LX,VX |
1 | ||
| 82161-60123 |
LJ70..LHD..VX;HZJ70,LJ70,RJ70..LX W(MOON ROOF) OR W(THERMOMETER) |
1 | ||
| 82161-60122 |
LJ70..LHD..VX;HZJ70,LJ70,RJ70..LX..(CBR,DSL) W(*FFA) OR W(THERMOMETER) OR W(MOON ROOF) |
1 | ||
| 82161-60113 |
HZJ70,LJ70,RJ70..LX,VX |
1 | ||
| 82161-60113 |
HZJ70,KZJ70,LJ70,RJ70..LX,VX |
1 | ||
| 82161-60123 |
KZJ70..LX;KZJ70..LHD..VX;HZJ70,LJ70,RJ70 W(MOON ROOF) OR W(THERMOMETER) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-60080 |
HZJ7#,LJ7#,PZJ7#,RJ7#..LHD..(HT,SOT)..(LX,STD) |
1 | ||
| 82162-60081 |
HZJ7#,LJ7#,PZJ75,RJ7#..LHD..(HT,SOT)..(LX,STD) |
1 | ||
| 82162-60091 |
LJ70,73..LHD..LX W(*FFA) OR W(*RWD) OR W(HARNESS FOR TRAILER SOCKET) OR W(CASSETTE) |
1 | ||
| 82162-60090 |
LJ7#,RJ7#..LHD..HT..(LX,STD) W(*FFA) OR W(*RWD) OR W(HARNESS FOR TRAILER SOCKET) |
1 | ||
| 82162-60082 |
HZJ7#,KZJ7#,LJ7#,RJ7#..LHD..(HT,SOT)..(LX,STD) |
1 | ||
| 82162-60092 |
LJ70..LHD..LX;BJ73,LJ70,73..VM,VX |
1 | ||
| 82162-60092 |
LJ7#,RJ7#..LX W(HARNESS FOR TRAILER SOCKET) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-60120 |
BJ73,HZJ7#,LJ70,73,PZJ70,73,RJ7#..HT |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-60100 |
LJ70,73,RJ7# |
1 | ||
| 82164-60101 |
LJ70,73,RJ7# |
1 | ||
| 82164-60102 |
LJ70,73 |
1 | ||
| 82164-60103 |
LJ70,73 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60310 |
HZJ70,LJ70,RJ70..HT |
1 | ||
| 82171-90K04 |
HZJ70,LJ70,PZJ70,RJ70..HT |
1 | ||
| 82171-60320 |
HZJ70,LJ70,RJ70..LX,VX W(MOON ROOF) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60310 |
HZJ70,LJ70,RJ70..HT |
1 | ||
| 82171-90K04 |
HZJ70,LJ70,PZJ70,RJ70..HT |
1 | ||
| 82171-60320 |
HZJ70,LJ70,RJ70..LX,VX W(MOON ROOF) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-90K01 |
HZJ70,LJ70,RJ70..LX,VX |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-60090 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..(HT,SOT)..(LX,STD,VM) |
1 | ||
| 82183-60091 |
BJ73,HZJ7#,LJ7#,PZJ75,RJ7#..(HT,SOT)..(LX,STD,VM) |
1 | ||
| 82183-60112 |
LJ70..VX;LJ73,RJ7#;LJ70..LHD..LX W(4 SPEAKER RADIO) |
1 | ||
| 82183-60100 |
PZJ75..HT;BJ73,HZJ7#,LJ7#,RJ7#..LX,VM W(*EL) |
1 | ||
| 82183-60111 |
LJ70..VX;LJ73,RJ7#;LJ70..LHD..LX W(4 SPEAKER RADIO) |
1 | ||
| 82183-60101 |
PZJ75..HT;BJ73,HZJ7#,LJ7#,RJ7#..LX,VM W(*EL) |
1 | ||
| 82183-60102 |
LJ70..LX;BJ73,HZJ7#,LJ73,77,RJ7#..HT..(LX,STD,VM) W(*EL) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-60080 |
HZJ7#,LJ7#,RJ7#..LX,VX |
1 | ||
| 82184-60092 |
LJ70..VX;LJ73,RJ7#;LJ70..LHD..LX W(4 SPEAKER RADIO) |
1 | ||
| 82184-60081 |
HZJ7#,LJ7#,RJ7#..LX,VX |
1 | ||
| 82184-60091 |
LJ70..VX;LJ73,RJ7#;LJ70..LHD..LX W(4 SPEAKER RADIO) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-60050 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT LH DOOR |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-60020 |
BJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-90K00 |
BJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT |
1 | ||
| Common parts | ||||
| 82819-60050 | ||||
| 90119-06390 | ||||

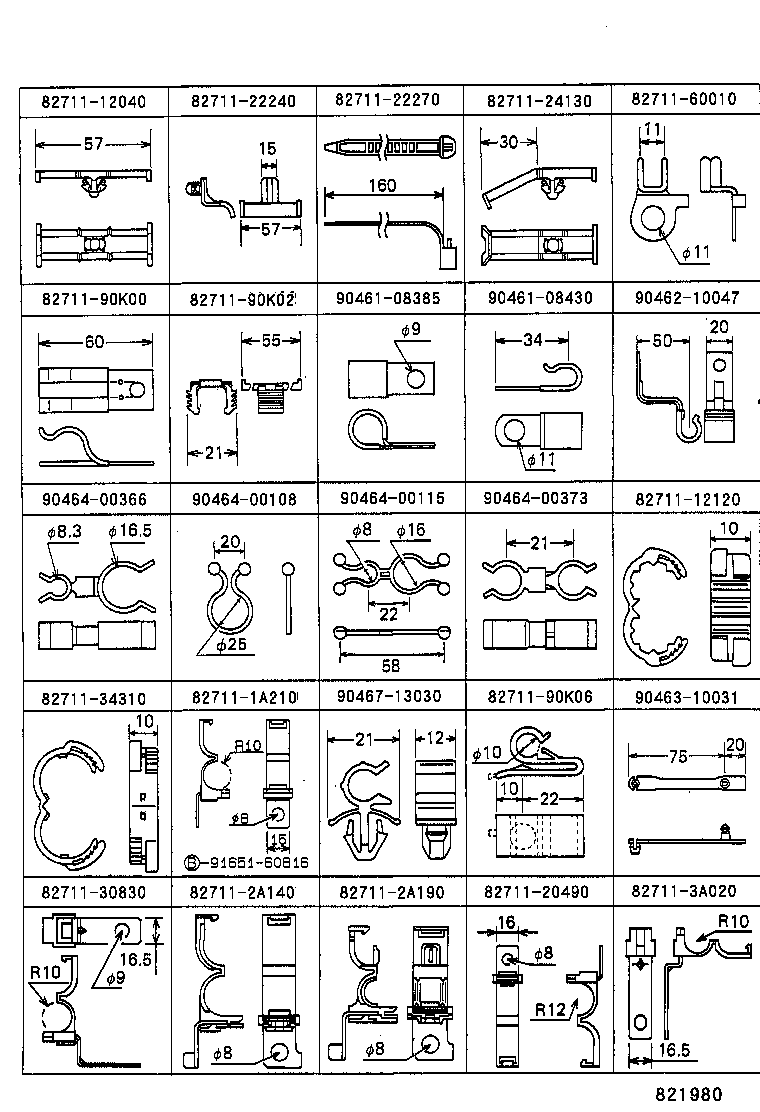

ILLUST NO. 4 OF 5(9001- )
CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12040 | ||||
| 82711-12120 | ||||
| 82711-1A210 | ||||
| 82711-20490 | ||||
| 82711-22240 | ||||
| 82711-22270 | ||||
| 82711-24130 | ||||
| 82711-2A140 | ||||
| 82711-2A190 | ||||
| 82711-30830 | ||||
| 82711-34310 | ||||
| 82711-3A020 | ||||
| 82711-60010 | ||||
| 82711-90K00 | ||||
| 82711-90K02 | ||||
| 82711-90K06 | ||||
| 90461-08385 | ||||
| 90461-08430 | ||||
| 90462-10047 | ||||
| 90463-10031 | ||||
| 90464-00108 | ||||
| 90464-00115 | ||||
| 90464-00366 | ||||
| 90464-00373 | ||||
| 90467-13030 | ||||

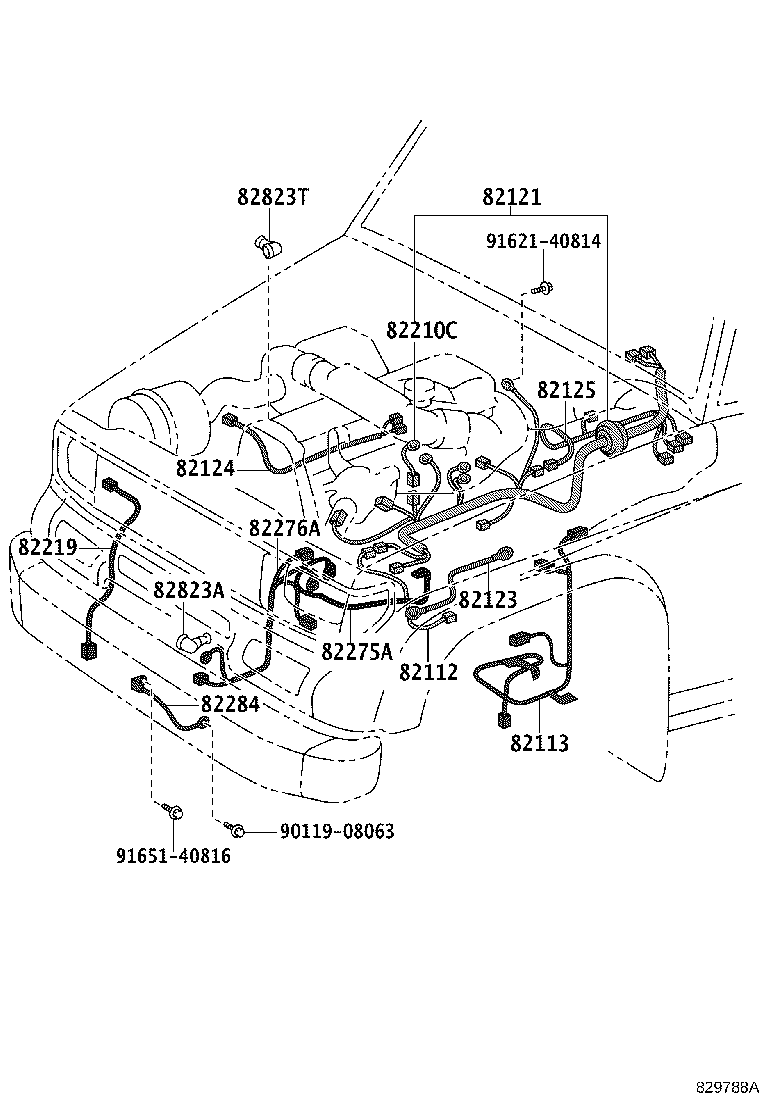

ILLUST NO. 1 OF 5(9001- )KZJ7#,LJ7#
ENGINE & TRANSMISSION WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-60060 |
LJ7#,RJ7#..LHD..(LX,VX)..(DSL,EFI) |
1 | ||
| 82112-60061 |
LJ7#,RJ7#..LHD..(LX,VX)..(DSL,EFI) |
1 | ||
| 82112-60062 |
LJ7#,RJ7#..(LX,VX)..(DSL,EFI) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-60032 |
LJ7#,RJ7#..LX,VX |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-60200 |
LJ7# |
1 | ||
| 82121-60190 |
LJ70,73..LHD..LX AUSTRIA SPEC |
1 | ||
| 82121-60191 |
LJ70,73..LHD..LX AUSTRIA SPEC |
1 | ||
| 82121-60201 |
LJ7# |
1 | ||
| 82121-60192 |
LJ70,73..LHD..LX AUSTRIA SPEC |
1 | ||
| 82121-60202 |
LJ7# |
1 | ||
| 82121-60203 |
LJ7# |
1 | ||
| 82121-60193 |
LJ7#..LX AUSTRIA SPEC |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-90K05 |
LJ7#,RJ7# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-60020 |
LJ7# |
1 | ||
| 82124-90K01 |
LJ7# |
1 | ||
| 82124-60020 |
LJ7# |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-60120 |
LJ7#,PZJ70,73 |
1 | ||
| 82125-60121 |
LJ7#,RJ7# |
1 | ||
| 82125-60120 |
LJ7#,PZJ70,73,RJ7# |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08236 |
HZJ7#,LJ7#,PZJ7# |
1 | ||
| 90982-08261 |
LJ7# L=110,0.5 GREEN |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82219-90K00 |
LJ70..LHD..VX;HZJ75,PZJ75..PIC;LJ70..HT..(LX,STD);BJ73,HZJ70,73,LJ73,77,PZJ70,73,RJ7# |
1 | ||
| 82275A - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 82275-90K02 |
LJ70,73,RJ7#..LHD |
1 | ||
| 82275-90K02 |
KZJ73,LJ70..LX;KZJ70,LJ73,RJ7#..LHD |
1 | ||
| 82276A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 82276-60040 |
LJ70..LX,STD;LJ70..LHD..VX;HZJ7#,LJ73,PZJ7#,RJ7#..DSL,EFI |
1 | ||
| 82276-60040 |
KZJ70..LHD..VX;HZJ7#,KZJ70,73,LJ7#,RJ7#..LX,STD |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-60030 |
LJ73,RJ7#;LJ70..LX,STD;LJ70..LHD..VX |
1 | ||
| 82284-60030 |
KZJ70..LHD..VX;KZJ70,73,LJ7#,RJ7#..LX,STD |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-90300 |
KZJ70..LHD..VX;HZJ7#,KZJ70,73,LJ7#,RJ7#..LX,STD |
1 | ||
| 82823-90300 |
LJ70..LX,STD;LJ70..LHD..VX;HZJ7#,LJ73,PZJ7#,RJ7# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22060 |
HZJ7#,LJ7#,PZJ7# |
1 | ||
| 82823-17010 |
HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 82823-22060 |
LJ7# |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 91621-40814 | ||||
| 91651-40816 | ||||

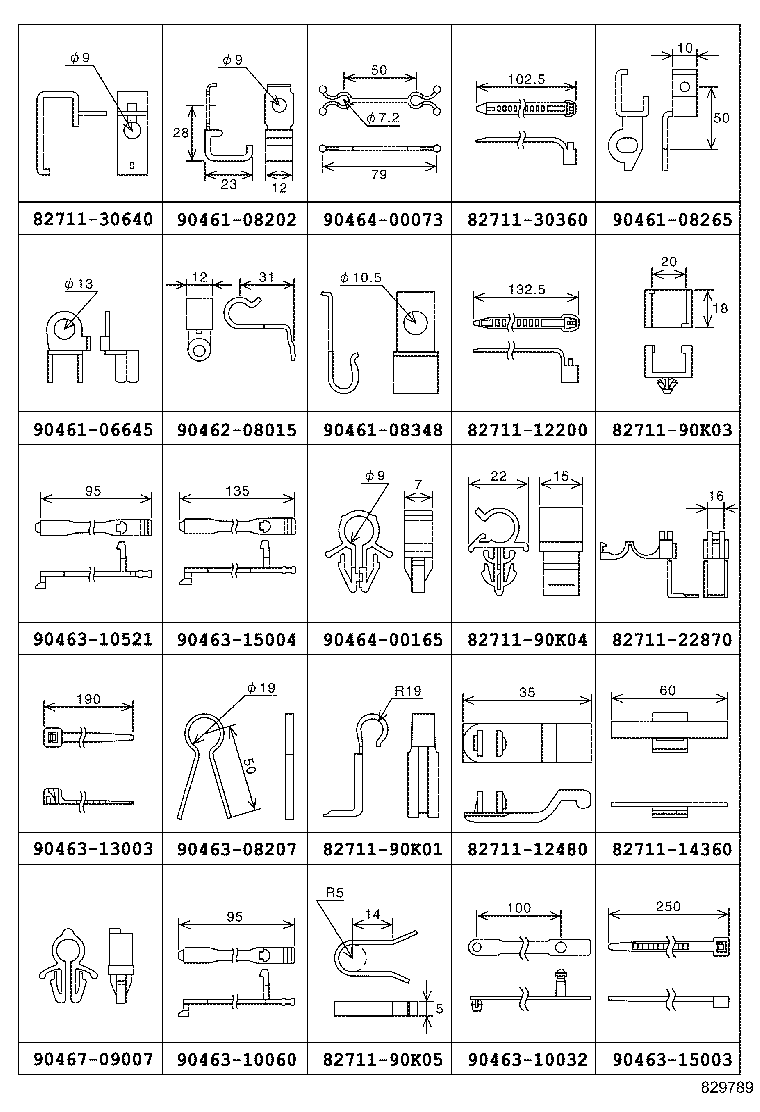

ILLUST NO. 4 OF 5(9001- )
CLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12480 | ||||
| 82711-14360 | ||||
| 82711-22870 | ||||
| 82711-30360 | ||||
| 82711-30640 | ||||
| 82711-90K01 | ||||
| 82711-90K03 | ||||
| 82711-90K04 | ||||
| 82711-90K05 | ||||
| 90461-06645 | ||||
| 90461-08202 | ||||
| 90461-08265 | ||||
| 90461-08348 | ||||
| 90462-08015 | ||||
| 90463-08207 | ||||
| 90463-10032 | ||||
| 90463-10060 | ||||
| 90463-10521 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90463-15004 | ||||
| 90464-00073 | ||||
| 90464-00165 | ||||
| 90467-09007 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
