Toyota Land cruiser LJ70 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
EU
LAND CRUISER
LJ70LV-MEXW (1990)
5252 - FRONT BUMPER & BUMPER STAY

LJ70LV-MEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995

Engine 2LT

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9001- )

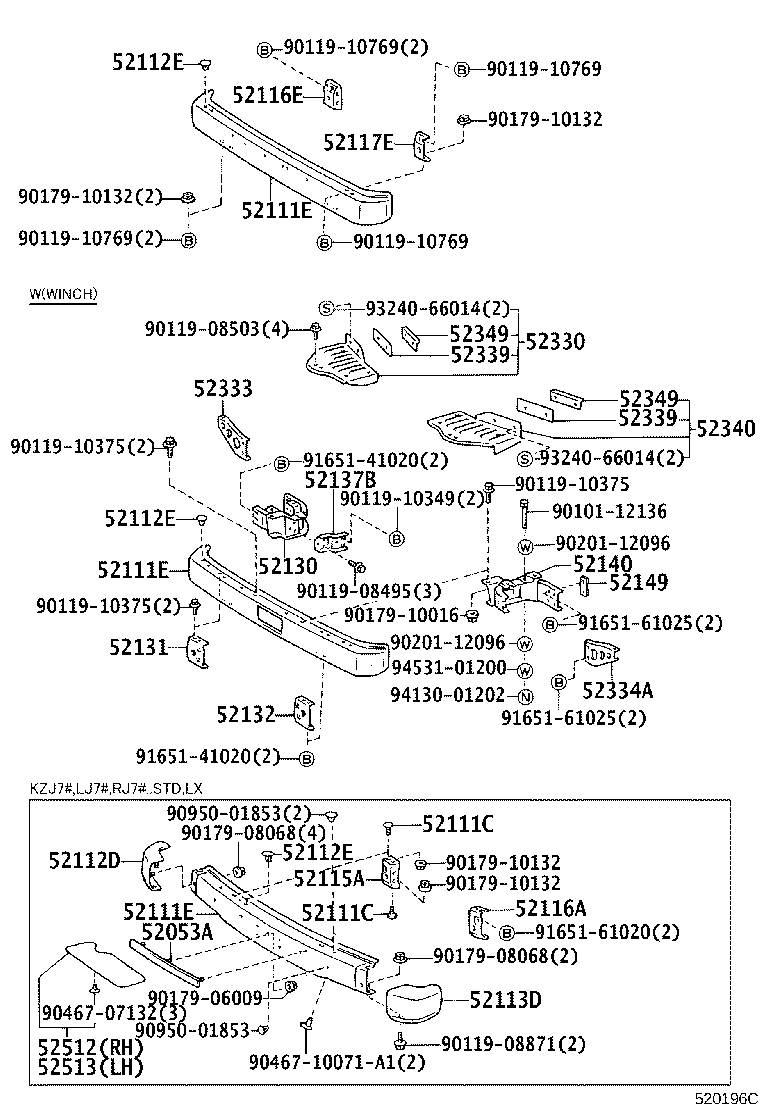

Click highlighted areas on diagram

Part #	Description	Period	Qty
52053A - PAD SUB-ASSY, FRONT BUMPER, CENTER
52053-60010	LJ70..LHD..HT;LJ73,RJ70..LX..(CBR,DSL) *FRG	01/1990 - 05/1993	1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10022	LJ70..LX;LJ73,77,RJ7#;LJ70..LHD..VX W/O CHROME PACKAGE	01/1990 - 05/1993	4
90112-10021	LJ70,73,RJ7#..LX,VX	01/1990 - 05/1993	4
90112-10022	KZJ70..LX;KZJ70..LHD..VX;KZJ73,77,LJ7#,RJ7# W/O CHROME PACKAGE	05/1993 - 03/1994	4
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10022	LJ70..LX;LJ73,77,RJ7#;LJ70..LHD..VX W/O CHROME PACKAGE	01/1990 - 05/1993	4
90112-10021	LJ70,73,RJ7#..LX,VX	01/1990 - 05/1993	4
90112-10022	KZJ70..LX;KZJ70..LHD..VX;KZJ73,77,LJ7#,RJ7# W/O CHROME PACKAGE	05/1993 - 03/1994	4
52111E - BAR, FRONT BUMPER
52111-60330	LJ70..LX;LJ70..LHD..VX;LJ73,RJ7#..DSL,EFI NO PAINT REQ.,W/O CHROME PACKAGE & W(*EW)	01/1990 - 08/1991	1
52111-60340	LJ70..LHD..VX;LJ70,73,RJ7#..LX..(DSL,EFI) PLATED,W(*EW)	01/1990 - 08/1991	1
52111-60320	LJ70..LHD..VX;LJ70,73,RJ7#..LX PLATED	01/1990 - 05/1993	1
52111-60360	LJ70..LHD..(LX,VX);LJ73,RJ70..LX..(CBR,DSL) PLATED,*FRG	01/1990 - 05/1993	1
52111-60340	LJ70..LHD..VX;LJ70,73,RJ7#..LX PLATED,W(*EW)	08/1991 - 05/1993	1
52111-60350	LJ70..LHD..(LX,VX);LJ73,RJ70..LX..(CBR,DSL) NO PAINT REQ.,*FRG & W/O CHROME PACKAGE	01/1990 - 05/1993	1
52111-60330	LJ70..LX;LJ73,RJ7#;LJ70..LHD..VX NO PAINT REQ.,W/O CHROME PACKAGE & W(*EW)	08/1991 - 05/1993	1
52111-60310	LJ7#,RJ7#..LX;LJ70..LHD..VX NO PAINT REQ.,W/O CHROME PACKAGE	01/1990 - 05/1993	1
52111E - BAR, FRONT BUMPER
52111-60330	LJ70..LX;LJ70..LHD..VX;LJ73,RJ7#..DSL,EFI NO PAINT REQ.,W/O CHROME PACKAGE & W(*EW)	01/1990 - 08/1991	1
52111-60340	LJ70..LHD..VX;LJ70,73,RJ7#..LX..(DSL,EFI) PLATED,W(*EW)	01/1990 - 08/1991	1
52111-60320	LJ70..LHD..VX;LJ70,73,RJ7#..LX PLATED	01/1990 - 05/1993	1
52111-60360	LJ70..LHD..(LX,VX);LJ73,RJ70..LX..(CBR,DSL) PLATED,*FRG	01/1990 - 05/1993	1
52111-60340	LJ70..LHD..VX;LJ70,73,RJ7#..LX PLATED,W(*EW)	08/1991 - 05/1993	1
52111-60350	LJ70..LHD..(LX,VX);LJ73,RJ70..LX..(CBR,DSL) NO PAINT REQ.,*FRG & W/O CHROME PACKAGE	01/1990 - 05/1993	1
52111-60330	LJ70..LX;LJ73,RJ7#;LJ70..LHD..VX NO PAINT REQ.,W/O CHROME PACKAGE & W(*EW)	08/1991 - 05/1993	1
52111-60310	LJ7#,RJ7#..LX;LJ70..LHD..VX NO PAINT REQ.,W/O CHROME PACKAGE	01/1990 - 05/1993	1
52111E - BAR, FRONT BUMPER
52111-60330	LJ70..LX;LJ70..LHD..VX;LJ73,RJ7#..DSL,EFI NO PAINT REQ.,W/O CHROME PACKAGE & W(*EW)	01/1990 - 08/1991	1
52111-60340	LJ70..LHD..VX;LJ70,73,RJ7#..LX..(DSL,EFI) PLATED,W(*EW)	01/1990 - 08/1991	1
52111-60320	LJ70..LHD..VX;LJ70,73,RJ7#..LX PLATED	01/1990 - 05/1993	1
52111-60360	LJ70..LHD..(LX,VX);LJ73,RJ70..LX..(CBR,DSL) PLATED,*FRG	01/1990 - 05/1993	1
52111-60340	LJ70..LHD..VX;LJ70,73,RJ7#..LX PLATED,W(*EW)	08/1991 - 05/1993	1
52111-60350	LJ70..LHD..(LX,VX);LJ73,RJ70..LX..(CBR,DSL) NO PAINT REQ.,*FRG & W/O CHROME PACKAGE	01/1990 - 05/1993	1
52111-60330	LJ70..LX;LJ73,RJ7#;LJ70..LHD..VX NO PAINT REQ.,W/O CHROME PACKAGE & W(*EW)	08/1991 - 05/1993	1
52111-60310	LJ7#,RJ7#..LX;LJ70..LHD..VX NO PAINT REQ.,W/O CHROME PACKAGE	01/1990 - 05/1993	1
52112D - EXTENSION, FRONT BUMPER, RH
52102-60060	LJ7#,RJ7# NO PAINT REQ.	01/1990 - 05/1993	1
52112E - PLUG, HOLE(FOR FRONT BUMPER EXTENSION)
90950-01608	LJ70..LX,VX;HZJ70,71,73,74,78,79,LJ73,77,RJ7#..LX,STD	01/1990 - 08/2001	4
52112E - PLUG, HOLE(FOR FRONT BUMPER EXTENSION)
90950-01608	LJ70..LX,VX;HZJ70,71,73,74,78,79,LJ73,77,RJ7#..LX,STD	01/1990 - 08/2001	4
52112E - PLUG, HOLE(FOR FRONT BUMPER EXTENSION)
90950-01608	LJ70..LX,VX;HZJ70,71,73,74,78,79,LJ73,77,RJ7#..LX,STD	01/1990 - 08/2001	4
52113D - EXTENSION, FRONT BUMPER, LH
52103-60060	LJ7#,RJ7# NO PAINT REQ.	01/1990 - 05/1993	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-60030	LJ70..LHD..VX;LJ70,73,RJ7#..LX,STD W(*EW)	08/1991 - 02/1993	1
52115-60020	LJ70,73,RJ7# SR	01/1990 - 05/1993	1
52115-60030	LJ70..LHD..VX;LJ70,73,RJ7#..(LX,STD)..(DSL,EFI) W(*EW)	01/1990 - 08/1991	1
52115-60031	LJ70..LHD..VX;LJ70,73,RJ7#..LX,STD W(*EW)	02/1993 - 05/1993	1
52115-60032	KZJ77;LJ70..VX W(OVER FENDER)	05/1993 - 01/1995	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-60060	LJ70..LHD..VX;LJ70,73,RJ7#..(LX,STD)..(DSL,EFI) W(*EW)	01/1990 - 08/1991	1
52116-60061	LJ70..LHD..VX;LJ70,73,RJ7#..LX,STD W(*EW)	02/1993 - 05/1993	1
52116-60060	LJ70..LHD..VX;LJ70,73,RJ7#..LX,STD W(*EW)	08/1991 - 02/1993	1
52116-60050	LJ70,73,RJ7# SL	01/1990 - 05/1993	1
52116-60062	KZJ77;LJ70..VX W(OVER FENDER)	05/1993 - 01/1995	1
Common parts
90101-12136
90119-08495
90119-08503
90119-08871
90119-10349
90119-10375
90119-10769
90179-06009
90179-08068
90179-10016
90179-10132
90201-12096
90467-07132
90467-10071A1
90950-01853
91651-41020
91651-61020
91651-61025
93240-66014
94130-01202
94531-01200

(9001-9908)KZJ7#,LJ7#,RJ7#

Click highlighted areas on diagram

Part #	Description	Period	Qty
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10022	LJ70..LX;LJ73,77,RJ7#;LJ70..LHD..VX W/O CHROME PACKAGE	01/1990 - 05/1993	4
90112-10021	LJ70,73,RJ7#..LX,VX	01/1990 - 05/1993	4
90112-10022	KZJ70..LX;KZJ70..LHD..VX;KZJ73,77,LJ7#,RJ7# W/O CHROME PACKAGE	05/1993 - 03/1994	4
52111E - BAR, FRONT BUMPER
52111-60330	LJ70..LX;LJ70..LHD..VX;LJ73,RJ7#..DSL,EFI NO PAINT REQ.,W/O CHROME PACKAGE & W(*EW)	01/1990 - 08/1991	1
52111-60340	LJ70..LHD..VX;LJ70,73,RJ7#..LX..(DSL,EFI) PLATED,W(*EW)	01/1990 - 08/1991	1
52111-60320	LJ70..LHD..VX;LJ70,73,RJ7#..LX PLATED	01/1990 - 05/1993	1
52111-60360	LJ70..LHD..(LX,VX);LJ73,RJ70..LX..(CBR,DSL) PLATED,*FRG	01/1990 - 05/1993	1
52111-60340	LJ70..LHD..VX;LJ70,73,RJ7#..LX PLATED,W(*EW)	08/1991 - 05/1993	1
52111-60350	LJ70..LHD..(LX,VX);LJ73,RJ70..LX..(CBR,DSL) NO PAINT REQ.,*FRG & W/O CHROME PACKAGE	01/1990 - 05/1993	1
52111-60330	LJ70..LX;LJ73,RJ7#;LJ70..LHD..VX NO PAINT REQ.,W/O CHROME PACKAGE & W(*EW)	08/1991 - 05/1993	1
52111-60310	LJ7#,RJ7#..LX;LJ70..LHD..VX NO PAINT REQ.,W/O CHROME PACKAGE	01/1990 - 05/1993	1
52112D - EXTENSION, FRONT BUMPER, RH
52102-60060	LJ7#,RJ7# NO PAINT REQ.	01/1990 - 05/1993	1
52112E - PLUG, HOLE(FOR FRONT BUMPER EXTENSION)
90950-01608	LJ70..LX,VX;HZJ70,71,73,74,78,79,LJ73,77,RJ7#..LX,STD	01/1990 - 08/2001	4
52113D - EXTENSION, FRONT BUMPER, LH
52103-60060	LJ7#,RJ7# NO PAINT REQ.	01/1990 - 05/1993	1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-60030	LJ70..LHD..VX;LJ70,73,RJ7#..LX,STD W(*EW)	08/1991 - 02/1993	1
52115-60020	LJ70,73,RJ7# SR	01/1990 - 05/1993	1
52115-60030	LJ70..LHD..VX;LJ70,73,RJ7#..(LX,STD)..(DSL,EFI) W(*EW)	01/1990 - 08/1991	1
52115-60031	LJ70..LHD..VX;LJ70,73,RJ7#..LX,STD W(*EW)	02/1993 - 05/1993	1
52115-60032	KZJ77;LJ70..VX W(OVER FENDER)	05/1993 - 01/1995	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-60060	LJ70..LHD..VX;LJ70,73,RJ7#..(LX,STD)..(DSL,EFI) W(*EW)	01/1990 - 08/1991	1
52116-60061	LJ70..LHD..VX;LJ70,73,RJ7#..LX,STD W(*EW)	02/1993 - 05/1993	1
52116-60060	LJ70..LHD..VX;LJ70,73,RJ7#..LX,STD W(*EW)	08/1991 - 02/1993	1
52116-60050	LJ70,73,RJ7# SL	01/1990 - 05/1993	1
52116-60062	KZJ77;LJ70..VX W(OVER FENDER)	05/1993 - 01/1995	1
Common parts
90109-08115
90109-08236
90179-08068
90179-10132
90467-07132
91651-61020

LJ70LV-MEXW (1990)

(9001- )

(9001-9908)KZJ7#,LJ7#,RJ7#
