LJ70LV-MEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 2LT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9501)2LT

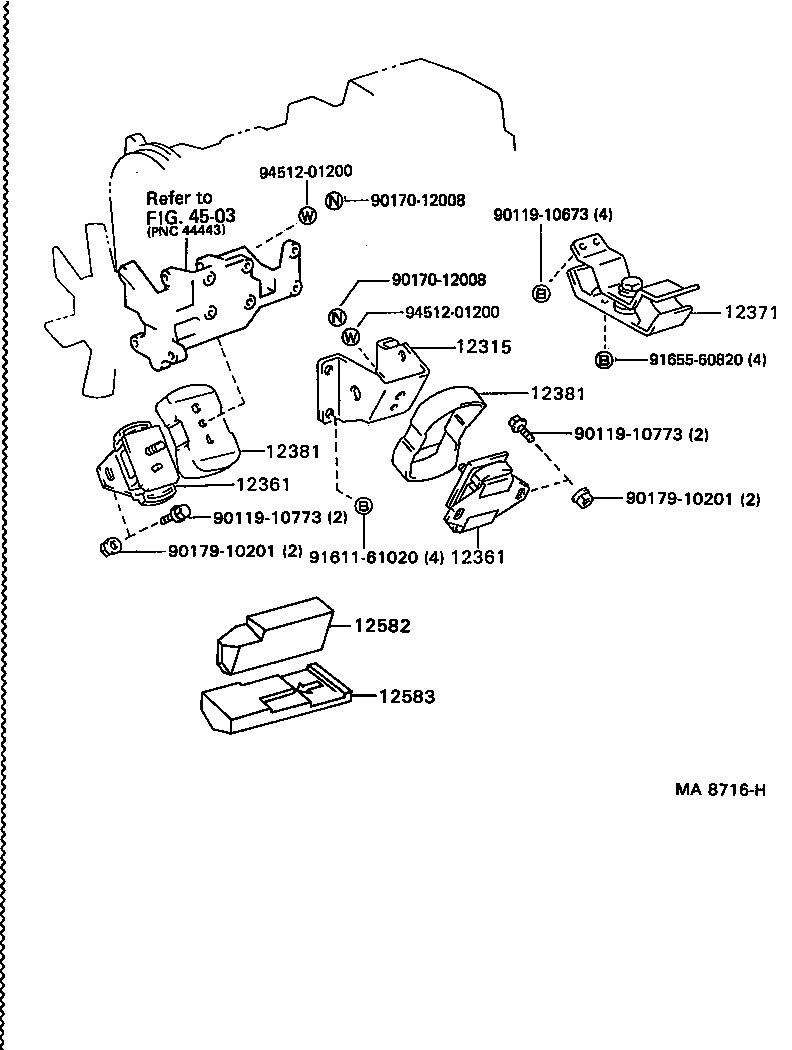

Click highlighted areas on diagram

diagram 12315 12361 12361 12371 12381 12381 12582 12583 4503 9011910673 9011910773 9011910773 9017012008 9017012008 9017910201 9017910201 9161161020 9165560820 9451201200 9451201200
Part # Description Qty Price
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-54021

2LT..LJ7#

 1
12312-54021

2LT..LJ7#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54121

2LT..LJ7#

 2
12361-54121

2LT..LJ7#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-54121

2LT..LJ7#

 2
12361-54121

2LT..LJ7#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-54100

2LT..LJ7#

 1
12371-54100

2LT..LJ7#

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-54020

2LT..LJ7#

 2
12381-54020

2LT..LJ7#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-54020

2LT..LJ7#

 2
12381-54020

2LT..LJ7#

 2
Common parts
90119-10673
90119-10773
90170-12008
90179-10201
91611-61020
91655-60820
94512-01200
Linked diagrams
4503
