LJ70L-MRXW (1985)

Toyota Land Cruiser

Production Oct 1985 - Jan 1990
Engine 2LT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )LJ7#

Click highlighted areas on diagram

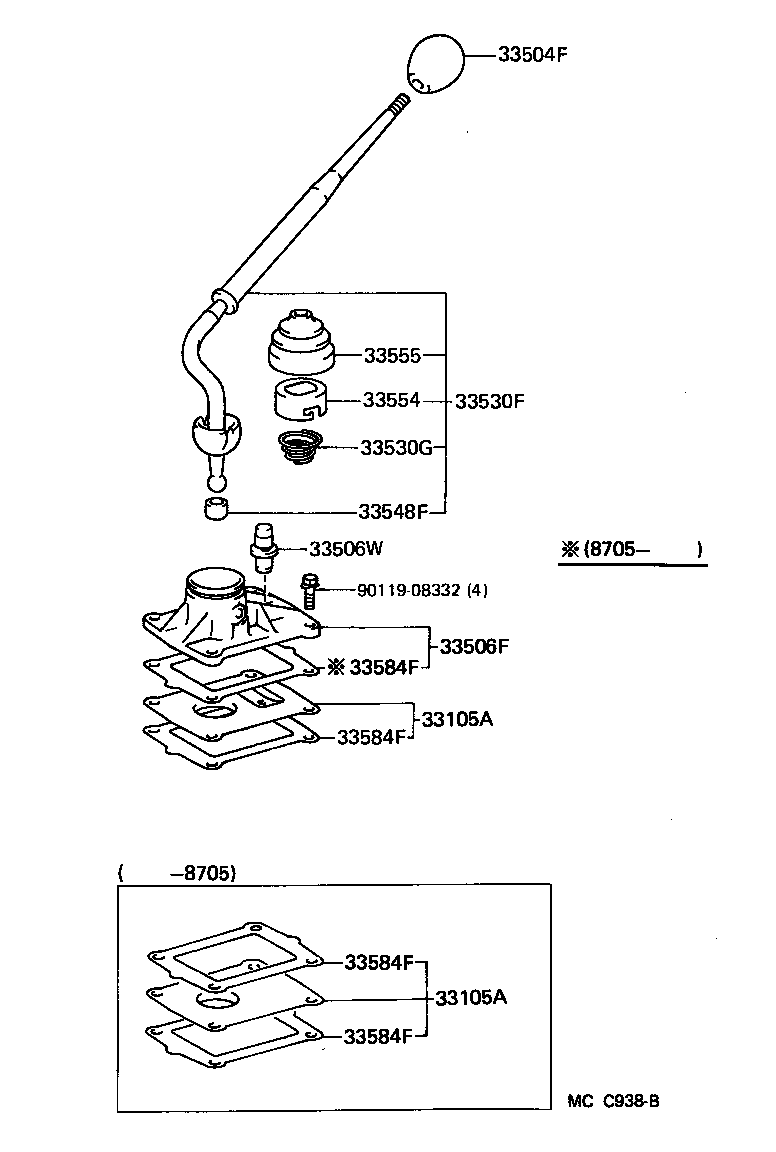

diagram 33105A 33105A 33504F 33506F 33506W 33530F 33530G 33548F 33554 33555 33584F 33584F 33584F 33584F 9011908332
Part # Description Qty Price
33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)
33105-35020

LJ7#

 1
33105-35010

LJ70,RJ70

 1
33105-60010

LJ7#,RJ70

 1
33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)
33105-35020

LJ7#

 1
33105-35010

LJ70,RJ70

 1
33105-60010

LJ7#,RJ70

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2211101

BJ7#,LJ7#,RJ7#..STD,VM

BLACK,BLACK

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-35070

LJ70,RJ70

 1
33506-35090

LJ7#

 1
33506-60030

LJ7#

 1
33506W - PLUG, BREATHER (FOR SHIFT LEVER RETAINER)
90930-03075

LJ7#,RJ70

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-60120

LJ7#,RJ70..LHD

 1
33530-60121

LJ7#,RJ7#..LHD

 1
33530G - SPRING, CONICAL (FOR SHIFT LEVER)
90502-26005

LJ7#,RJ7#

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-31010

LJ7#,RJ7#

 1
33554 - CAP, SHIFT LEVER
33554-30012

LJ7#,RJ7#

 1
33555 - BOOT, SHIFT LEVER
33555-60030

LJ7#,RJ7#

 1
33555-35040

LJ7#,RJ7#

 1
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-35050

LJ7#,RJ7#

 2
33584-60010

LJ70,RJ7#

 2
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-35050

LJ7#,RJ7#

 2
33584-60010

LJ70,RJ7#

 2
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-35050

LJ7#,RJ7#

 2
33584-60010

LJ70,RJ7#

 2
33584F - GASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)
33584-35050

LJ7#,RJ7#

 2
33584-60010

LJ70,RJ7#

 2
Common parts
90119-08332

(9001-9604)KZJ7#,LJ7#,PZJ7#

Click highlighted areas on diagram

diagram 33105A 33504F 33506F 33506W 33530F 33530G 33548F 33554 33555 33584F 33584F 9011908332
Part # Description Qty Price
Common parts
90119-08332
