LJ70L-MRW (1984)

Toyota Land Cruiser

Production Nov 1984 - Oct 1985
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )

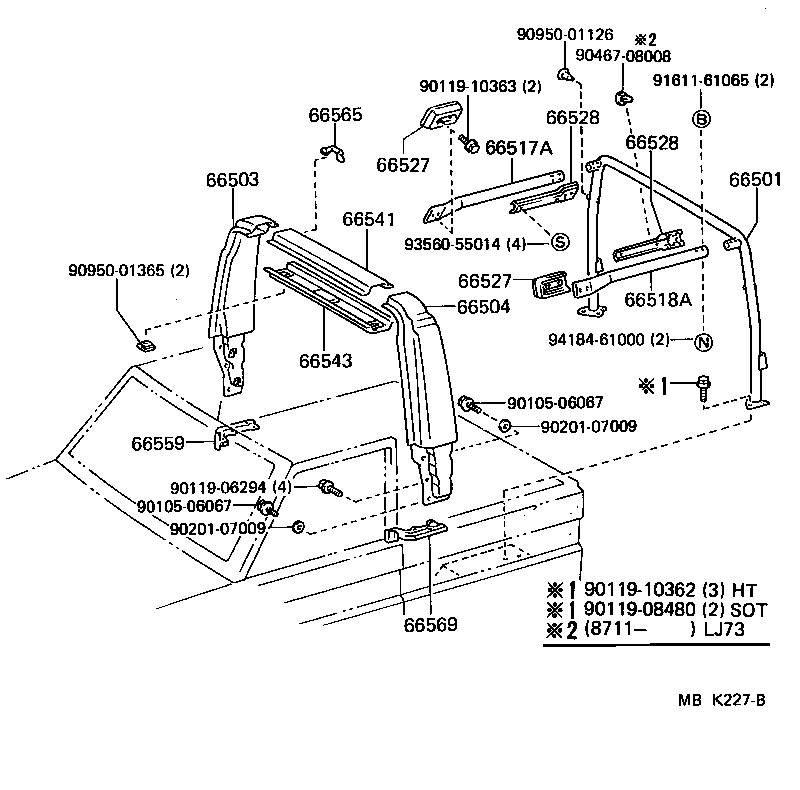

Click highlighted areas on diagram

diagram 66501 66503 66504 66517A 66518A 66527 66527 66528 66528 66541 66543 66559 66565 66569 9010506067 9010506067 9011906294 9011908480 9011910362 9011910363 9020107009 9020107009 9046708008 9095001126 9095001365 9161161065 9356055014 9418461000
Part # Description Qty Price
66503 - PANEL SUB-ASSY, ROLL OVER SIDE, RH
66503-90K00

LJ70..SOT

 1
66504 - PANEL SUB-ASSY, ROLL OVER SIDE, LH
66504-90K00

LJ70..SOT

 1
66541 - PANEL, ROLL OVER, OUTER
66541-90K00

LJ70..SOT

 1
66543 - PANEL, ROLL OVER, INNER
66543-90K00

LJ70..SOT

 1
66559 - SEAL, ROLL OVER PANEL, RH
66559-90K00

LJ70..SOT

 1
66565 - CATCH, ROLL OVER PANEL, UPPER
66565-90K00

LJ70..SOT

 4
66569 - SEAL, ROLL OVER PANEL, LH
66569-90K00

LJ70..SOT

 1
Common parts
90105-06067
90119-06294
90119-08480
90119-10362
90119-10363
90201-07009
90467-08008
90950-01126
90950-01365
91611-61065
93560-55014
94184-61000
