LJ70L-MRW (1984)

Toyota Land Cruiser

Production Nov 1984 - Oct 1985
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

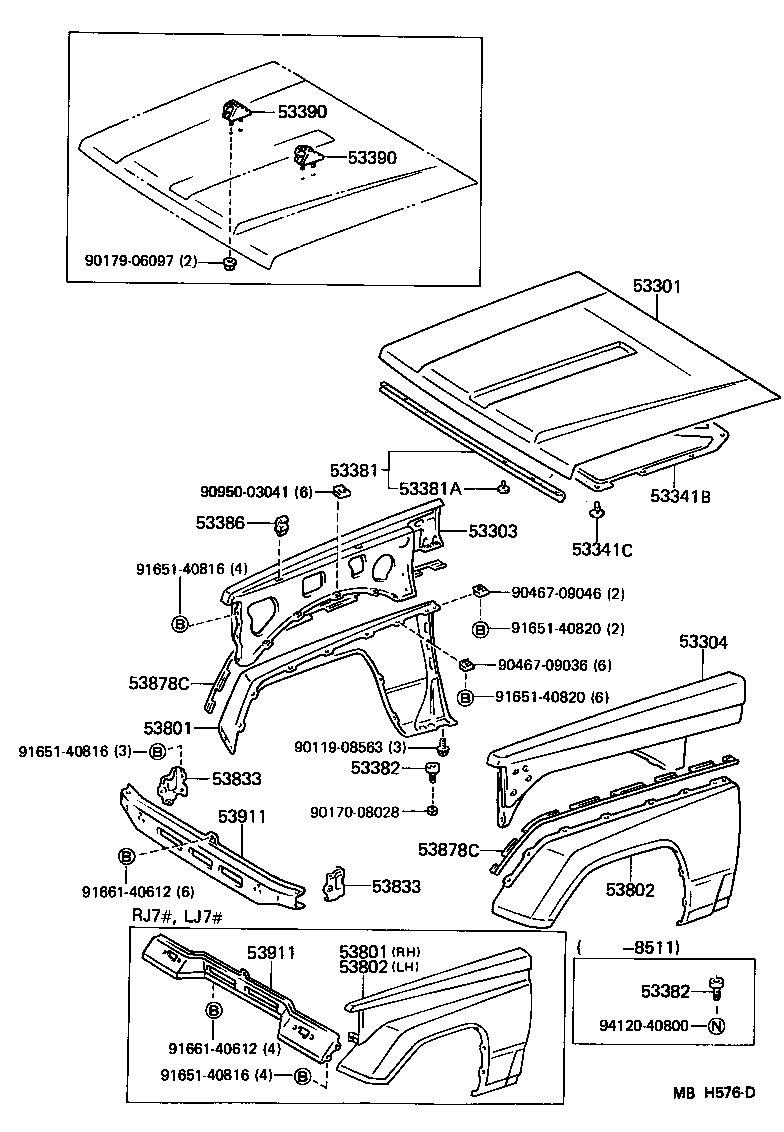

ILLUST NO. 1 OF 2(8411- )

Click highlighted areas on diagram

diagram 53301 53303 53304 53341B 53341C 53381 53381A 53382 53382 53386 53390 53390 53801 53801 53802 53802 53833 53833 53878C 53878C 53911 53911 9011908563 9017008028 9017906097 9046709036 9046709046 9095003041 9165140816 9165140816 9165140816 9165140820 9165140820 9166140612 9166140612 9412040800
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-90K00

LJ70..SOT

 1
53341B - INSULATOR, HOOD
53341-90K00

LJ70,RJ70

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09006

BJ7#,LJ7#,RJ7#

 16
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-90K00

LJ7#,RJ7#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

BJ7#,LJ7#,RJ7#

 8
53382 - BUMPER, HOOD, FRONT
53382-95189

BJ7#,LJ7#,RJ7#

 2
53382 - BUMPER, HOOD, FRONT
53382-95189

BJ7#,LJ7#,RJ7#

 2
53386 - BUMPER, HOOD, REAR
53382-30060

BJ7#,LJ7#,RJ7#

 4
53390 - CRADLE ASSY, WINDSHIELD REST
53390-90K00

BJ73;LJ70..SOT

 2
53390 - CRADLE ASSY, WINDSHIELD REST
53390-90K00

BJ73;LJ70..SOT

 2
53801 - FENDER SUB-ASSY, FRONT RH
53801-90K02

LJ7#,RJ7#..LHD

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-90K02

LJ7#,RJ7#..LHD

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-90K02

LJ70,RJ70

W/RADIO

 1
53802-90K05

LJ70,RJ70

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-90K02

LJ70,RJ70

W/RADIO

 1
53802-90K05

LJ70,RJ70

 1
53911 - PANEL, FRONT VALANCE
53911-90K00

LJ7#,RJ7#..LX,STD

 1
53911 - PANEL, FRONT VALANCE
53911-90K00

LJ7#,RJ7#..LX,STD

 1
Common parts
90119-08563
90170-08028
90179-06097
90467-09036
90467-09046
90950-03041
91651-40816
91651-40820
91661-40612
94120-40800

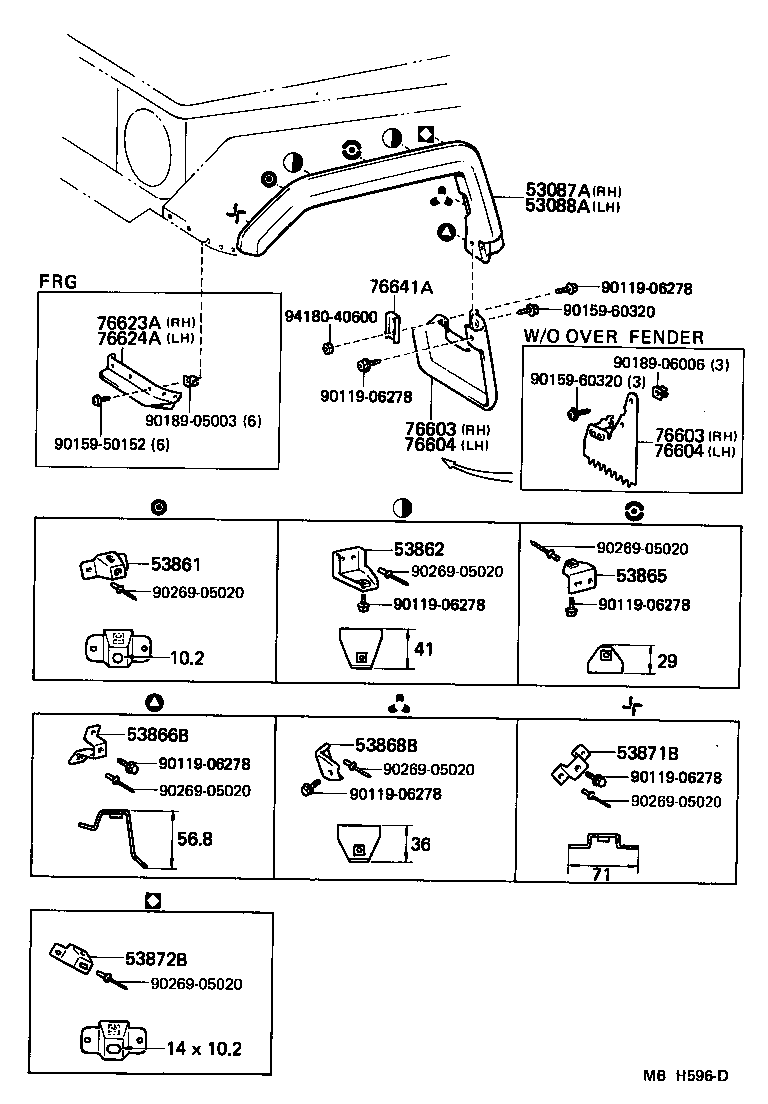

ILLUST NO. 2 OF 2(8411- )

Click highlighted areas on diagram

diagram 53087A 53088A 53861 53862 53865 53866B 53868B 53871B 53872B 76603 76603 76604 76604 76623A 76624A 76641A 9011906278 9011906278 9011906278 9011906278 9011906278 9011906278 9011906278 9015950152 9015960320 9015960320 9018905003 9018906006 9026905020 9026905020 9026905020 9026905020 9026905020 9026905020 9026905020 9418040600
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-90K01

BJ7#,LJ7#,RJ7#

 1
76603-90K00

BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD,VM)

FORMED TYPE MUDGUARD

 1
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76603-90K01

BJ7#,LJ7#,RJ7#

 1
76603-90K00

BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD,VM)

FORMED TYPE MUDGUARD

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-90K01

BJ7#,LJ7#,RJ7#

 1
76604-90K00

BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD,VM)

FORMED TYPE MUDGUARD

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76604-90K01

BJ7#,LJ7#,RJ7#

 1
76604-90K00

BJ7#,LJ7#,RJ7#..(HT,SOT)..(LX,STD,VM)

FORMED TYPE MUDGUARD

 1
Common parts
90119-06278
90159-50152
90159-60320
90189-05003
90189-06006
90269-05020
94180-40600

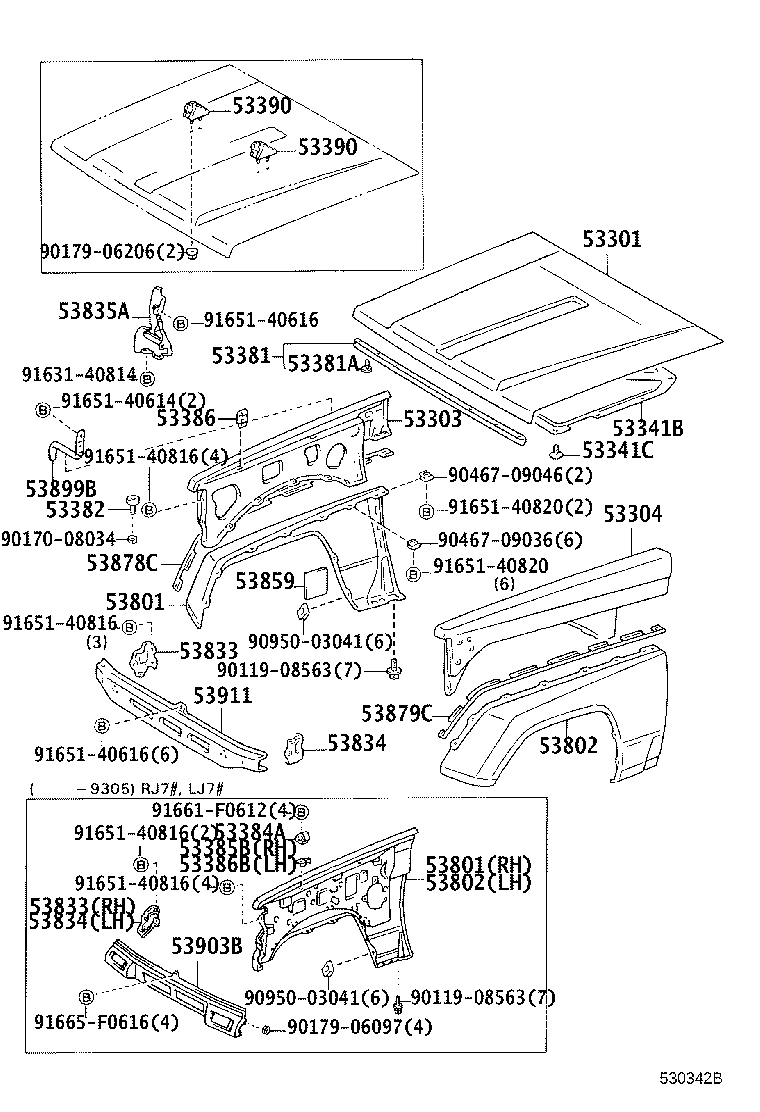

ILLUST NO. 1 OF 2(9001-9305) ; (9305- )BJ73,HZJ7#

Click highlighted areas on diagram

diagram 53301 53303 53304 53341B 53341C 53381 53381A 53382 53384A 53385B 53386 53386B 53390 53390 53801 53801 53802 53802 53833 53833 53834 53834 53835A 53859 53878C 53879C 53899B 53903B 53911 9011908563 9011908563 9017008034 9017906097 9017906206 9046709036 9046709046 9095003041 9095003041 9163140814 9165140614 9165140616 9165140616 9165140816 9165140816 9165140816 9165140816 9165140820 9165140820 91661F0612 91665F0616
Part # Description Qty Price
Common parts
90119-08563
90170-08034
90179-06097
90179-06206
90467-09036
90467-09046
90950-03041
91631-40814
91651-40614
91651-40616
91651-40816
91651-40820
91661-F0612
91665-F0616
