KZJ73LV-MNXW (1993)

Toyota Land Cruiser

Production May 1993 - Apr 1996
Engine 1KZT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

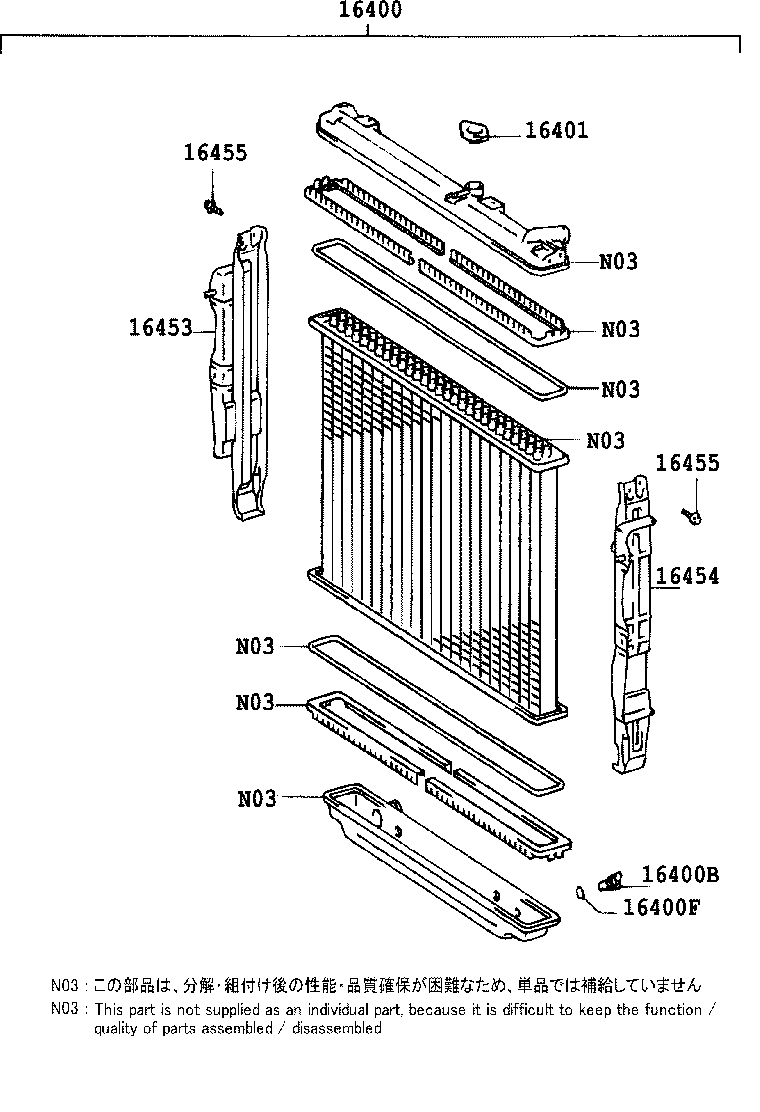

ILLUST NO. 2 OF 2(9305-9604)1KZT

Click highlighted areas on diagram

diagram 16400 16400B 16400F 16401 16453 16454 16455 16455
Part # Description Qty Price
16400 - RADIATOR ASSY
16400-67020

1KZT..KZJ7#

 1
16400B - PLUG, RADIATOR DRAIN COCK
16417-15210

1KZT..KZJ7#

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16418-15520

1KZT..KZJ7#

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-71010

1KZT..KZJ7#

 1
16453 - PLATE, RADIATOR SIDE
16453-67020

1KZT..KZJ7#

 1
16454 - PLATE, RADIATOR SIDE
16454-67020

1KZT..KZJ7#

 1
16455 - BOLT, RADIATOR SIDE SUPPORT PLATE
16455-67020

1KZT..KZJ7#

 8
16455 - BOLT, RADIATOR SIDE SUPPORT PLATE
16455-67020

1KZT..KZJ7#

 8

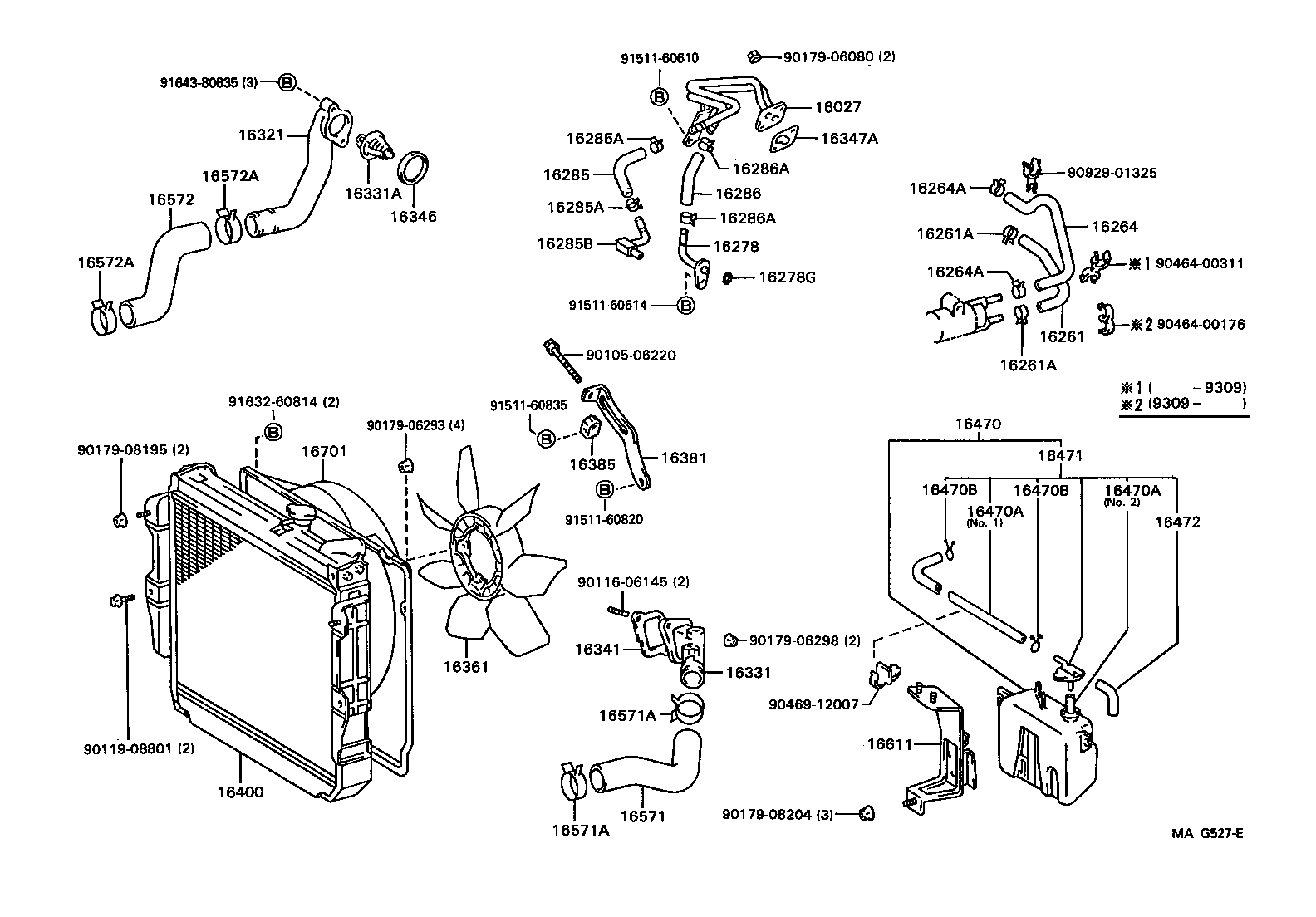

ILLUST NO. 1 OF 2(9305-9604)1KZT

Click highlighted areas on diagram

diagram 16027 16261 16261A 16261A 16264 16264A 16264A 16278 16278G 16285 16285A 16285A 16285B 16286 16286A 16286A 16321 16331 16331A 16341 16346 16347A 16361 16381 16385 16400 16470 16470A 16470A 16470B 16470B 16471 16472 16571 16571A 16571A 16572 16572A 16572A 16611 16701 9010506220 9011606145 9011908801 9017906080 9017906293 9017906298 9017908195 9017908204 9046400176 9046400311 9046912007 9092901325 9151160610 9151160614 9151160820 9151160835 9163260814 9164380635
Part # Description Qty Price
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16027-67010

1KZT..KZJ7#

 1
16261 - HOSE, WATER BY-PASS
16261-67030

1KZT..KZJ7#

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-15022

1KZT..KZJ7#

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-15022

1KZT..KZJ7#

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-67020

1KZT..KZJ7#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

1KZT..KZJ7#

 2
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-15022

1KZT..KZJ7#

 2
16278 - PIPE, WATER BY-PASS, NO.2
16278-67010

1KZT..KZJ7#

 1
16278G - RING, O(FOR WATER BY-PASS NO.2 PIPE)
96761-24010

1KZT..KZJ7#

 1
16285 - HOSE, TURBO WATER, NO.2
16285-67010

1KZT..KZJ7#

 1
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-15022

1KZT..KZJ7#

 2
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-15022

1KZT..KZJ7#

 2
16285B - UNION(FOR TURBO WATER HOSE NO.2)
90405-10044

1KZT..KZJ7#

 1
16286 - HOSE, TURBO WATER, NO.3
16285-67010

1KZT..KZJ7#

 1
16286A - CLIP(FOR TURBO WATER HOSE NO.3)
90467-15022

1KZT..KZJ7#

 2
16286A - CLIP(FOR TURBO WATER HOSE NO.3)
90467-15022

1KZT..KZJ7#

 2
16321 - INLET, WATER
16321-67010

1KZT..KZJ7#

 1
16321-67011

1KZT..KZJ7#

 1
16331 - OUTLET, WATER
16331-67020

1KZT..KZJ7#

 1
16331A - THERMOSTAT
90916-03097

1KZT..KZJ7#

*WAX 82-95

 1
16341 - GASKET, WATER OUTLET
16341-67020

1KZT..KZJ7#

 1
16346 - GASKET, THERMOSTAT
16346-67010

1KZT..KZJ7#

 1
16347A - GASKET(FOR TURBO WATER PIPE)
16347-67010

1KZT..KZJ7#

 1
16361 - FAN
16361-67020

1KZT..KZJ7#

 1
16381 - BAR, FAN BELT ADJUSTING
16381-67020

1KZT..KZJ7#

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-67010

1KZT..KZJ7#

 1
16400 - RADIATOR ASSY
16400-67020

1KZT..KZJ7#

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-67010

1KZT..KZJ7#

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16472-67010

1KZT..KZJ7#

NO.1

 1
90445-12078

1KZT..KZJ7#

*H,L=180,NO.2

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16472-67010

1KZT..KZJ7#

NO.1

 1
90445-12078

1KZT..KZJ7#

*H,L=180,NO.2

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1KZT..KZJ7#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90467-11085

1KZT..KZJ7#

 2
16471 - CAP SUB-ASSY, RESERVE TANK
16405-67020

1KZT..KZJ7#

 1
16472 - HOSE, BREATHER
85338-74040

1KZT..KZJ7#

 1
16571 - HOSE, RADIATOR, INLET
16571-67020

1KZT..KZJ7#

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-41007

1KZT..KZJ7#

 2
90467-41006

1KZT..KZJ7#

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-41007

1KZT..KZJ7#

 2
90467-41006

1KZT..KZJ7#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-67020

1KZT..KZJ7#

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-41007

1KZT..KZJ7#

 2
90467-41006

1KZT..KZJ7#

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-41007

1KZT..KZJ7#

 2
90467-41006

1KZT..KZJ7#

 2
16611 - BRACKET, RADIATOR RESERVE TANK
16611-54110

1KZT..KZJ7#

 1
16701 - SHROUD SUB-ASSY, FAN
16711-67020

1KZT..KZJ7#

 1
Common parts
90105-06220
90116-06145
90119-08801
90179-06080
90179-06293
90179-06298
90179-08195
90179-08204
90464-00176
90464-00311
90469-12007
90929-01325
91511-60610
91511-60614
91511-60820
91511-60835
91632-60814
91643-80635
