KZJ73LV-MEXW (1993)

Toyota Land Cruiser

Production May 1993 - Apr 1996
Engine 1KZT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

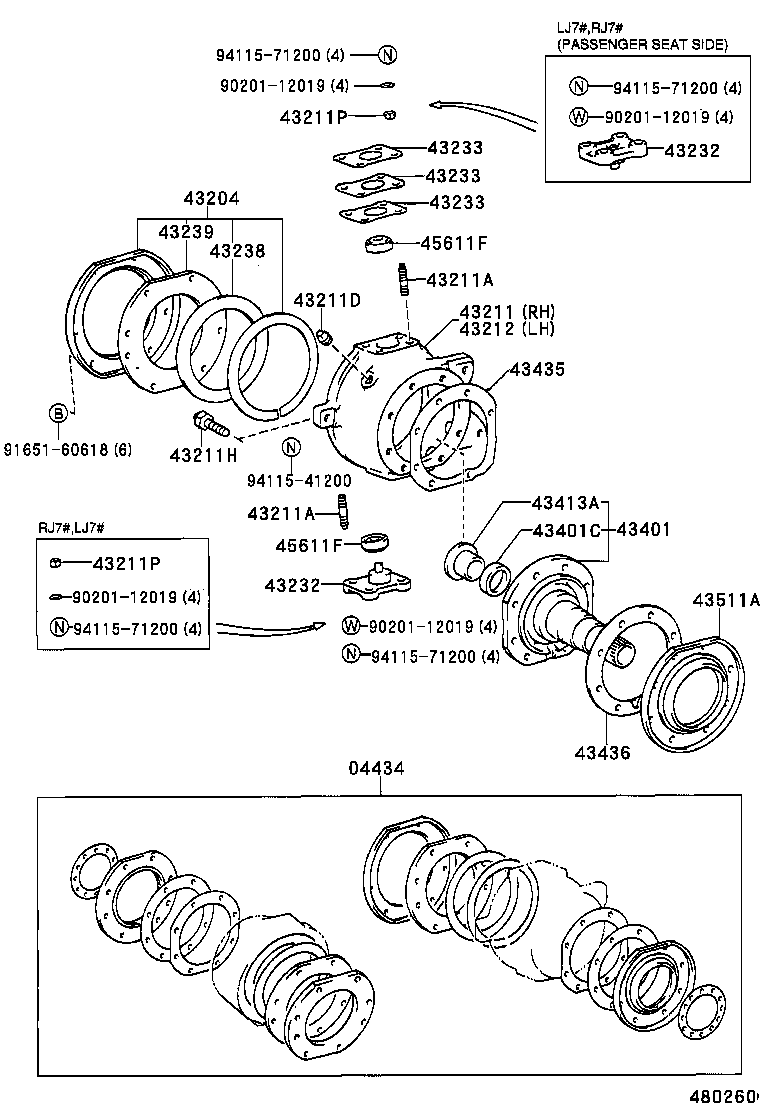

ILLUST NO. 1 OF 2(9001-9908)

Click highlighted areas on diagram

diagram 04434 43204 43211 43211A 43211A 43211D 43211H 43211P 43211P 43212 43232 43232 43233 43233 43233 43238 43239 43401 43401C 43413A 43435 43436 43511A 45611F 45611F 9020112019 9020112019 9020112019 9020112019 9165160618 9411541200 9411571200 9411571200 9411571200 9411571200
Part # Description Qty Price
04434 - GASKET KIT, FRONT AXLE OVERHAUL
04434-60060

HZJ70,73,LJ7#,RJ7#..LX,VX

W(POWER LOCKING HUB)

 1
43211 - KNUCKLE, STEERING, RH
43211-60100

HZJ70,73,LJ7#,RJ7#..LX,VX

W(ELECTRICAL FREE WHEEL HUB)

 1
43211P - WASHER, CONE (FOR STEERING KNUCKLE)
42323-60020

KZJ7#,LJ7#,RJ7#

 12
43211P - WASHER, CONE (FOR STEERING KNUCKLE)
42323-60020

KZJ7#,LJ7#,RJ7#

 12
43212 - KNUCKLE, STEERING, LH
43212-60100

HZJ70,73,LJ7#,RJ7#..LX,VX

W(ELECTRICAL FREE WHEEL HUB)

 1
43232 - CAP, STEERING KNUCKLE BEARING
43232-35010

KZJ7#,LJ7#,RJ7#

 1
43232 - CAP, STEERING KNUCKLE BEARING
43232-35010

KZJ7#,LJ7#,RJ7#

 1
43401 - SPINDLE SUB-ASSY, STEERING KNUCKLE
43490-60030

HZJ70,73,LJ7#,RJ7#..LX,VX

W(ELECTRICAL FREE WHEEL HUB)

 2
43401C - SEAL, TYPE S OIL(FOR STEERING KNUCKLE SPINDLE)
90310-33001

HZJ70,73,LJ7#,RJ7#..LX,VX

 2
Common parts
90201-12019
91651-60618
94115-41200
94115-71200

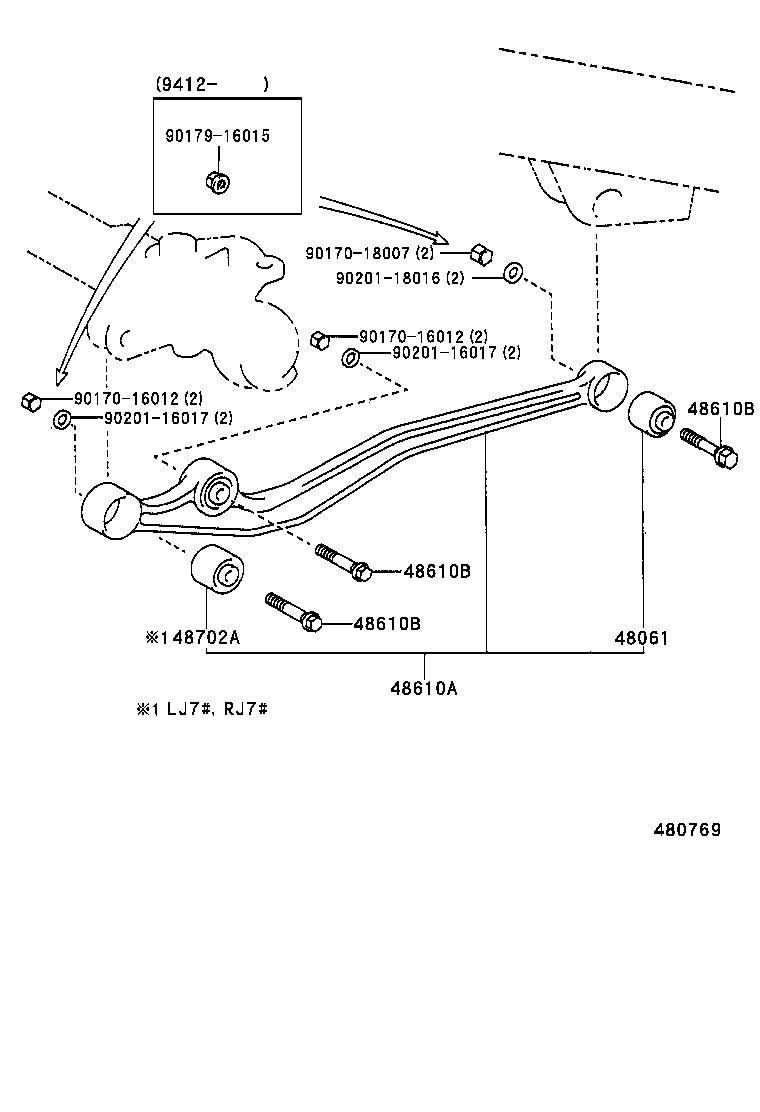

ILLUST NO. 2 OF 2(9001-9604)KZJ7#,LJ7#,RJ7#

Click highlighted areas on diagram

diagram 48061 48610A 48610B 48610B 48610B 48702A 9017016012 9017016012 9017018007 9017916015 9020116017 9020116017 9020118016
Part # Description Qty Price
48061 - BUSH SUB-ASSY, LEADING ARM, NO.2
48061-60020

KZJ7#,LJ7#,RJ7#

 2
48610A - ARM ASSY, LEADING, FRONT
48610-60013

KZJ7#,LJ7#,RJ7#

 2
48610B - BOLT(FOR FRONT LEADING ARM)
90105-18007

KZJ7#,LJ70,RJ7#

RR

 2
90105-16024

KZJ7#,LJ7#,RJ7#

FR

 4
90119-16003

KZJ7#,LJ70,RJ7#

FR

 4
90105-18008

KZJ7#,LJ7#,RJ7#

RR

 2
48610B - BOLT(FOR FRONT LEADING ARM)
90105-18007

KZJ7#,LJ70,RJ7#

RR

 2
90105-16024

KZJ7#,LJ7#,RJ7#

FR

 4
90119-16003

KZJ7#,LJ70,RJ7#

FR

 4
90105-18008

KZJ7#,LJ7#,RJ7#

RR

 2
48610B - BOLT(FOR FRONT LEADING ARM)
90105-18007

KZJ7#,LJ70,RJ7#

RR

 2
90105-16024

KZJ7#,LJ7#,RJ7#

FR

 4
90119-16003

KZJ7#,LJ70,RJ7#

FR

 4
90105-18008

KZJ7#,LJ7#,RJ7#

RR

 2
Common parts
90170-16012
90170-18007
90179-16015
90201-16017
90201-18016
