KZJ70RV-MNXW (1993)
Toyota Land Cruiser

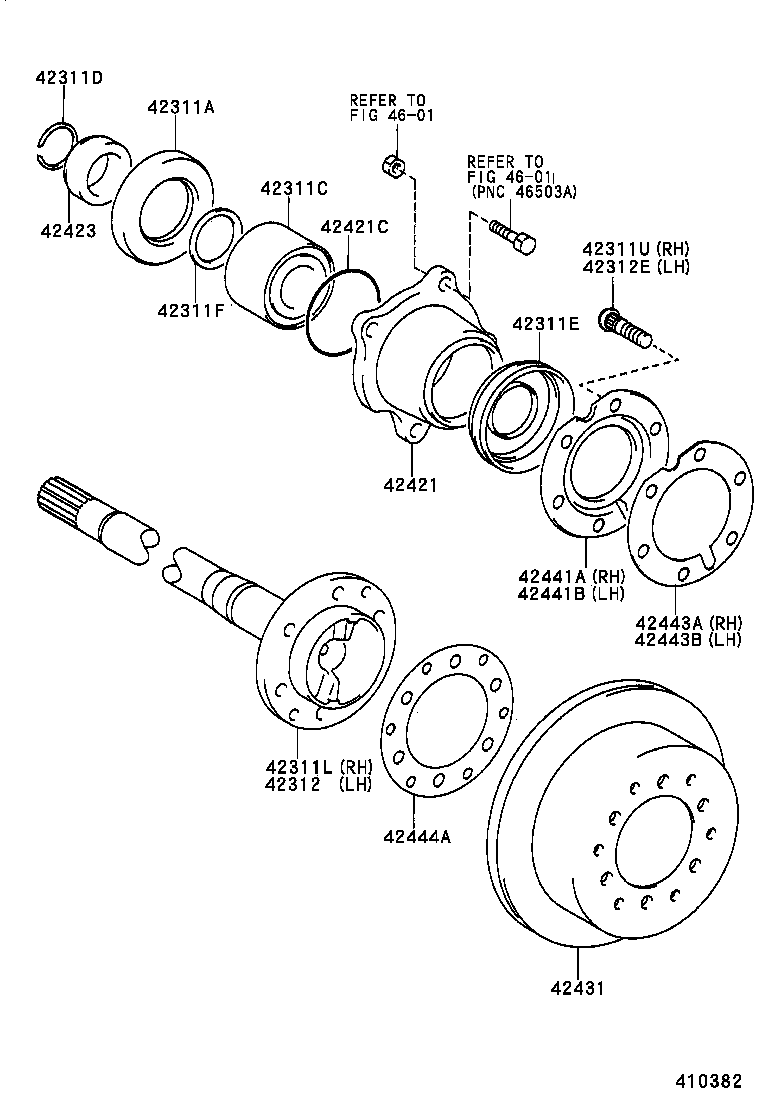

(9001-9604)KZJ70,73,LJ7#,RJ7#..LX,VX
W(RR DISC BAKE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-50001 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 90310-50001 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
2 | ||
| 90310-58002 |
KZJ70,73..LX,VX W(*SFA & RR DISC BRAKE) OR W(*DL & RR DISC BRAKE) |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90369-40003 |
KZJ70,73..LX,VX W(*SFA & RR DISC BRAKE) OR W(*DL & RR DISC BRAKE) |
2 | ||
| 90363-40047 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
2 | ||
| 90363-40047 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 42311D - RING, SNAP (FOR REAR AXLE SHAFT) | ||||
| 90520-36045 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90313-48004 |
KZJ70,73..LX,VX W(*SFA & RR DISC BRAKE) OR W(*DL & RR DISC BRAKE) |
2 | ||
| 90313-48001 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 90313-48001 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
2 | ||
| 42311F - WASHER, PLATE (FOR REAR AXLE SHAFT) | ||||
| 90208-40002 |
KZJ70,73,LJ7#,RJ7#..LX,VX |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-60072 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
1 | ||
| 42311-60072 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 42311-60120 |
KZJ70,73,LJ7#,RJ7#..LX,VX W(REAR DISC BRAKE) |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42312-60102 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 42312-60102 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
1 | ||
| 42312-60110 |
KZJ70,73,LJ7#,RJ7#..LX,VX W(REAR DISC BRAKE) |
1 | ||
| 42421 - CASE, REAR AXLE BEARING | ||||
| 42421-60020 |
KZJ70,73,LJ7#,RJ7#..LX,VX W(REAR DISC BRAKE),RH |
1 | ||
| 42421-35030 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 42422-60010 |
KZJ70,73,LJ7#,RJ7#..LX,VX W(REAR DISC BRAKE),LH |
1 | ||
| 42421C - RING, O (FOR REAR AXLE BEARING CASE) | ||||
| 90301-78001 |
KZJ70,73..LX,VX W(*SFA & RR DISC BRAKE) OR W(*DL & RR DISC BRAKE) |
2 | ||
| 90301-88077 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 90301-88077 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
2 | ||
| 42423 - RETAINER, REAR AXLE BEARING, INNER | ||||
| 42423-20010 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 42423-20010 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
2 | ||
| 42423-60020 |
KZJ70,73..LX,VX W(*SFA & RR DISC BRAKE) OR W(*DL & RR DISC BRAKE) |
2 | ||
| 42431 - DISC, REAR | ||||
| 42431-60190 |
KZJ70,73,LJ7#,RJ7#..LX,VX |
2 | ||
| 42441A - DEFLECTOR, BRAKE DRUM OIL RH | ||||
| 42441-60020 |
KZJ70,73,LJ7#,RJ7#..LX,VX W(REAR DISC BRAKE) |
1 | ||
| 42441-35020 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 42441-35020 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
1 | ||
| 42441B - DEFLECTOR, BRAKE DRUM OIL LH | ||||
| 42441-35020 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
1 | ||
| 42441-60020 |
KZJ70,73,LJ7#,RJ7#..LX,VX W(REAR DISC BRAKE) |
1 | ||
| 42441-35020 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 42443A - GASKET, BRAKE DRUM OIL DEFLECTOR, RH | ||||
| 42443-60010 |
KZJ70,73,LJ7#,RJ7#..LX,VX W(REAR DISC BRAKE) |
1 | ||
| 42443-55020 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
1 | ||
| 42443B - GASKET, BRAKE DRUM OIL DEFLECTOR, LH | ||||
| 42443-60010 |
KZJ70,73,LJ7#,RJ7#..LX,VX W(REAR DISC BRAKE) |
1 | ||
| 42443-55020 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
1 | ||
| 42444A - GASKET, BRAKE DISC, REAR | ||||
| 42444-60020 |
KZJ70,73,LJ7#,RJ7#..LX,VX |
2 | ||
| Linked diagrams | ||||
| 4601 | ||||

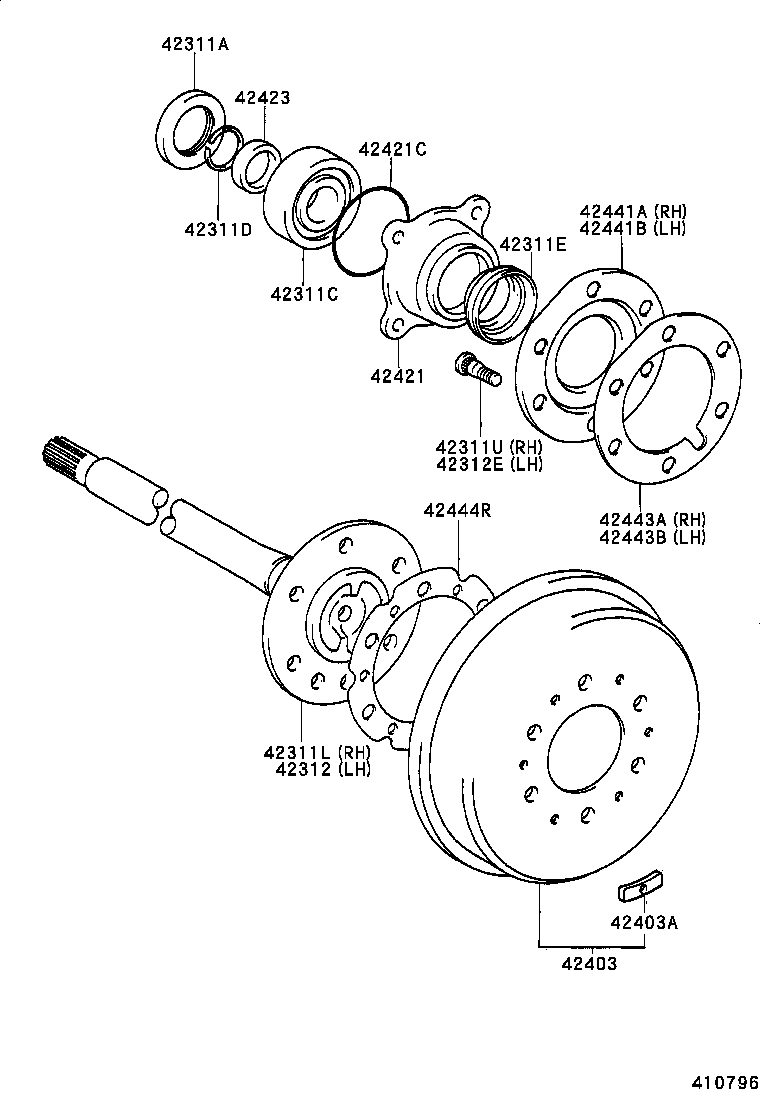

(9001-9604)KZJ7#,LJ7#,RJ7#
W(RR DRUM BRAKE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-50001 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 90310-50001 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
2 | ||
| 90310-58002 |
KZJ70,73..LX,VX W(*SFA & RR DISC BRAKE) OR W(*DL & RR DISC BRAKE) |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 90369-40003 |
KZJ70,73..LX,VX W(*SFA & RR DISC BRAKE) OR W(*DL & RR DISC BRAKE) |
2 | ||
| 90363-40047 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
2 | ||
| 90363-40047 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 42311D - RING, SNAP (FOR REAR AXLE SHAFT) | ||||
| 90520-36045 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90313-48004 |
KZJ70,73..LX,VX W(*SFA & RR DISC BRAKE) OR W(*DL & RR DISC BRAKE) |
2 | ||
| 90313-48001 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 90313-48001 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-60072 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
1 | ||
| 42311-60072 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 42311-60120 |
KZJ70,73,LJ7#,RJ7#..LX,VX W(REAR DISC BRAKE) |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42312-60102 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 42312-60102 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
1 | ||
| 42312-60110 |
KZJ70,73,LJ7#,RJ7#..LX,VX W(REAR DISC BRAKE) |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-60120 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01451 |
KZJ7#,LJ7#,RJ7# 50G |
1 | ||
| 90937-01450 |
KZJ7#,LJ7#,RJ7# 40G |
1 | ||
| 42421 - CASE, REAR AXLE BEARING | ||||
| 42421-60020 |
KZJ70,73,LJ7#,RJ7#..LX,VX W(REAR DISC BRAKE),RH |
1 | ||
| 42421-35030 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 42422-60010 |
KZJ70,73,LJ7#,RJ7#..LX,VX W(REAR DISC BRAKE),LH |
1 | ||
| 42421C - RING, O (FOR REAR AXLE BEARING CASE) | ||||
| 90301-78001 |
KZJ70,73..LX,VX W(*SFA & RR DISC BRAKE) OR W(*DL & RR DISC BRAKE) |
2 | ||
| 90301-88077 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 90301-88077 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
2 | ||
| 42423 - RETAINER, REAR AXLE BEARING, INNER | ||||
| 42423-20010 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 42423-20010 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
2 | ||
| 42423-60020 |
KZJ70,73..LX,VX W(*SFA & RR DISC BRAKE) OR W(*DL & RR DISC BRAKE) |
2 | ||
| 42441A - DEFLECTOR, BRAKE DRUM OIL RH | ||||
| 42441-60020 |
KZJ70,73,LJ7#,RJ7#..LX,VX W(REAR DISC BRAKE) |
1 | ||
| 42441-35020 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 42441-35020 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
1 | ||
| 42441B - DEFLECTOR, BRAKE DRUM OIL LH | ||||
| 42441-35020 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
1 | ||
| 42441-60020 |
KZJ70,73,LJ7#,RJ7#..LX,VX W(REAR DISC BRAKE) |
1 | ||
| 42441-35020 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 42443A - GASKET, BRAKE DRUM OIL DEFLECTOR, RH | ||||
| 42443-60010 |
KZJ70,73,LJ7#,RJ7#..LX,VX W(REAR DISC BRAKE) |
1 | ||
| 42443-55020 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
1 | ||
| 42443B - GASKET, BRAKE DRUM OIL DEFLECTOR, LH | ||||
| 42443-60010 |
KZJ70,73,LJ7#,RJ7#..LX,VX W(REAR DISC BRAKE) |
1 | ||
| 42443-55020 |
KZJ70,73..LX,VX W(DIFFERENTIAL LOCK) |
1 | ||
| 42444R - GASKET, BRAKE DRUM (FOR REAR AXLE) | ||||
| 42444-60010 |
KZJ7#,LJ7#,RJ7# |
2 | ||
