KZJ70RV-MNXW (1993)

Toyota Land Cruiser

Production May 1993 - Apr 1996
Engine 1KZT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9305-9604)KZJ7#

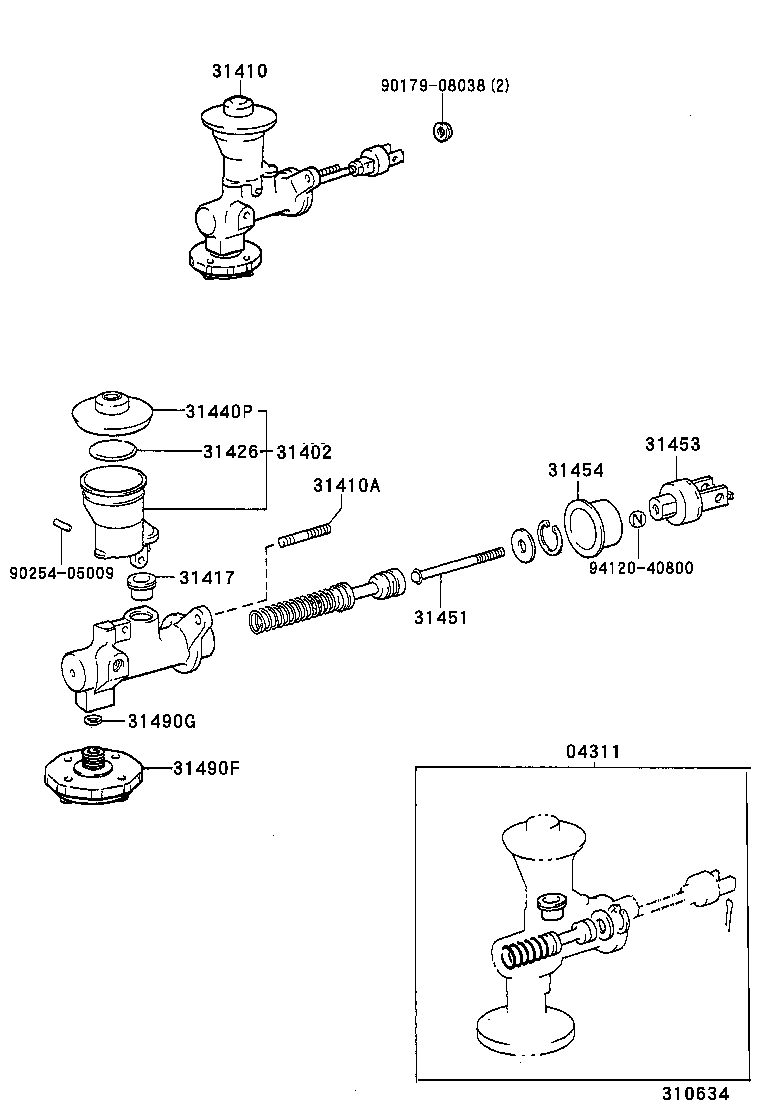

Click highlighted areas on diagram

diagram 04311 31402 31410 31410A 31417 31426 31440P 31451 31453 31454 31490F 31490G 9017908038 9025405009 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-12080

KZJ7#,LJ7#,RJ7#

 1
04311-60150

KZJ7#,LJ7#,RJ7#

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31410-60530

KZJ7#

 1
31417 - GROMMET, CLUTCH RESERVOIR
31417-35010

HZJ7#,KZJ7#,LJ7#,RJ7#

 1
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-35070

KZJ7#,LJ7#

 1
31451-35070

HZJ7#,KZJ7#,LJ7#

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-28020

KZJ7#

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-60030

KZJ7#,LJ7#,RJ7#

 1
31490F - ACCUMULATOR ASSY, MASTER CYLINDER
31490-60100

KZJ7#

 1
31490G - GASKET(FOR CLUTCH MASTER CYLINDER ACCUMULATOR)
90430-16005

KZJ7#

 1
Common parts
90179-08038
90254-05009
94120-40800
