KZJ70LV-MNXW (1993)
Toyota Land Cruiser
Production
May 1993
-
Apr 1996
Engine
1KZT
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

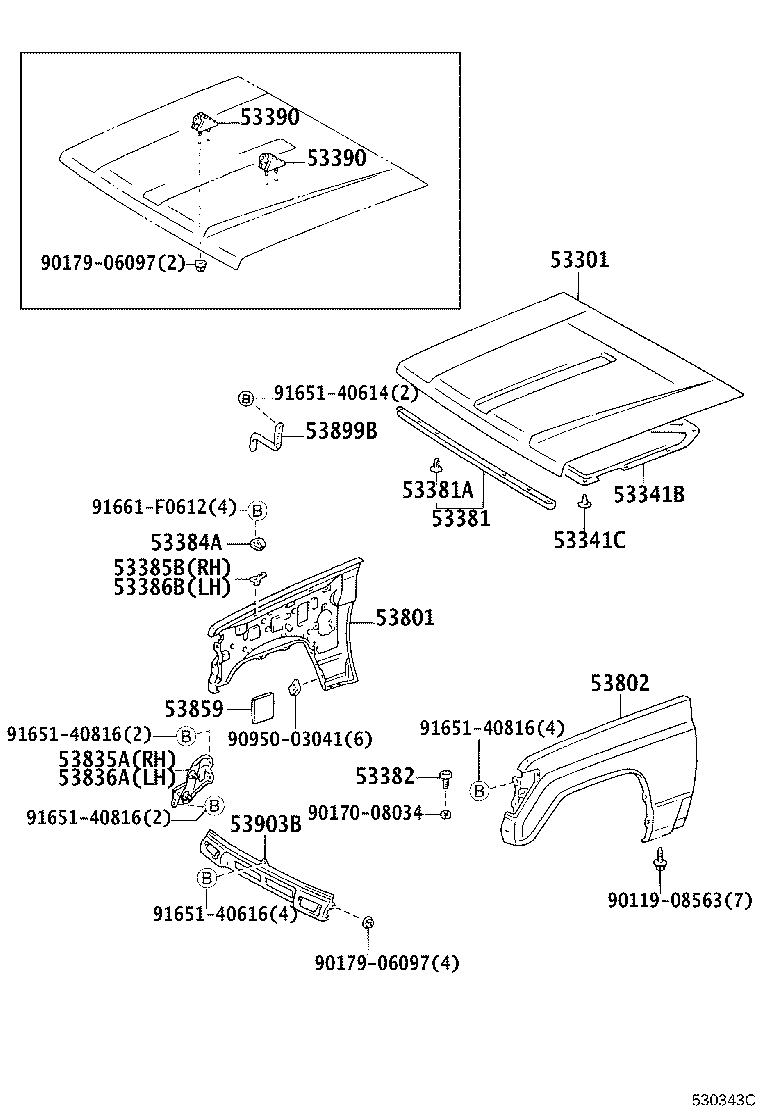

ILLUST NO. 1 OF 2(9305-9604)KZJ7#,LJ7#,RJ7#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-60131 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-60130 |
KZJ7# |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09014 |
KZJ7#,LJ7#,RJ7# |
15 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-60020 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
KZJ7#,LJ7#,RJ7# |
8 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-60020 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 53385B - BRACKET, FENDER TO HOOD BUMPER, RH | ||||
| 53385-20020 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 53386B - BRACKET, FENDER TO HOOD BUMPER, LH | ||||
| 53386-20020 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-60361 |
KZJ73..LX;KZJ70,77,LJ7#,RJ7#..LHD W(265/75R15 TIRE) |
1 | ||
| 53801-60341 |
KZJ73..LX;KZJ70,77,LJ7#,RJ7#..LHD |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-60321 |
KZJ73..LX;KZJ70,77,LJ7#,RJ7#..LHD |
1 | ||
| 53802-60341 |
KZJ73..LX;KZJ70,77,LJ7#,RJ7#..LHD W(265/75R15 TIRE) |
1 | ||
| 53835A - BRACE, FRONT FENDER TO APRON, RH | ||||
| 53803-60020 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 53836A - BRACE, FRONT FENDER TO APRON, LH | ||||
| 53804-60010 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 53903B - PANEL SUB-ASSY, FRONT END | ||||
| 53903-60021 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| Common parts | ||||
| 90119-08563 | ||||
| 90170-08034 | ||||
| 90179-06097 | ||||
| 90950-03041 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91661-F0612 | ||||
