KZJ70LV-MNXW (1993)

Toyota Land Cruiser

Production May 1993 - Apr 1996
Engine 1KZT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9305-9604)1KZT

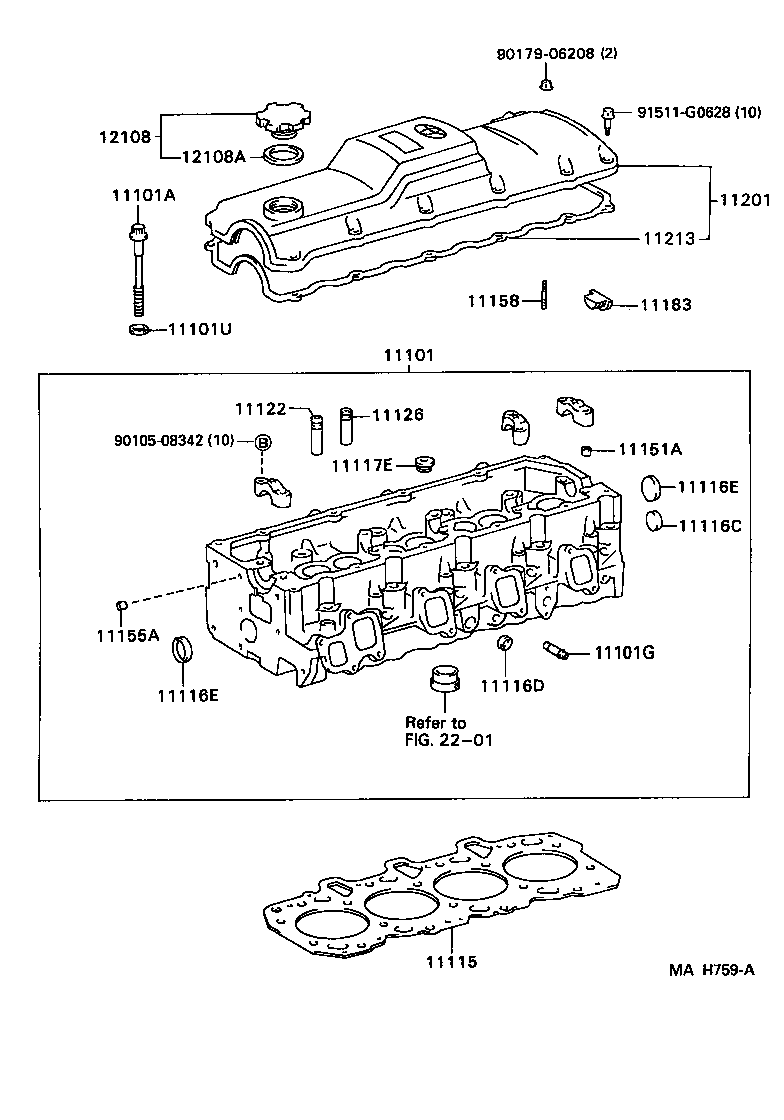

Click highlighted areas on diagram

diagram 11101 11101A 11101G 11101U 11115 11116C 11116D 11116E 11116E 11117E 11122 11126 11151A 11155A 11158 11183 11201 11213 12108 12108A 2201 9010508342 9017906208 91511G0628
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-69126

1KZT..KZJ7#

 1
11101-69125

1KZT..KZJ7#

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02112

1KZT..KZJ7#

 18
11101G - UNION(FOR CYLINDER HEAD)
90406-10019

1KZT..KZJ7#

 1
90404-52004

1KZT..KZJ7#

 1
11101U - SPACER(FOR CYLINDER HEAD SET BOLT)
90560-13023

1KZT..KZJ7#

 18
11115 - GASKET, CYLINDER HEAD
11115-6702001

1KZT..KZJ7#

MARK 1

 1
11115-6702005

1KZT..KZJ7#

MARK 5

 1
11115-6704003

1KZT..KZJ7#

MARK 3

 1
11115-6702003

1KZT..KZJ7#

MARK 3

 1
11115-6705003

1KZT..KZJ7#

MARK 3

 1
11115-6704001

1KZT..KZJ7#

MARK 1

 1
11115-6704005

1KZT..KZJ7#

MARK 5

 1
11116C - PLUG, TIGHT, NO.3
96411-43000

1KZT..KZJ7#

 1
96411-63000

1KZT..KZJ7#

 1
11116D - PLUG, TIGHT, NO.4
96411-62000

1KZT..KZJ7#

 1
11116E - PLUG, TIGHT, NO.5
96411-63500

1KZT..KZJ7#

 2
11116E - PLUG, TIGHT, NO.5
96411-63500

1KZT..KZJ7#

 2
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-22008

1KZT..KZJ7#

 4
11122 - BUSH, INTAKE VALVE GUIDE
11122-67020

1KZT..KZJ7#

STD

 4
11123-67020

1KZT..KZJ7#

O/S 0.05

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11123-67020

1KZT..KZJ7#

O/S 0.05

 4
11122-67020

1KZT..KZJ7#

STD

 4
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

1KZT..KZJ7#

L=8,OD=11

 5
90253-11021

1KZT..KZJ7#

L=8,OD=11

 10
11155A - PIN, RING W/HEAD
90253-10004

1KZT..KZJ7#

 2
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
90116-06149

1KZT..KZJ7#

S=9 & 16,L=37

 2
90116-06095

1KZT..KZJ7#

S=9 & 16,L=37

 2
11183 - PLUG, SEMICIRCULAR
11183-54020

1KZT..KZJ7#

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-67010

1KZT..KZJ7#

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-67010

1KZT..KZJ7#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010

1KZT..KZJ7#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37004

1KZT..KZJ7#

 1
Common parts
90105-08342
90179-06208
91511-G0628
Linked diagrams
2201
