KZJ70LV-MEXW (1993)

Toyota Land Cruiser

Production May 1993 - Apr 1996
Engine 1KZT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9305-9604)1KZT

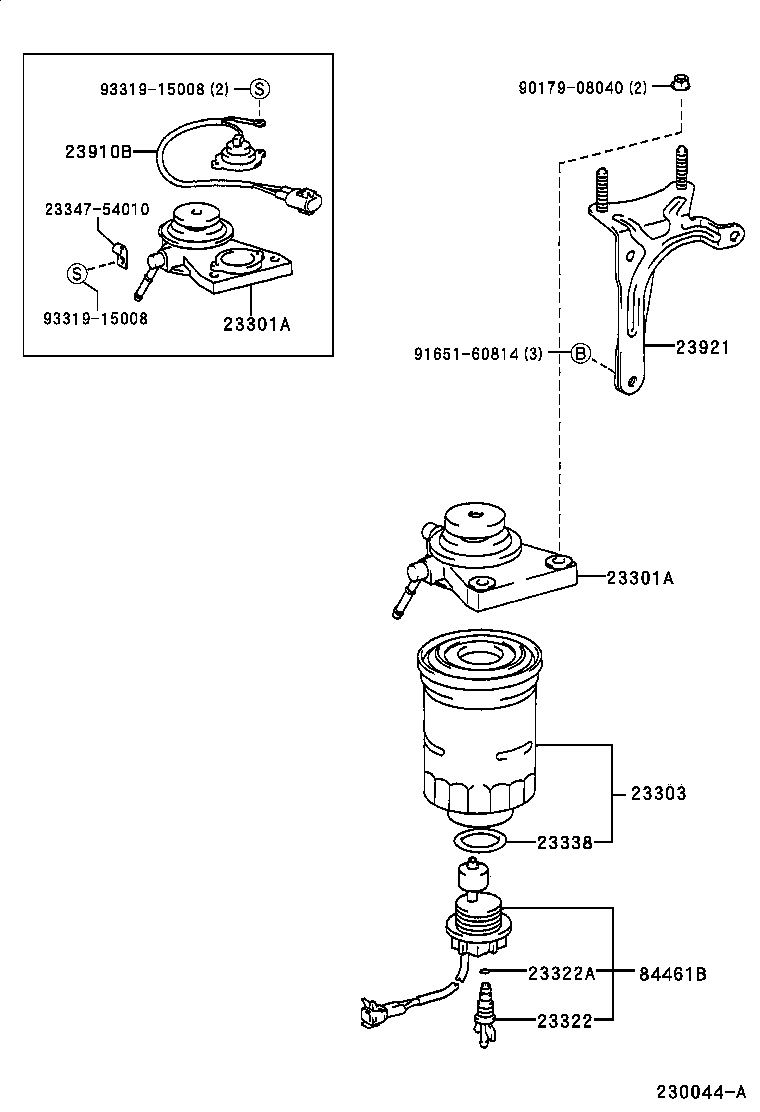

Click highlighted areas on diagram

diagram 23301A 23301A 23303 23322 23322A 23338 2334754010 23910B 23921 84461B 9017908040 9165160814 9331915008 9331915008
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23301-54630

1KZT..KZJ73;1KZT..KZJ70..LX,STD;1KZT..KZJ70..LHD..VX

COLD AREA SPEC

 1
23301-54620

1KZT..KZJ73,77;1KZT..KZJ70..LX,STD;1KZT..KZJ70..LHD..VX

 1
23301A - CAP ASSY, FUEL FILTER
23301-54630

1KZT..KZJ73;1KZT..KZJ70..LX,STD;1KZT..KZJ70..LHD..VX

COLD AREA SPEC

 1
23301-54620

1KZT..KZJ73,77;1KZT..KZJ70..LX,STD;1KZT..KZJ70..LHD..VX

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

1KZT..KZJ7#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010

1KZT..KZJ7#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1KZT..KZJ7#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

1KZT..KZJ7#

 1
23910B - HEATER ASSY, FUEL
23910-54050

1KZT..KZJ73;1KZT..KZJ70..LX,STD;1KZT..KZJ70..LHD..VX

W(FUEL HEATER) OR COLD AREA SPEC

 1
23921 - SUPPORT, FUEL FILTER
23921-54160

1KZT..KZJ7#..LHD

 1
84461B - SWITCH, LEVEL WARNING
84461-60040

KZJ7#

 1
Common parts
23347-54010
90179-08040
91651-60814
93319-15008
