KZJ70L-MRXW (1993)

Toyota Land Cruiser

Production May 1993 - Apr 1996
Engine 1KZT
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9604)KZJ7#,LJ7#,RJ7#

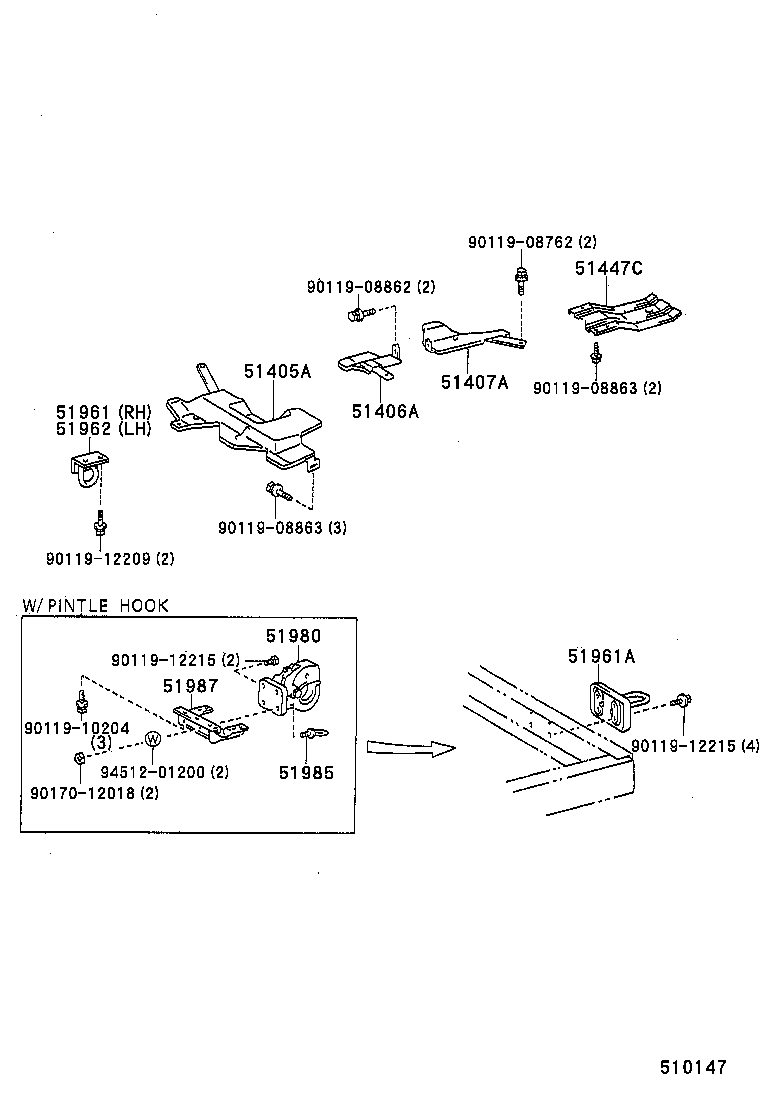

Click highlighted areas on diagram

diagram 51405A 51406A 51407A 51447C 51961 51961A 51962 51980 51985 51987 9011908762 9011908862 9011908863 9011908863 9011910204 9011912209 9011912215 9011912215 9017012018 9451201200
Part # Description Qty Price
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51405-60120

KZJ7#,LJ7#,RJ7#..LHD

 1
51447C - PROTECTOR, TRANSFER CASE
51447-60020

KZJ7#,LJ7#,RJ7#

 1
51961 - HOOK, NO.1
51961-60140

KZJ7#,LJ7#,RJ7#

 2
51961-60140

KZJ70..LHD..VX;KZJ70,73,LJ7#,RJ7#..LX,STD

W(WINCH)

 1
51962 - HOOK, NO.2
51961-60150

KZJ70..LHD..VX;KZJ70,73,LJ7#,RJ7#..LX,STD

 1
51980 - HOOK ASSY, PINTLE
51980-60010

KZJ70..LHD..VX;BJ73,HZJ7#,KZJ70,73,LJ7#,RJ7#..LX,STD,VM

 1
Common parts
90119-08762
90119-08862
90119-08863
90119-10204
90119-12209
90119-12215
90170-12018
94512-01200
