KZJ70L-MRXW (1993)
Toyota Land Cruiser

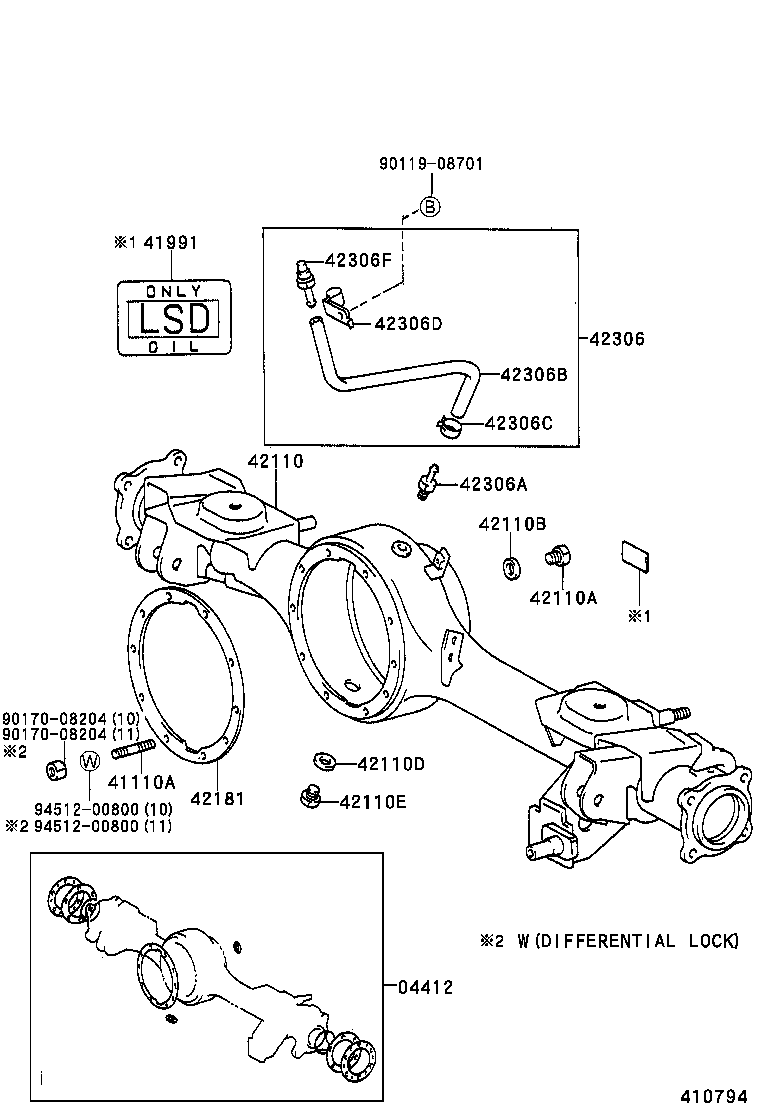

ILLUST NO. 2 OF 2(9001-9604)KZJ7#,LJ7#,RJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-60090 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 04412-60110 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08233 |
KZJ7#,LJ7#,RJ7# S=14 & 14,L=42 |
2 | ||
| 90116-08330 |
KZJ7# S=17 & 12,L=111,W(DIFFERENTIAL LOCK) |
2 | ||
| 90116-08329 |
KZJ7#,LJ7#,RJ7# S=17 & 12,L=37 |
8 | ||
| 90116-08329 |
KZJ7# S=17 & 12,L=37,W(DIFFERENTIAL LOCK) |
7 | ||
| 41991 - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| 41991-60010 |
BJ73,HZJ7#,KZJ7#,LJ7#,RJ7# |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-60380 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 42110-60400 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60090 |
KZJ7#,LJ70,RJ7# |
1 | ||
| 42181-60080 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 42181-60020 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 42306 - HOSE SUB-ASSY, REAR AXLE BREATHER | ||||
| 42306-60080 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 42306A - UNION (FOR REAR AXLE BREATHER HOUSE) | ||||
| 90404-51052 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 42306B - HOSE (FOR REAR AXLE BREATHER) | ||||
| 95333-06040 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 42306D - CLAMP (FOR REAR AXLE BRATHER HOSE) | ||||
| 90949-01644 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90170-08204 | ||||
| 94512-00800 | ||||

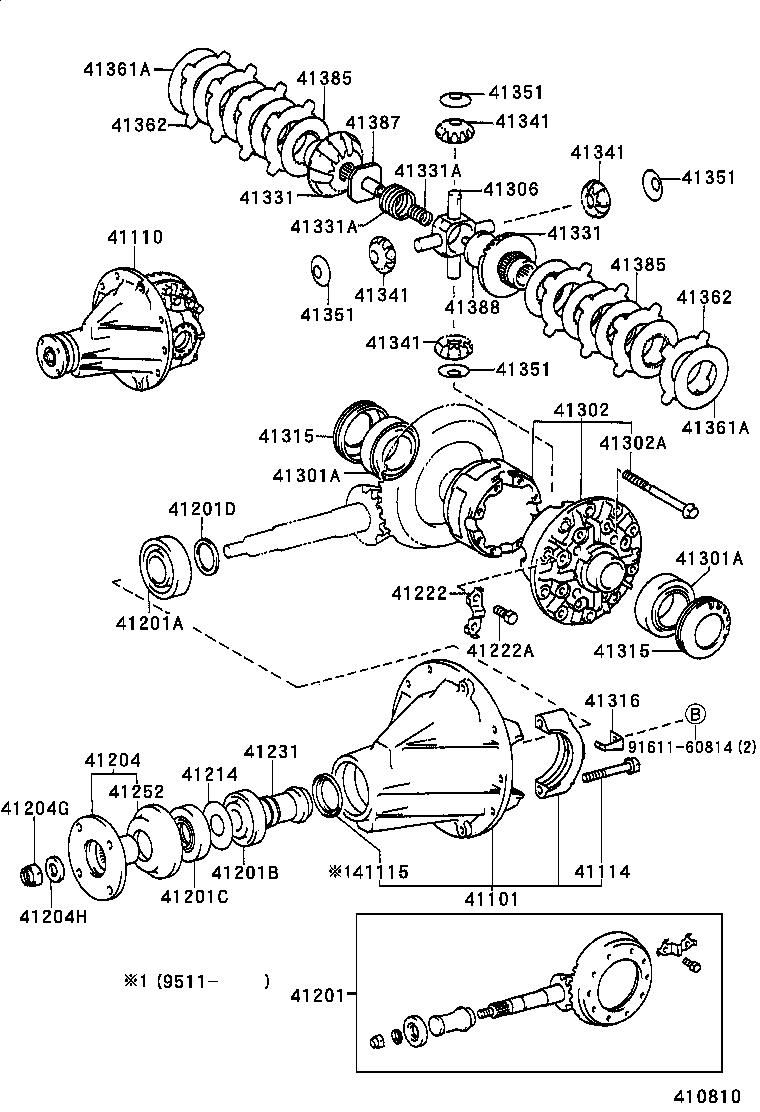

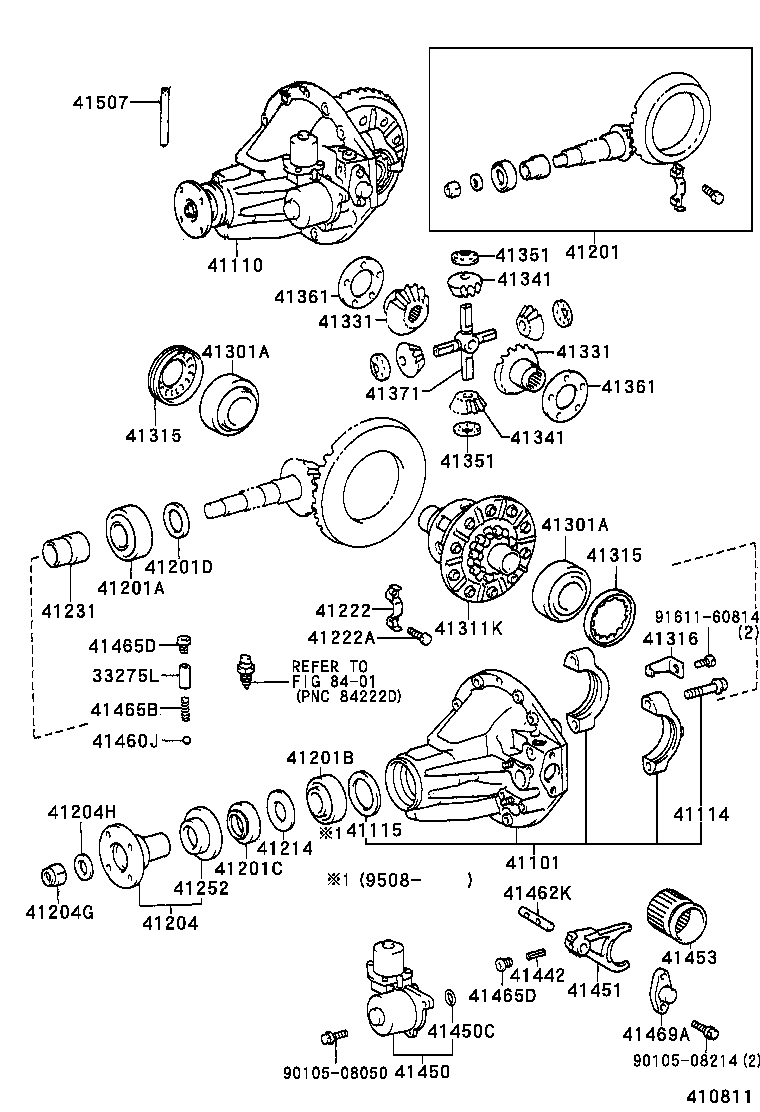

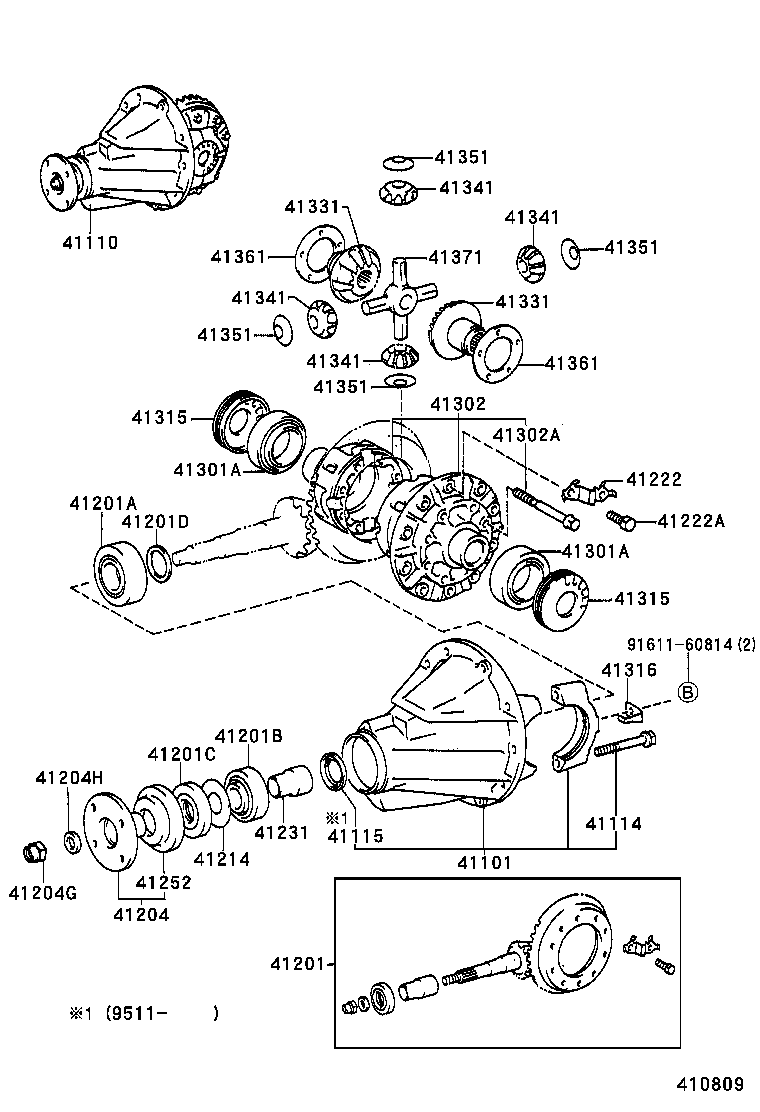

ILLUST NO. 1 OF 2(9001-9604)KZJ7#,LJ7#,RJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35170 |
KZJ7#,RJ7# |
1 | ||
| 41101-60140 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 41101-35071 |
KZJ7#,RJ7# |
1 | ||
| 41101-35150 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-35491 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=41:9=4.555,*AXC=G974 |
1 | ||
| 41110-35650 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=43:10=4.300,W(DIFFERENTIAL LOCK) & AXLE CODE=G284 |
1 | ||
| 41110-3D210 |
KZJ7#,RJ7# *FGR=41:9=4.555,*AXC=G975,W(LSD) |
1 | ||
| 41110-35670 |
KZJ7#,RJ7# *FGR=41:9=4.555,*AXC=G975,W(LSD) |
1 | ||
| 41110-60570 |
KZJ7# *FGR=41:9=4.555,W(DIFFERENTIAL LOCK) & AXLE CODE=G974 |
1 | ||
| 41110-26161 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=43:10=4.300 |
1 | ||
| 41110-35640 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=43:10=4.300,*AXC=G285,W(LSD) |
1 | ||
| 41110-3D090 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=41:9=4.555,*AXC=G974 |
1 | ||
| 41110-3D040 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=43:10=4.300,*AXC=G285,W(LSD) |
1 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
KZJ7#,RJ7# |
1 | ||
| 41115-35010 |
KZJ7# |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69465 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=43:10=4.300,W(DIFFERENTIAL LOCK) & AXLE CODE=G284 |
1 | ||
| 41201-80011 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=41:9=4.556,*AXC=G974,G975 |
1 | ||
| 41201-29856 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=43:10=4.300 |
1 | ||
| 41201-80059 |
KZJ7#,RJ7# *FGR=41:9=4.556 |
1 | ||
| 41201-69455 |
KZJ7# *FGR=41:9=4.556,W(DIFFERENTIAL LOCK) |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35028 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 90366-35087 |
KZJ7#,RJ7# |
1 | ||
| 90366-35028 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30025 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 90366-30025 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 90366-30067 |
KZJ7#,RJ7# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 90311-38047 |
KZJ7#,RJ7# |
1 | ||
| 90311-38035 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35498 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.73 |
1 | ||
| 90201-35500 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.79 |
1 | ||
| 90201-35499 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.76 |
1 | ||
| 90201-35501 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.82 |
1 | ||
| 90201-35497 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.70 |
1 | ||
| 90201-35502 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.85 |
1 | ||
| 90201-35504 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.91 |
1 | ||
| 90201-35506 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.97 |
1 | ||
| 90201-35510 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.09 |
1 | ||
| 90201-35503 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.88 |
1 | ||
| 90201-35511 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.12 |
1 | ||
| 90201-35505 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.94 |
1 | ||
| 90201-35507 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.00 |
1 | ||
| 90201-35509 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.06 |
1 | ||
| 90201-35514 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.21 |
1 | ||
| 90201-35508 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.03 |
1 | ||
| 90201-35516 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35512 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.15 |
1 | ||
| 90201-35513 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.18 |
1 | ||
| 90201-35517 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35518 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35515 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.24,MARK 01 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35040 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41204-35080 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 41204G - NUT (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90179-20001 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 90179-20018 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41204H - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90201-20005 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-60010 |
KZJ7# W(DIFFERENTIAL LOCK) |
5 | ||
| 41222-35020 |
KZJ7#,LJ7#,RJ7# |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
KZJ7#,LJ7#,RJ7# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35020 |
BJ73,HZJ7#,KZJ7#,LJ7#,RJ7# |
1 | ||
| 41252-35020 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 41252-35040 |
KZJ7#,RJ7# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
KZJ7# RH |
1 | ||
| 90366-75001 |
KZJ7# LH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
KZJ7# RH |
1 | ||
| 90366-75001 |
KZJ7# LH |
1 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41302-35040 |
KZJ7#,RJ7# W(LSD) |
1 | ||
| 41302-35020 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41302-35010 |
KZJ7#,LJ7#,RJ7# W(LSD) |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10084 |
KZJ7#,LJ7#,RJ7# |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-60010 |
KZJ7# W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41315-35020 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 41315-35020 |
KZJ7# W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-60010 |
KZJ7# W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41315-35020 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 41315-35020 |
KZJ7# W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
KZJ7# W(DIFFERENTIAL LOCK),RH |
2 | ||
| 41331-60040 |
KZJ7# W(DIFFERENTIAL LOCK),LH |
2 | ||
| 41331-35030 |
KZJ7#,LJ7#,RJ7# W(LSD) |
2 | ||
| 41331-35040 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
KZJ7# W(DIFFERENTIAL LOCK),RH |
2 | ||
| 41331-60040 |
KZJ7# W(DIFFERENTIAL LOCK),LH |
2 | ||
| 41331-35030 |
KZJ7#,LJ7#,RJ7# W(LSD) |
2 | ||
| 41331-35040 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-35010 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(LSD) |
8 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-35010 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(LSD) |
8 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-35010 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(LSD) |
8 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-35010 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(LSD) |
8 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-24020 |
KZJ7#,LJ7#,RJ7# T=1.00 |
2 | ||
| 41361-60290 |
KZJ7# T=0.90,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-24040 |
KZJ7#,LJ7#,RJ7# T=1.20 |
2 | ||
| 41361-24050 |
KZJ7#,LJ7#,RJ7# T=1.30 |
2 | ||
| 41361-24030 |
KZJ7#,LJ7#,RJ7# T=1.10 |
2 | ||
| 41361-60320 |
KZJ7# T=1.20,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-24010 |
KZJ7#,LJ7#,RJ7# T=0.90 |
2 | ||
| 41361-60300 |
KZJ7# T=1.00,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-35310 |
KZJ7#,RJ7# T=0.9 |
2 | ||
| 41361-35350 |
KZJ7#,RJ7# T=1.3 |
2 | ||
| 41361-60310 |
KZJ7# T=1.10,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60330 |
KZJ7# T=1.30,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-35340 |
KZJ7#,RJ7# T=1.2 |
2 | ||
| 41361-35320 |
KZJ7#,RJ7# T=1.0 |
2 | ||
| 41361-35330 |
KZJ7#,RJ7# T=1.1 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-24020 |
KZJ7#,LJ7#,RJ7# T=1.00 |
2 | ||
| 41361-60290 |
KZJ7# T=0.90,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-24040 |
KZJ7#,LJ7#,RJ7# T=1.20 |
2 | ||
| 41361-24050 |
KZJ7#,LJ7#,RJ7# T=1.30 |
2 | ||
| 41361-24030 |
KZJ7#,LJ7#,RJ7# T=1.10 |
2 | ||
| 41361-60320 |
KZJ7# T=1.20,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-24010 |
KZJ7#,LJ7#,RJ7# T=0.90 |
2 | ||
| 41361-60300 |
KZJ7# T=1.00,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-35310 |
KZJ7#,RJ7# T=0.9 |
2 | ||
| 41361-35350 |
KZJ7#,RJ7# T=1.3 |
2 | ||
| 41361-60310 |
KZJ7# T=1.10,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60330 |
KZJ7# T=1.30,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-35340 |
KZJ7#,RJ7# T=1.2 |
2 | ||
| 41361-35320 |
KZJ7#,RJ7# T=1.0 |
2 | ||
| 41361-35330 |
KZJ7#,RJ7# T=1.1 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-35020 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
ILLUST NO. 1 OF 2(9001-9604)KZJ7#,LJ7#,RJ7#
LIMITED SLIP DIFFERENTIAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35170 |
KZJ7#,RJ7# |
1 | ||
| 41101-60140 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 41101-35071 |
KZJ7#,RJ7# |
1 | ||
| 41101-35150 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-35491 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=41:9=4.555,*AXC=G974 |
1 | ||
| 41110-35650 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=43:10=4.300,W(DIFFERENTIAL LOCK) & AXLE CODE=G284 |
1 | ||
| 41110-3D210 |
KZJ7#,RJ7# *FGR=41:9=4.555,*AXC=G975,W(LSD) |
1 | ||
| 41110-35670 |
KZJ7#,RJ7# *FGR=41:9=4.555,*AXC=G975,W(LSD) |
1 | ||
| 41110-60570 |
KZJ7# *FGR=41:9=4.555,W(DIFFERENTIAL LOCK) & AXLE CODE=G974 |
1 | ||
| 41110-26161 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=43:10=4.300 |
1 | ||
| 41110-35640 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=43:10=4.300,*AXC=G285,W(LSD) |
1 | ||
| 41110-3D090 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=41:9=4.555,*AXC=G974 |
1 | ||
| 41110-3D040 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=43:10=4.300,*AXC=G285,W(LSD) |
1 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
KZJ7#,RJ7# |
1 | ||
| 41115-35010 |
KZJ7# |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69465 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=43:10=4.300,W(DIFFERENTIAL LOCK) & AXLE CODE=G284 |
1 | ||
| 41201-80011 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=41:9=4.556,*AXC=G974,G975 |
1 | ||
| 41201-29856 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=43:10=4.300 |
1 | ||
| 41201-80059 |
KZJ7#,RJ7# *FGR=41:9=4.556 |
1 | ||
| 41201-69455 |
KZJ7# *FGR=41:9=4.556,W(DIFFERENTIAL LOCK) |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35028 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 90366-35028 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 90366-35087 |
KZJ7#,RJ7# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30025 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 90366-30025 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 90366-30067 |
KZJ7#,RJ7# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 90311-38047 |
KZJ7#,RJ7# |
1 | ||
| 90311-38035 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35498 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.73 |
1 | ||
| 90201-35500 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.79 |
1 | ||
| 90201-35499 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.76 |
1 | ||
| 90201-35501 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.82 |
1 | ||
| 90201-35497 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.70 |
1 | ||
| 90201-35502 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.85 |
1 | ||
| 90201-35504 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.91 |
1 | ||
| 90201-35506 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.97 |
1 | ||
| 90201-35510 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.09 |
1 | ||
| 90201-35503 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.88 |
1 | ||
| 90201-35511 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.12 |
1 | ||
| 90201-35505 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.94 |
1 | ||
| 90201-35507 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.00 |
1 | ||
| 90201-35509 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.06 |
1 | ||
| 90201-35514 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.21 |
1 | ||
| 90201-35508 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.03 |
1 | ||
| 90201-35516 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35512 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.15 |
1 | ||
| 90201-35513 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.18 |
1 | ||
| 90201-35517 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35518 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35515 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.24,MARK 01 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35040 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41204-35080 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 41204G - NUT (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90179-20001 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 90179-20018 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41204H - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90201-20005 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-60010 |
KZJ7# W(DIFFERENTIAL LOCK) |
5 | ||
| 41222-35020 |
KZJ7#,LJ7#,RJ7# |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
KZJ7#,LJ7#,RJ7# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35020 |
BJ73,HZJ7#,KZJ7#,LJ7#,RJ7# |
1 | ||
| 41252-35020 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 41252-35040 |
KZJ7#,RJ7# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
KZJ7# RH |
1 | ||
| 90366-75001 |
KZJ7# LH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
KZJ7# RH |
1 | ||
| 90366-75001 |
KZJ7# LH |
1 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41302-35040 |
KZJ7#,RJ7# W(LSD) |
1 | ||
| 41302-35020 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41302-35010 |
KZJ7#,LJ7#,RJ7# W(LSD) |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10084 |
KZJ7#,LJ7#,RJ7# |
8 | ||
| 41306 - SPIDER SUB-ASSY, FRONT DIFFERENTIAL | ||||
| 41306-35040 |
KZJ7#,RJ7# |
1 | ||
| 41306-35010 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-60010 |
KZJ7# W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41315-35020 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 41315-35020 |
KZJ7# W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-60010 |
KZJ7# W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41315-35020 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 41315-35020 |
KZJ7# W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
KZJ7# W(DIFFERENTIAL LOCK),RH |
2 | ||
| 41331-60040 |
KZJ7# W(DIFFERENTIAL LOCK),LH |
2 | ||
| 41331-35030 |
KZJ7#,LJ7#,RJ7# W(LSD) |
2 | ||
| 41331-35040 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
KZJ7# W(DIFFERENTIAL LOCK),RH |
2 | ||
| 41331-60040 |
KZJ7# W(DIFFERENTIAL LOCK),LH |
2 | ||
| 41331-35030 |
KZJ7#,LJ7#,RJ7# W(LSD) |
2 | ||
| 41331-35040 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 41331A - SPRING, COMPRESSION | ||||
| 90501-07112 |
KZJ7#,RJ7# |
1 | ||
| 90501-70001 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41331A - SPRING, COMPRESSION | ||||
| 90501-07112 |
KZJ7#,RJ7# |
1 | ||
| 90501-70001 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-35010 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(LSD) |
8 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-35010 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(LSD) |
8 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-35010 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(LSD) |
8 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-35010 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(LSD) |
8 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-50002 |
BJ73,KZJ7#,LJ7#,RJ7# T=0.20 |
1 | ||
| 90564-50003 |
BJ73,KZJ7#,LJ7#,RJ7# T=0.25 |
1 | ||
| 90564-50001 |
BJ73,KZJ7#,LJ7#,RJ7# T=0.15 |
1 | ||
| 90564-50005 |
BJ73,KZJ7#,LJ7#,RJ7# T=0.35 |
1 | ||
| 90564-50004 |
BJ73,KZJ7#,LJ7#,RJ7# T=0.30 |
1 | ||
| 41361A - SHIM(FOR REAR DIFFERENTIAL SIDE GEAR THRUST) | ||||
| 90564-50002 |
BJ73,KZJ7#,LJ7#,RJ7# T=0.20 |
1 | ||
| 90564-50003 |
BJ73,KZJ7#,LJ7#,RJ7# T=0.25 |
1 | ||
| 90564-50001 |
BJ73,KZJ7#,LJ7#,RJ7# T=0.15 |
1 | ||
| 90564-50005 |
BJ73,KZJ7#,LJ7#,RJ7# T=0.35 |
1 | ||
| 90564-50004 |
BJ73,KZJ7#,LJ7#,RJ7# T=0.30 |
1 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-35290 |
BJ73,KZJ7#,LJ7#,RJ7# T=1.70,MARK N |
2 | ||
| 41361-35160 |
BJ73,KZJ7#,LJ7#,RJ7# T=1.8 |
8 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-35290 |
BJ73,KZJ7#,LJ7#,RJ7# T=1.70,MARK N |
2 | ||
| 41361-35160 |
BJ73,KZJ7#,LJ7#,RJ7# T=1.8 |
8 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-22020 |
BJ73,KZJ7#,LJ7#,RJ7# |
8 | ||
| 41385 - PLATE, CLUTCH | ||||
| 41385-22020 |
BJ73,KZJ7#,LJ7#,RJ7# |
8 | ||
| 41387 - RETAINER, SPRING, RH | ||||
| 41387-35010 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41308-35010 |
KZJ7#,RJ7# |
1 | ||
| 41388 - RETAINER, SPRING, LH | ||||
| 41388-35010 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41388-35020 |
KZJ7#,RJ7# |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
ILLUST NO. 1 OF 2(9001-9604)KZJ7#,LJ7#,RJ7#
W(DIFFERENTIAL LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33275L - SEAT, REAR DIFFERENTIAL LOCK SHIFT DETENT BALL SPRING | ||||
| 33275-16010 |
KZJ7# |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35170 |
KZJ7#,RJ7# |
1 | ||
| 41101-60140 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 41101-35071 |
KZJ7#,RJ7# |
1 | ||
| 41101-35150 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-35491 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=41:9=4.555,*AXC=G974 |
1 | ||
| 41110-35650 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=43:10=4.300,W(DIFFERENTIAL LOCK) & AXLE CODE=G284 |
1 | ||
| 41110-3D210 |
KZJ7#,RJ7# *FGR=41:9=4.555,*AXC=G975,W(LSD) |
1 | ||
| 41110-35670 |
KZJ7#,RJ7# *FGR=41:9=4.555,*AXC=G975,W(LSD) |
1 | ||
| 41110-60570 |
KZJ7# *FGR=41:9=4.555,W(DIFFERENTIAL LOCK) & AXLE CODE=G974 |
1 | ||
| 41110-26161 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=43:10=4.300 |
1 | ||
| 41110-35640 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=43:10=4.300,*AXC=G285,W(LSD) |
1 | ||
| 41110-3D090 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=41:9=4.555,*AXC=G974 |
1 | ||
| 41110-3D040 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=43:10=4.300,*AXC=G285,W(LSD) |
1 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
KZJ7#,RJ7# |
1 | ||
| 41115-35010 |
KZJ7# |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-69465 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=43:10=4.300,W(DIFFERENTIAL LOCK) & AXLE CODE=G284 |
1 | ||
| 41201-80011 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=41:9=4.556,*AXC=G974,G975 |
1 | ||
| 41201-29856 |
KZJ7#..LX,STD;KZJ70..LHD..VX *FGR=43:10=4.300 |
1 | ||
| 41201-80059 |
KZJ7#,RJ7# *FGR=41:9=4.556 |
1 | ||
| 41201-69455 |
KZJ7# *FGR=41:9=4.556,W(DIFFERENTIAL LOCK) |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35028 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 90366-35028 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 90366-35087 |
KZJ7#,RJ7# |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30025 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 90366-30025 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 90366-30067 |
KZJ7#,RJ7# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38133 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 90311-38047 |
KZJ7#,RJ7# |
1 | ||
| 90311-38035 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35498 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.73 |
1 | ||
| 90201-35500 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.79 |
1 | ||
| 90201-35499 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.76 |
1 | ||
| 90201-35501 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.82 |
1 | ||
| 90201-35497 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.70 |
1 | ||
| 90201-35502 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.85 |
1 | ||
| 90201-35504 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.91 |
1 | ||
| 90201-35506 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.97 |
1 | ||
| 90201-35510 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.09 |
1 | ||
| 90201-35503 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.88 |
1 | ||
| 90201-35511 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.12 |
1 | ||
| 90201-35505 |
KZJ7#,LJ7#,RJ7# OD=47,T=1.94 |
1 | ||
| 90201-35507 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.00 |
1 | ||
| 90201-35509 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.06 |
1 | ||
| 90201-35514 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.21 |
1 | ||
| 90201-35508 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.03 |
1 | ||
| 90201-35516 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35512 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.15 |
1 | ||
| 90201-35513 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.18 |
1 | ||
| 90201-35517 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35518 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35515 |
KZJ7#,LJ7#,RJ7# OD=47,T=2.24,MARK 01 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-35040 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41204-35080 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 41204G - NUT (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90179-20001 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 90179-20018 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41204H - WASHER, PLATE (FOR DRIVE PINION COMPANION FLANGE REAR) | ||||
| 90201-20005 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-60010 |
KZJ7# W(DIFFERENTIAL LOCK) |
5 | ||
| 41222-35020 |
KZJ7#,LJ7#,RJ7# |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
KZJ7#,LJ7#,RJ7# |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-35020 |
BJ73,HZJ7#,KZJ7#,LJ7#,RJ7# |
1 | ||
| 41252-35020 |
KZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 41252-35040 |
KZJ7#,RJ7# |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
KZJ7# RH |
1 | ||
| 90366-75001 |
KZJ7# LH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50007 |
KZJ7# RH |
1 | ||
| 90366-75001 |
KZJ7# LH |
1 | ||
| 41311K - CASE, REAR DIFFERENTIAL | ||||
| 41301-60060 |
KZJ7# |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-60010 |
KZJ7# W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41315-35020 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 41315-35020 |
KZJ7# W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-60010 |
KZJ7# W(DIFFERENTIAL LOCK),LH |
1 | ||
| 41315-35020 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 41315-35020 |
KZJ7# W(DIFFERENTIAL LOCK),RH |
1 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
KZJ7# W(DIFFERENTIAL LOCK),RH |
2 | ||
| 41331-60040 |
KZJ7# W(DIFFERENTIAL LOCK),LH |
2 | ||
| 41331-35030 |
KZJ7#,LJ7#,RJ7# W(LSD) |
2 | ||
| 41331-35040 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-35040 |
KZJ7# W(DIFFERENTIAL LOCK),RH |
2 | ||
| 41331-60040 |
KZJ7# W(DIFFERENTIAL LOCK),LH |
2 | ||
| 41331-35030 |
KZJ7#,LJ7#,RJ7# W(LSD) |
2 | ||
| 41331-35040 |
KZJ7#,LJ7#,RJ7# |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-35010 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(LSD) |
8 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
KZJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-35010 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(DIFFERENTIAL LOCK) |
4 | ||
| 41341-30020 |
KZJ7#,LJ70,RJ7# W(LSD) |
8 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KZJ7#,LJ7#,RJ7# |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-24020 |
KZJ7#,LJ7#,RJ7# T=1.00 |
2 | ||
| 41361-60290 |
KZJ7# T=0.90,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-24040 |
KZJ7#,LJ7#,RJ7# T=1.20 |
2 | ||
| 41361-24050 |
KZJ7#,LJ7#,RJ7# T=1.30 |
2 | ||
| 41361-24030 |
KZJ7#,LJ7#,RJ7# T=1.10 |
2 | ||
| 41361-60320 |
KZJ7# T=1.20,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-24010 |
KZJ7#,LJ7#,RJ7# T=0.90 |
2 | ||
| 41361-60300 |
KZJ7# T=1.00,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-35310 |
KZJ7#,RJ7# T=0.9 |
2 | ||
| 41361-35350 |
KZJ7#,RJ7# T=1.3 |
2 | ||
| 41361-60310 |
KZJ7# T=1.10,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60330 |
KZJ7# T=1.30,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-35340 |
KZJ7#,RJ7# T=1.2 |
2 | ||
| 41361-35320 |
KZJ7#,RJ7# T=1.0 |
2 | ||
| 41361-35330 |
KZJ7#,RJ7# T=1.1 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-24020 |
KZJ7#,LJ7#,RJ7# T=1.00 |
2 | ||
| 41361-60290 |
KZJ7# T=0.90,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-24040 |
KZJ7#,LJ7#,RJ7# T=1.20 |
2 | ||
| 41361-24050 |
KZJ7#,LJ7#,RJ7# T=1.30 |
2 | ||
| 41361-24030 |
KZJ7#,LJ7#,RJ7# T=1.10 |
2 | ||
| 41361-60320 |
KZJ7# T=1.20,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-24010 |
KZJ7#,LJ7#,RJ7# T=0.90 |
2 | ||
| 41361-60300 |
KZJ7# T=1.00,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-35310 |
KZJ7#,RJ7# T=0.9 |
2 | ||
| 41361-35350 |
KZJ7#,RJ7# T=1.3 |
2 | ||
| 41361-60310 |
KZJ7# T=1.10,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-60330 |
KZJ7# T=1.30,W(DIFFERENTIAL LOCK) |
2 | ||
| 41361-35340 |
KZJ7#,RJ7# T=1.2 |
2 | ||
| 41361-35320 |
KZJ7#,RJ7# T=1.0 |
2 | ||
| 41361-35330 |
KZJ7#,RJ7# T=1.1 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-35020 |
KZJ7#,LJ7#,RJ7# |
1 | ||
| 41442 - BOLT OR PIN, SHIFT FORK LOCK | ||||
| 90254-05016 |
KZJ7# |
1 | ||
| 41450 - ACTUATOR, DIFFERENTIAL LOCK SHIFT | ||||
| 41450-35020 |
KZJ7# |
1 | ||
| 41450-60030 |
KZJ7# |
1 | ||
| 41450C - RING, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR) | ||||
| 90301-20005 |
KZJ7# |
1 | ||
| 41451 - FORK, REAR DIFFERENTIAL LOCK SHIFT | ||||
| 41451-60020 |
KZJ7# |
1 | ||
| 41453 - SLEEVE, REAR DIFFERENTIAL LOCK | ||||
| 41453-60020 |
KZJ7# |
1 | ||
| 41460J - BALL (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90360-08009 |
KZJ7# |
1 | ||
| 41462K - SHAFT, REAR DIFFERENTIAL LOCK SHIFT FORK | ||||
| 41462-60020 |
KZJ7# |
1 | ||
| 41465B - SPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINE | ||||
| 90501-12110 |
KZJ7# |
1 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
KZJ7# |
2 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
KZJ7# |
2 | ||
| 41469A - RETAINER, REAR DIFFERENTIAL LOCK SHAFT | ||||
| 41469-60010 |
KZJ7# |
1 | ||
| 41507 - TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 41507-60070 |
KZJ7# |
1 | ||
| Common parts | ||||
| 90105-08050 | ||||
| 90105-08214 | ||||
| 91611-60814 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
