KDJ150R-GKAEYW (2017)
Toyota Land Cruiser
Production
Aug 2017
-
Jun 2019
Engine
1KDFTV
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1708- )RHD

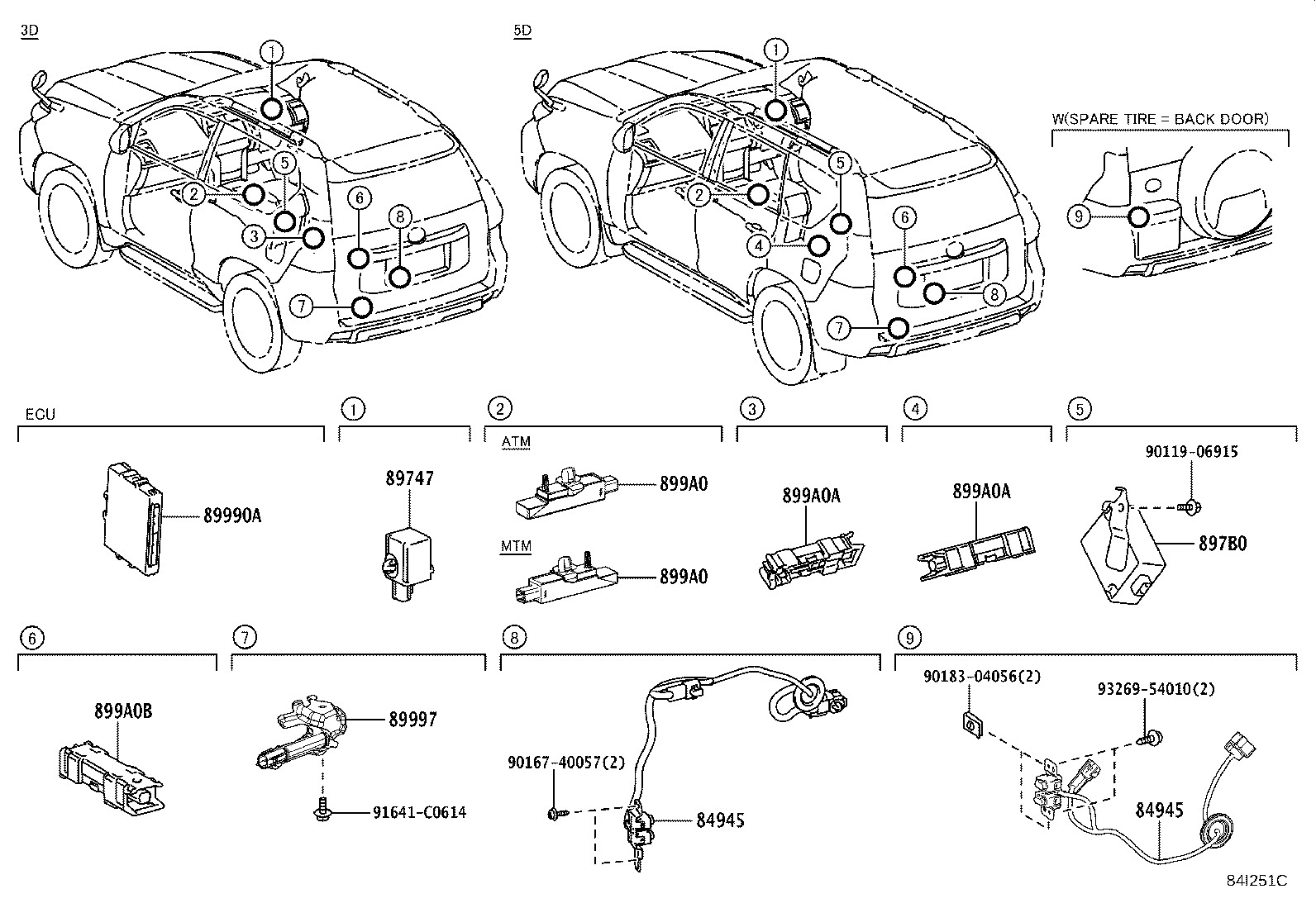

Click highlighted areas on diagram
W(SMART ENTRY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84945 - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84905-60010 |
GDJ150,GRJ150,KDJ150 |
1 | ||
| 84945 - SWITCH, LUGGAGE ELECTRICAL KEY | ||||
| 84905-60010 |
GDJ150,GRJ150,KDJ150 |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-30040 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 897B0 - RECEIVER ASSY, ELECTRICAL KEY & TPMS | ||||
| 897B0-60130 |
KDJ150..RHD |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-60430 |
GDJ150,GRJ150,KDJ150 |
1 | ||
| 89997 - ANTENNA, ELECTRICAL KEY | ||||
| 89997-60110 |
GDJ15#,GRJ150,KDJ150 |
1 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 899A0-60060 |
GDJ15#,GRJ150,KDJ150 |
1 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 899A0-60060 |
GDJ15#,GRJ150,KDJ150 |
1 | ||
| 899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2 | ||||
| 899A0-60020 |
GDJ15#,GRJ150,KDJ150 |
1 | ||
| 899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2 | ||||
| 899A0-60020 |
GDJ15#,GRJ150,KDJ150 |
1 | ||
| 899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3 | ||||
| 899A0-60020 |
GDJ150,GRJ150,KDJ150 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90167-40057 | ||||
| 90183-04056 | ||||
| 91641-C0614 | ||||
| 93269-54010 | ||||
