KDJ150R-GKAEYW (2017)
Toyota Land Cruiser

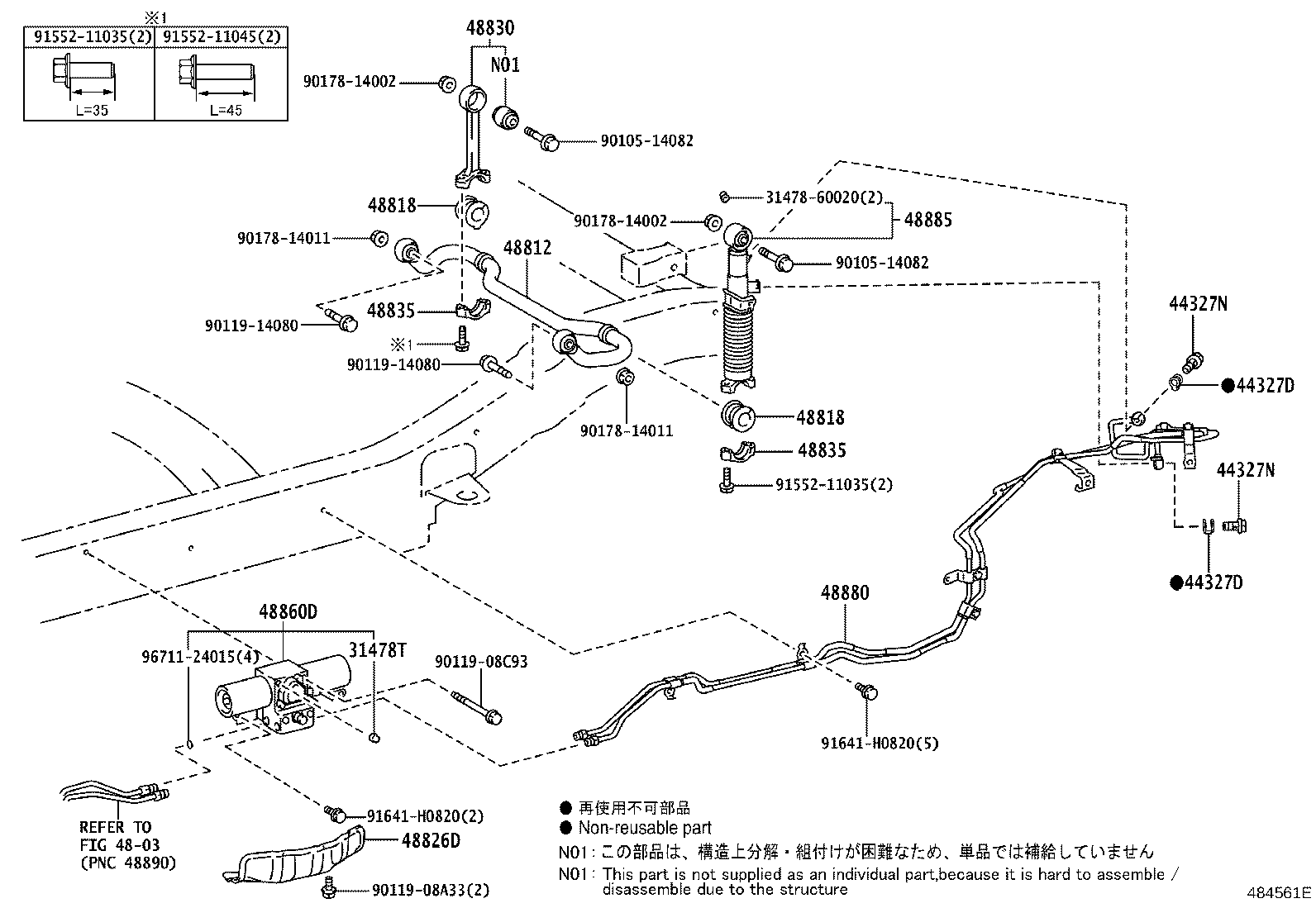

ILLUST NO. 2 OF 2(1708- )GDJ15#,GRJ150,KDJ150
W(KDSS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478T - CAP, BLEEDER PLUG(FOR REAR SUSPENSION CONTROL) | ||||
| 31478-20020 |
KDJ150..RHD |
1 | ||
| 44327D - GASKET, PRESSURE PORT(FOR REAR STABILIZER CONTROL TUBE) | ||||
| 90430-16016 |
KDJ150..RHD |
2 | ||
| 44327D - GASKET, PRESSURE PORT(FOR REAR STABILIZER CONTROL TUBE) | ||||
| 90430-16016 |
KDJ150..RHD |
2 | ||
| 44327N - BOLT, UNION(FOR REAR STABILIZER CONTOROL TUBE) | ||||
| 96341-41603 |
KDJ150..RHD |
2 | ||
| 44327N - BOLT, UNION(FOR REAR STABILIZER CONTOROL TUBE) | ||||
| 96341-41603 |
KDJ150..RHD |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48805-60160 |
KDJ150..RHD |
1 | ||
| 48805-60180 |
KDJ150..RHD |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-60020 |
KDJ150..RHD |
2 | ||
| 48818-60080 |
KDJ150..RHD |
2 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-60020 |
KDJ150..RHD |
2 | ||
| 48818-60080 |
KDJ150..RHD |
2 | ||
| 48826D - PROTECTOR, STABILIZER CONTROL VALVE | ||||
| 48826-60040 |
KDJ150..RHD |
1 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-60060 |
KDJ150..RHD |
1 | ||
| 48835 - BRACKET, REAR STABILIZER, LOWER | ||||
| 48835-60030 |
KDJ150..RHD |
2 | ||
| 48835-60020 |
KDJ150..RHD |
2 | ||
| 48835 - BRACKET, REAR STABILIZER, LOWER | ||||
| 48835-60030 |
KDJ150..RHD |
2 | ||
| 48835-60020 |
KDJ150..RHD |
2 | ||
| 48860D - HOUSING ASSY, STABILIZER CONTROL W/ACCUMULATOR | ||||
| 48006-60031 |
KDJ150..RHD |
1 | ||
| 48880 - TUBE ASSY, REAR STABILIZER CONTROL, NO.1 | ||||
| 48880-60051 |
KDJ150..RHD |
1 | ||
| 48885 - CYLINDER, REAR STABILIZER CONTROL | ||||
| 48886-60032 |
KDJ150..RHD |
1 | ||
| Common parts | ||||
| 31478-60020 | ||||
| 90105-14082 | ||||
| 90119-08A33 | ||||
| 90119-08C93 | ||||
| 90119-14080 | ||||
| 90178-14002 | ||||
| 90178-14011 | ||||
| 91552-11035 | ||||
| 91552-11045 | ||||
| 91641-H0820 | ||||
| 96711-24015 | ||||
| Linked diagrams | ||||
| 4803 | ||||

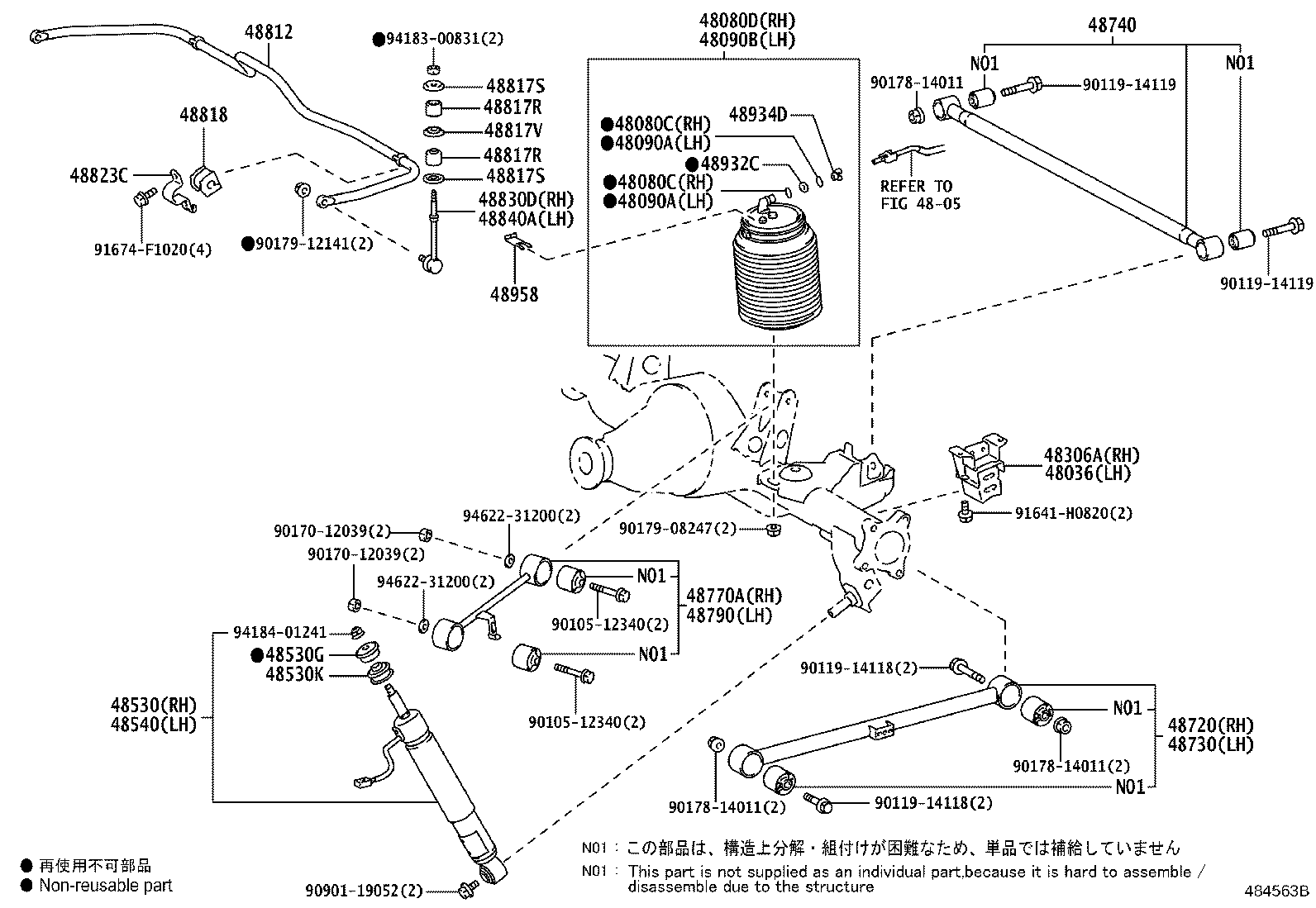

ILLUST NO. 1 OF 2(1708- )GDJ15#,GRJ150,KDJ150
W(AVS) & W/O(KDSS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48036 - BUMPER SUB-ASSY, REAR SPRING, LH | ||||
| 48036-60030 |
KDJ150..RHD |
1 | ||
| 48080C - RING, O(FOR REAR PNEUMATIC CYLINDER RH) | ||||
| 90301-04011 |
KDJ150..RHD |
2 | ||
| 48080C - RING, O(FOR REAR PNEUMATIC CYLINDER RH) | ||||
| 90301-04011 |
KDJ150..RHD |
2 | ||
| 48080D - CYLINDER ASSY, PNEUMATIC, REAR RH | ||||
| 48080-60010 |
KDJ150..RHD |
1 | ||
| 48090A - RING, O(FOR REAR PNEUMATIC CYLINDER LH) | ||||
| 90301-04011 |
KDJ150..RHD |
2 | ||
| 48090A - RING, O(FOR REAR PNEUMATIC CYLINDER LH) | ||||
| 90301-04011 |
KDJ150..RHD |
2 | ||
| 48090B - CYLINDER ASSY, PNEUMATIC, REAR LH | ||||
| 48090-60010 |
KDJ150..RHD |
1 | ||
| 48306A - BUMPER SUB-ASSY, REAR SPRING, RH | ||||
| 48306-60240 |
KDJ150..RHD |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80816 |
KDJ150..RHD MARK 48530-60400 |
1 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 48505-60110 |
KDJ150..RHD |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 48505-60120 |
KDJ150..RHD |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-80816 |
KDJ150..RHD MARK 48530-60400 |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-35061 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-35061 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-60160 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-60010 |
KDJ150..RHD |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-60010 |
KDJ150..RHD |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48805-60160 |
KDJ150..RHD |
1 | ||
| 48805-60180 |
KDJ150..RHD |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-60020 |
KDJ150..RHD |
2 | ||
| 48818-60080 |
KDJ150..RHD |
2 | ||
| 48932C - PLATE, HEIGHT CONTROL TUBE | ||||
| 48932-30010 |
KDJ150..RHD |
2 | ||
| 48934D - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
KDJ150..RHD |
2 | ||
| 48958 - CLIP, PNEUMATIC CYLINDER | ||||
| 48958-35020 |
KDJ150..RHD |
2 | ||
| Common parts | ||||
| 90105-12340 | ||||
| 90119-14118 | ||||
| 90119-14119 | ||||
| 90170-12039 | ||||
| 90178-14011 | ||||
| 90179-08247 | ||||
| 90179-12141 | ||||
| 90901-19052 | ||||
| 91641-H0820 | ||||
| 91674-F1020 | ||||
| 94183-00831 | ||||
| 94184-01241 | ||||
| 94622-31200 | ||||
| Linked diagrams | ||||
| 4805 | ||||

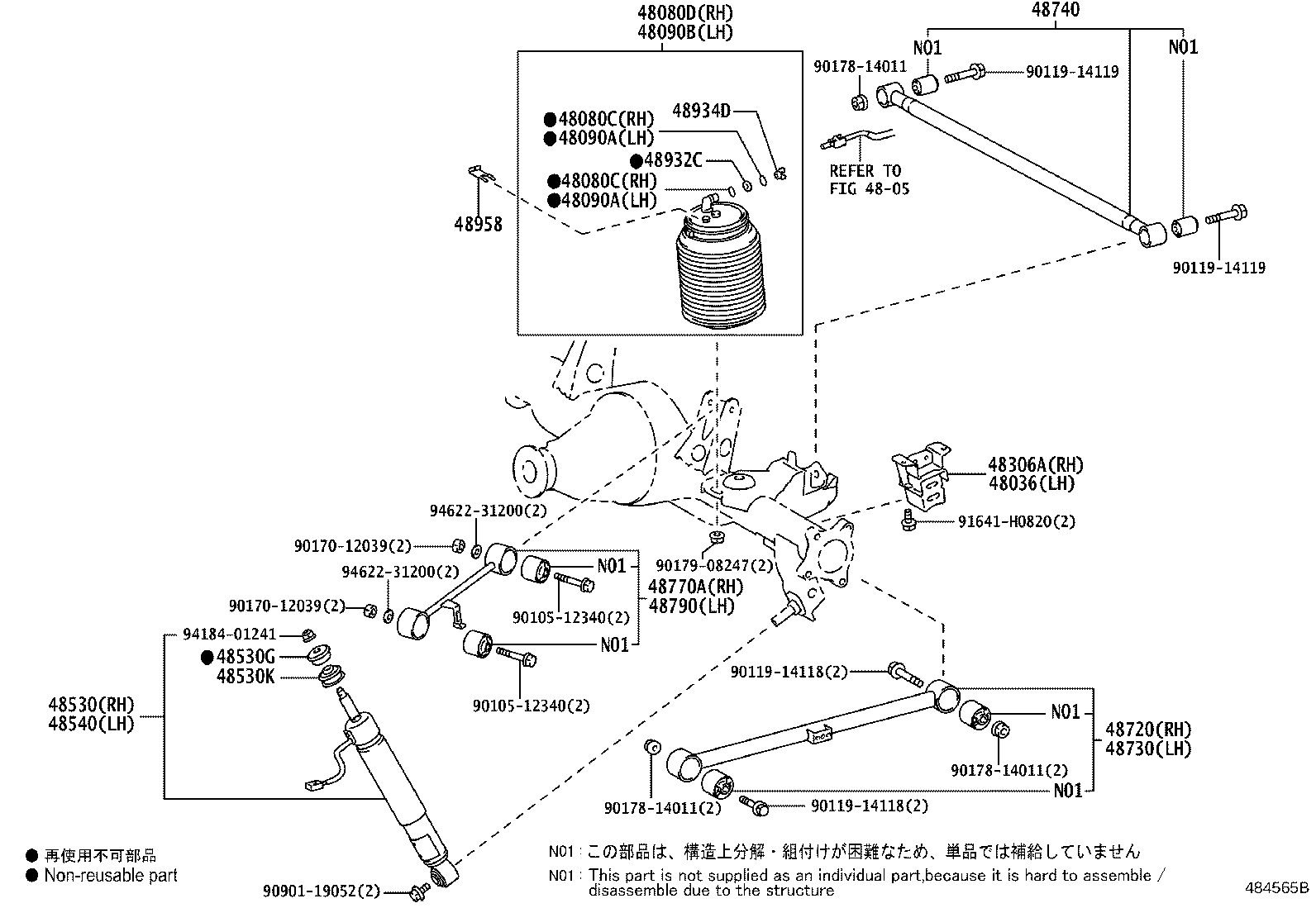

ILLUST NO. 1 OF 2(1708- )GDJ15#,GRJ150,KDJ150
W/O(AVS) & W(KDSS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48036 - BUMPER SUB-ASSY, REAR SPRING, LH | ||||
| 48036-60030 |
KDJ150..RHD |
1 | ||
| 48306A - BUMPER SUB-ASSY, REAR SPRING, RH | ||||
| 48306-60240 |
KDJ150..RHD |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80816 |
KDJ150..RHD MARK 48530-60400 |
1 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 48505-60110 |
KDJ150..RHD |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 48505-60120 |
KDJ150..RHD |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-80816 |
KDJ150..RHD MARK 48530-60400 |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-35061 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-35061 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-60160 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-60010 |
KDJ150..RHD |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-60010 |
KDJ150..RHD |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-60010 |
KDJ150..RHD |
1 | ||
| Common parts | ||||
| 90105-12340 | ||||
| 90119-14118 | ||||
| 90119-14119 | ||||
| 90170-12039 | ||||
| 90178-14011 | ||||
| 90901-19052 | ||||
| 91641-H0820 | ||||
| 94184-01241 | ||||
| 94622-31200 | ||||
ILLUST NO. 1 OF 2(1708- )GDJ15#,GRJ150,KDJ150
W(AVS) & W(KDSS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48036 - BUMPER SUB-ASSY, REAR SPRING, LH | ||||
| 48036-60030 |
KDJ150..RHD |
1 | ||
| 48080C - RING, O(FOR REAR PNEUMATIC CYLINDER RH) | ||||
| 90301-04011 |
KDJ150..RHD |
2 | ||
| 48080C - RING, O(FOR REAR PNEUMATIC CYLINDER RH) | ||||
| 90301-04011 |
KDJ150..RHD |
2 | ||
| 48080D - CYLINDER ASSY, PNEUMATIC, REAR RH | ||||
| 48080-60010 |
KDJ150..RHD |
1 | ||
| 48090A - RING, O(FOR REAR PNEUMATIC CYLINDER LH) | ||||
| 90301-04011 |
KDJ150..RHD |
2 | ||
| 48090A - RING, O(FOR REAR PNEUMATIC CYLINDER LH) | ||||
| 90301-04011 |
KDJ150..RHD |
2 | ||
| 48090B - CYLINDER ASSY, PNEUMATIC, REAR LH | ||||
| 48090-60010 |
KDJ150..RHD |
1 | ||
| 48306A - BUMPER SUB-ASSY, REAR SPRING, RH | ||||
| 48306-60240 |
KDJ150..RHD |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80816 |
KDJ150..RHD MARK 48530-60400 |
1 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 48505-60110 |
KDJ150..RHD |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 48505-60120 |
KDJ150..RHD |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-80816 |
KDJ150..RHD MARK 48530-60400 |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-35061 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-35061 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-60160 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-60010 |
KDJ150..RHD |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-60010 |
KDJ150..RHD |
1 | ||
| 48932C - PLATE, HEIGHT CONTROL TUBE | ||||
| 48932-30010 |
KDJ150..RHD |
2 | ||
| 48934D - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
KDJ150..RHD |
2 | ||
| 48958 - CLIP, PNEUMATIC CYLINDER | ||||
| 48958-35020 |
KDJ150..RHD |
2 | ||
| Common parts | ||||
| 90105-12340 | ||||
| 90119-14118 | ||||
| 90119-14119 | ||||
| 90170-12039 | ||||
| 90178-14011 | ||||
| 90179-08247 | ||||
| 90901-19052 | ||||
| 91641-H0820 | ||||
| 94184-01241 | ||||
| 94622-31200 | ||||
| Linked diagrams | ||||
| 4805 | ||||

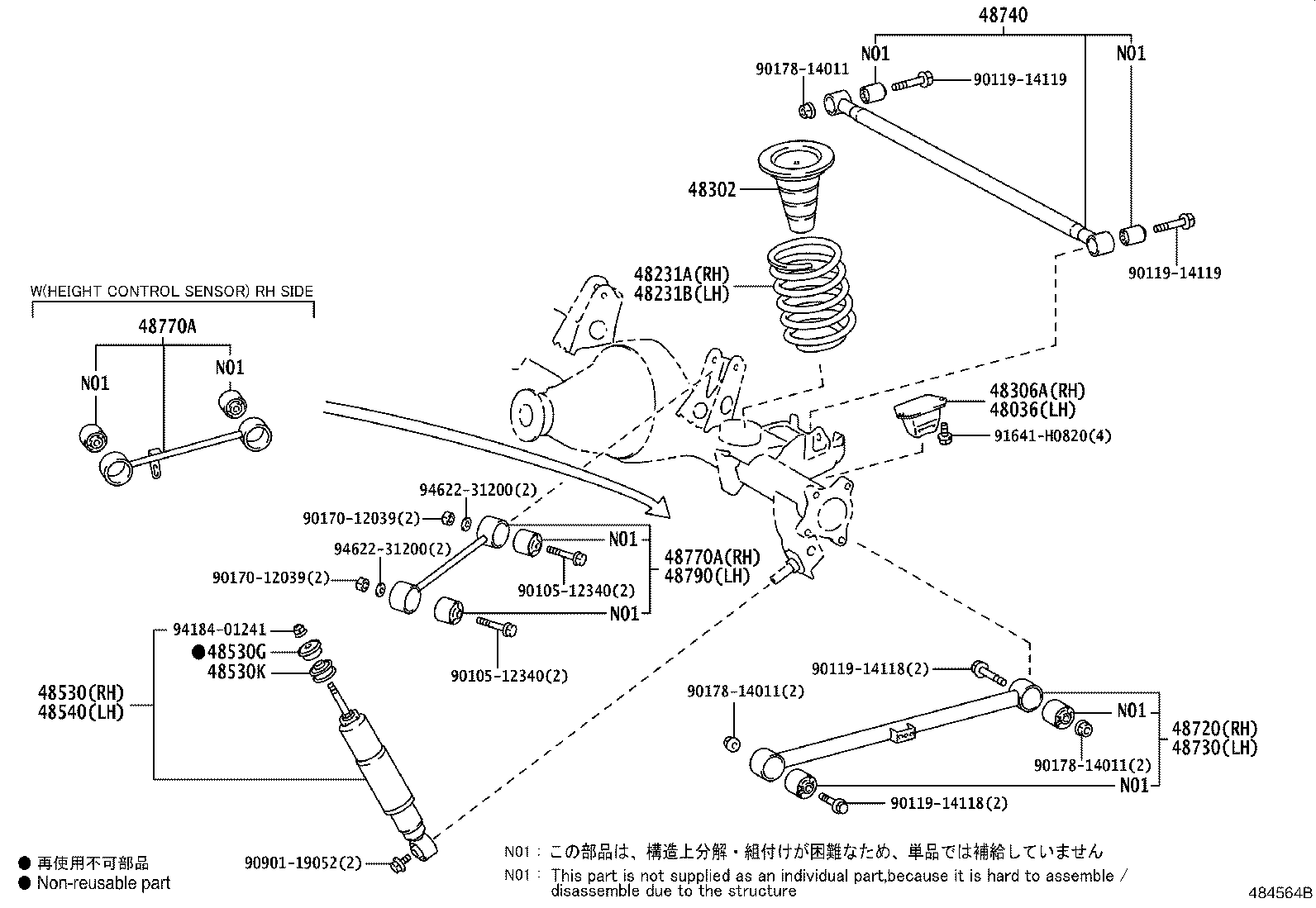

(1708- )
W/O(AVS) & W/O(KDSS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48036 - BUMPER SUB-ASSY, REAR SPRING, LH | ||||
| 48036-60030 |
KDJ150..RHD |
1 | ||
| 48036 - BUMPER SUB-ASSY, REAR SPRING, LH | ||||
| 48036-60030 |
KDJ150..RHD |
1 | ||
| 48306A - BUMPER SUB-ASSY, REAR SPRING, RH | ||||
| 48306-60240 |
KDJ150..RHD |
1 | ||
| 48306A - BUMPER SUB-ASSY, REAR SPRING, RH | ||||
| 48306-60240 |
KDJ150..RHD |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80816 |
KDJ150..RHD MARK 48530-60400 |
1 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 48505-60110 |
KDJ150..RHD |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 48505-60120 |
KDJ150..RHD |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48530-80816 |
KDJ150..RHD MARK 48530-60400 |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-35061 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-35061 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-60160 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-60010 |
KDJ150..RHD |
1 | ||
| 48770A - ARM ASSY, UPPER CONTROL, REAR RH | ||||
| 48770-60010 |
KDJ150..RHD |
1 | ||
| 48790 - ARM ASSY, UPPER CONTROL, REAR LH | ||||
| 48790-60010 |
KDJ150..RHD |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48805-60160 |
KDJ150..RHD |
1 | ||
| 48805-60180 |
KDJ150..RHD |
1 | ||
| 48818 - BUSH, STABILIZER, REAR | ||||
| 48818-60020 |
KDJ150..RHD |
2 | ||
| 48818-60080 |
KDJ150..RHD |
2 | ||
| Common parts | ||||
| 90105-12340 | ||||
| 90119-14118 | ||||
| 90119-14119 | ||||
| 90170-12039 | ||||
| 90178-14011 | ||||
| 90179-12141 | ||||
| 90901-19052 | ||||
| 91641-H0820 | ||||
| 91674-F1020 | ||||
| 94183-00831 | ||||
| 94184-01241 | ||||
| 94622-31200 | ||||
