KDJ150L-GKFEYW (2017)
Toyota Land Cruiser

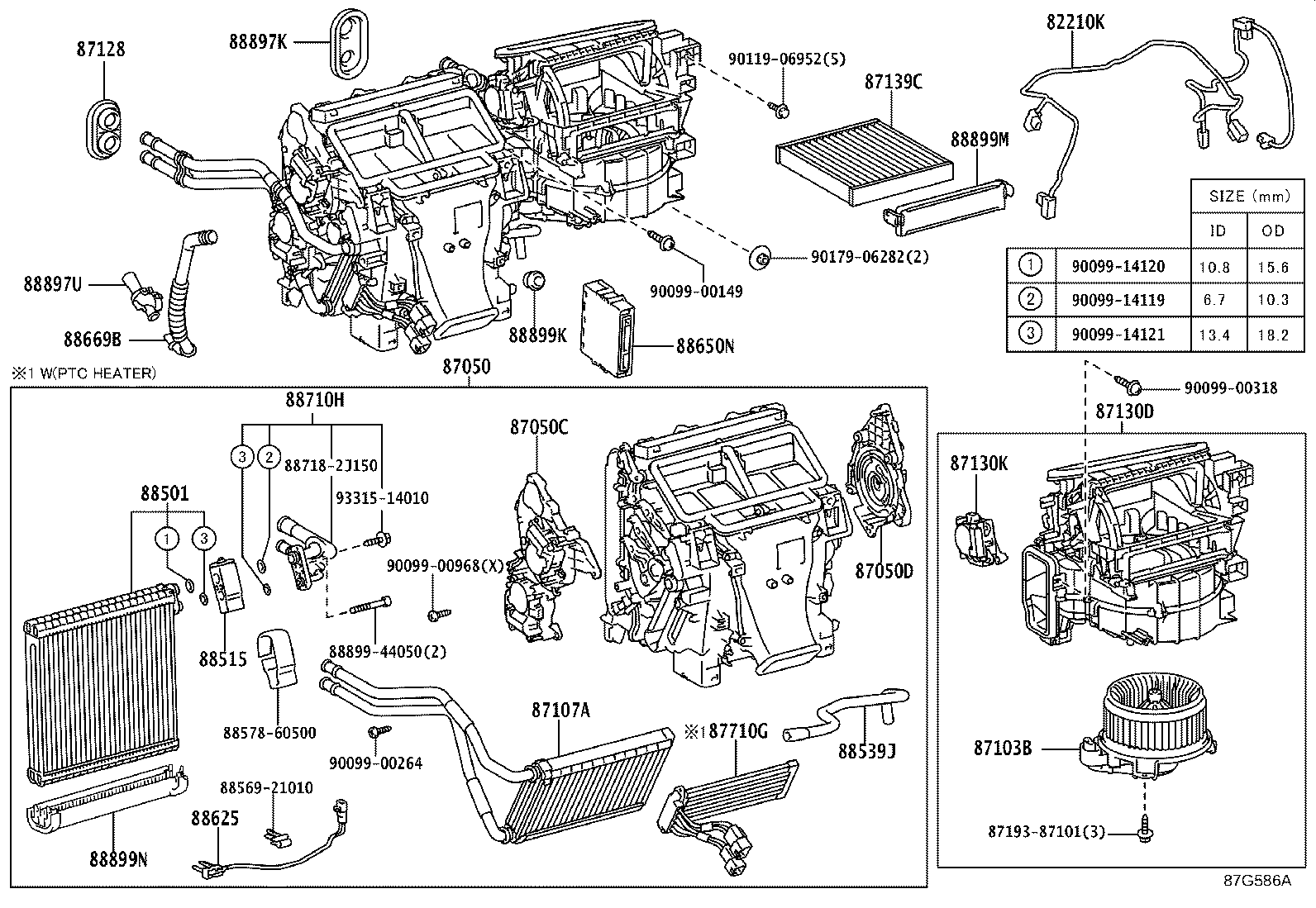

ILLUST NO. 1 OF 3(1708- )LHD
FRONT AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-60141 |
GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 82212-60161 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 82212-60141 |
GDJ150..RUS;GDJ150..LHD..6F;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 82212-60141 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60B80 |
GRJ150,KDJ150..LHD..EUR AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 87050-60B80 |
GRJ150,KDJ150..LHD AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 87050-60B90 |
GRJ150,KDJ150..LHD AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60C40 |
GRJ150,KDJ150..LHD |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-60220 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87106-60240 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 87106-60220 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 87106-60220 |
GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60230 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-60400 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60430 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-35020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60611 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-33270 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-52040 |
KDJ150..LHD POLLEN FILTER,OE PART |
1 | ||
| 87139-50100 |
KDJ150..LHD POLLEN DEODORANT |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60421 |
KDJ150;GDJ15#,GRJ150,TRJ150..LHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-50190 |
GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88515-50190 |
GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88515-60240 |
GRJ150,KDJ150,TRJ150 |
1 | ||
| 88515-60300 |
GRJ150,KDJ150,TRJ150 AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88515-60290 |
GRJ150,KDJ150,TRJ150 |
1 | ||
| 88515-60300 |
GRJ150,KDJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-60340 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-50020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60U40 |
KDJ150..LHD |
1 | ||
| 88650-60T90 |
GRJ150,KDJ150..LHD..EUR AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88650-60T90 |
KDJ150..LHD AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88650-60T91 |
KDJ150..LHD AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88650-60U41 |
KDJ150..LHD |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-60050 |
GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88669-60050 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88669-60050 |
GDJ150..RUS;GDJ150..LHD..6F;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-60E00 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-35020 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-32090 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88897-32090 |
GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88897-32090 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-3A010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-33040 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88899-60440 |
GDJ150..RUS;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150 |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88569-21010 | ||||
| 88578-60500 | ||||
| 88718-2J150 | ||||
| 88899-44050 | ||||
| 90099-00149 | ||||
| 90099-00264 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06952 | ||||
| 90179-06282 | ||||
| 93315-14010 | ||||

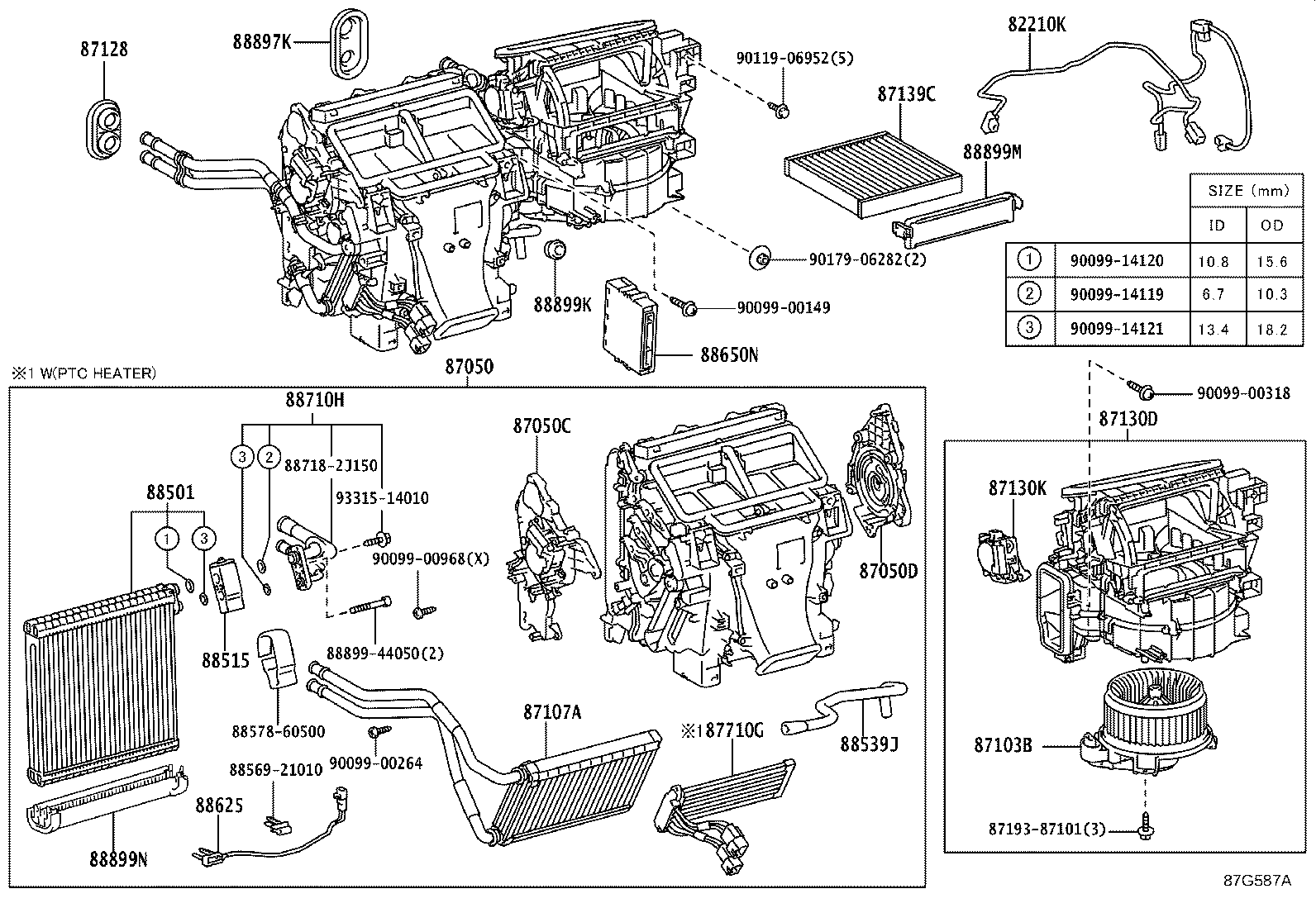

ILLUST NO. 1 OF 3(1708- )LHD
FRONT MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-60141 |
GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 82212-60161 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 82212-60141 |
GDJ150..RUS;GDJ150..LHD..6F;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 82212-60141 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60B80 |
GRJ150,KDJ150..LHD..EUR AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 87050-60B80 |
GRJ150,KDJ150..LHD AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 87050-60B90 |
GRJ150,KDJ150..LHD AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60C40 |
GRJ150,KDJ150..LHD |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-60220 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87106-60240 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 87106-60220 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 87106-60220 |
GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60230 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-60400 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60430 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-35020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60611 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-33270 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-52040 |
KDJ150..LHD POLLEN FILTER,OE PART |
1 | ||
| 87139-50100 |
KDJ150..LHD POLLEN DEODORANT |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60421 |
KDJ150;GDJ15#,GRJ150,TRJ150..LHD |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-50190 |
GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88515-50190 |
GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88515-60240 |
GRJ150,KDJ150,TRJ150 |
1 | ||
| 88515-60290 |
GRJ150,KDJ150,TRJ150 |
1 | ||
| 88515-60300 |
GRJ150,KDJ150,TRJ150 AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88515-60300 |
GRJ150,KDJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-60340 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-50020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60U40 |
KDJ150..LHD |
1 | ||
| 88650-60T90 |
GRJ150,KDJ150..LHD..EUR AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88650-60T90 |
KDJ150..LHD AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88650-60T91 |
KDJ150..LHD AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88650-60U41 |
KDJ150..LHD |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-60E00 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-35020 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-3A010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-33040 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88899-60440 |
GDJ150..RUS;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150 |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88569-21010 | ||||
| 88578-60500 | ||||
| 88718-2J150 | ||||
| 88899-44050 | ||||
| 90099-00149 | ||||
| 90099-00264 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06952 | ||||
| 90179-06282 | ||||
| 93315-14010 | ||||

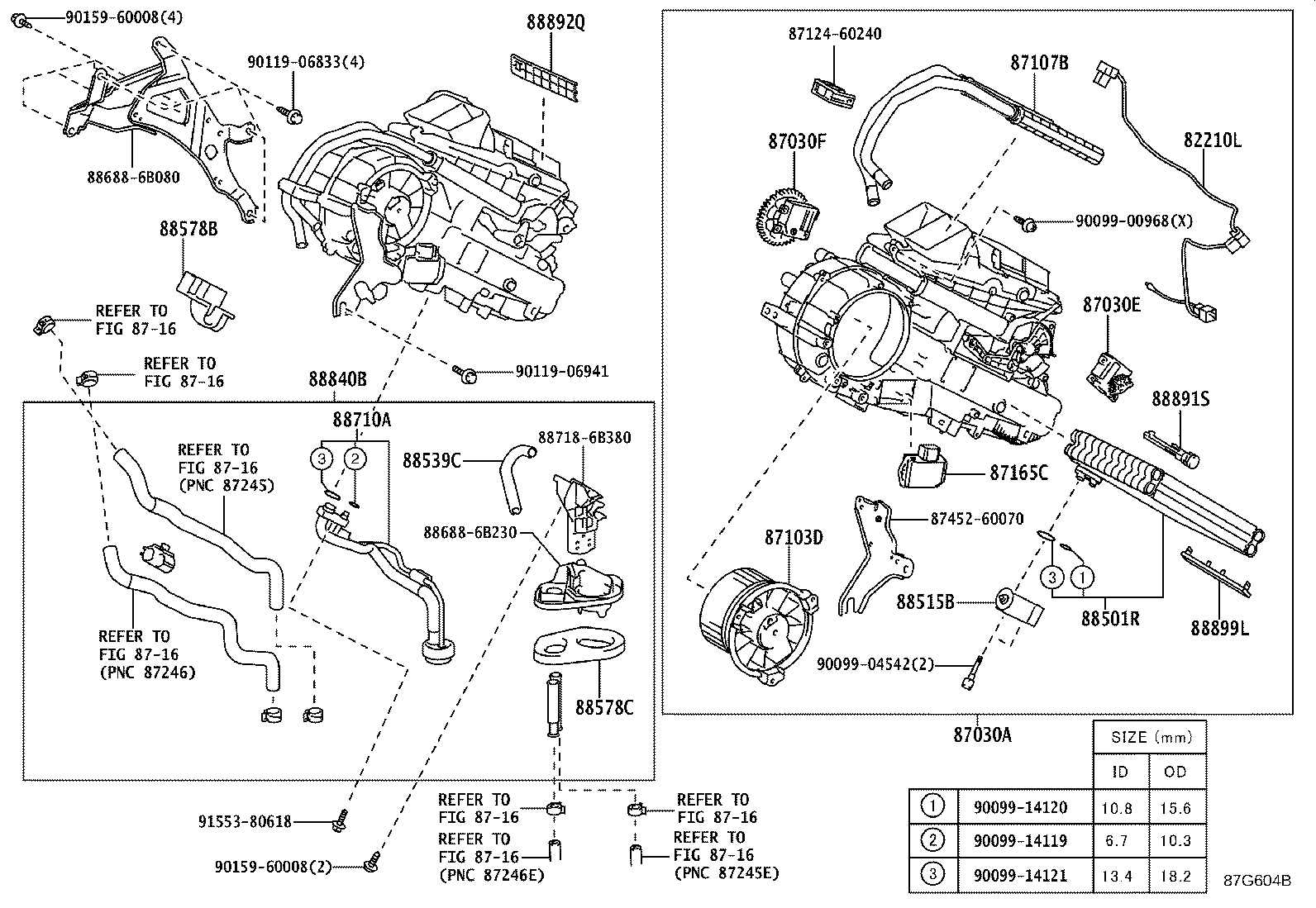

ILLUST NO. 2 OF 3(1708- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210L - HARNESS ASSY, AIR CONDITIONER, NO.2 | ||||
| 82212-48021 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 87030A - UNIT ASSY, COOLING, REAR | ||||
| 87030-60051 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 87030E - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.1 | ||||
| 87106-28170 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 87030F - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.2 | ||||
| 87106-58030 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR) | ||||
| 87103-28111 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 87107B - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60420 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-28020 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 87165-36010 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-28360 |
KDJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-28250 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-60290 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-60450 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-60510 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-60C20 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88840B - ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88840-60151 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88892Q - PLATE, COOLER | ||||
| 88892-28020 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| Common parts | ||||
| 87124-60240 | ||||
| 87452-60070 | ||||
| 88688-6B080 | ||||
| 88688-6B230 | ||||
| 88718-6B380 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06833 | ||||
| 90119-06941 | ||||
| 90159-60008 | ||||
| 91553-80618 | ||||
| Linked diagrams | ||||
| 8716 | ||||

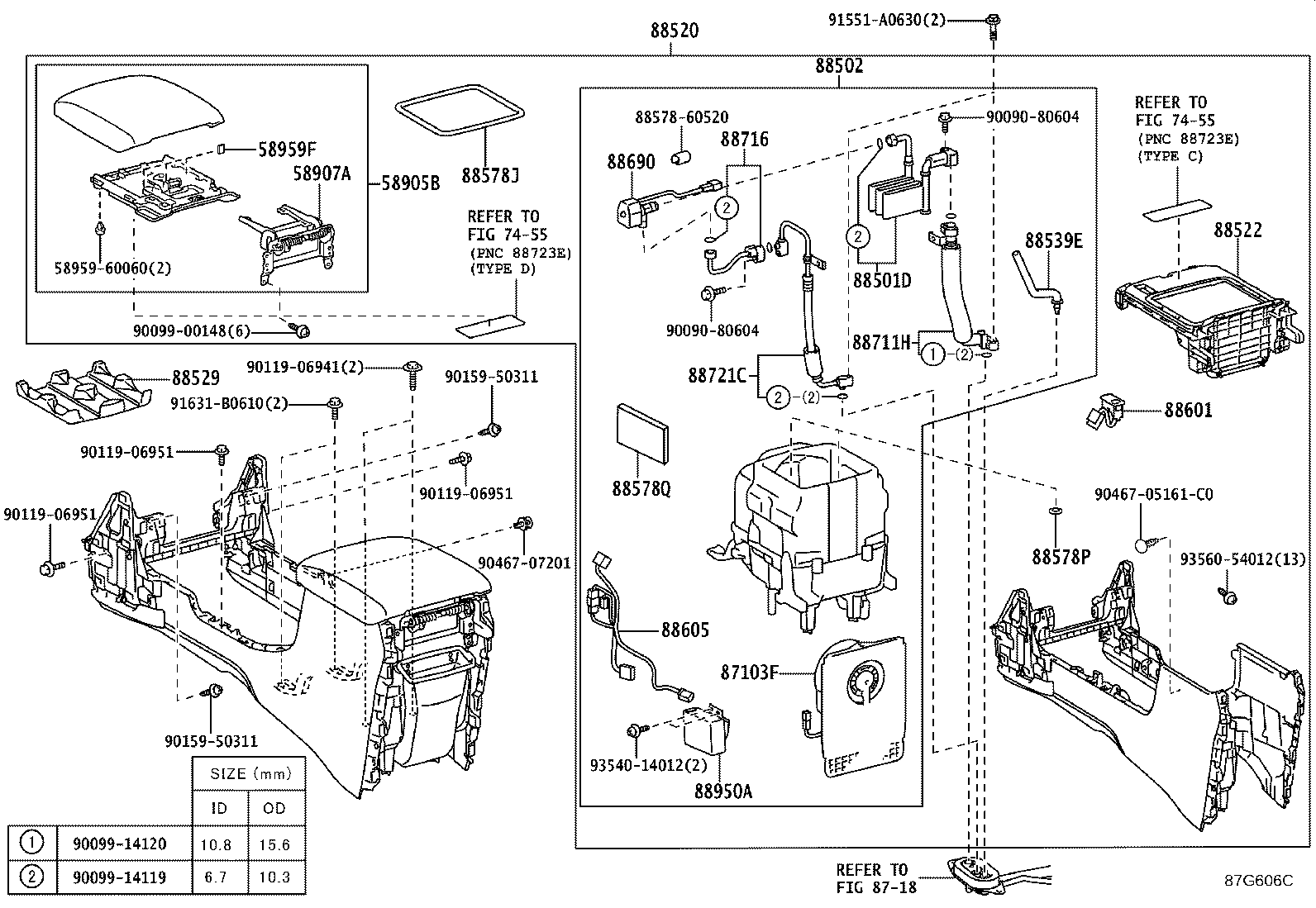

ILLUST NO. 3 OF 3(1708- )LHD
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58905B - DOOR SUB-ASSY, CONSOLE COMPARTMENT(FOR COOL BOX) | ||||
| 58905-60350E0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC VX PACKAGE&COOL BOX-WITH&FRONT SEAT-POWER(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 58905-60350C0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6F,6FC VX PACKAGE&COOL BOX-WITH&FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 58907A - HINGE SUB-ASSY, COOLING BOX DOOR | ||||
| 58907-60130 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6FC VX PACKAGE&COOL BOX-WITH&FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 58959F - CUSHION, COOLING BOX DOOR | ||||
| 55419-32020 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150..6FC VX PACKAGE&COOL BOX-WITH&FRONT SEAT-POWER(DRIVER & PASSENGER) |
3 | ||
| 87103F - MOTOR SUB-ASSY, BLOWER W/FAN(FOR COOL BOX) | ||||
| 87103-60490 |
GRJ150,KDJ150..LHD;GDJ150,TRJ150..6FC..RUS VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88501D - EVAPORATOR SUB-ASSY, COOLER, NO.2 | ||||
| 88501-60440 |
GRJ150,KDJ150..LHD;GDJ150,TRJ150..6FC..RUS VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88530-60040 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-60710C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) VX PACKAGE&COOL BOX-WITH,BLACK,TRIM2# |
1 | ||
| 88520-60710E0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) VX PACKAGE&COOL BOX-WITH,ORCHID BROWN,TRIM4# |
1 | ||
| 88522 - DOOR, COOLING UNIT | ||||
| 88522-60100 |
GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88529 - TRAY, COOLING BOX | ||||
| 88529-60040 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6FC VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-60360 |
GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88578J - PACKING, COOL BOX, NO.1 | ||||
| 88578-60230 |
GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88578P - PACKING, COOL BOX, NO.2 | ||||
| 88578-60240 |
GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) VX PACKAGE&COOL BOX-WITH |
2 | ||
| 88578Q - PACKING, COOL BOX, NO.3 | ||||
| 88578-60250 |
GRJ150,KDJ150..LHD;GDJ150,TRJ150..6FC..RUS VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88601 - SWITCH SUB-ASSY, COOLER CONTROL | ||||
| 88601-60050 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88470-60050 |
GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88608-60010 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88690-60300 |
GRJ150,KDJ150..LHD;GDJ150,TRJ150..6FC..RUS VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88711H - HOSE, DISCHARGE | ||||
| 88720-60220 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88716 - TUBE, LIQUID | ||||
| 88716-6C460 |
GRJ150,KDJ150..LHD;GDJ150,TRJ150..6FC..RUS VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88721C - HOSE, LIQUID | ||||
| 88720-60230 |
GDJ15#..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88950A - AMPLIFIER ASSY, COOLING BOX | ||||
| 88950-60020 |
GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) VX PACKAGE&COOL BOX-WITH |
1 | ||
| Common parts | ||||
| 58959-60060 | ||||
| 88578-60520 | ||||
| 90090-80604 | ||||
| 90099-00148 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90119-06941 | ||||
| 90119-06951 | ||||
| 90159-50311 | ||||
| 90467-05161C0 | ||||
| 90467-07201 | ||||
| 91551-A0630 | ||||
| 91631-B0610 | ||||
| 93540-14012 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8718 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
