KDJ150L-GKFEYW (2017)

Toyota Land Cruiser

Production Aug 2017 - Jul 2020
Engine 1KDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )GDJ150,GRJ150,KDJ150,TRJ150

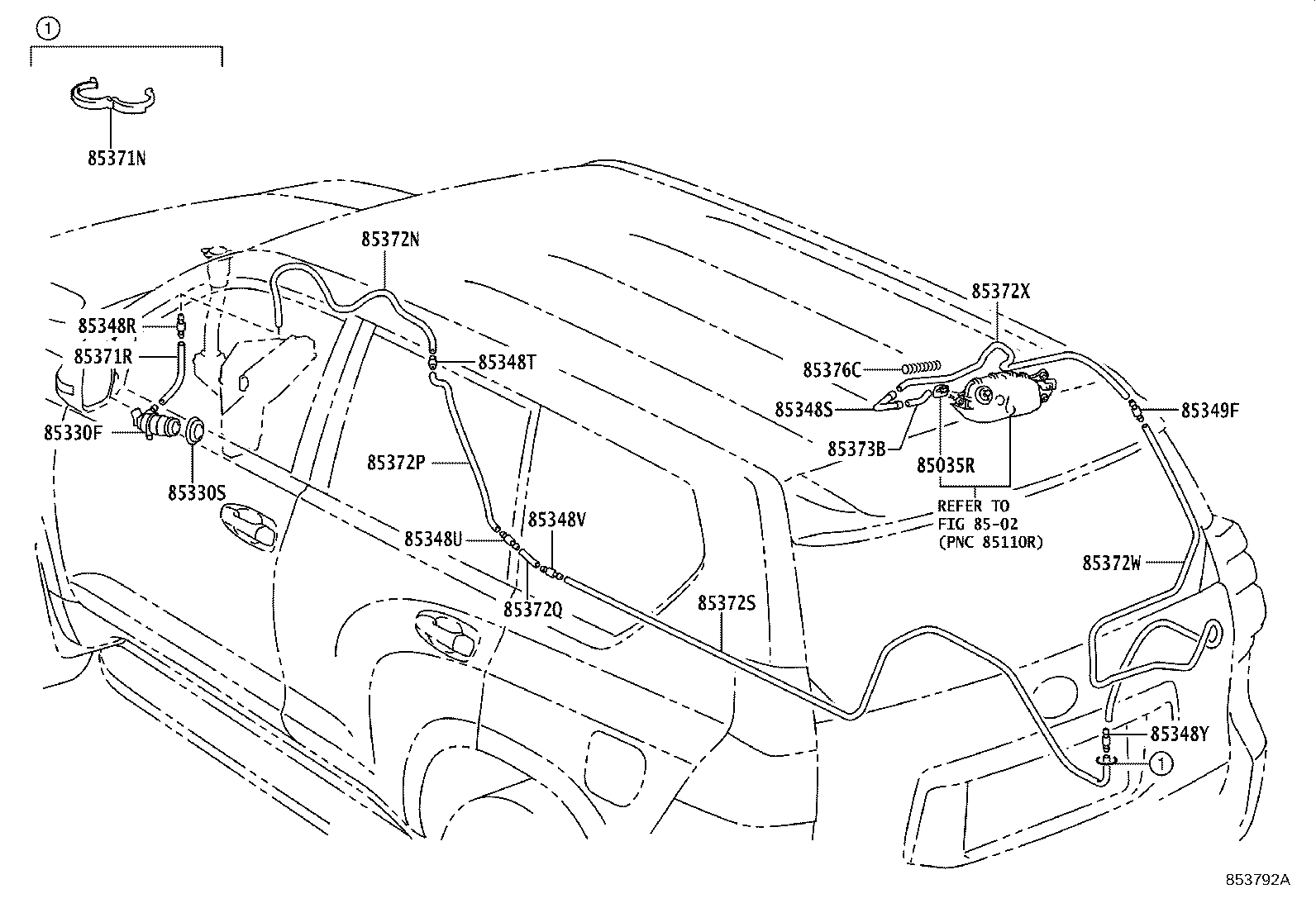

Click highlighted areas on diagram

diagram 8502 85035R 85330F 85330S 85348R 85348S 85348T 85348U 85348V 85348Y 85349F 85371N 85371R 85372N 85372P 85372Q 85372S 85372W 85372X 85373B 85376C
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-60130

GDJ15#,GRJ150,KDJ150,TRJ150

 1
85330F - MOTOR & PUMP ASSY, RR WASHER
85330-60160

GDJ15#,GRJ150,KDJ150,TRJ150

 1
85330S - BUSH, REAR WASHER JAR
85336-60300

GDJ15#,GRJ150,KDJ150,TRJ150

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85375-10260

GDJ15#,GRJ150,KDJ150,TRJ150

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85355-12360

GDJ150,GRJ150,KDJ150,TRJ150

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85375-10260

GDJ15#,GRJ150,KDJ150,TRJ150

 1
85348U - JOINT, REAR WASHER HOSE, NO.3
85349-89122

GDJ15#,GRJ150,KDJ150,TRJ150

 1
85348V - JOINT, REAR WASHER HOSE, NO.4
85349-89122

KDJ150..LHD

 1
85348Y - JOINT, REAR WASHER HOSE, NO.5
85349-89122

KDJ150..LHD

 1
85349F - JOINT, REAR WASHER HOSE, NO.1
85349-89122

KDJ150..LHD

 1
85371N - CLAMP, REAR WASHER HOSE
82711-35060

KDJ150..LHD

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33080

GDJ15#,GRJ150,KDJ150,TRJ150

*H,L=240

 1
90099-33080

GDJ150..6F;KDJ150..LHD;GDJ150..LHD..6FC;GDJ155,GRJ150,TRJ150

*H,L=240,HEADLAMP CLEANER-WITH

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90099-62149

GDJ15#,GRJ150,KDJ150,TRJ150

L=1100

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

GDJ15#,GRJ150,KDJ150,TRJ150

*H,L=520

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
90099-62062

KDJ150..LHD

L=50

 1
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
90099-59376

KDJ150..LHD

L=3250

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
90099-33803

KDJ150..LHD

*H,L=1750

 1
85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
90099-33080

KDJ150..LHD

*H,L=470

 1
85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
90099-33080

KDJ150..LHD

*H,L=25

 1
85376C - SPRING, WASHER HOSE
85389-60840

KDJ150..LHD

 1
Linked diagrams
8502
