KDJ150L-GKFEYW (2017)
Toyota Land Cruiser
ILLUST NO.11 OF12(1708- )GDJ150,GRJ150,KDJ150,TRJ150
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-60230 |
KDJ150..LHD |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-60230 |
KDJ150..LHD |
1 | ||
| 84190A - SWITCH ASSY, FOLD SEAT, NO.1 | ||||
| 84190-60210B0 |
GDJ150..6FC;GDJ150..LHD..6F;GRJ150,KDJ150,TRJ150..5FC,6F,6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,LT.GRAY,TRIM2# |
1 | ||
| 84190-60210E0 |
GDJ150..6FC;GDJ150..LHD..6F;GRJ150,KDJ150,TRJ150..5FC,6F,6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84190A - SWITCH ASSY, FOLD SEAT, NO.1 | ||||
| 84190-60210B0 |
GDJ150..6FC;GDJ150..LHD..6F;GRJ150,KDJ150,TRJ150..5FC,6F,6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,LT.GRAY,TRIM2# |
1 | ||
| 84190-60210E0 |
GDJ150..6FC;GDJ150..LHD..6F;GRJ150,KDJ150,TRJ150..5FC,6F,6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84190B - SWITCH ASSY, FOLD SEAT, NO.2 | ||||
| 84190-60220E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84190-60220C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
1 | ||
| 84190B - SWITCH ASSY, FOLD SEAT, NO.2 | ||||
| 84190-60220E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84190-60220C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
1 | ||
| 84190B - SWITCH ASSY, FOLD SEAT, NO.2 | ||||
| 84190-60220E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84190-60220C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
KDJ150..LHD |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
KDJ150..LHD |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
KDJ150..LHD |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
KDJ150..LHD |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-60070 |
KDJ150..LHD |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-60140C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
1 | ||
| 84656-60140E1 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-60140C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,BLACK,TRIM2# |
1 | ||
| 84656-60140E1 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-30220 |
KDJ150..LHD |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-30220 |
KDJ150..LHD |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-30220 |
KDJ150..LHD |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-30220 |
KDJ150..LHD |
2 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-60060 |
GDJ150..6FC;GDJ150..LHD..6F;GRJ150,KDJ150,TRJ150..5FC,6F,6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
2 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-60060 |
GDJ150..6FC;GDJ150..LHD..6F;GRJ150,KDJ150,TRJ150..5FC,6F,6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
2 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-60060 |
GDJ150..6FC;GDJ150..LHD..6F;GRJ150,KDJ150,TRJ150..5FC,6F,6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
2 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-42010 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-60160E1 |
KDJ150..LHD;GDJ15#,GRJ150..EUR ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85530-60160C0 |
KDJ150..LHD;GDJ15#,GRJ150..EUR ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),BLACK,TRIM2# |
1 | ||
| 85535F - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-35080E4 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85535-35080C0 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 85536 - BEZEL, POWER OUTLET SOCKET | ||||
| 85536-60040C0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 85536-60100C0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),BLACK,TRIM2# |
1 | ||
| 85536-60040E0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85536-60100E1 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85536 - BEZEL, POWER OUTLET SOCKET | ||||
| 85536-60040C0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 BLACK,TRIM2# |
1 | ||
| 85536-60100C0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),BLACK,TRIM2# |
1 | ||
| 85536-60040E0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85536-60100E1 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-60110 |
GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86210-60110 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86210-60070 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-60110 |
GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86210-60110 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86210-60070 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 89430A - COMPUTER ASSY, OUTER MIRROR CONTROL, LH | ||||
| 89430-60160 |
GDJ15#,GRJ150,KDJ150..LHD VX PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 89430-60160 |
GDJ15#,GRJ150,KDJ150..LHD VX PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY |
1 | ||
| 89430B - COMPUTER ASSY, OUTER MIRROR CONTROL, RH | ||||
| 89430-60150 |
GDJ15#,GRJ150,KDJ150..LHD VX PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY |
1 | ||
| 89430-60150 |
GDJ15#,GRJ150,KDJ150..LHD VX PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 90901-48003 | ||||

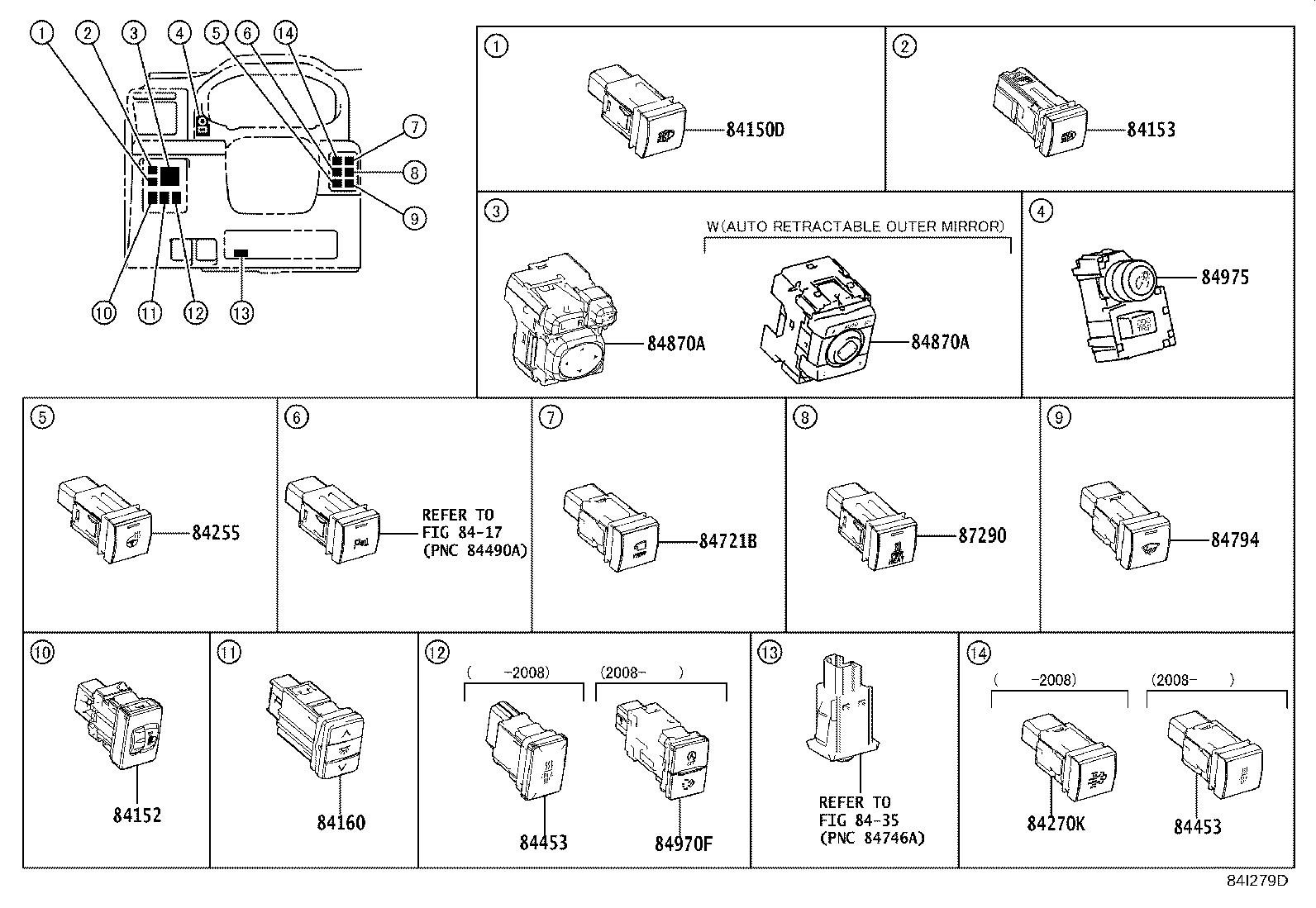

ILLUST NO. 6 OF12(1708- )LHD
INSTRUMENT PANEL 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-60070 |
GDJ150..6F;KDJ150..LHD;GDJ150..LHD..6FC;GDJ155,GRJ150,TRJ150 HEADLAMP CLEANER-WITH |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-42051 |
KDJ150..LHD |
1 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84170-60050 |
GDJ15#,GRJ150,KDJ150..LHD VX PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA) |
1 | ||
| 84170-60050 |
GDJ15#,GRJ150,KDJ150..LHD VX PACKAGE&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-60100 |
GDJ15#,KDJ150 |
1 | ||
| 84453 - SWITCH, IDLE UP | ||||
| 84453-60100 |
GDJ15#,KDJ150 |
1 | ||
| 84721B - SWITCH, PANORAMIC VIEW MONITOR | ||||
| 84721-33010 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150..LHD BACK MONITOR-WITH(MULTI-TELLAIN MONITOR) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-30080 |
GDJ15#,GRJ150,KDJ150..LHD VX PACKAGE |
1 | ||
| 84872-75070 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-30080 |
GDJ15#,GRJ150,KDJ150..LHD VX PACKAGE |
1 | ||
| 84872-75070 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-60041 |
KDJ150..LHD |
1 | ||
| 84975-60021 |
GRJ150,KDJ150..LHD;GDJ150,TRJ150..6FC..RUS VX PACKAGE |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||
| 8435 | ||||
ILLUST NO. 7 OF12(1708- )LHD
INSTRUMENT PANEL 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83160C - INDICATOR ASSY, CLEARANCE WARNING | ||||
| 83160-60080 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 83160-60140 |
KDJ150..LHD CLEARANCE & BACK SONAR-WITH(REAR ONLY) |
1 | ||
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-60140 |
KDJ150..LHD |
1 | ||
| 83950-60140 |
KDJ150..LHD MOROCCO SPEC |
1 | ||
| 84223A - SWITCH, TRANSFER POSITION | ||||
| 84223-60090 |
KDJ150..LHD;GDJ15#,GRJ150 |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-60050 |
KDJ150..6F |
1 | ||
| 84752 - SWITCH, REFRESHING SEAT | ||||
| 84752-60410 |
KDJ150..6F;GDJ150..RHD..6F *LES & WITHOUT(AVS)&AIR CONDITIONER-SINGLE(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT HEATER-WITH (DRIVER & PASSENGER) |
1 | ||
| 84752-60420 |
KDJ150..6F *FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&SEAT HEATER-WITH (DRIVER & PASSENGER) |
1 | ||
| 84752-60420 |
KDJ150..6F *FAS & *IP(ORNAMENT = WOOD-GRAIN)&AIR CONDITIONER-SINGLE(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT HEATER-WITH (DRIVER & PASSENGER) |
1 | ||
| 84752-60420 |
KDJ150..6F *FAS & *IP(ORNAMENT = BLACK PAINT)&FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT HEATER-WITH (DRIVER & PASSENGER) |
1 | ||
| 84752-60410 |
KDJ150..6F;GDJ150..RHD..6F *LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1) |
1 | ||
| 84752-60410 |
KDJ150..6F;GDJ150..RHD..6F *LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1) |
1 | ||
| 84752-60410 |
KDJ150..6F;GDJ150..RHD..6F *LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&SEAT HEATER-WITH(DRIVER &PASSENGER & REAR NO.1) |
1 | ||
| 84752-60410 |
KDJ150..6F;GDJ150..RHD..6F *LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-SINGLE(AUTO)&FRONT SEAT-POWER(DRIVER &PASSENGER)&SEAT HEATER-WITH (DRIVER & PASSENGER) |
1 | ||
| 84752-60410 |
KDJ150..6F;GDJ150..RHD..6F *LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1) |
1 | ||
| 84752-60410 |
KDJ150..6F;GDJ150..RHD..6F *LES & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR NO.1) |
1 | ||
| 84752-60410 |
KDJ150..6F;GDJ150..RHD..6F *LES & *IP(ORNAMENT = BLACK PAINT)&FRONT SEAT-POWER(DRIVER & PASSENGER)&SEAT HEATER-WITH (DRIVER & PASSENGER) |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-33100 |
KDJ150..6F |
1 | ||

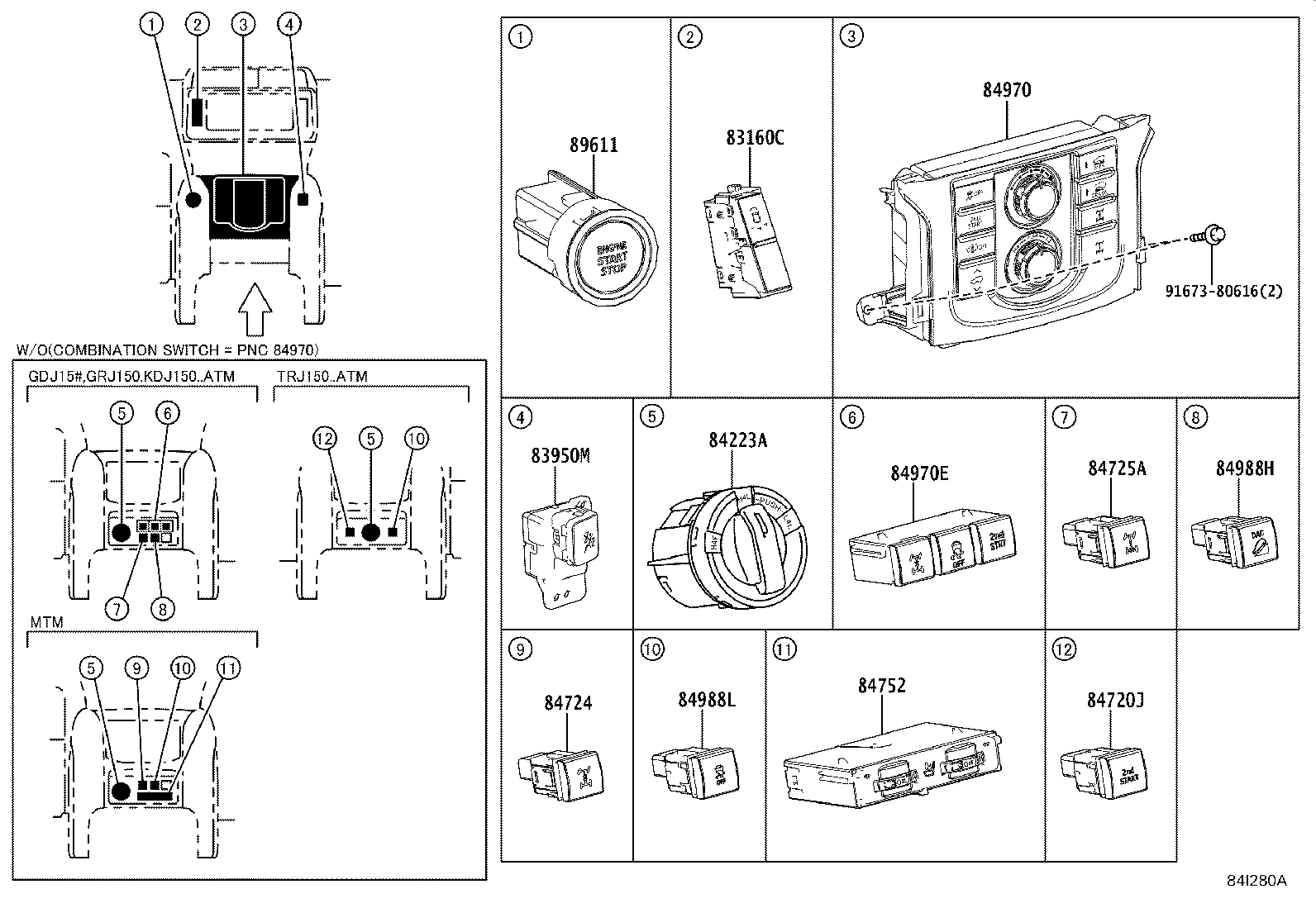

| 89611 - SWITCH, PUSH START | ||||
| 89611-42012 |
GDJ15#,GRJ150,KDJ150 |
1 | ||
| Common parts | ||||
| 91673-80616 | ||||

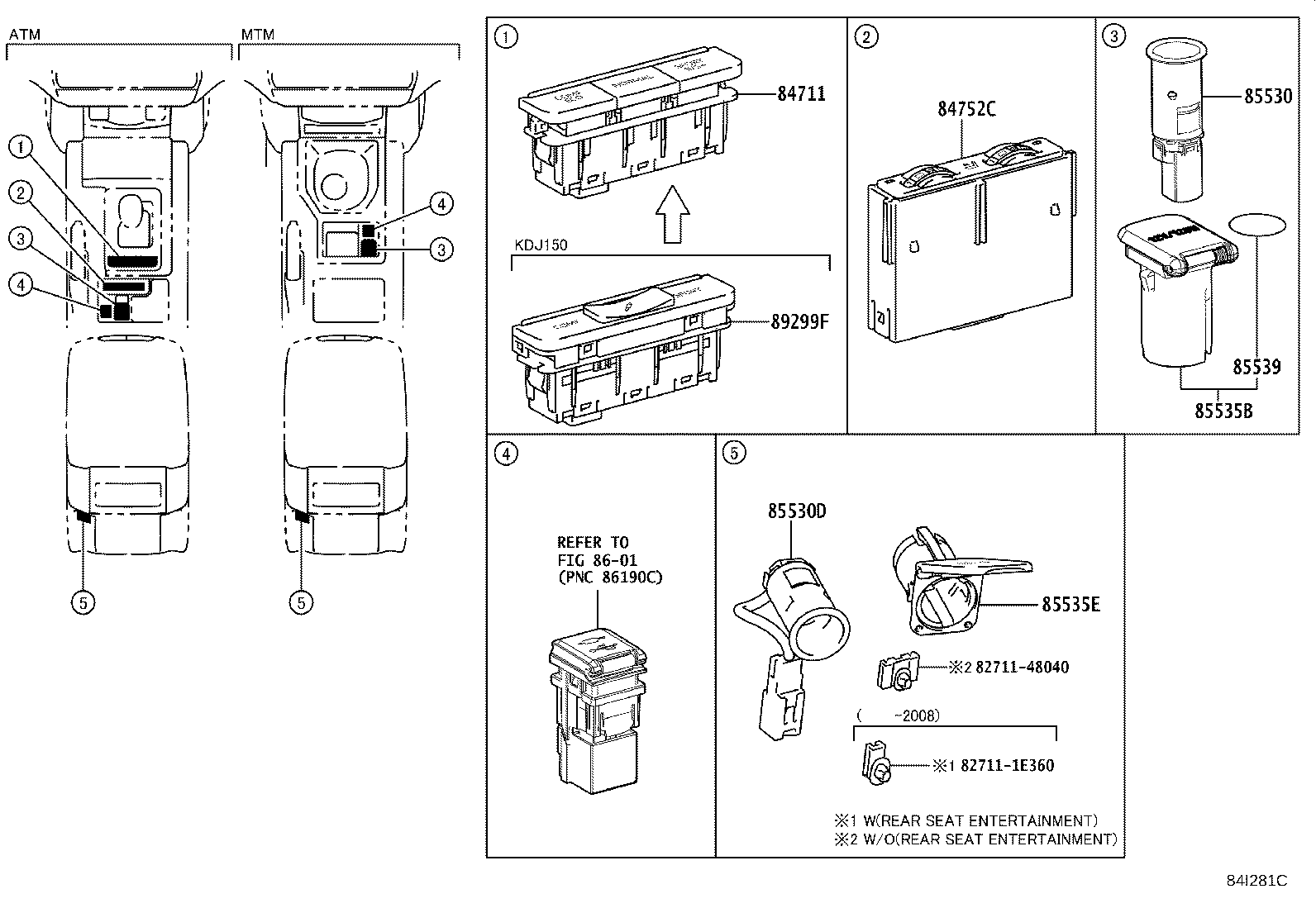

ILLUST NO. 8 OF12(1708- )LHD
INSTRUMENT PANEL 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
KDJ150..LHD |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-60140 |
KDJ150..LHD |
1 | ||
| 85530-60150 |
KDJ150..LHD;GDJ150,GRJ150 ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE)&REAR SEAT ENTERTAINMENT-WITH |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-60180 |
KDJ150..LHD |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-50020 |
KDJ150..LHD |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 82711-48040 | ||||
| Linked diagrams | ||||
| 8601 | ||||

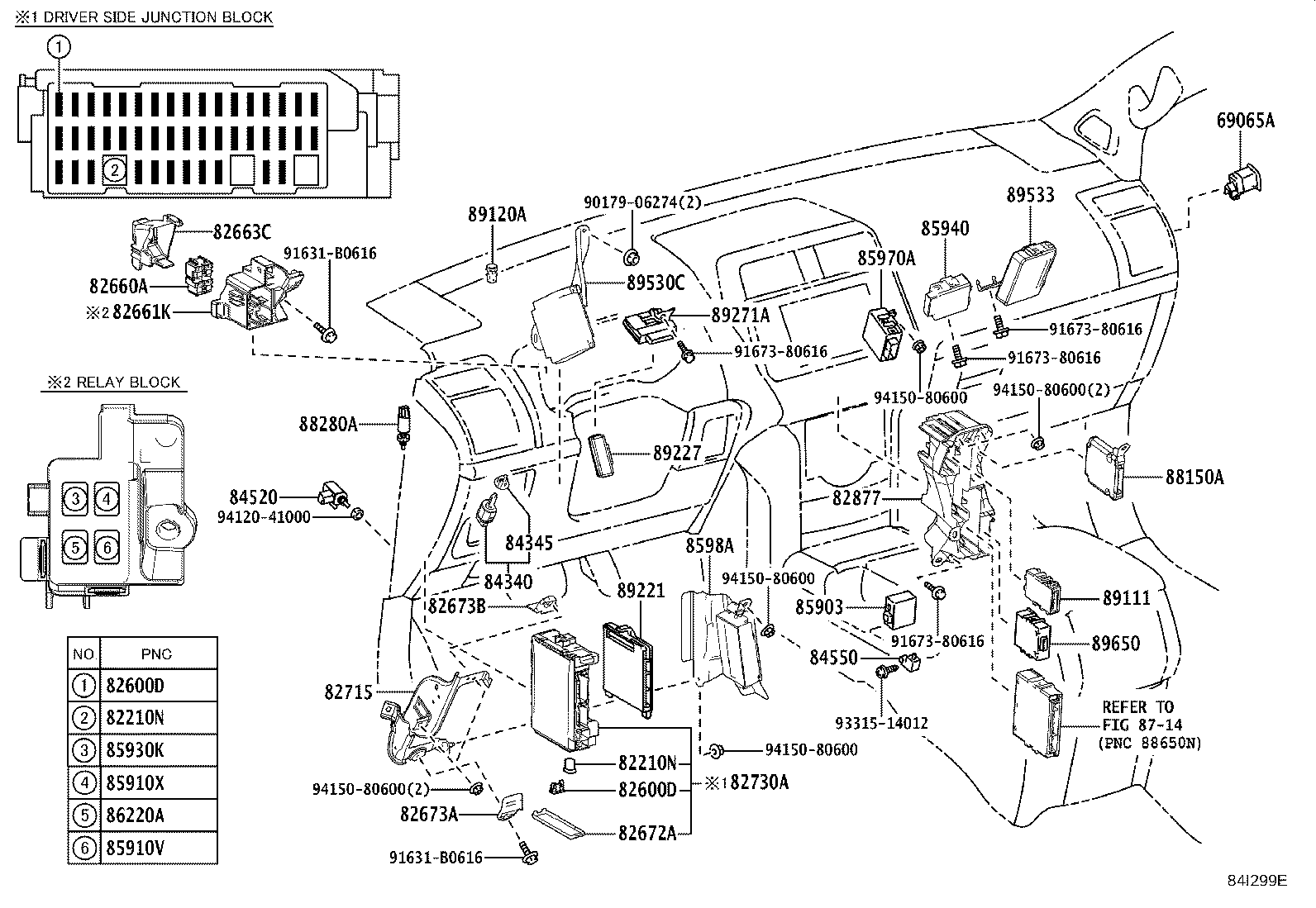

ILLUST NO. 5 OF12(1708- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69065A - CYLINDER SUB-ASSY, AIR BAG CUT OFF SWITCH | ||||
| 69065-12460 |
KDJ150..LHD MOROCCO SPEC |
1 | ||
| 69065-12460 |
KDJ150..LHD |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GDJ15#,GRJ150,KDJ150,TRJ150 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
GDJ15#,GRJ150,KDJ150,TRJ150 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
GDJ15#,GRJ150,KDJ150,TRJ150 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GDJ15#,GRJ150,KDJ150,TRJ150 25A,MINI FUSE |
1 | ||
| 90982-09020 |
GDJ15#,GRJ150,KDJ150,TRJ150 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
GDJ15#,GRJ150,KDJ150,TRJ150 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GDJ15#,GRJ150,KDJ150,TRJ150 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GDJ15#,GRJ150,KDJ150,TRJ150 20A,MINI FUSE,YELLOW |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09022 |
GDJ15#,GRJ150,KDJ150,TRJ150 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
GDJ15#,GRJ150,KDJ150,TRJ150 25A,MINI FUSE |
1 | ||
| 90982-09021 |
GDJ15#,GRJ150,KDJ150,TRJ150 10A,MINI FUSE,RED |
1 | ||
| 90982-09025 |
GDJ15#,GRJ150,KDJ150,TRJ150 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
GDJ15#,GRJ150,KDJ150,TRJ150 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
GDJ15#,GRJ150,KDJ150,TRJ150 7.5A,MINI FUSE,BROWN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-60150 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-60170 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-60161 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 82673-60160 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-6AF70 |
GDJ150..RUS;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-60200 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 82877 - BOX, COMPUTER INTEGRATION, RH | ||||
| 82877-60020 |
KDJ150..LHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49075 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
KDJ150..LHD |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
KDJ150..6F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
KDJ150..LHD |
1 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90987-02027 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
1 | ||
| 90987-02027 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
1 | ||
| 90987-02027 |
GDJ150..RUS;GDJ150..LHD..6F;GRJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER& PASSENGER)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
1 | ||
| 90987-02027 |
GDJ150..RUS;GDJ150..LHD..6F;GRJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER& PASSENGER)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
1 | ||
| 90987-02027 |
GDJ150..6F;KDJ150..LHD;GDJ150,GRJ150..RUS TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02027 |
KDJ150,TRJ150..LHD..(5FC,6F,6FC) VX PACKAGE |
1 | ||
| 90987-02027 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-60120 |
GDJ150..6FC;GDJ155..RHD..6FC;GRJ150,TRJ150..6FC..RUS;GDJ150,KDJ150..LHD..(5FC,6F) VX PACKAGE |
1 | ||
| 85970A - RELAY ASSY, DOUBLE LOCK DOOR CONTROL | ||||
| 85970-60090 |
KDJ150..LHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL |
1 | ||
| 8598A - BATTERY, DOOR CONTROL | ||||
| 8598A-60030 |
GDJ150..RUS;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 86220A - RELAY, INVERTER | ||||
| 90987-02027 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 90987-02027 |
GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 90987-02027 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-42010 |
GDJ15#,KDJ150,TRJ150..MTM |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-47080 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-6HV10 |
GDJ15#,KDJ150..LHD..6F |
1 | ||
| 89220-6HV30 |
KDJ150..6F MOROCCO SPEC |
1 | ||
| 89220-6HV20 |
GDJ15#,KDJ150..LHD..6F ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL |
1 | ||
| 89220-6HV20 |
GDJ15#,KDJ150..LHD..6F ANTI-THEFT SYSTEM-*IM & ALARM(SIREN, *IS, *GBS, TILT) |
1 | ||
| 89220-6HV31 |
KDJ150..6F MOROCCO SPEC |
1 | ||
| 89227 - COMPUTER, MULTIPLEX TILT & TELESCOPIC | ||||
| 89227-60100 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150..LHD VX PACKAGE |
1 | ||
| 89271A - COMPUTER, STABILIZER CONTROL | ||||
| 89271-60050 |
GDJ150..LHD..6FC;GRJ150,KDJ150..LHD STABILIZER-WITH(KDSS) |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-60340 |
KDJ150..LHD |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-60090 |
KDJ150..LHD JTEKT |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91631-B0616 | ||||
| 91673-80616 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8714 | ||||

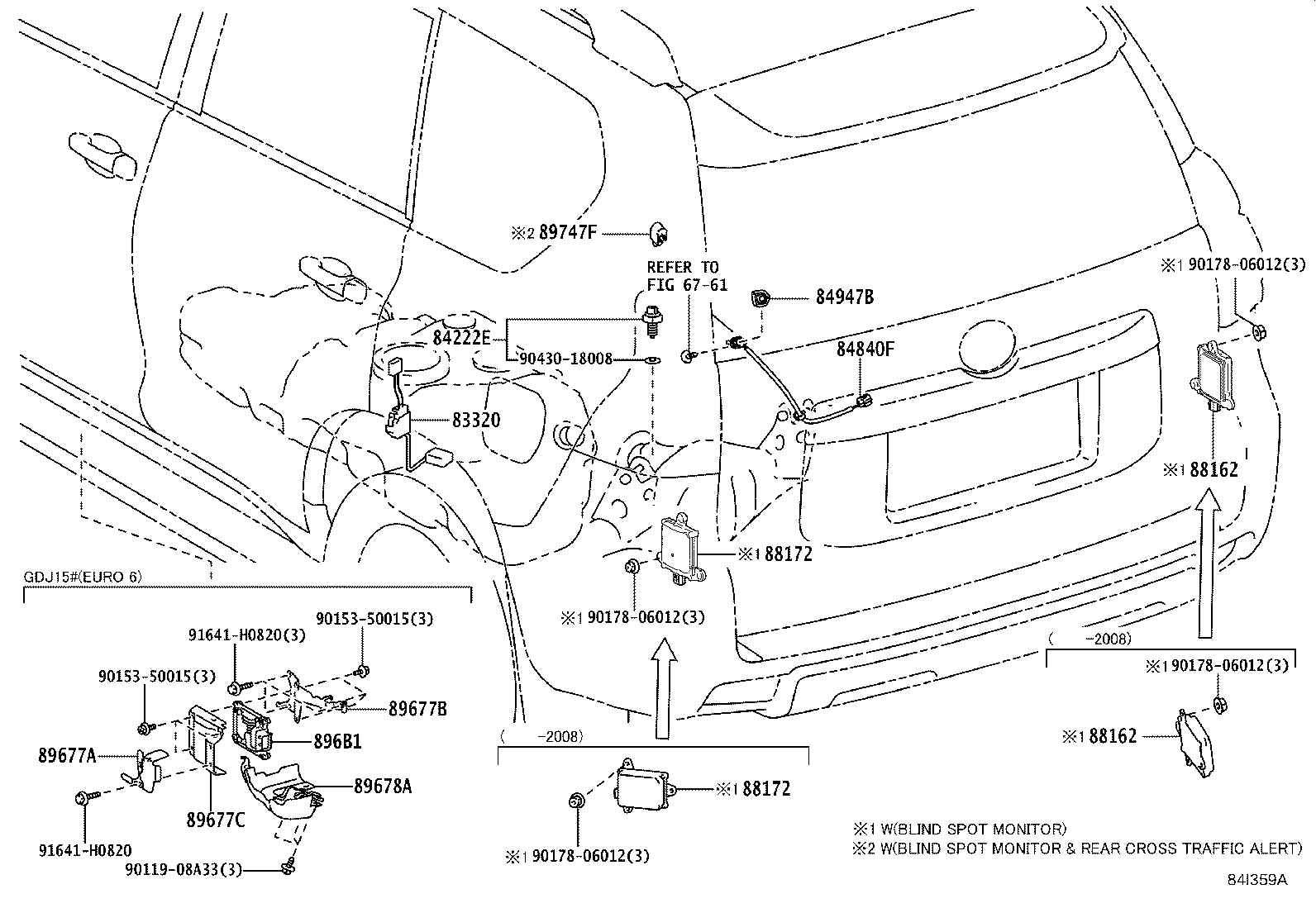

ILLUST NO.12 OF12(1708- )GDJ150,GRJ150,KDJ150,TRJ150
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-60610 |
KDJ150..LHD |
1 | ||
| 84840F - SWITCH ASSY, GLASS HATCH OPENER | ||||
| 84840-60010 |
KDJ150..LHD |
1 | ||
| 84947B - COVER, SWITCH | ||||
| 84947-60020 |
KDJ150..LHD |
1 | ||
| Common parts | ||||
| 90119-08A33 | ||||
| 90153-50015 | ||||
| 90178-06012 | ||||
| 90430-18008 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 6761 | ||||

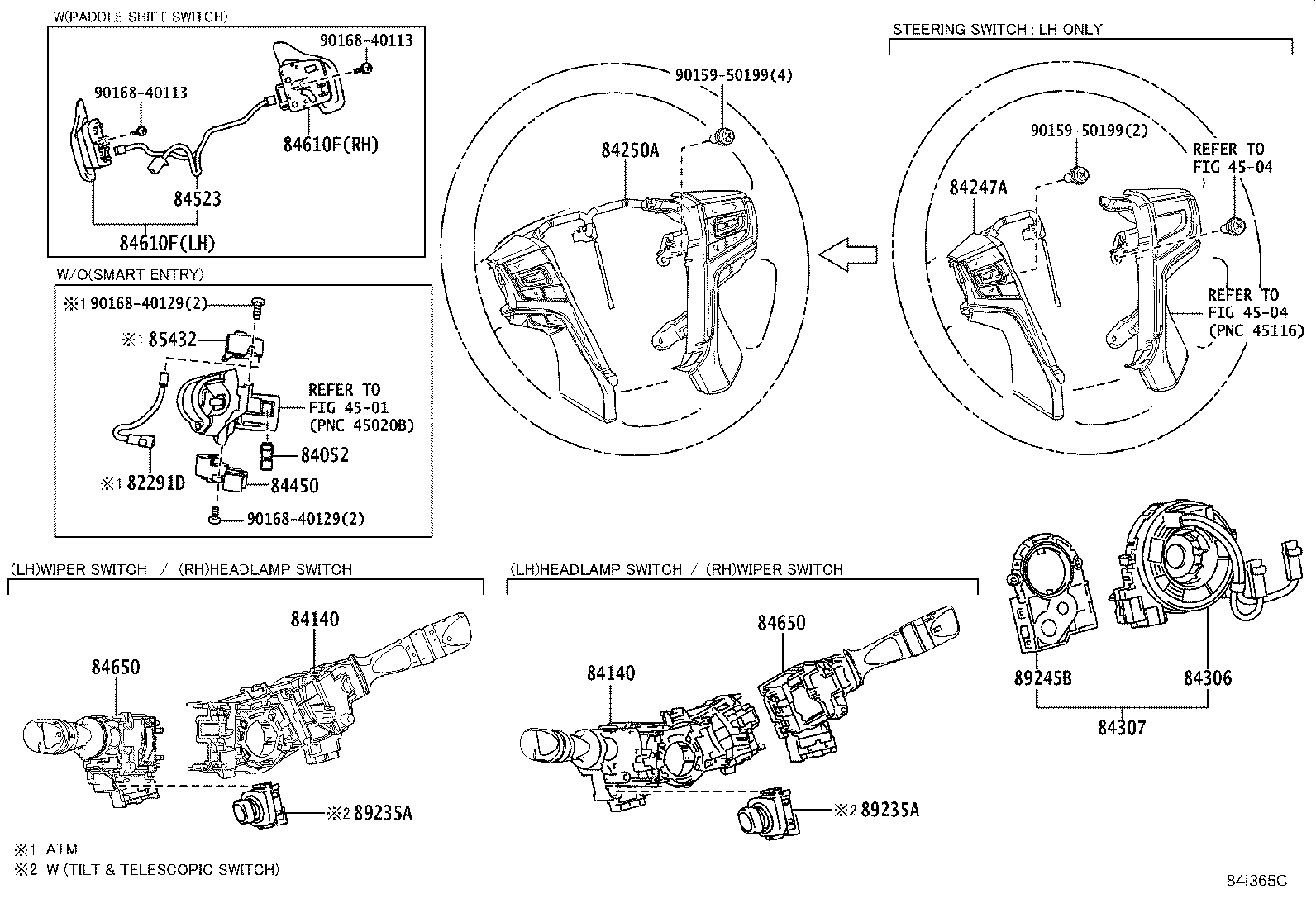

ILLUST NO. 9 OF12(1708- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-62010 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 84140-47200 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 FRONT FOG LAMP-WITH |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-62010 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 84140-47200 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 FRONT FOG LAMP-WITH |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-60040E0 |
KDJ150..LHD AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 6SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 84247-60040C0 |
KDJ150..LHD AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 84247-60040E0 |
KDJ150..LHD TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 84247-60040C0 |
KDJ150..LHD TX-L PACKAGE&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-60410C0 |
GDJ150..RUS;GRJ150,KDJ150..LHD VX PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 84250-60410E0 |
GDJ150..RUS;GRJ150,KDJ150..LHD VX PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 84250-60430C0 |
GDJ150..RUS;GRJ150,KDJ150..LHD VX PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 84250-60430E0 |
GDJ150..RUS;GRJ150,KDJ150..LHD VX PACKAGE&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-60020 |
KDJ150..LHD *FAS & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 84308-60020 |
KDJ150..LHD AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 6SPEAKER |
1 | ||
| 84308-60020 |
KDJ150..LHD *LES & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 84308-60020 |
GRJ150,KDJ150..LHD..EUR *LES & WITHOUT(AVS)&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 84308-60020 |
GRJ150,KDJ150..LHD..EUR *LES(COLOR) & WITHOUT(AVS)&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 84308-60020 |
GRJ150,KDJ150..LHD..EUR *FAS & *IP(ORNAMENT = WOOD-GRAIN)&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 84308-60020 |
KDJ150..LHD *LES(COLOR) & WITHOUT(AVS)&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 84308-60030 |
GDJ150,TRJ150..RUS;GRJ150,KDJ150..LHD |
1 | ||
| 84308-60020 |
KDJ150..LHD *LES & WITHOUT(AVS)&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 84308-60020 |
KDJ150..LHD *FAS & *IP(ORNAMENT = WOOD-GRAIN)&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-60170 |
GDJ150,TRJ150..RUS;GRJ150,KDJ150..LHD |
1 | ||
| 84307-60140 |
KDJ150..LHD *LES & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 84307-60140 |
KDJ150..LHD AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & 6SPEAKER |
1 | ||
| 84307-60140 |
KDJ150..LHD *FAS & *IP(ORNAMENT = BLACK PAINT)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 84307-60140 |
GRJ150,KDJ150..LHD..EUR *FAS & *IP(ORNAMENT = WOOD-GRAIN)&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 84307-60140 |
GRJ150,KDJ150..LHD..EUR *LES & WITHOUT(AVS)&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 84307-60140 |
GRJ150,KDJ150..LHD..EUR *LES(COLOR) & WITHOUT(AVS)&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER |
1 | ||
| 84307-60140 |
KDJ150..LHD *LES(COLOR) & WITHOUT(AVS)&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 84307-60140 |
KDJ150..LHD *LES & WITHOUT(AVS)&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 84307-60140 |
KDJ150..LHD *FAS & *IP(ORNAMENT = WOOD-GRAIN)&CRUISE CONTROL-WITH&SPEEDOMETER-OPTITRON(KM/H)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12A90 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) VX PACKAGE |
1 | ||
| 84652-1A860 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-12A90 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) VX PACKAGE |
1 | ||
| 84652-1A860 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-33010 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150..LHD VX PACKAGE |
1 | ||
| 89235A - SWITCH, TILT & TELESCOPIC | ||||
| 89235-33010 |
GDJ15#..6FC;GDJ15#..LHD..6F;GRJ150,KDJ150..LHD VX PACKAGE |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-47010 |
KDJ150..LHD |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40113 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
| 4504 | ||||
ILLUST NO.10 OF12(1708- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-60170C0 |
TRJ150;GRJ150..EUR;GDJ150,KDJ150..6F FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 84921-60170E7 |
TRJ150;GRJ150..EUR;GDJ150,KDJ150..6F FRONT SEAT-POWER(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-60180C0 |
TRJ150;GRJ150..EUR;GDJ150,KDJ150..6F FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 84921-60180E7 |
TRJ150;GRJ150..EUR;GDJ150,KDJ150..6F FRONT SEAT-POWER(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921J - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-60190C0 |
TRJ150;GDJ150..LHD..6F;GRJ150,KDJ150..(6F,6FC)..EUR FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 84921-60190E2 |
TRJ150;GDJ150..LHD..6F;GRJ150,KDJ150..(6F,6FC)..EUR FRONT SEAT-POWER(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921K - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-60160E6 |
TRJ150;GDJ150..LHD..6F;GRJ150,KDJ150..(6F,6FC)..EUR FRONT SEAT-POWER(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84921-60160C0 |
TRJ150;GDJ150..LHD..6F;GRJ150,KDJ150..(6F,6FC)..EUR FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-60050C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD BLACK,TRIM2# |
1 | ||
| 84920-60090C0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 84920-60050E6 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84920-60090E6 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 FRONT SEAT-POWER(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-60050C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD BLACK,TRIM2# |
1 | ||
| 84920-60090C0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 84920-60050E6 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84920-60090E6 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 FRONT SEAT-POWER(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-60050C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD BLACK,TRIM2# |
1 | ||
| 84920-60090C0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 84920-60050E6 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84920-60090E6 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 FRONT SEAT-POWER(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-60050C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD BLACK,TRIM2# |
1 | ||
| 84920-60090C0 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 84920-60050E6 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84920-60090E6 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 FRONT SEAT-POWER(DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-60160 |
TRJ150;GDJ150..LHD..6F;GRJ150,KDJ150..(6F,6FC)..EUR FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-60180 |
TRJ150;GDJ150..LHD..6F;GRJ150,KDJ150..(6F,6FC)..EUR FRONT SEAT-POWER(DRIVER & PASSENGER) |
1 | ||
| 89715 - COMPUTER, FOLD SEAT CONTROL | ||||
| 89715-60031 |
GDJ150..6FC;GDJ150..LHD..6F;GRJ150,KDJ150,TRJ150..5FC,6F,6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
2 | ||
| 89715 - COMPUTER, FOLD SEAT CONTROL | ||||
| 89715-60031 |
GDJ150..6FC;GDJ150..LHD..6F;GRJ150,KDJ150,TRJ150..5FC,6F,6FC REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
2 | ||
| Common parts | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7151 | ||||
ILLUST NO. 1 OF12(1708- )KDJ150
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60010 |
GDJ15#,KDJ150 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60040 |
KDJ150..6F |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-60080 |
KDJ150 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 89493-60010 |
KDJ150..LHD |
1 | ||
| Common parts | ||||
| 90119-08C62 | ||||
| 90430-18008 | ||||
| 91621-B0616 | ||||

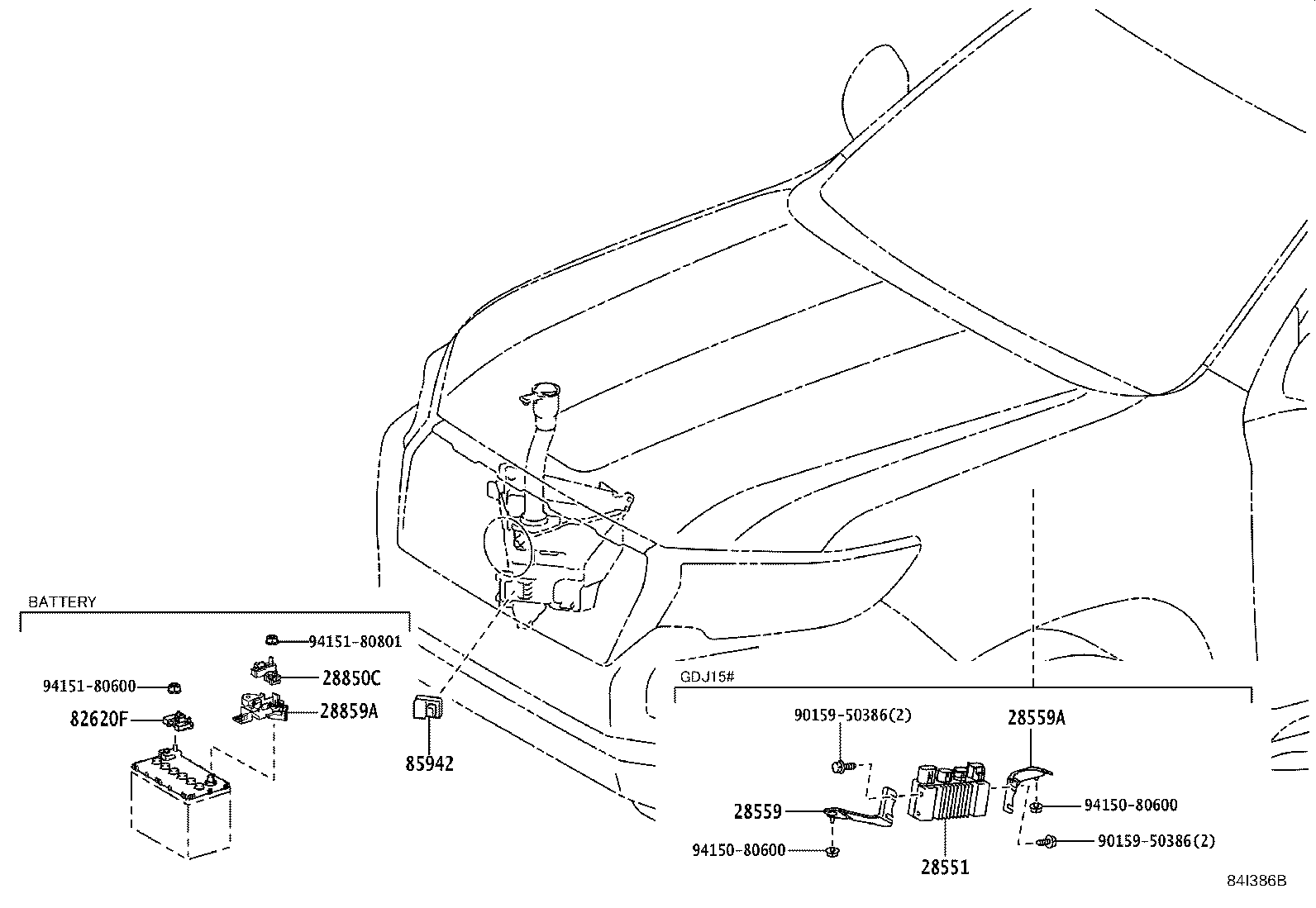

ILLUST NO. 3 OF12(1708- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-30040 |
GDJ150..6F;KDJ150..LHD;GDJ150..LHD..6FC;GDJ155,GRJ150,TRJ150 HEADLAMP CLEANER-WITH |
1 | ||
| Common parts | ||||
| 90159-50386 | ||||
| 94150-80600 | ||||
| 94151-80600 | ||||
| 94151-80801 | ||||
ILLUST NO. 4 OF12(1708- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-30050 |
1GDFTV,1KDFTV..GDJ15#,KDJ150 |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-27010 |
1KDFTV..KDJ150 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08305 |
GDJ15#,KDJ150 80A,TERM.:FEMALE,BLK |
1 | ||
| 90982-08286 |
GDJ15#,GRJ150,KDJ150 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08300 |
GDJ15#,GRJ150,KDJ150,TRJ150 50A-30A-30A,FEMALE |
1 | ||
| 90982-08302 |
GDJ15#,GRJ150,KDJ150,TRJ150 50A-30A-50A,FEMALE |
1 | ||
| 90982-08296 |
GDJ15#,GRJ150,KDJ150,TRJ150 50A,TERM.:FEMALE,RED,MARK:58V |
1 | ||
| 90982-08294 |
GDJ15#,GRJ150,KDJ150,TRJ150 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08307 |
GDJ15#,GRJ150,KDJ150,TRJ150 50A,TERM.:FEMALE,RED,MARK:32V |
1 | ||
| 90982-08295 |
GDJ15#,GRJ150,KDJ150,TRJ150 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09023 |
KDJ150..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
KDJ150..LHD 25A,MINI FUSE |
1 | ||
| 90982-09021 |
GDJ15#,GRJ150,KDJ150,TRJ150 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
GDJ15#,GRJ150,KDJ150,TRJ150 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09020 |
GDJ15#,GRJ150,KDJ150,TRJ150 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09025 |
GDJ15#,GRJ150,KDJ150,TRJ150 30A,MINI FUSE,GRN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60220 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60230 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 82620D - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60250 |
GRJ150,KDJ150,TRJ150 |
1 | ||
| 82620E - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-60260 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-60150 |
KDJ150 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-26270 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
2 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-26270 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
2 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-60120 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-75010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-0C110 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-60470 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-60880 |
KDJ150 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-60380 |
KDJ150..LHD;GDJ15#,TRJ150 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-60A00 |
GDJ150,TRJ150..RUS;GRJ150,KDJ150..LHD |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-60A00 |
GDJ150,TRJ150..RUS;GRJ150,KDJ150..LHD |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-60170 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-60100 |
KDJ150..LHD;GDJ15#,TRJ150 |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-60180 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-60180 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 82673F - BRACKET, JUNCTION BLOCK | ||||
| 82673-60110 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-60100 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-60030 |
KDJ150..LHD;GDJ15#,TRJ150 |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82743-60040 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 | ||||
| 82743-60040 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-41010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 85910V - RELAY, SEAT HEATER | ||||
| 90987-02027 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
1 | ||
| 90987-02027 |
GDJ150..6F;GDJ150..RUS;GRJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
1 | ||
| 90987-02027 |
GDJ150..RUS;GDJ150..LHD..6F;GRJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER& PASSENGER)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER |
1 | ||
| 90987-02027 |
GDJ150..RUS;GDJ150..LHD..6F;GRJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER& PASSENGER)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
1 | ||
| 90987-02027 |
GDJ150..6F;KDJ150..LHD;GDJ150,GRJ150..RUS TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&AIR CONDITIONER-DUAL(AUTO)&FRONT SEAT-POWER(DRIVER & PASSENGER)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02027 |
KDJ150,TRJ150..LHD..(5FC,6F,6FC) VX PACKAGE |
1 | ||
| 90987-02027 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
KDJ150..LHD |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
KDJ150..LHD |
1 | ||
| 86220A - RELAY, INVERTER | ||||
| 90987-02027 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT POWER&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 90987-02027 |
GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO)&REAR SEAT-SLIDEWALK-IN & 5:5 DOUBLE FLAT MANUAL&ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 90987-02027 |
KDJ150..LHD;GDJ150,GRJ150,TRJ150 ACCESSORY CONNECTOR-DC12V(FRONT & REAR) & AC220(DECK SIDE) |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| Common parts | ||||
| 82715-60Z70 | ||||
| 82715-6AF50 | ||||
| 90119-06830 | ||||
| 90179-06306 | ||||
| Linked diagrams | ||||
| 8419 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
