KDJ150L-GKFEYW (2017)
Toyota Land Cruiser

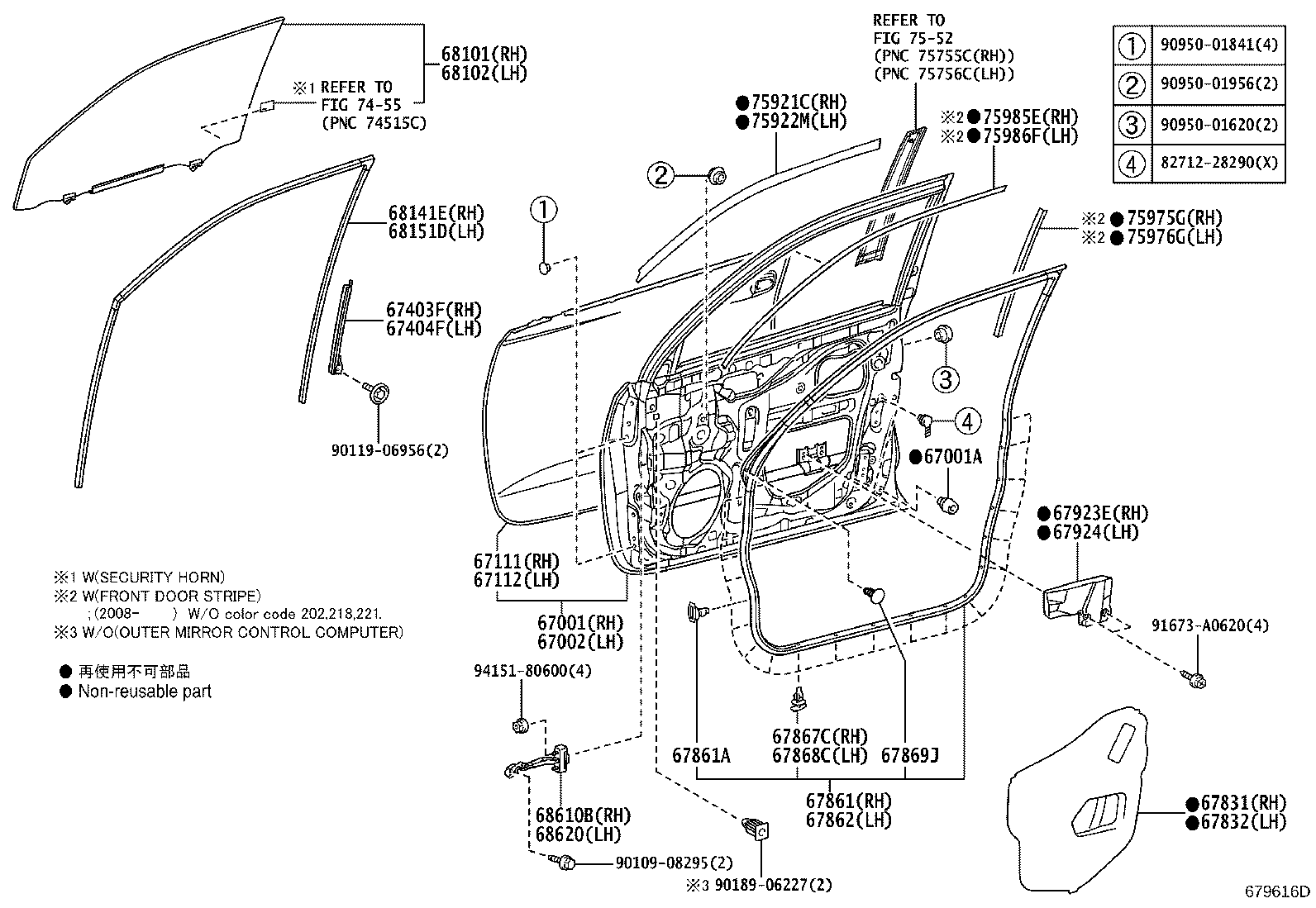

ILLUST NO. 1 OF 2(1708- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-60711 |
KDJ150..LHD |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
KDJ150..LHD |
2 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-60711 |
KDJ150..LHD |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-60370 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-60370 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-60110 |
KDJ150..LHD |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-60120 |
KDJ150..LHD |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-60170 |
KDJ150..LHD |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-60080 |
KDJ150..LHD |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-60170 |
KDJ150..LHD |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67867-60010 |
KDJ150..LHD |
2 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-60170 |
KDJ150..LHD |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
KDJ150..LHD |
19 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
KDJ150..LHD |
19 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-24010 |
KDJ150..LHD |
2 | ||
| 67923E - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-60030 |
KDJ150..LHD |
1 | ||
| 67924 - CUSHION, FRONT DOOR STIFFENER, NO.2 | ||||
| 67924-60030 |
KDJ150..LHD |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-60590 |
GDJ15#..6F;GRJ150,KDJ150..EUR;GDJ15#..LHD..6FC..EUR ANTI-THEFT SYSTEM-*IM & ALARM(SIREN, *IS, *GBS, TILT) |
1 | ||
| 68101-60600 |
GDJ15#..6F;GDJ15#..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL |
1 | ||
| 68101-60570 |
GDJ15#..6F;GDJ15#..LHD..6FC;GRJ150,KDJ150,TRJ150 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-60600 |
GDJ15#..6F;GDJ15#..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD ANTI-THEFT SYSTEM-*IM & ALARM(SIREN,*IS,*GBS,TILT) & *DOL |
1 | ||
| 68102-60570 |
GDJ15#..6F;GDJ15#..LHD..6FC;GRJ150,KDJ150,TRJ150 |
1 | ||
| 68102-60590 |
GDJ15#..6F;GRJ150,KDJ150..EUR;GDJ15#..LHD..6FC..EUR ANTI-THEFT SYSTEM-*IM & ALARM(SIREN, *IS, *GBS, TILT) |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-60081 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 68141-60082 |
KDJ150 |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-60072 |
KDJ150 |
1 | ||
| 68151-60071 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-60160 |
KDJ150 |
1 | ||
| 68610-60140 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-60120 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 68620-60140 |
KDJ150 |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-60040 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-60040 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 75975G - STRIPE, FRONT DOOR, NO.2 RH | ||||
| 75975-60120 |
GRJ150..RUS;KDJ150..LHD;GDJ15#,TRJ150..6F,6FC VX PACKAGE |
1 | ||
| 75975-60120 |
GRJ150..RUS;KDJ150..LHD;GDJ15#,TRJ150 TX-L PACKAGE |
1 | ||
| 75976G - STRIPE, FRONT DOOR, NO.2 LH | ||||
| 75976-60100 |
GRJ150..RUS;KDJ150..LHD;GDJ15#,TRJ150..6F,6FC VX PACKAGE |
1 | ||
| 75976-60100 |
GRJ150..RUS;KDJ150..LHD;GDJ15#,TRJ150 TX-L PACKAGE |
1 | ||
| 75985E - STRIPE, FRONT DOOR OUTSIDE, RH | ||||
| 75985-60781 |
GRJ150..RUS;KDJ150..LHD;GDJ15#,TRJ150 TX-L PACKAGE |
1 | ||
| 75985-60781 |
GRJ150..RUS;KDJ150..LHD;GDJ15#,TRJ150..6F,6FC VX PACKAGE |
1 | ||
| 75986F - STRIPE, FRONT DOOR OUTSIDE, LH | ||||
| 75986-60781 |
GRJ150..RUS;KDJ150..LHD;GDJ15#,TRJ150..6F,6FC VX PACKAGE |
1 | ||
| 75986-60781 |
GRJ150..RUS;KDJ150..LHD;GDJ15#,TRJ150 TX-L PACKAGE |
1 | ||
| Common parts | ||||
| 82712-28290 | ||||
| 90109-08295 | ||||
| 90119-06956 | ||||
| 90189-06227 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 90950-01956 | ||||
| 91673-A0620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 7552 | ||||

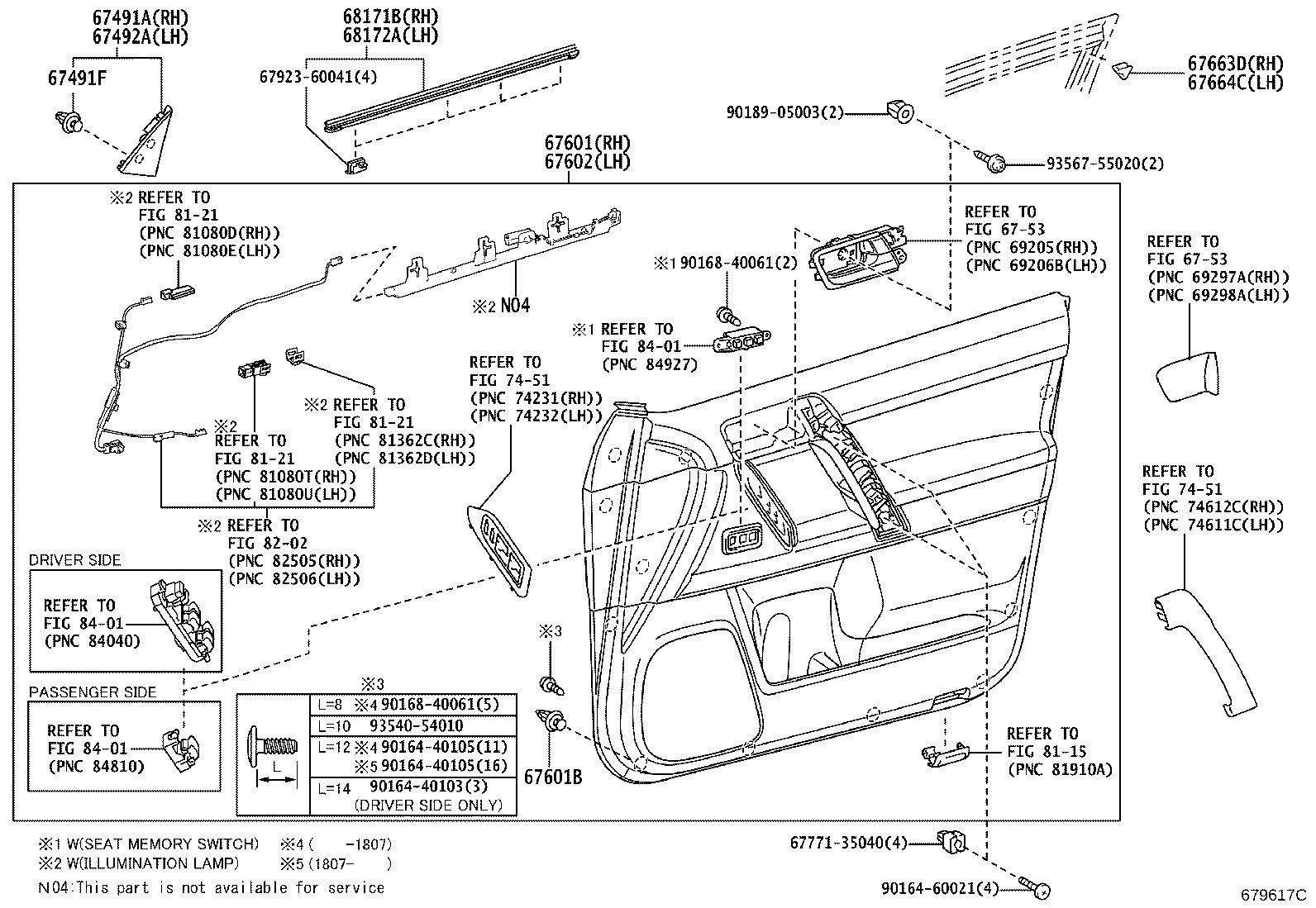

ILLUST NO. 2 OF 2(1708- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-60110 |
KDJ150..LHD |
1 | ||
| 67491F - CLIP(FOR DOOR TRIM) | ||||
| 62217-13010 |
KDJ150..LHD |
4 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-60110 |
KDJ150..LHD |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-6A520E0 |
GDJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&DUST PROOF SPEC&FRONT SEAT-POWER(DRIVER & PASSENGER),ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A510E0 |
GRJ150..RUS;GDJ15#,KDJ150,TRJ150..LHD DUST PROOF SPEC,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A540C1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEASMARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A510C0 |
GRJ150..RUS;GDJ15#,KDJ150,TRJ150..LHD DUST PROOF SPEC,BLACK,TRIM2# |
1 | ||
| 67610-6A520C0 |
GDJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&DUST PROOF SPEC&FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 67610-6A540C1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEASMARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A540C1 |
KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A540C1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A540C1 |
KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A540C1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A540C1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A540C1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A540E1 |
KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A540E1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A540E1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEASMARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A540E1 |
KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A540E1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEASMARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A540E1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A540E1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A600C0 |
GRJ150..RUS;GDJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&DUST PROOF SPEC&FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 67610-6A540E1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A600E0 |
GRJ150..RUS;GDJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&DUST PROOF SPEC&FRONT SEAT-POWER(DRIVER & PASSENGER),ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A640C1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A640C1 |
KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A640C1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A640E1 |
KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A640C1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A640E1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A640E1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A400C1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A640E1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A400C1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A400C1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB))& JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A400C1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A400E1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A400E1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A400E1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB))& JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A400E1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A660C1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH& MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A660C1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH& MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A660E1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH& MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A660E1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH& MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A400C1 |
GRJ150,KDJ150..LHD..EUR VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A400C1 |
GRJ150..EUR;GDJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A400E1 |
GRJ150,KDJ150..LHD..EUR VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A400E1 |
GRJ150..EUR;GDJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A490C0 |
GDJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 67610-6A490E0 |
GDJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&FRONT SEAT-POWER(DRIVER & PASSENGER),ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A400C1 |
GRJ150,KDJ150..LHD..EUR VX PACKAGE&*LES & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A400C1 |
GRJ150..EUR;GDJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A400E1 |
GRJ150,KDJ150..LHD..EUR VX PACKAGE&*LES & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A400E1 |
GRJ150..EUR;GDJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A500E0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A500C0 |
GDJ15#,GRJ150,KDJ150,TRJ150..LHD BLACK,TRIM2# |
1 | ||
| 67610-6A660C1 |
GRJ150..EUR;GDJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH& MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A660C1 |
GRJ150,KDJ150..LHD..EUR VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH& MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67610-6A530C0 |
GDJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 67610-6A660E1 |
GRJ150..EUR;GDJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH& MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A660E1 |
GRJ150,KDJ150..LHD..EUR VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH& MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67610-6A530E0 |
GDJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&FRONT SEAT-POWER(DRIVER & PASSENGER),ORCHID BROWN,TRIM4# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
24 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-6A470C0 |
GDJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&DUST PROOF SPEC&FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 67620-6A460E0 |
GRJ150..RUS;GDJ150,KDJ150,TRJ150..LHD DUST PROOF SPEC,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A470E0 |
GDJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&DUST PROOF SPEC&FRONT SEAT-POWER(DRIVER & PASSENGER),ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A460C0 |
GRJ150..RUS;GDJ150,KDJ150,TRJ150..LHD DUST PROOF SPEC,BLACK,TRIM2# |
1 | ||
| 67620-6A520C1 |
KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A520C1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A520C1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEASMARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A520C1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEASMARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A520C1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A520C1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A520C1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A520C1 |
KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A580C0 |
GRJ150..RUS;GDJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&DUST PROOF SPEC&FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 67620-6A520E1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEASMARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A520E1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A520E1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A520E1 |
KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A520E1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A520E1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEASMARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A520E1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A520E1 |
KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A580E0 |
GRJ150..RUS;GDJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&DUST PROOF SPEC&FRONT SEAT-POWER(DRIVER & PASSENGER),ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A620E1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A620C1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A480C0 |
GDJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 67620-6A620C1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A620C1 |
KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A620C1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A620E1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A620E1 |
KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A620E1 |
GRJ150..RUS;GDJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&DUST PROOF SPEC&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A380C1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A480E0 |
GDJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) TX-L PACKAGE&*FAS & *IP(ORNAMENT = BLACK PAINT)&FRONT SEAT-POWER(DRIVER & PASSENGER),ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A380C1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A380C1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A380C1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB))& JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A380E1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A380E1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A380E1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A380E1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB))& JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A640E1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH& MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A640C1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH& MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A640E1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH& MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A640C1 |
GDJ150,GRJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH& MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA(WITH(*EXB)) & JBL & 14SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A490E0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A380C1 |
GRJ150..EUR;GDJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A380E1 |
GRJ150,KDJ150..LHD..EUR VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A380C1 |
GRJ150,KDJ150..LHD..EUR VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A380E1 |
GRJ150..EUR;GDJ150,KDJ150..LHD VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A380C1 |
GRJ150,KDJ150..LHD..EUR VX PACKAGE&*LES & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A380C1 |
GRJ150..EUR;GDJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A380E1 |
GRJ150..EUR;GDJ150,KDJ150..LHD VX PACKAGE&*LES & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A380E1 |
GRJ150,KDJ150..LHD..EUR VX PACKAGE&*LES & WITHOUT(AVS)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH & MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A440C0 |
GDJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&FRONT SEAT-POWER(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 67620-6A440E0 |
GDJ150,KDJ150,TRJ150..LHD..(5FC,6F,6FC) TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&FRONT SEAT-POWER(DRIVER & PASSENGER),ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A640C1 |
GRJ150..EUR;GDJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH& MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A490C0 |
GDJ150,GRJ150,KDJ150,TRJ150..LHD BLACK,TRIM2# |
1 | ||
| 67620-6A640C1 |
GRJ150,KDJ150..LHD..EUR VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH& MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,BLACK,TRIM2# |
1 | ||
| 67620-6A640E1 |
GRJ150..EUR;GDJ150,KDJ150..LHD VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH& MEMORY & WITH(CAMERA)&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67620-6A640E1 |
GRJ150,KDJ150..LHD..EUR VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&OUTSIDE REAR VIEW MIRROR-*273 & *MIH& MEMORY&FRONT SEAT-POWER(DRIVER & PASSENGER)&AUDIO(FOR OVERSEAS MARKET)-*DA & 9SPEAKER,ORCHID BROWN,TRIM4# |
1 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-48010 |
KDJ150..LHD |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-48010 |
KDJ150..LHD |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-60090 |
KDJ150..LHD |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-60080 |
KDJ150..LHD |
1 | ||
| Common parts | ||||
| 67771-35040 | ||||
| 67923-60041 | ||||
| 90164-40103 | ||||
| 90164-40105 | ||||
| 90164-60021 | ||||
| 90168-40061 | ||||
| 90189-05003 | ||||
| 93540-54010 | ||||
| 93567-55020 | ||||
| Linked diagrams | ||||
| 6753 | ||||
| 7451 | ||||
| 8115 | ||||
| 8121 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
