KDJ150L-GKAEYW (2017)
Toyota Land Cruiser
Production
Aug 2017
-
Jul 2020
Engine
1KDFTV
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1708- )

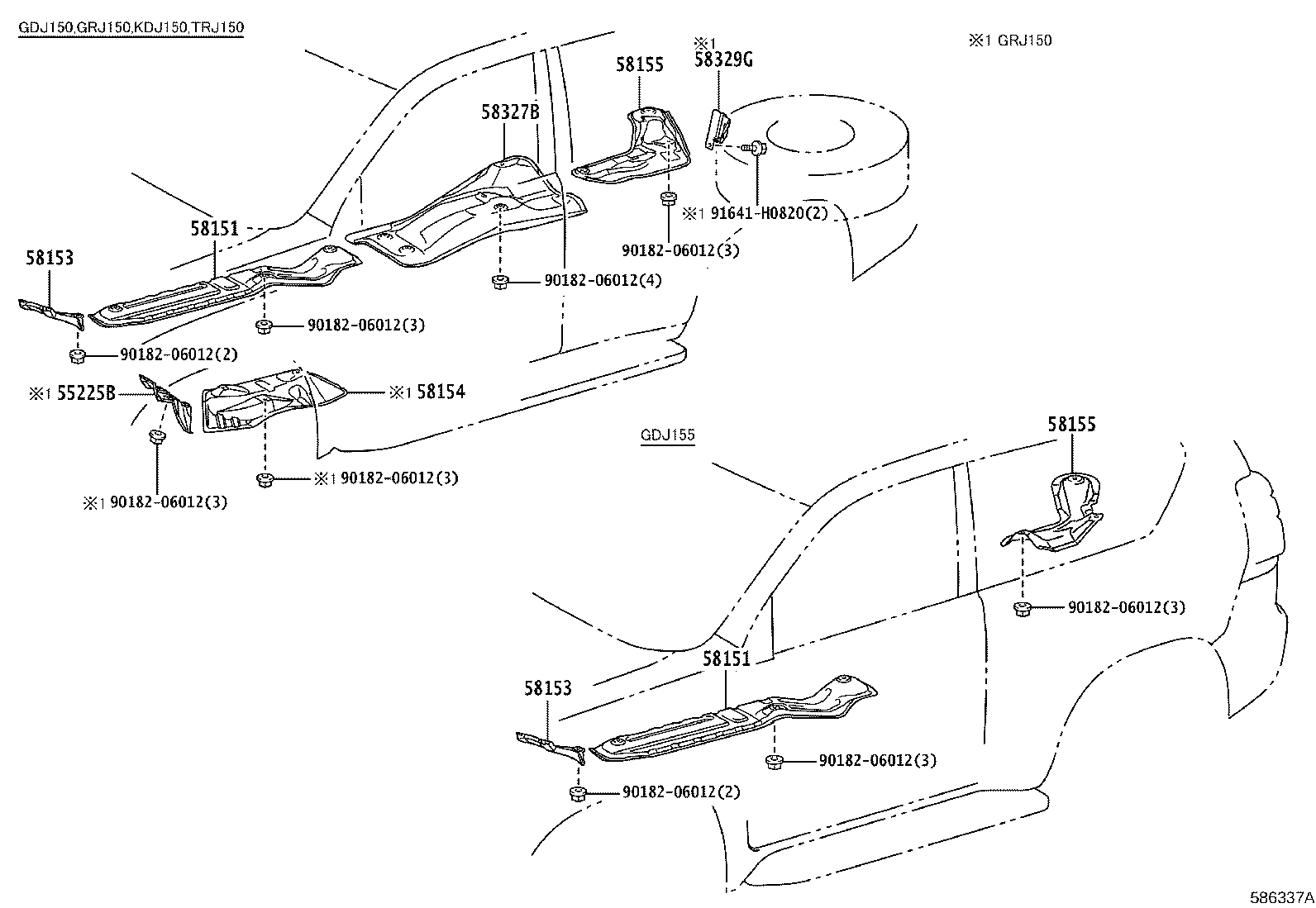

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-60121 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 58151-60122 |
GDJ150..RUS;GRJ150,TRJ150;GDJ15#,KDJ150..5FC,6F |
1 | ||
| 58151 - INSULATOR, FRONT FLOOR HEAT, NO.1 | ||||
| 58151-60121 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 58151-60122 |
GDJ150..RUS;GRJ150,TRJ150;GDJ15#,KDJ150..5FC,6F |
1 | ||
| 58153 - INSULATOR, FRONT FLOOR HEAT, NO.2 | ||||
| 58153-35130 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 58153-60130 |
GDJ150..RUS;GRJ150,TRJ150;GDJ15#,KDJ150..5FC,6F |
1 | ||
| 58153 - INSULATOR, FRONT FLOOR HEAT, NO.2 | ||||
| 58153-35130 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 58153-60130 |
GDJ150..RUS;GRJ150,TRJ150;GDJ15#,KDJ150..5FC,6F |
1 | ||
| 58155 - INSULATOR, FRONT FLOOR HEAT, NO.3 | ||||
| 58155-60070 |
KDJ150..LHD |
1 | ||
| 58155 - INSULATOR, FRONT FLOOR HEAT, NO.3 | ||||
| 58155-60070 |
KDJ150..LHD |
1 | ||
| 58327B - INSULATOR, MAIN MUFFLER HEAT | ||||
| 58327-60101 |
KDJ150..LHD |
1 | ||
| Common parts | ||||
| 90182-06012 | ||||
| 91641-H0820 | ||||
