Toyota Land cruiser HZJ80 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
EU
LAND CRUISER
HZJ80L-GNMNSW (1990)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

HZJ80L-GNMNSW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995

Engine 1HZ

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

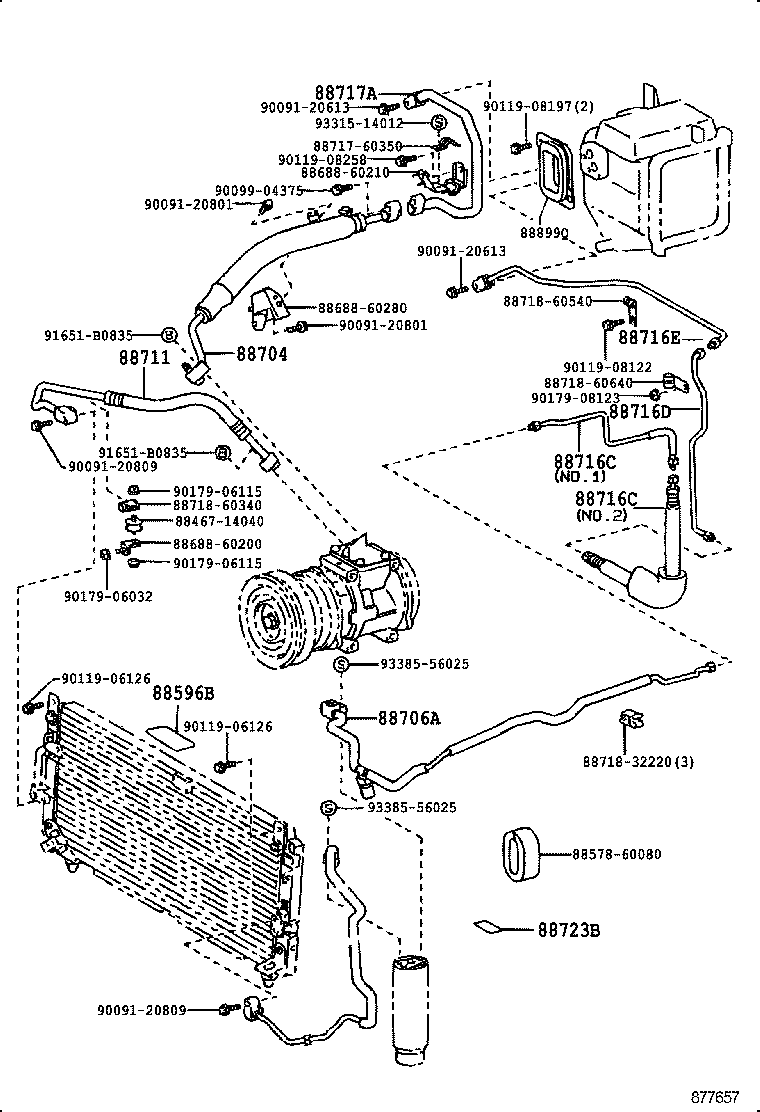

ILLUST NO. 2 OF 2(9208-9305)LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
88596B - PLATE, CAUTION, NO.1
88723-33020	HZJ80..LUB;HZJ80..STD SINGLE DEALER OPT	08/1992 - 05/1993	1
88704 - HOSE SUB-ASSY, SUCTION
88704-60010	HDJ80,HZJ80..LHD	01/1990 - 08/1992	1
88704-60040	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88704-60010	HDJ80,HZJ80..LHD	08/1992 - 05/1993	1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-60010	HDJ80,HZJ80..LHD	08/1992 - 05/1993	1
88706-60080	HDJ80,HZJ80	05/1993 - 01/1995	1
88706-60010	HZJ80..MTM;HDJ80..LHD..LUB	01/1990 - 08/1992	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60110	HDJ80,HZJ80..LHD	12/1992 - 05/1993	1
88711-60100	HDJ80,HZJ80..LHD	01/1990 - 12/1992	1
88711-60350	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-60120	HDJ80,HZJ80..LHD NO.1	08/1992 - 05/1993	1
88721-60100	HDJ80,HZJ80..LHD NO.2	05/1993 - 01/1995	1
88726-60280	HDJ80,HZJ80..LHD NO.1	05/1993 - 01/1995	1
88721-60080	HDJ80,HZJ80..LHD NO.2	08/1992 - 05/1993	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-60120	HDJ80,HZJ80..LHD NO.1	08/1992 - 05/1993	1
88721-60100	HDJ80,HZJ80..LHD NO.2	05/1993 - 01/1995	1
88726-60280	HDJ80,HZJ80..LHD NO.1	05/1993 - 01/1995	1
88721-60080	HDJ80,HZJ80..LHD NO.2	08/1992 - 05/1993	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88726-60130	HDJ80,HZJ80..LHD	08/1992 - 05/1993	1
88726-60310	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-60110	HZJ80..MTM COLD SPEC	01/1990 - 08/1992	1
88726-60110	FZJ80,HDJ80,HZJ80..LHD SINGLE DEALER OPT	08/1992 - 05/1993	1
88726-60140	FZJ80,HDJ80,HZJ80..LHD	08/1992 - 05/1993	1
88726-60300	HZJ80 COLD SPEC	05/1993 - 01/1995	1
88726-60020	FJ80,HDJ80,HZJ80..LHD	01/1990 - 08/1992	1
88726-60250	FZJ80,HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-60230	HDJ80,HZJ80..LHD	01/1990 - 05/1993	1
88717-60690	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-30030	FJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
88723-30030	HDJ80..ATM;FZJ80,HZJ80;HDJ80..LHD..MTM	08/1992 - 05/1993	1
88723-20040	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88899Q - PLATE, COVER
88899-60060	FJ80,HDJ80,HZJ80..LHD W/O(AIR CONDITIONER)	01/1990 - 08/1991	1
Common parts
88467-14040
88578-60080
88688-60200
88688-60210
88688-60280
88717-60350
88718-32220
88718-60340
88718-60540
88718-60640
90091-20613
90091-20801
90091-20809
90099-04375
90119-06126
90119-08122
90119-08197
90119-08258
90179-06032
90179-06115
90179-08123
91651-B0835
93315-14012
93385-56025

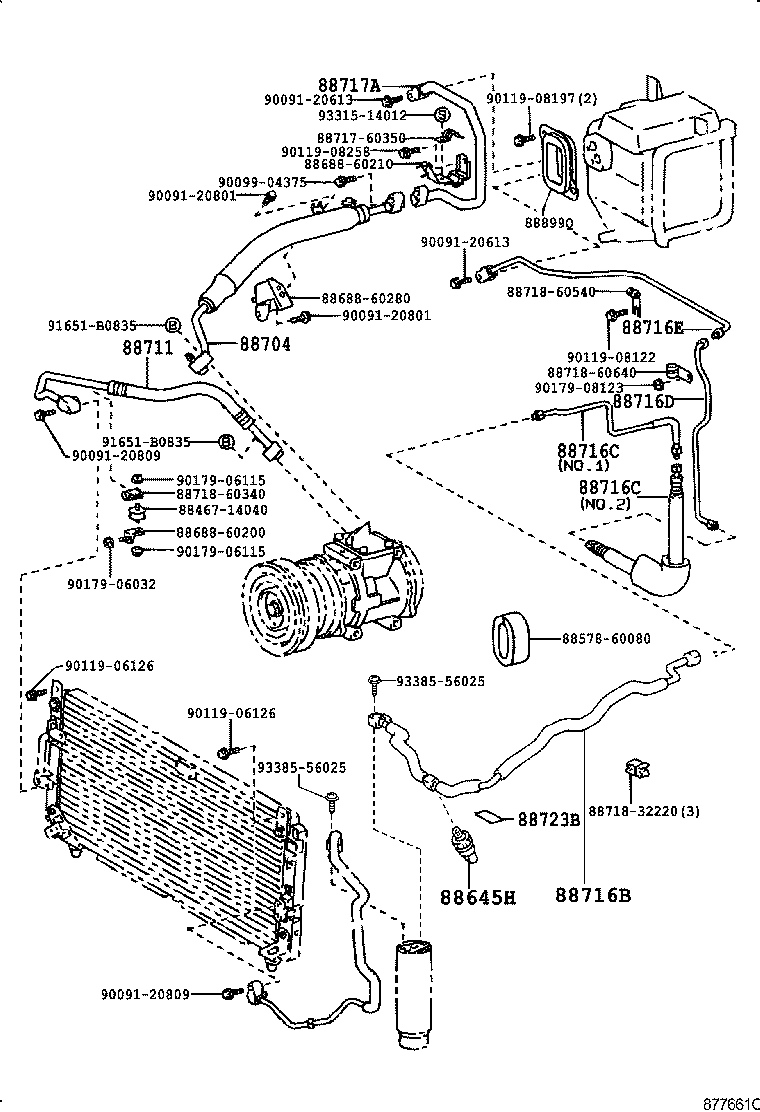

ILLUST NO. 2 OF 2(9305- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
88645H - SWITCH, PRESSURE NO.1
88645-60020	HDJ80,HZJ80..LHD LIQUID	01/1990 - 08/1992	1
88645-60010	HDJ80,HZJ80..LHD SUCTION	01/1990 - 08/1992	1
88645-60010	HDJ80,HZJ80..LHD SUCTION	08/1992 - 05/1993	1
88645-60020	HDJ80,HZJ80..LHD LIQUID	08/1992 - 05/1993	1
88645-60030	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88704 - HOSE SUB-ASSY, SUCTION
88704-60010	HDJ80,HZJ80..LHD	01/1990 - 08/1992	1
88704-60040	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88704-60010	HDJ80,HZJ80..LHD	08/1992 - 05/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60110	HDJ80,HZJ80..LHD	12/1992 - 05/1993	1
88711-60100	HDJ80,HZJ80..LHD	01/1990 - 12/1992	1
88711-60350	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-60300	HDJ80,HZJ80	01/1990 - 08/1992	1
88716-6A380	HDJ80..ATM;HDJ80,HZJ80..LHD..MTM	05/1993 - 01/1995	1
88716-60300	HDJ80,HZJ80..LHD	08/1992 - 05/1993	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-60120	HDJ80,HZJ80..LHD NO.1	08/1992 - 05/1993	1
88721-60100	HDJ80,HZJ80..LHD NO.2	05/1993 - 01/1995	1
88726-60280	HDJ80,HZJ80..LHD NO.1	05/1993 - 01/1995	1
88721-60080	HDJ80,HZJ80..LHD NO.2	08/1992 - 05/1993	1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-60120	HDJ80,HZJ80..LHD NO.1	08/1992 - 05/1993	1
88721-60100	HDJ80,HZJ80..LHD NO.2	05/1993 - 01/1995	1
88726-60280	HDJ80,HZJ80..LHD NO.1	05/1993 - 01/1995	1
88721-60080	HDJ80,HZJ80..LHD NO.2	08/1992 - 05/1993	1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88726-60130	HDJ80,HZJ80..LHD	08/1992 - 05/1993	1
88726-60310	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-60110	HZJ80..MTM COLD SPEC	01/1990 - 08/1992	1
88726-60110	FZJ80,HDJ80,HZJ80..LHD SINGLE DEALER OPT	08/1992 - 05/1993	1
88726-60140	FZJ80,HDJ80,HZJ80..LHD	08/1992 - 05/1993	1
88726-60300	HZJ80 COLD SPEC	05/1993 - 01/1995	1
88726-60020	FJ80,HDJ80,HZJ80..LHD	01/1990 - 08/1992	1
88726-60250	FZJ80,HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-60230	HDJ80,HZJ80..LHD	01/1990 - 05/1993	1
88717-60690	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-30030	FJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
88723-30030	HDJ80..ATM;FZJ80,HZJ80;HDJ80..LHD..MTM	08/1992 - 05/1993	1
88723-20040	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88899Q - PLATE, COVER
88899-60060	FJ80,HDJ80,HZJ80..LHD W/O(AIR CONDITIONER)	01/1990 - 08/1991	1
Common parts
88467-14040
88578-60080
88688-60200
88688-60210
88688-60280
88717-60350
88718-32220
88718-60340
88718-60540
88718-60640
90091-20613
90091-20801
90091-20809
90099-04375
90119-06126
90119-08122
90119-08197
90119-08258
90179-06032
90179-06115
90179-08123
91651-B0835
93315-14012
93385-56025

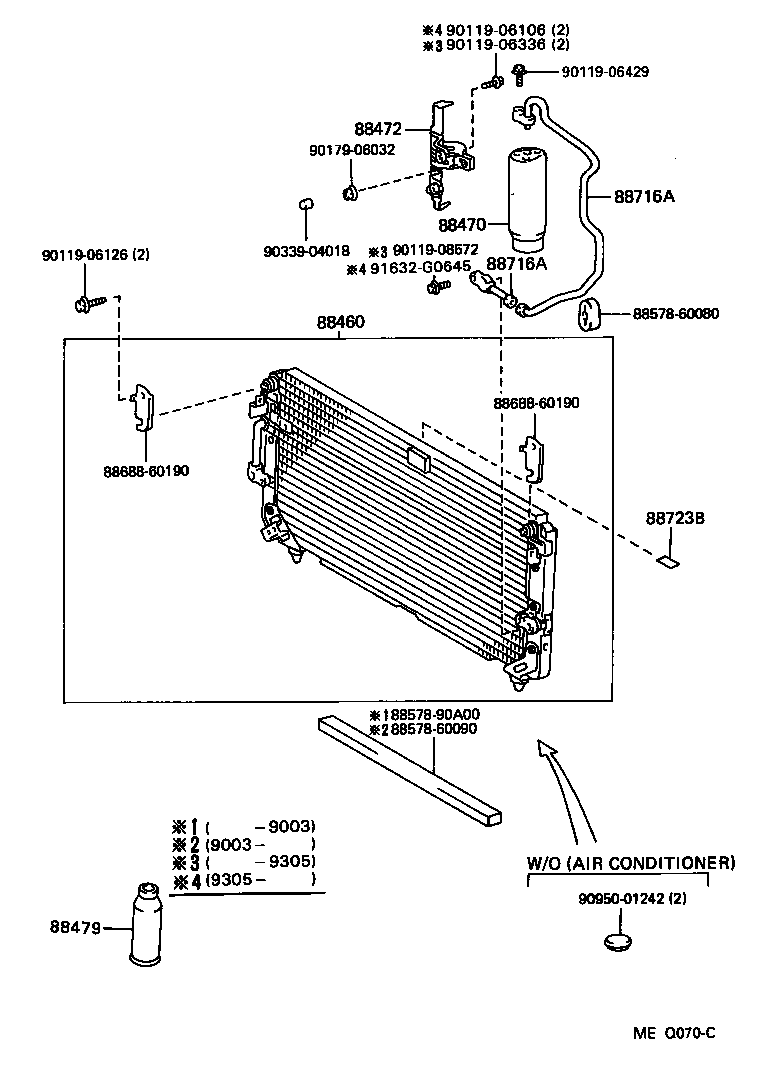

ILLUST NO. 1 OF 2(9001- )

Click highlighted areas on diagram

CONDENSOR

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-60060	FJ80,HDJ80,HZJ80..LHD	01/1990 - 01/1992	1
88460-60160	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88460-60060	HDJ80,HZJ80..LHD	01/1992 - 05/1993	1
88470 - RECEIVER & DRYER ASSY, COOLER
88471-16040	HDJ80,HZJ80..LHD	01/1992 - 05/1993	1
88471-16040	FJ80,HDJ80,HZJ80..LHD	01/1990 - 01/1992	1
88471-50020	FZJ80,HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-60060	FJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
88472-60060	HDJ80..ATM;FZJ80,HZJ80;HDJ80..LHD..MTM	08/1992 - 05/1993	1
88472-60071	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02004	HDJ80,HZJ80..LHD 250G	01/1992 - 08/1992	3
90986-02004	FJ80,HDJ80,HZJ80..LHD 250G	01/1990 - 01/1992	3
90986-02008	HDJ80..RHD..MTM;HDJ80,HZJ80..LHD 200G	05/1993 - 01/1995	2
90986-02007	HDJ80..RHD..MTM;HDJ80,HZJ80..LHD 250G	05/1993 - 01/1995	1
90986-02004	HDJ80,HZJ80..LHD..MTM 250G	08/1992 - 05/1993	3
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60290	FJ80,HDJ80,HZJ80..LHD RECEIVER SIDE	01/1990 - 01/1992	1
88716-60730	FJ80,HDJ80,HZJ80..LHD CONDENSER SIDE	01/1990 - 01/1992	1
88716-60730	FZJ80,HDJ80,HZJ80..LHD CONDENSER SIDE	01/1992 - 05/1993	1
88716-60290	FZJ80,HDJ80,HZJ80..LHD RECEIVER SIDE	01/1992 - 05/1993	1
88716-6A421	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60290	FJ80,HDJ80,HZJ80..LHD RECEIVER SIDE	01/1990 - 01/1992	1
88716-60730	FJ80,HDJ80,HZJ80..LHD CONDENSER SIDE	01/1990 - 01/1992	1
88716-60730	FZJ80,HDJ80,HZJ80..LHD CONDENSER SIDE	01/1992 - 05/1993	1
88716-60290	FZJ80,HDJ80,HZJ80..LHD RECEIVER SIDE	01/1992 - 05/1993	1
88716-6A421	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-30030	FJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
88723-30030	HDJ80..ATM;FZJ80,HZJ80;HDJ80..LHD..MTM	08/1992 - 05/1993	1
88723-20040	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
Common parts
88578-60080
88578-60090
88578-90A00
88688-60190
90119-06106
90119-06126
90119-06336
90119-06429
90119-08572
90179-06032
90339-04018
90950-01242
91632-G0645

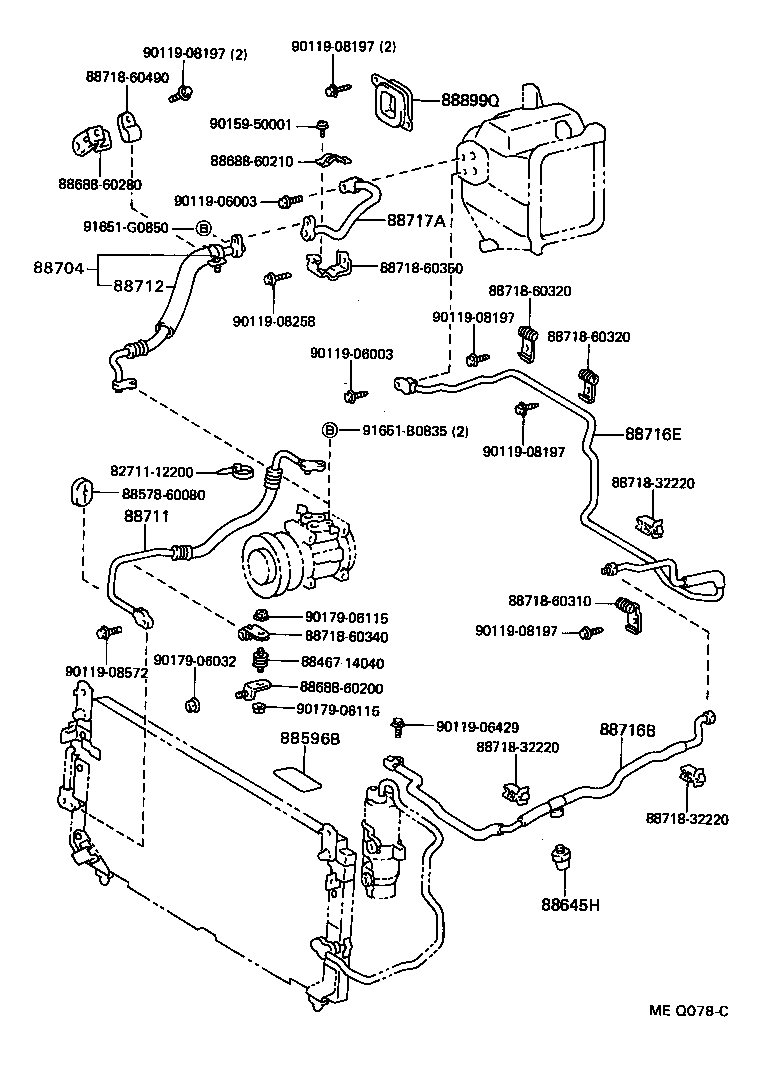

ILLUST NO. 2 OF 2(9001-9208)HDJ80,HZJ80..LHD

Click highlighted areas on diagram

PIPING

Part #	Description	Period	Qty
88596B - PLATE, CAUTION, NO.1
88723-33020	HZJ80..LUB;HZJ80..STD SINGLE DEALER OPT	08/1992 - 05/1993	1
88645H - SWITCH, PRESSURE NO.1
88645-60020	HDJ80,HZJ80..LHD LIQUID	01/1990 - 08/1992	1
88645-60010	HDJ80,HZJ80..LHD SUCTION	01/1990 - 08/1992	1
88645-60010	HDJ80,HZJ80..LHD SUCTION	08/1992 - 05/1993	1
88645-60020	HDJ80,HZJ80..LHD LIQUID	08/1992 - 05/1993	1
88645-60030	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88704 - HOSE SUB-ASSY, SUCTION
88704-60010	HDJ80,HZJ80..LHD	01/1990 - 08/1992	1
88704-60040	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88704-60010	HDJ80,HZJ80..LHD	08/1992 - 05/1993	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60110	HDJ80,HZJ80..LHD	12/1992 - 05/1993	1
88711-60100	HDJ80,HZJ80..LHD	01/1990 - 12/1992	1
88711-60350	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60130	HDJ80,HZJ80	01/1990 - 05/1993	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-60300	HDJ80,HZJ80	01/1990 - 08/1992	1
88716-6A380	HDJ80..ATM;HDJ80,HZJ80..LHD..MTM	05/1993 - 01/1995	1
88716-60300	HDJ80,HZJ80..LHD	08/1992 - 05/1993	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-60110	HZJ80..MTM COLD SPEC	01/1990 - 08/1992	1
88726-60110	FZJ80,HDJ80,HZJ80..LHD SINGLE DEALER OPT	08/1992 - 05/1993	1
88726-60140	FZJ80,HDJ80,HZJ80..LHD	08/1992 - 05/1993	1
88726-60300	HZJ80 COLD SPEC	05/1993 - 01/1995	1
88726-60020	FJ80,HDJ80,HZJ80..LHD	01/1990 - 08/1992	1
88726-60250	FZJ80,HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-60230	HDJ80,HZJ80..LHD	01/1990 - 05/1993	1
88717-60690	HDJ80,HZJ80..LHD	05/1993 - 01/1995	1
88899Q - PLATE, COVER
88899-60060	FJ80,HDJ80,HZJ80..LHD W/O(AIR CONDITIONER)	01/1990 - 08/1991	1
Common parts
82711-12200
88467-14040
88578-60080
88688-60200
88688-60210
88688-60280
88718-32220
88718-60310
88718-60320
88718-60340
88718-60350
88718-60490
90119-06003
90119-06429
90119-08197
90119-08258
90119-08572
90159-50001
90179-06032
90179-06115
91651-B0835
91651-G0850
