HZJ80L-GNMNSW (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Jan 1995
Engine
1HZ
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )

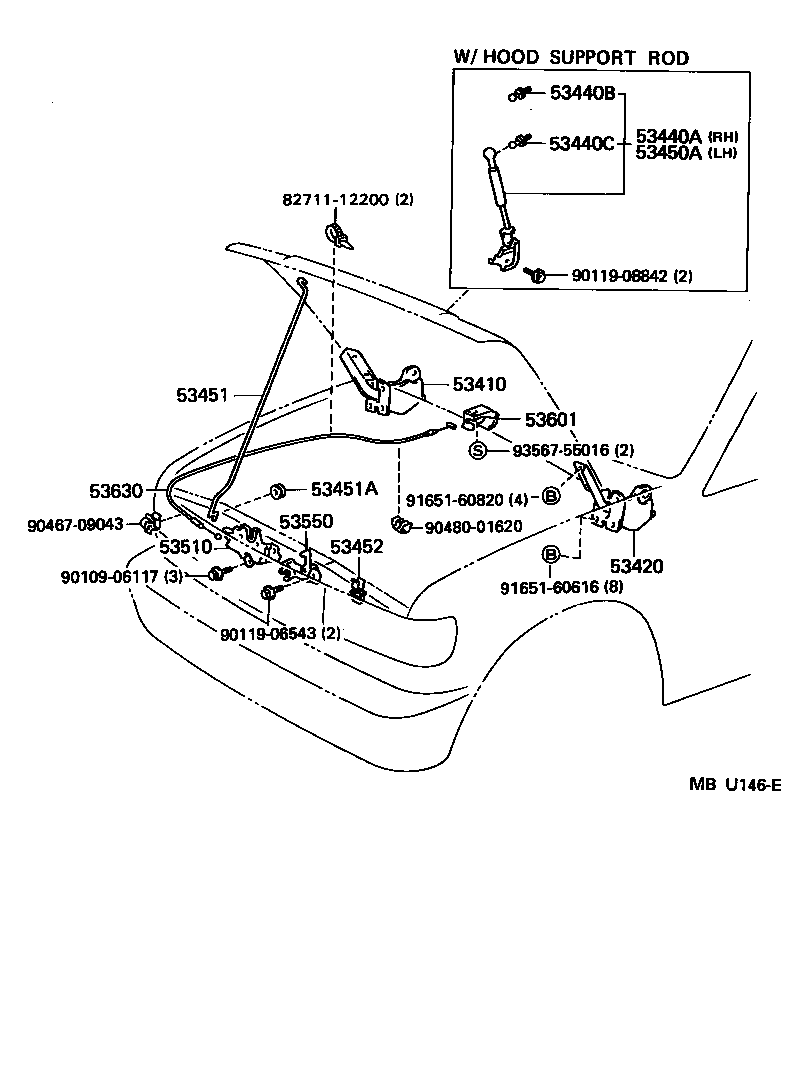

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-60030 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53420-60020 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 53440A - SUPPORT ASSY, HOOD, RH | ||||
| 53440-69015 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 53440B - BOLT, HOOD SUPPORT, NO.1 | ||||
| 68961-22010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 53440C - BOLT, HOOD SUPPORT, NO.2 | ||||
| 68961-22010 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 53450A - SUPPORT ASSY, HOOD, LH | ||||
| 53450-69015 |
FJ80,FZJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-60010 |
FJ80,HDJ80,HZJ80..LHD |
1 | ||
| 53550 - HOOK ASSY, HOOD AUXILIARY CATCH | ||||
| 53550-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL | ||||
| 53601-2006053 |
FJ80,FZJ80,HDJ80,HZJ80 LIGHT GRAY,TRIM1# |
1 | ||
| 53601-2006036 |
FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 53601-2006036 |
FJ80,FZJ80,HDJ80,HZJ80 SABLE,TRIM4# |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53630-60010 |
FJ80,FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90109-06117 | ||||
| 90119-06543 | ||||
| 90119-08842 | ||||
| 90467-09043 | ||||
| 90480-01620 | ||||
| 91651-60616 | ||||
| 91651-60820 | ||||
| 93567-55016 | ||||
