HZJ80L-GNMNSW (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Jan 1995
Engine
1HZ
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )MTM

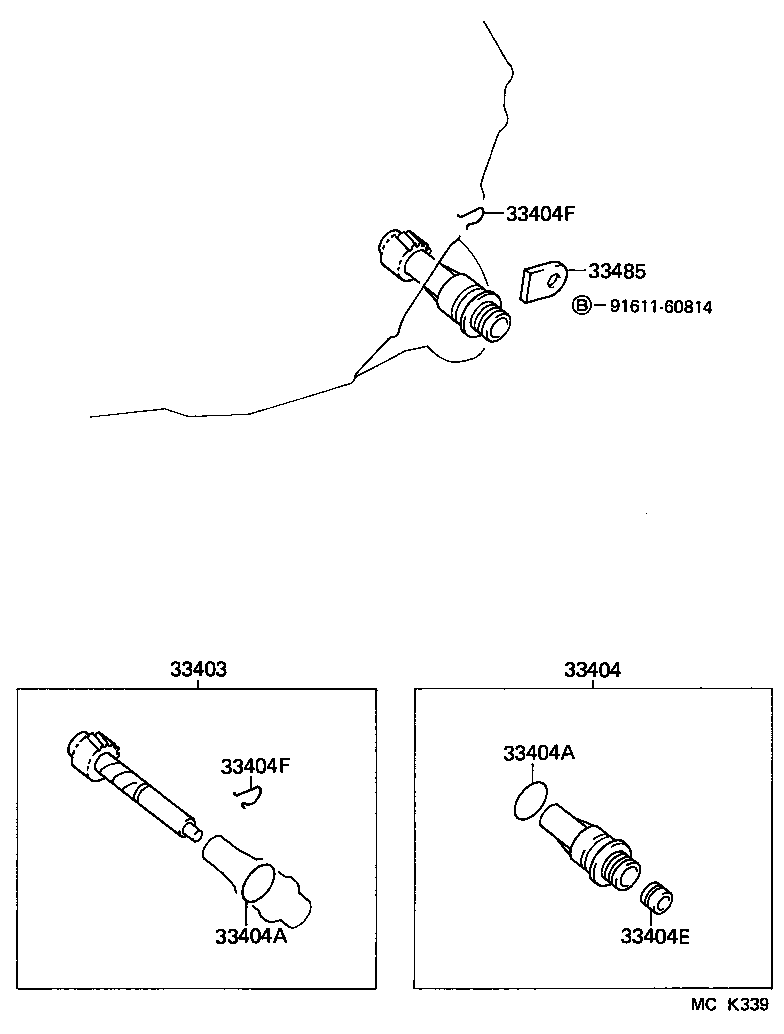

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM) | ||||
| 33403-69245 |
HZJ80..MTM..GX N=33,MARK 33:12 |
1 | ||
| 33403-69205 |
HZJ80..MTM N=31,MARK 31:11 |
1 | ||
| 33403-69205 |
HZJ80..LUB N=31,MARK 31:11 |
1 | ||
| 33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM) | ||||
| 33404-22010 |
HDJ80,HZJ80..MTM |
1 | ||
| 33404-22010 |
HDJ80,HZJ80..LHD..MTM..LUB |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 96711-24030 |
HDJ80,HZJ80..MTM |
1 | ||
| 96711-24030 |
HDJ80,HZJ80..LHD..MTM..LUB |
1 | ||
| 33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 96711-24030 |
HDJ80,HZJ80..MTM |
1 | ||
| 96711-24030 |
HDJ80,HZJ80..LHD..MTM..LUB |
1 | ||
| 33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90310-09001 |
HDJ80,HZJ80..LHD..MTM..LUB |
1 | ||
| 90310-09001 |
HDJ80,HZJ80..MTM |
1 | ||
| 33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
HDJ80,HZJ80..MTM |
1 | ||
| 90468-12005 |
HDJ80,HZJ80..LHD..MTM..LUB |
1 | ||
| 33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE) | ||||
| 90468-12005 |
HDJ80,HZJ80..MTM |
1 | ||
| 90468-12005 |
HDJ80,HZJ80..LHD..MTM..LUB |
1 | ||
| 33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM) | ||||
| 33485-30020 |
HDJ80,HZJ80..MTM |
1 | ||
| 33485-30020 |
HDJ80,HZJ80..LHD..MTM..LUB |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
