HZJ80L-GCMRSW (1990)
Toyota Land Cruiser

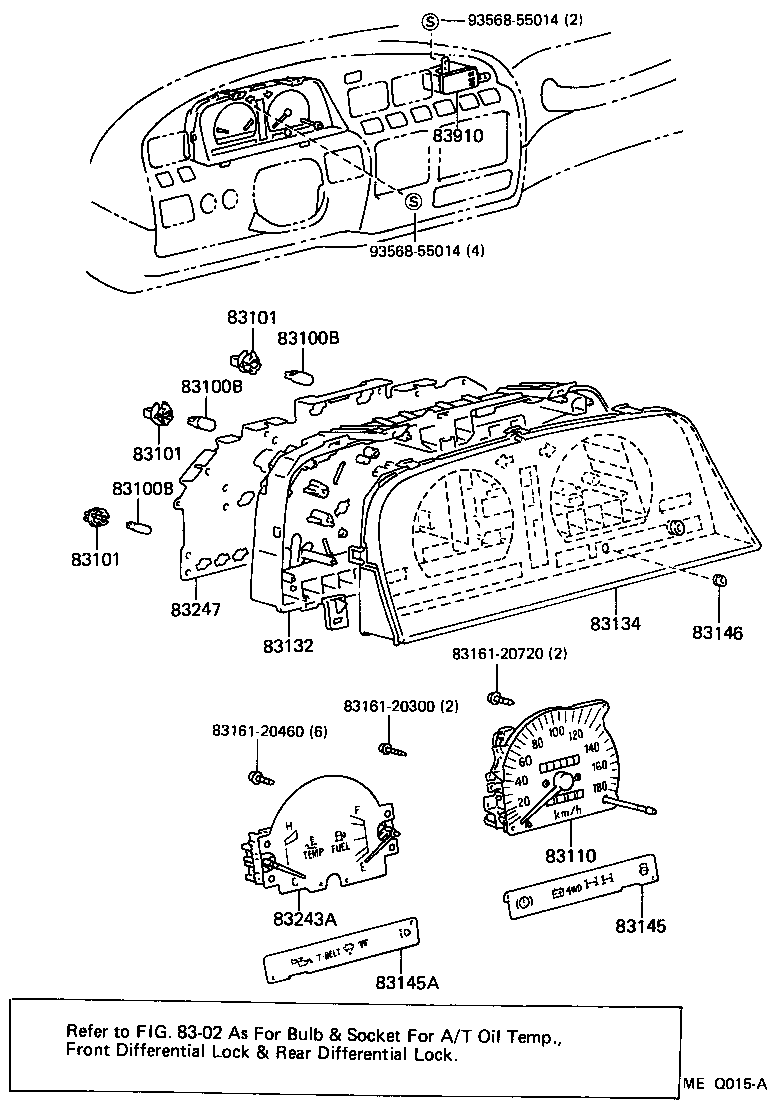

ILLUST NO. 1 OF 3(9001-9208)STD
SPEEDMETER & CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
HZJ80..STD 12V 3.4W |
2 | ||
| 90981-11018 |
HDJ80,HZJ80 12V 1.2W W/O SOCKET |
12 | ||
| 90981-11035 |
FJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
7 | ||
| 90981-11018 |
HZJ80;HDJ80..RHD 12V 1.2W W/O SOCKET |
12 | ||
| 99132-12034 |
FZJ80,HZJ80 12V 3.4W |
7 | ||
| 83120-60020 |
HZJ80..STD 12V 1.4W,W(SOCKET) |
9 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 90010-06006 |
FZJ80,HDJ80,HZJ80 12V3.4W,W(GREEN CAP) |
4 | ||
| 90981-11018 |
FZJ80,HDJ80,HZJ80 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
FZJ80..MTM;HZJ80..STD 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
4 | ||
| 90010-06007 |
FZJ80,HDJ80,HZJ80 12V 3.4W,W(SOCKET) |
3 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
HZJ80..STD 12V 3.4W |
2 | ||
| 90981-11018 |
HDJ80,HZJ80 12V 1.2W W/O SOCKET |
12 | ||
| 90981-11035 |
FJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
7 | ||
| 90981-11018 |
HZJ80;HDJ80..RHD 12V 1.2W W/O SOCKET |
12 | ||
| 99132-12034 |
FZJ80,HZJ80 12V 3.4W |
7 | ||
| 83120-60020 |
HZJ80..STD 12V 1.4W,W(SOCKET) |
9 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 90010-06006 |
FZJ80,HDJ80,HZJ80 12V3.4W,W(GREEN CAP) |
4 | ||
| 90981-11018 |
FZJ80,HDJ80,HZJ80 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
FZJ80..MTM;HZJ80..STD 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
4 | ||
| 90010-06007 |
FZJ80,HDJ80,HZJ80 12V 3.4W,W(SOCKET) |
3 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
HZJ80..STD 12V 3.4W |
2 | ||
| 90981-11018 |
HDJ80,HZJ80 12V 1.2W W/O SOCKET |
12 | ||
| 90981-11035 |
FJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
7 | ||
| 90981-11018 |
HZJ80;HDJ80..RHD 12V 1.2W W/O SOCKET |
12 | ||
| 99132-12034 |
FZJ80,HZJ80 12V 3.4W |
7 | ||
| 83120-60020 |
HZJ80..STD 12V 1.4W,W(SOCKET) |
9 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 90010-06006 |
FZJ80,HDJ80,HZJ80 12V3.4W,W(GREEN CAP) |
4 | ||
| 90981-11018 |
FZJ80,HDJ80,HZJ80 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
FZJ80..MTM;HZJ80..STD 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
4 | ||
| 90010-06007 |
FZJ80,HDJ80,HZJ80 12V 3.4W,W(SOCKET) |
3 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HZJ80 1.2W OR 1.4W BULB |
13 | ||
| 83101-14040 |
HDJ80,HZJ80 1.2W OR 1.4W BULB |
12 | ||
| 83101-20040 |
HZJ80..STD 3.4W BULB GREEN CAP |
6 | ||
| 83101-14040 |
HZJ80;HDJ80..RHD 1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
FZJ80,HDJ80,HZJ80 1.2W OR 1.4W BULB |
1 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
7 | ||
| 83101-14040 |
HZJ80..STD 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HZJ80 1.2W OR 1.4W BULB |
13 | ||
| 83101-14040 |
HDJ80,HZJ80 1.2W OR 1.4W BULB |
12 | ||
| 83101-20040 |
HZJ80..STD 3.4W BULB GREEN CAP |
6 | ||
| 83101-14040 |
HZJ80;HDJ80..RHD 1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
FZJ80,HDJ80,HZJ80 1.2W OR 1.4W BULB |
1 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
7 | ||
| 83101-14040 |
HZJ80..STD 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HZJ80 1.2W OR 1.4W BULB |
13 | ||
| 83101-14040 |
HDJ80,HZJ80 1.2W OR 1.4W BULB |
12 | ||
| 83101-20040 |
HZJ80..STD 3.4W BULB GREEN CAP |
6 | ||
| 83101-14040 |
HZJ80;HDJ80..RHD 1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
FZJ80,HDJ80,HZJ80 1.2W OR 1.4W BULB |
1 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
7 | ||
| 83101-14040 |
HZJ80..STD 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-60202 |
HZJ80 |
1 | ||
| 83110-60201 |
HDJ80,HZJ80..LHD |
1 | ||
| 83110-60200 |
HZJ80 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-60740 |
HZJ80..STD |
1 | ||
| 83132-60120 |
HZJ80..STD |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-60140 |
HZJ80..STD |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-60540 |
HZJ80..STD |
1 | ||
| 83832-60470 |
HZJ80..STD |
1 | ||
| 83145-6A100 |
HZJ80..STD |
1 | ||
| 83146-60760 |
HZJ80..STD |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83146-60740 |
HZJ80..STD |
1 | ||
| 83145-6A480 |
HZJ80..STD |
1 | ||
| 83145-60620 |
HZJ80..STD |
1 | ||
| 83831-60470 |
HZJ80..STD |
1 | ||
| 83146 - GROMMET, METER GLASS | ||||
| 83145-89318 |
HDJ80,HZJ80 |
1 | ||
| 83145-89318 |
HDJ80,HZJ80 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-60060 |
HZJ80..STD |
1 | ||
| 83243-60260 |
HZJ80..STD |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-6A020 |
HZJ80..STD |
1 | ||
| 83247-60420 |
HZJ80..STD |
1 | ||
| 83247-6A420 |
HZJ80..STD |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-60030 |
FJ80,FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 83910-60150 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 83161-20300 | ||||
| 83161-20460 | ||||
| 83161-20720 | ||||
| 93568-55014 | ||||
ILLUST NO. 2 OF 3(9001- )FJ80,HDJ80,HZJ80..LHD
SPEEDMETER CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-60190 |
HDJ80,HZJ80..LHD..MTM |
1 | ||
| 83710-60290 |
HDJ80,HZJ80..LHD..MTM W(POWER TAKE OFF) |
1 | ||
| 83710-60191 |
HDJ80,HZJ80..LHD..MTM |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 83791-60010 | ||||
| 83791-60050 | ||||
| 83791-60051 | ||||
| 83791-60060 | ||||
| 83791-60070 | ||||
| 90179-06161 | ||||
| 90463-10337 | ||||
| 93568-55014 | ||||
ILLUST NO. 3 OF 3(9208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-20040 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 83783 - KEY, SPEEDMETER SENSOR | ||||
| 83783-22010 |
FZJ80,HDJ80,HZJ80 |
1 | ||
ILLUST NO. 1 OF 3(9208- )
SPEEDMETER & CLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
HZJ80..STD 12V 3.4W |
2 | ||
| 90981-11018 |
HDJ80,HZJ80 12V 1.2W W/O SOCKET |
12 | ||
| 90981-11035 |
FJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
7 | ||
| 90981-11018 |
HZJ80;HDJ80..RHD 12V 1.2W W/O SOCKET |
12 | ||
| 99132-12034 |
FZJ80,HZJ80 12V 3.4W |
7 | ||
| 83120-60020 |
HZJ80..STD 12V 1.4W,W(SOCKET) |
9 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 90010-06006 |
FZJ80,HDJ80,HZJ80 12V3.4W,W(GREEN CAP) |
4 | ||
| 90981-11018 |
FZJ80,HDJ80,HZJ80 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
FZJ80..MTM;HZJ80..STD 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
4 | ||
| 90010-06007 |
FZJ80,HDJ80,HZJ80 12V 3.4W,W(SOCKET) |
3 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
HZJ80..STD 12V 3.4W |
2 | ||
| 90981-11018 |
HDJ80,HZJ80 12V 1.2W W/O SOCKET |
12 | ||
| 90981-11035 |
FJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
7 | ||
| 90981-11018 |
HZJ80;HDJ80..RHD 12V 1.2W W/O SOCKET |
12 | ||
| 99132-12034 |
FZJ80,HZJ80 12V 3.4W |
7 | ||
| 83120-60020 |
HZJ80..STD 12V 1.4W,W(SOCKET) |
9 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 90010-06006 |
FZJ80,HDJ80,HZJ80 12V3.4W,W(GREEN CAP) |
4 | ||
| 90981-11018 |
FZJ80,HDJ80,HZJ80 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
FZJ80..MTM;HZJ80..STD 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
4 | ||
| 90010-06007 |
FZJ80,HDJ80,HZJ80 12V 3.4W,W(SOCKET) |
3 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
HZJ80..STD 12V 3.4W |
2 | ||
| 90981-11018 |
HDJ80,HZJ80 12V 1.2W W/O SOCKET |
12 | ||
| 90981-11035 |
FJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
7 | ||
| 90981-11018 |
HZJ80;HDJ80..RHD 12V 1.2W W/O SOCKET |
12 | ||
| 99132-12034 |
FZJ80,HZJ80 12V 3.4W |
7 | ||
| 83120-60020 |
HZJ80..STD 12V 1.4W,W(SOCKET) |
9 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 90010-06006 |
FZJ80,HDJ80,HZJ80 12V3.4W,W(GREEN CAP) |
4 | ||
| 90981-11018 |
FZJ80,HDJ80,HZJ80 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
FZJ80..MTM;HZJ80..STD 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
4 | ||
| 90010-06007 |
FZJ80,HDJ80,HZJ80 12V 3.4W,W(SOCKET) |
3 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HZJ80 1.2W OR 1.4W BULB |
13 | ||
| 83101-14040 |
HDJ80,HZJ80 1.2W OR 1.4W BULB |
12 | ||
| 83101-20040 |
HZJ80..STD 3.4W BULB GREEN CAP |
6 | ||
| 83101-14040 |
HZJ80;HDJ80..RHD 1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
FZJ80,HDJ80,HZJ80 1.2W OR 1.4W BULB |
1 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
7 | ||
| 83101-14040 |
HZJ80..STD 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HZJ80 1.2W OR 1.4W BULB |
13 | ||
| 83101-14040 |
HDJ80,HZJ80 1.2W OR 1.4W BULB |
12 | ||
| 83101-20040 |
HZJ80..STD 3.4W BULB GREEN CAP |
6 | ||
| 83101-14040 |
HZJ80;HDJ80..RHD 1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
FZJ80,HDJ80,HZJ80 1.2W OR 1.4W BULB |
1 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
7 | ||
| 83101-14040 |
HZJ80..STD 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HZJ80 1.2W OR 1.4W BULB |
13 | ||
| 83101-14040 |
HDJ80,HZJ80 1.2W OR 1.4W BULB |
12 | ||
| 83101-20040 |
HZJ80..STD 3.4W BULB GREEN CAP |
6 | ||
| 83101-14040 |
HZJ80;HDJ80..RHD 1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
FZJ80,HDJ80,HZJ80 1.2W OR 1.4W BULB |
1 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
7 | ||
| 83101-14040 |
HZJ80..STD 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-60202 |
HZJ80 |
1 | ||
| 83110-60201 |
HDJ80,HZJ80..LHD |
1 | ||
| 83110-60200 |
HZJ80 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-60740 |
HZJ80..STD |
1 | ||
| 83132-60120 |
HZJ80..STD |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-60140 |
HZJ80..STD |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-60540 |
HZJ80..STD |
1 | ||
| 83832-60470 |
HZJ80..STD |
1 | ||
| 83145-6A100 |
HZJ80..STD |
1 | ||
| 83146-60760 |
HZJ80..STD |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83146-60740 |
HZJ80..STD |
1 | ||
| 83145-6A480 |
HZJ80..STD |
1 | ||
| 83145-60620 |
HZJ80..STD |
1 | ||
| 83831-60470 |
HZJ80..STD |
1 | ||
| 83146 - GROMMET, METER GLASS | ||||
| 83145-89318 |
HDJ80,HZJ80 |
1 | ||
| 83145-89318 |
HDJ80,HZJ80 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-60060 |
HZJ80..STD |
1 | ||
| 83243-60260 |
HZJ80..STD |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-6A020 |
HZJ80..STD |
1 | ||
| 83247-60420 |
HZJ80..STD |
1 | ||
| 83247-6A420 |
HZJ80..STD |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83247-95N29 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-60030 |
FJ80,FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 83910-60150 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 83161-1E020 | ||||
| 83161-20280 | ||||
| 83161-20440 | ||||
| 83161-20880 | ||||
| 93568-55014 | ||||
ILLUST NO. 1 OF 3(9208- )
SPEEDMETER & CLOCK W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
HZJ80..STD 12V 3.4W |
2 | ||
| 90981-11018 |
HDJ80,HZJ80 12V 1.2W W/O SOCKET |
12 | ||
| 90981-11035 |
FJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
7 | ||
| 90981-11018 |
HZJ80;HDJ80..RHD 12V 1.2W W/O SOCKET |
12 | ||
| 99132-12034 |
FZJ80,HZJ80 12V 3.4W |
7 | ||
| 83120-60020 |
HZJ80..STD 12V 1.4W,W(SOCKET) |
9 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 90010-06006 |
FZJ80,HDJ80,HZJ80 12V3.4W,W(GREEN CAP) |
4 | ||
| 90981-11018 |
FZJ80,HDJ80,HZJ80 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
FZJ80..MTM;HZJ80..STD 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
4 | ||
| 90010-06007 |
FZJ80,HDJ80,HZJ80 12V 3.4W,W(SOCKET) |
3 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
HZJ80..STD 12V 3.4W |
2 | ||
| 90981-11018 |
HDJ80,HZJ80 12V 1.2W W/O SOCKET |
12 | ||
| 90981-11035 |
FJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
7 | ||
| 90981-11018 |
HZJ80;HDJ80..RHD 12V 1.2W W/O SOCKET |
12 | ||
| 99132-12034 |
FZJ80,HZJ80 12V 3.4W |
7 | ||
| 83120-60020 |
HZJ80..STD 12V 1.4W,W(SOCKET) |
9 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 90010-06006 |
FZJ80,HDJ80,HZJ80 12V3.4W,W(GREEN CAP) |
4 | ||
| 90981-11018 |
FZJ80,HDJ80,HZJ80 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
FZJ80..MTM;HZJ80..STD 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
4 | ||
| 90010-06007 |
FZJ80,HDJ80,HZJ80 12V 3.4W,W(SOCKET) |
3 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
HZJ80..STD 12V 3.4W |
2 | ||
| 90981-11018 |
HDJ80,HZJ80 12V 1.2W W/O SOCKET |
12 | ||
| 90981-11035 |
FJ80,HDJ80,HZJ80 14V 3.4W |
4 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
7 | ||
| 90981-11018 |
HZJ80;HDJ80..RHD 12V 1.2W W/O SOCKET |
12 | ||
| 99132-12034 |
FZJ80,HZJ80 12V 3.4W |
7 | ||
| 83120-60020 |
HZJ80..STD 12V 1.4W,W(SOCKET) |
9 | ||
| 99132-12034 |
FZJ80,HDJ80,HZJ80 12V 3.4W |
3 | ||
| 90010-06006 |
FZJ80,HDJ80,HZJ80 12V3.4W,W(GREEN CAP) |
4 | ||
| 90981-11018 |
FZJ80,HDJ80,HZJ80 12V 1.2W W/O SOCKET |
1 | ||
| 90981-11018 |
FZJ80..MTM;HZJ80..STD 12V 1.2W W/O SOCKET |
10 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
4 | ||
| 90010-06007 |
FZJ80,HDJ80,HZJ80 12V 3.4W,W(SOCKET) |
3 | ||
| 83119-36060 |
FZJ80,HDJ80,HZJ80 12V 3.0W GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HZJ80 1.2W OR 1.4W BULB |
13 | ||
| 83101-14040 |
HDJ80,HZJ80 1.2W OR 1.4W BULB |
12 | ||
| 83101-20040 |
HZJ80..STD 3.4W BULB GREEN CAP |
6 | ||
| 83101-14040 |
HZJ80;HDJ80..RHD 1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
FZJ80,HDJ80,HZJ80 1.2W OR 1.4W BULB |
1 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
7 | ||
| 83101-14040 |
HZJ80..STD 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HZJ80 1.2W OR 1.4W BULB |
13 | ||
| 83101-14040 |
HDJ80,HZJ80 1.2W OR 1.4W BULB |
12 | ||
| 83101-20040 |
HZJ80..STD 3.4W BULB GREEN CAP |
6 | ||
| 83101-14040 |
HZJ80;HDJ80..RHD 1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
FZJ80,HDJ80,HZJ80 1.2W OR 1.4W BULB |
1 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
7 | ||
| 83101-14040 |
HZJ80..STD 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HZJ80 1.2W OR 1.4W BULB |
13 | ||
| 83101-14040 |
HDJ80,HZJ80 1.2W OR 1.4W BULB |
12 | ||
| 83101-20040 |
HZJ80..STD 3.4W BULB GREEN CAP |
6 | ||
| 83101-14040 |
HZJ80;HDJ80..RHD 1.2W OR 1.4W BULB |
12 | ||
| 83101-14040 |
FZJ80,HDJ80,HZJ80 1.2W OR 1.4W BULB |
1 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
7 | ||
| 83101-14040 |
HZJ80..STD 1.2W OR 1.4W BULB |
10 | ||
| 83101-20040 |
FZJ80,HDJ80,HZJ80 3.4W BULB GREEN CAP |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-60202 |
HZJ80 |
1 | ||
| 83110-60201 |
HDJ80,HZJ80..LHD |
1 | ||
| 83110-60200 |
HZJ80 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-60740 |
HZJ80..STD |
1 | ||
| 83132-60120 |
HZJ80..STD |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-60140 |
HZJ80..STD |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-60540 |
HZJ80..STD |
1 | ||
| 83832-60470 |
HZJ80..STD |
1 | ||
| 83145-6A100 |
HZJ80..STD |
1 | ||
| 83146-60760 |
HZJ80..STD |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83146-60740 |
HZJ80..STD |
1 | ||
| 83145-6A480 |
HZJ80..STD |
1 | ||
| 83145-60620 |
HZJ80..STD |
1 | ||
| 83831-60470 |
HZJ80..STD |
1 | ||
| 83146 - GROMMET, METER GLASS | ||||
| 83145-89318 |
HDJ80,HZJ80 |
1 | ||
| 83145-89318 |
HDJ80,HZJ80 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-60060 |
HZJ80..STD |
1 | ||
| 83243-60260 |
HZJ80..STD |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-6A020 |
HZJ80..STD |
1 | ||
| 83247-60420 |
HZJ80..STD |
1 | ||
| 83247-6A420 |
HZJ80..STD |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83247-95N29 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-60030 |
FJ80,FZJ80,HDJ80,HZJ80..LHD |
1 | ||
| 83910-60150 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 83161-1E020 | ||||
| 83161-20100 | ||||
| 83161-20280 | ||||
| 83161-20440 | ||||
| 83161-20880 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
