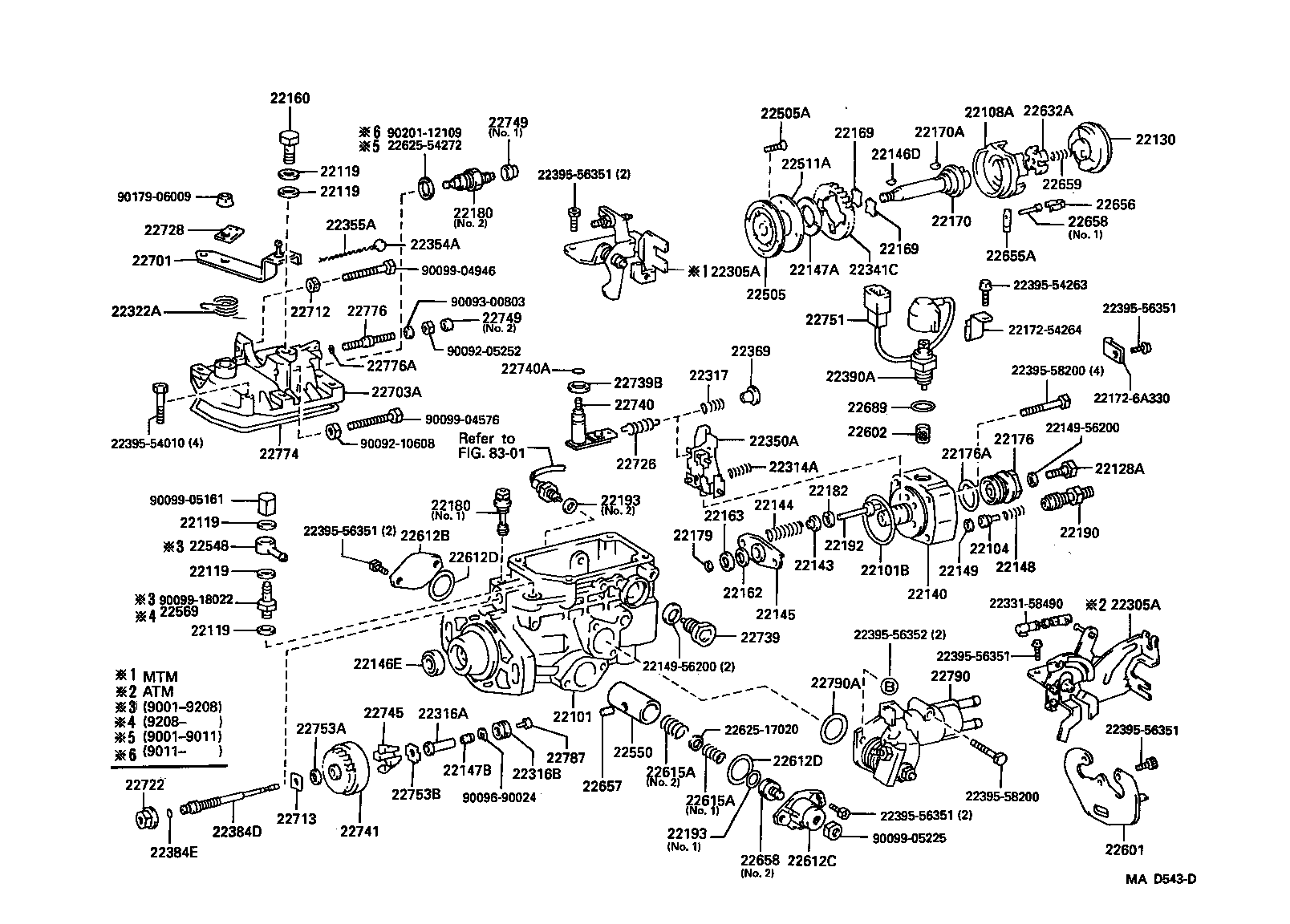

HZJ80L-GCMNSW (1990)
Toyota Land Cruiser
(9001- )1HZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-64260 |
1HZ..HZJ80..GX |
1 | ||
| 22101-64250 |
1HZ..HZJ80..GX |
1 | ||
| 22101-64260 |
1HZ..HZJ80..GX COLD SPEC |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-54060 |
1HZ..HZJ80 |
6 | ||
| 22104-17010 |
1HZ..HZJ80 |
6 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-17020 |
1HZ..HZJ80..MTM..GX |
1 | ||
| 22108-17010 |
1HZ..HZJ80 |
1 | ||
| 22108-17040 |
1HZ..HZJ80 COLD SPEC |
1 | ||
| 22108-17040 |
1HZ..HZJ80 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1HD#,1HZ..HDJ80,HZJ80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1HD#,1HZ..HDJ80,HZJ80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1HD#,1HZ..HDJ80,HZJ80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1HD#,1HZ..HDJ80,HZJ80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
1HD#,1HZ..HDJ80,HZJ80 |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54010 |
1HZ..HZJ80 |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-17010 |
1HZ..HZJ80 |
1 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-17010 |
1HZ..HZJ80 |
1 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-54010 |
1HZ..HZJ80 |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-54190 |
1HZ..HZJ80 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
1HZ..HZJ80 |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
1HZ..HZJ80 |
6 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-54010 |
1HZ..HZJ80 |
6 | ||
| 22149-56351 |
1HD#,1HZ..HDJ80,HZJ80 |
6 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-64010 |
1HZ..HZJ80 |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
1HD#,1HZ..HDJ80,HZJ80 |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
1HD#,1HZ..HDJ80,HZJ80 |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-54180 |
1HZ..HZJ80 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 22193-54772 |
1H#..HDJ80,HZJ80 |
1 | ||
| 90099-14052 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-17030 |
1HZ..HZJ80 T=2.42 |
1 | ||
| 22179-17024 |
1HZ..HZJ80 T=2.26 |
1 | ||
| 22179-17041 |
1HZ..HZJ80 T=2.68 |
1 | ||
| 22179-17037 |
1HZ..HZJ80 T=2.58 |
1 | ||
| 22179-17039 |
1HZ..HZJ80 T=2.64 |
1 | ||
| 22179-17049 |
1HZ..HZJ80 T=2.88 |
1 | ||
| 22179-17044 |
1HZ..HZJ80 T=2.76 |
1 | ||
| 22179-17045 |
1HZ..HZJ80 T=2.78 |
1 | ||
| 22179-17036 |
1HZ..HZJ80 T=2.56 |
1 | ||
| 22179-17021 |
1HZ..HZJ80 T=2.18 |
1 | ||
| 22179-17047 |
1HZ..HZJ80 T=2.84 |
1 | ||
| 22179-17051 |
1HZ..HZJ80 T=3.00 |
1 | ||
| 22179-17042 |
1HZ..HZJ80 T=2.72 |
1 | ||
| 22179-17059 |
1HZ..HZJ80 T=1.99 |
1 | ||
| 22179-17052 |
1HZ..HZJ80 T=3.05 |
1 | ||
| 22179-17048 |
1HZ..HZJ80 T=2.86 |
1 | ||
| 22179-17035 |
1HZ..HZJ80 T=2.54 |
1 | ||
| 22179-17057 |
1HZ..HZJ80 T=1.93 |
1 | ||
| 22179-17046 |
1HZ..HZJ80 T=2.82 |
1 | ||
| 22179-17064 |
1HZ..HZJ80 T=2.11 |
1 | ||
| 22179-17056 |
1HZ..HZJ80 T=1.91 |
1 | ||
| 22179-17062 |
1HZ..HZJ80 T=2.07 |
1 | ||
| 22179-17050 |
1HZ..HZJ80 T=2.95 |
1 | ||
| 22179-17054 |
1HZ..HZJ80 T=3.15 |
1 | ||
| 22179-17065 |
1HZ..HZJ80 T=2.13 |
1 | ||
| 22179-17060 |
1HZ..HZJ80 T=2.01 |
1 | ||
| 22179-17058 |
1HZ..HZJ80 T=1.97 |
1 | ||
| 22179-17055 |
1HZ..HZJ80 T=3.20 |
1 | ||
| 22179-17063 |
1HZ..HZJ80 T=2.09 |
1 | ||
| 22179-17015 |
1HZ..HZJ80 T=2.04 |
1 | ||
| 22179-17016 |
1HZ..HZJ80 T=2.06 |
1 | ||
| 22179-17012 |
1HZ..HZJ80 T=1.96 |
1 | ||
| 22179-17014 |
1HZ..HZJ80 T=2.02 |
1 | ||
| 22179-17017 |
1HZ..HZJ80 T=2.08 |
1 | ||
| 22179-17019 |
1HZ..HZJ80 T=2.14 |
1 | ||
| 22179-17013 |
1HZ..HZJ80 T=1.98 |
1 | ||
| 22179-17010 |
1HZ..HZJ80 T=1.92 |
1 | ||
| 22179-17027 |
1HZ..HZJ80 T=2.34 |
1 | ||
| 22179-17018 |
1HZ..HZJ80 T=2.12 |
1 | ||
| 22179-17020 |
1HZ..HZJ80 T=2.16 |
1 | ||
| 22179-17028 |
1HZ..HZJ80 T=2.36 |
1 | ||
| 22179-17023 |
1HZ..HZJ80 T=2.24 |
1 | ||
| 22179-17029 |
1HZ..HZJ80 T=2.38 |
1 | ||
| 22179-17025 |
1HZ..HZJ80 T=2.28 |
1 | ||
| 22179-17034 |
1HZ..HZJ80 T=2.52 |
1 | ||
| 22179-17011 |
1HZ..HZJ80 T=1.94 |
1 | ||
| 22179-17031 |
1HZ..HZJ80 T=2.44 |
1 | ||
| 22179-17033 |
1HZ..HZJ80 T=2.48 |
1 | ||
| 22179-17022 |
1HZ..HZJ80 T=2.22 |
1 | ||
| 22179-17026 |
1HZ..HZJ80 T=2.32 |
1 | ||
| 22179-17043 |
1HZ..HZJ80 T=2.74 |
1 | ||
| 22179-17032 |
1HZ..HZJ80 T=2.46 |
1 | ||
| 22179-17040 |
1HZ..HZJ80 T=2.66 |
1 | ||
| 22179-17061 |
1HZ..HZJ80 T=2.03 |
1 | ||
| 22179-17066 |
1HZ..HZJ80 T=2.17 |
1 | ||
| 22179-17070 |
1HZ..HZJ80 T=2.27 |
1 | ||
| 22179-17068 |
1HZ..HZJ80 T=2.21 |
1 | ||
| 22179-17067 |
1HZ..HZJ80 T=2.19 |
1 | ||
| 22179-17082 |
1HZ..HZJ80 T=2.57 |
1 | ||
| 22179-17076 |
1HZ..HZJ80 T=2.41 |
1 | ||
| 22179-17071 |
1HZ..HZJ80 T=2.29 |
1 | ||
| 22179-17084 |
1HZ..HZJ80 T=2.61 |
1 | ||
| 22179-17083 |
1HZ..HZJ80 T=2.59 |
1 | ||
| 22179-17073 |
1HZ..HZJ80 T=2.33 |
1 | ||
| 22179-17075 |
1HZ..HZJ80 T=2.39 |
1 | ||
| 22179-17080 |
1HZ..HZJ80 T=2.51 |
1 | ||
| 22179-17078 |
1HZ..HZJ80 T=2.47 |
1 | ||
| 22179-17081 |
1HZ..HZJ80 T=2.53 |
1 | ||
| 22179-17085 |
1HZ..HZJ80 T=2.63 |
1 | ||
| 22179-17088 |
1HZ..HZJ80 T=2.71 |
1 | ||
| 22179-17069 |
1HZ..HZJ80 T=2.23 |
1 | ||
| 22179-17079 |
1HZ..HZJ80 T=2.49 |
1 | ||
| 22179-17053 |
1HZ..HZJ80 T=3.10 |
1 | ||
| 22179-17072 |
1HZ..HZJ80 T=2.31 |
1 | ||
| 22179-17087 |
1HZ..HZJ80 T=2.69 |
1 | ||
| 22179-17086 |
1HZ..HZJ80 T=2.67 |
1 | ||
| 22179-17077 |
1HZ..HZJ80 T=2.43 |
1 | ||
| 22179-17074 |
1HZ..HZJ80 T=2.37 |
1 | ||
| 22179-17093 |
1HZ..HZJ80 T=2.83 |
1 | ||
| 22179-17090 |
1HZ..HZJ80 T=2.77 |
1 | ||
| 22179-17091 |
1HZ..HZJ80 T=2.79 |
1 | ||
| 22179-17089 |
1HZ..HZJ80 T=2.73 |
1 | ||
| 22179-17094 |
1HZ..HZJ80 T=2.87 |
1 | ||
| 22179-17099 |
1HZ..HZJ80 T=2.96 |
1 | ||
| 22179-17100 |
1HZ..HZJ80 T=2.97 |
1 | ||
| 22179-17097 |
1HZ..HZJ80 T=2.92 |
1 | ||
| 22179-17095 |
1HZ..HZJ80 T=2.89 |
1 | ||
| 22179-17112 |
1HZ..HZJ80 T=3.17 |
1 | ||
| 22179-17096 |
1HZ..HZJ80 T=2.91 |
1 | ||
| 22179-17103 |
1HZ..HZJ80 T=3.02 |
1 | ||
| 22179-17101 |
1HZ..HZJ80 T=2.98 |
1 | ||
| 22179-17107 |
1HZ..HZJ80 T=3.08 |
1 | ||
| 22179-17104 |
1HZ..HZJ80 T=3.03 |
1 | ||
| 22179-17098 |
1HZ..HZJ80 T=2.93 |
1 | ||
| 22179-17105 |
1HZ..HZJ80 T=3.06 |
1 | ||
| 22179-17092 |
1HZ..HZJ80 T=2.81 |
1 | ||
| 22179-17038 |
1HZ..HZJ80 T=2.62 |
1 | ||
| 22179-17144 |
1HD#,1HZ..HDJ80,HZJ80 T=2.35 |
1 | ||
| 22179-17111 |
1HZ..HZJ80 T=3.16 |
1 | ||
| 22179-17110 |
1HZ..HZJ80 T=3.13 |
1 | ||
| 22179-17109 |
1HZ..HZJ80 T=3.12 |
1 | ||
| 22179-17143 |
1HD#,1HZ..HDJ80,HZJ80 T=2.25 |
1 | ||
| 22179-17106 |
1HZ..HZJ80 T=3.07 |
1 | ||
| 22179-17140 |
1HD#,1HZ..HDJ80,HZJ80 T=1.95 |
1 | ||
| 22179-17113 |
1HZ..HZJ80 T=3.18 |
1 | ||
| 22179-17147 |
1HD#,1HZ..HDJ80,HZJ80 T=2.65 |
1 | ||
| 22179-17148 |
1HD#,1HZ..HDJ80,HZJ80 T=2.75 |
1 | ||
| 22179-17150 |
1HD#,1HZ..HDJ80,HZJ80 T=2.94 |
1 | ||
| 22179-17149 |
1HD#,1HZ..HDJ80,HZJ80 T=2.85 |
1 | ||
| 22179-17142 |
1HD#,1HZ..HDJ80,HZJ80 T=2.15 |
1 | ||
| 22179-17145 |
1HD#,1HZ..HDJ80,HZJ80 T=2.45 |
1 | ||
| 22179-17108 |
1HZ..HZJ80 T=3.11 |
1 | ||
| 22179-17141 |
1HD#,1HZ..HDJ80,HZJ80 T=2.05 |
1 | ||
| 22179-17154 |
1HD#,1HZ..HDJ80,HZJ80 T=3.14 |
1 | ||
| 22179-17102 |
1HZ..HZJ80 T=3.01 |
1 | ||
| 22179-17152 |
1HD#,1HZ..HDJ80,HZJ80 T=3.04 |
1 | ||
| 22179-17151 |
1HD#,1HZ..HDJ80,HZJ80 T=2.99 |
1 | ||
| 22179-54011 |
1HD#,1HZ..HDJ80,HZJ80 T=2.0 |
1 | ||
| 22179-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.9 |
1 | ||
| 22179-54014 |
1HD#,1HZ..HDJ80,HZJ80 T=2.3 |
1 | ||
| 22179-54016 |
1HD#,1HZ..HDJ80,HZJ80 T=2.5 |
1 | ||
| 22179-17146 |
1HD#,1HZ..HDJ80,HZJ80 T=2.55 |
1 | ||
| 22179-17153 |
1HD#,1HZ..HDJ80,HZJ80 T=3.09 |
1 | ||
| 22179-54012 |
1HD#,1HZ..HDJ80,HZJ80 T=2.1 |
1 | ||
| 22179-54017 |
1HD#,1HZ..HDJ80,HZJ80 T=2.6 |
1 | ||
| 22179-17155 |
1HD#,1HZ..HDJ80,HZJ80 T=3.19 |
1 | ||
| 22179-54018 |
1HD#,1HZ..HDJ80,HZJ80 T=2.7 |
1 | ||
| 22179-54019 |
1HD#,1HZ..HDJ80,HZJ80 T=2.8 |
1 | ||
| 22179-54013 |
1HD#,1HZ..HDJ80,HZJ80 T=2.2 |
1 | ||
| 22179-17010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.92 |
1 | ||
| 22179-54015 |
1HD#,1HZ..HDJ80,HZJ80 T=2.4 |
1 | ||
| 22179-17018 |
1HD#,1HZ..HDJ80,HZJ80 T=2.12 |
1 | ||
| 22179-17012 |
1HD#,1HZ..HDJ80,HZJ80 T=1.96 |
1 | ||
| 22179-54020 |
1HD#,1HZ..HDJ80,HZJ80 T=2.9 |
1 | ||
| 22179-17013 |
1HD#,1HZ..HDJ80,HZJ80 T=1.98 |
1 | ||
| 22179-17011 |
1HD#,1HZ..HDJ80,HZJ80 T=1.94 |
1 | ||
| 22179-17020 |
1HD#,1HZ..HDJ80,HZJ80 T=2.16 |
1 | ||
| 22179-17016 |
1HD#,1HZ..HDJ80,HZJ80 T=2.06 |
1 | ||
| 22179-17019 |
1HD#,1HZ..HDJ80,HZJ80 T=2.14 |
1 | ||
| 22179-17024 |
1HD#,1HZ..HDJ80,HZJ80 T=2.26 |
1 | ||
| 22179-17021 |
1HD#,1HZ..HDJ80,HZJ80 T=2.18 |
1 | ||
| 22179-17017 |
1HD#,1HZ..HDJ80,HZJ80 T=2.08 |
1 | ||
| 22179-17014 |
1HD#,1HZ..HDJ80,HZJ80 T=2.02 |
1 | ||
| 22179-17015 |
1HD#,1HZ..HDJ80,HZJ80 T=2.04 |
1 | ||
| 22179-17031 |
1HD#,1HZ..HDJ80,HZJ80 T=2.44 |
1 | ||
| 22179-17025 |
1HD#,1HZ..HDJ80,HZJ80 T=2.28 |
1 | ||
| 22179-17036 |
1HD#,1HZ..HDJ80,HZJ80 T=2.56 |
1 | ||
| 22179-17030 |
1HD#,1HZ..HDJ80,HZJ80 T=2.42 |
1 | ||
| 22179-17033 |
1HD#,1HZ..HDJ80,HZJ80 T=2.48 |
1 | ||
| 22179-17034 |
1HD#,1HZ..HDJ80,HZJ80 T=2.52 |
1 | ||
| 22179-17027 |
1HD#,1HZ..HDJ80,HZJ80 T=2.34 |
1 | ||
| 22179-17038 |
1HD#,1HZ..HDJ80,HZJ80 T=2.62 |
1 | ||
| 22179-17040 |
1HD#,1HZ..HDJ80,HZJ80 T=2.66 |
1 | ||
| 22179-17022 |
1HD#,1HZ..HDJ80,HZJ80 T=2.22 |
1 | ||
| 22179-17026 |
1HD#,1HZ..HDJ80,HZJ80 T=2.32 |
1 | ||
| 22179-17029 |
1HD#,1HZ..HDJ80,HZJ80 T=2.38 |
1 | ||
| 22179-17039 |
1HD#,1HZ..HDJ80,HZJ80 T=2.64 |
1 | ||
| 22179-17035 |
1HD#,1HZ..HDJ80,HZJ80 T=2.54 |
1 | ||
| 22179-17041 |
1HD#,1HZ..HDJ80,HZJ80 T=2.68 |
1 | ||
| 22179-17037 |
1HD#,1HZ..HDJ80,HZJ80 T=2.58 |
1 | ||
| 22179-17045 |
1HD#,1HZ..HDJ80,HZJ80 T=2.78 |
1 | ||
| 22179-17044 |
1HD#,1HZ..HDJ80,HZJ80 T=2.76 |
1 | ||
| 22179-17048 |
1HD#,1HZ..HDJ80,HZJ80 T=2.86 |
1 | ||
| 22179-17043 |
1HD#,1HZ..HDJ80,HZJ80 T=2.74 |
1 | ||
| 22179-17047 |
1HD#,1HZ..HDJ80,HZJ80 T=2.84 |
1 | ||
| 22179-17050 |
1HD#,1HZ..HDJ80,HZJ80 T=2.95 |
1 | ||
| 22179-17042 |
1HD#,1HZ..HDJ80,HZJ80 T=2.72 |
1 | ||
| 22179-17056 |
1HD#,1HZ..HDJ80,HZJ80 T=1.91 |
1 | ||
| 22179-17049 |
1HD#,1HZ..HDJ80,HZJ80 T=2.88 |
1 | ||
| 22179-17023 |
1HD#,1HZ..HDJ80,HZJ80 T=2.24 |
1 | ||
| 22179-17028 |
1HD#,1HZ..HDJ80,HZJ80 T=2.36 |
1 | ||
| 22179-17032 |
1HDT,1HZ..HDJ80,HZJ80 T=2.46 |
1 | ||
| 22179-17053 |
1HD#,1HZ..HDJ80,HZJ80 T=3.10 |
1 | ||
| 22179-17051 |
1HD#,1HZ..HDJ80,HZJ80 T=3.00 |
1 | ||
| 22179-17054 |
1HD#,1HZ..HDJ80,HZJ80 T=3.15 |
1 | ||
| 22179-17058 |
1HD#,1HZ..HDJ80,HZJ80 T=1.97 |
1 | ||
| 22179-17046 |
1HD#,1HZ..HDJ80,HZJ80 T=2.82 |
1 | ||
| 22179-17064 |
1HD#,1HZ..HDJ80,HZJ80 T=2.11 |
1 | ||
| 22179-17059 |
1HD#,1HZ..HDJ80,HZJ80 T=1.99 |
1 | ||
| 22179-17066 |
1HD#,1HZ..HDJ80,HZJ80 T=2.17 |
1 | ||
| 22179-17072 |
1HD#,1HZ..HDJ80,HZJ80 T=2.31 |
1 | ||
| 22179-17060 |
1HD#,1HZ..HDJ80,HZJ80 T=2.01 |
1 | ||
| 22179-17067 |
1HD#,1HZ..HDJ80,HZJ80 T=2.19 |
1 | ||
| 22179-17055 |
1HD#,1HZ..HDJ80,HZJ80 T=3.20 |
1 | ||
| 22179-17070 |
1HD#,1HZ..HDJ80,HZJ80 T=2.27 |
1 | ||
| 22179-17069 |
1HD#,1HZ..HDJ80,HZJ80 T=2.23 |
1 | ||
| 22179-17065 |
1HD#,1HZ..HDJ80,HZJ80 T=2.13 |
1 | ||
| 22179-17057 |
1HD#,1HZ..HDJ80,HZJ80 T=1.93 |
1 | ||
| 22179-17071 |
1HD#,1HZ..HDJ80,HZJ80 T=2.29 |
1 | ||
| 22179-17061 |
1HD#,1HZ..HDJ80,HZJ80 T=2.03 |
1 | ||
| 22179-17078 |
1HD#,1HZ..HDJ80,HZJ80 T=2.47 |
1 | ||
| 22179-17068 |
1HD#,1HZ..HDJ80,HZJ80 T=2.21 |
1 | ||
| 22179-17073 |
1HD#,1HZ..HDJ80,HZJ80 T=2.33 |
1 | ||
| 22179-17080 |
1HD#,1HZ..HDJ80,HZJ80 T=2.51 |
1 | ||
| 22179-17082 |
1HD#,1HZ..HDJ80,HZJ80 T=2.57 |
1 | ||
| 22179-17052 |
1HD#,1HZ..HDJ80,HZJ80 T=3.05 |
1 | ||
| 22179-17077 |
1HD#,1HZ..HDJ80,HZJ80 T=2.43 |
1 | ||
| 22179-17075 |
1HD#,1HZ..HDJ80,HZJ80 T=2.39 |
1 | ||
| 22179-17074 |
1HD#,1HZ..HDJ80,HZJ80 T=2.37 |
1 | ||
| 22179-17085 |
1HD#,1HZ..HDJ80,HZJ80 T=2.63 |
1 | ||
| 22179-17062 |
1HD#,1HZ..HDJ80,HZJ80 T=2.07 |
1 | ||
| 22179-17084 |
1HD#,1HZ..HDJ80,HZJ80 T=2.61 |
1 | ||
| 22179-17083 |
1HD#,1HZ..HDJ80,HZJ80 T=2.59 |
1 | ||
| 22179-17076 |
1HD#,1HZ..HDJ80,HZJ80 T=2.41 |
1 | ||
| 22179-17063 |
1HD#,1HZ..HDJ80,HZJ80 T=2.09 |
1 | ||
| 22179-17089 |
1HD#,1HZ..HDJ80,HZJ80 T=2.73 |
1 | ||
| 22179-17079 |
1HD#,1HZ..HDJ80,HZJ80 T=2.49 |
1 | ||
| 22179-17086 |
1HD#,1HZ..HDJ80,HZJ80 T=2.67 |
1 | ||
| 22179-17081 |
1HD#,1HZ..HDJ80,HZJ80 T=2.53 |
1 | ||
| 22179-17088 |
1HD#,1HZ..HDJ80,HZJ80 T=2.71 |
1 | ||
| 22179-17093 |
1HD#,1HZ..HDJ80,HZJ80 T=2.83 |
1 | ||
| 22179-17091 |
1HD#,1HZ..HDJ80,HZJ80 T=2.79 |
1 | ||
| 22179-17087 |
1HD#,1HZ..HDJ80,HZJ80 T=2.69 |
1 | ||
| 22179-17090 |
1HD#,1HZ..HDJ80,HZJ80 T=2.77 |
1 | ||
| 22179-17100 |
1HD#,1HZ..HDJ80,HZJ80 T=2.97 |
1 | ||
| 22179-17099 |
1HD#,1HZ..HDJ80,HZJ80 T=2.96 |
1 | ||
| 22179-17102 |
1HD#,1HZ..HDJ80,HZJ80 T=3.01 |
1 | ||
| 22179-17096 |
1HD#,1HZ..HDJ80,HZJ80 T=2.91 |
1 | ||
| 22179-17094 |
1HD#,1HZ..HDJ80,HZJ80 T=2.87 |
1 | ||
| 22179-17107 |
1HD#,1HZ..HDJ80,HZJ80 T=3.08 |
1 | ||
| 22179-17112 |
1HD#,1HZ..HDJ80,HZJ80 T=3.17 |
1 | ||
| 22179-17095 |
1HD#,1HZ..HDJ80,HZJ80 T=2.89 |
1 | ||
| 22179-17105 |
1HD#,1HZ..HDJ80,HZJ80 T=3.06 |
1 | ||
| 22179-17098 |
1HD#,1HZ..HDJ80,HZJ80 T=2.93 |
1 | ||
| 22179-17097 |
1HD#,1HZ..HDJ80,HZJ80 T=2.92 |
1 | ||
| 22179-17111 |
1HD#,1HZ..HDJ80,HZJ80 T=3.16 |
1 | ||
| 22179-17108 |
1HD#,1HZ..HDJ80,HZJ80 T=3.11 |
1 | ||
| 22179-17092 |
1HD#,1HZ..HDJ80,HZJ80 T=2.81 |
1 | ||
| 22179-17104 |
1HD#,1HZ..HDJ80,HZJ80 T=3.03 |
1 | ||
| 22179-17113 |
1HD#,1HZ..HDJ80,HZJ80 T=3.18 |
1 | ||
| 22179-17101 |
1HD#,1HZ..HDJ80,HZJ80 T=2.98 |
1 | ||
| 22179-17103 |
1HD#,1HZ..HDJ80,HZJ80 T=3.02 |
1 | ||
| 22179-17110 |
1HD#,1HZ..HDJ80,HZJ80 T=3.13 |
1 | ||
| 22179-17109 |
1HD#,1HZ..HDJ80,HZJ80 T=3.12 |
1 | ||
| 22179-17106 |
1HD#,1HZ..HDJ80,HZJ80 T=3.07 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-58200 |
1HZ..HZJ80 NO.1 |
1 | ||
| 22180-64851 |
1HZ..HZJ80..MTM NO.2 |
1 | ||
| 22180-64851 |
1HZ..HZJ80 NO.2 |
1 | ||
| 22180-58200 |
1HZ..HZJ80..MTM NO.1 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-58200 |
1HZ..HZJ80 NO.1 |
1 | ||
| 22180-64851 |
1HZ..HZJ80..MTM NO.2 |
1 | ||
| 22180-64851 |
1HZ..HZJ80 NO.2 |
1 | ||
| 22180-58200 |
1HZ..HZJ80..MTM NO.1 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22184-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.0 |
2 | ||
| 22182-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=0.5 |
2 | ||
| 22183-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=0.8 |
2 | ||
| 22188-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=2.0 |
2 | ||
| 22186-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.5 |
2 | ||
| 22187-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.8 |
2 | ||
| 22185-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.2 |
2 | ||
| 22190 - VALVE SUB-ASSY, SNUBBER | ||||
| 22190-64740 |
1HZ..HZJ80 |
6 | ||
| 22190-6A290 |
1HZ..HZJ80 |
6 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
1HZ..HZJ80 |
2 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-17020 |
1HZ..HZJ80..GX NO,1 |
2 | ||
| 22193-64750 |
1HZ..HZJ80..GX NO.2 |
1 | ||
| 22193-64750 |
1HZ..HZJ80..GX |
2 | ||
| 22193-64750 |
1HDFT..HDJ80;1HZ..HZJ80..GX NO.2 |
1 | ||
| 22193-17020 |
1HDFT..HDJ80;1HZ..HZJ80..GX NO.1 |
1 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-17020 |
1HZ..HZJ80..GX NO,1 |
2 | ||
| 22193-64750 |
1HZ..HZJ80..GX NO.2 |
1 | ||
| 22193-64750 |
1HZ..HZJ80..GX |
2 | ||
| 22193-64750 |
1HDFT..HDJ80;1HZ..HZJ80..GX NO.2 |
1 | ||
| 22193-17020 |
1HDFT..HDJ80;1HZ..HZJ80..GX NO.1 |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-17140 |
1HZ..HZJ80..MTM COLD SPEC |
1 | ||
| 22305-17140 |
1HZ..HZJ80 |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-17140 |
1HZ..HZJ80..MTM COLD SPEC |
1 | ||
| 22305-17140 |
1HZ..HZJ80 |
1 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
1HD#,1HZ..HDJ80,HZJ80 |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-56201 |
1HZ..HZJ80..MTM ID=1.35 & 2,L=11.6 |
1 | ||
| 22316-54360 |
1HZ..HZJ80..GX ID=0.75 |
1 | ||
| 22316-17440 |
1HZ..HZJ80..GX ID=0.85 |
1 | ||
| 22316-6A041 |
1HZ..HZJ80..GX ID=0.8 |
1 | ||
| 22316-54261 |
1HZ..HZJ80..MTM ID=1.00 |
1 | ||
| 22316-54310 |
1HZ..HZJ80 MARK 26 |
1 | ||
| 22316-6A041 |
1HZ..HZJ80 ID=0.8 |
1 | ||
| 22316-17440 |
1HZ..HZJ80 ID=0.85 |
1 | ||
| 22316-54360 |
1HZ..HZJ80 ID=0.75 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-17040 |
1HZ..HZJ80 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54020 |
1HDT,1HZ..HDJ80,HZJ80..MTM |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-17010 |
1HZ..HZJ80..MTM |
1 | ||
| 22354A - SEAL, ROD | ||||
| 22354-77050 |
1H#..HDJ80,HZJ80 |
1 | ||
| 22354-77050 |
1HZ..HZJ80 |
1 | ||
| 22355A - WIRE, GOVERNOR HOUSING SEAL | ||||
| 22355-78030 |
1HZ..HZJ80 |
1 | ||
| 22355-78030 |
1H#..HDJ80,HZJ80 |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
1HDT,1HZ..HDJ80,HZJ80 |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22380-54020 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-6A510 |
1HDT,1HZ..HDJ80,HZJ80 |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
1HD#,1HZ..HDJ80,HZJ80 |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-58650 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22548 - NIPPLE, SWIVEL | ||||
| 22548-17010 |
1HZ..HZJ80 |
1 | ||
| 22550 - PISTON ASSY, TIMER | ||||
| 22550-17010 |
1HZ..HZJ80 |
1 | ||
| 22550-17020 |
1HZ..HZJ80 |
1 | ||
| 22582-5C400 |
1HZ..HZJ80 |
1 | ||
| 22569 - SCREW, OVERFLOW | ||||
| 22569-17140 |
1HDT,1HZ..HDJ80,HZJ80 |
1 | ||
| 22601 - BRACKET SUB-ASSY, IDLE UP | ||||
| 22601-17140 |
1HDT,1HZ..HDJ80,HZJ80 |
1 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-54010 |
1HZ..HZJ80 |
1 | ||
| 22612-56350 |
1HDT,1HZ..HDJ80,HZJ80 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-17010 |
1HZ..HZJ80 |
1 | ||
| 22612-17020 |
1HZ..HZJ80 |
1 | ||
| 22612-17020 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 22193-17840 |
1H#..HDJ80,HZJ80 |
2 | ||
| 90099-14051 |
1HZ..HZJ80 |
2 | ||
| 90099-14105 |
1HDT,1HZ..HDJ80,HZJ80 |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 22193-17840 |
1H#..HDJ80,HZJ80 |
2 | ||
| 90099-14051 |
1HZ..HZJ80 |
2 | ||
| 90099-14105 |
1HDT,1HZ..HDJ80,HZJ80 |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-17011 |
1HZ..HZJ80 K=0.19,L=33.7 |
1 | ||
| 22615-17010 |
1HZ..HZJ80 K=0.18,L=33.8 |
1 | ||
| 22615-18011 |
1HZ..HZJ80 K=0.17,L=31.4 |
1 | ||
| 22615-17012 |
1HZ..HZJ80 K=0.20,L=33.6 |
1 | ||
| 22615-18010 |
1HZ..HZJ80 K=0.16,L=34.2 |
1 | ||
| 22615-17020 |
1HZ..HZJ80 K=0.16,L=32.3,NO.1 |
1 | ||
| 22615-17021 |
1HZ..HZJ80 K=0.18,L=32.0,NO.1 |
1 | ||
| 22615-17030 |
1HDT,1HZ..HDJ80,HZJ80 K=1.7,L=27.9,NO.2 |
1 | ||
| 22615-17022 |
1HZ..HZJ80 K=0.20,L=31.8,NO.1 |
1 | ||
| 22615-17030 |
1HZ..HZJ80 K=1.7,L=27.9,NO.2 |
1 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-17011 |
1HZ..HZJ80 K=0.19,L=33.7 |
1 | ||
| 22615-17010 |
1HZ..HZJ80 K=0.18,L=33.8 |
1 | ||
| 22615-18011 |
1HZ..HZJ80 K=0.17,L=31.4 |
1 | ||
| 22615-17012 |
1HZ..HZJ80 K=0.20,L=33.6 |
1 | ||
| 22615-18010 |
1HZ..HZJ80 K=0.16,L=34.2 |
1 | ||
| 22615-17020 |
1HZ..HZJ80 K=0.16,L=32.3,NO.1 |
1 | ||
| 22615-17021 |
1HZ..HZJ80 K=0.18,L=32.0,NO.1 |
1 | ||
| 22615-17030 |
1HDT,1HZ..HDJ80,HZJ80 K=1.7,L=27.9,NO.2 |
1 | ||
| 22615-17022 |
1HZ..HZJ80 K=0.20,L=31.8,NO.1 |
1 | ||
| 22615-17030 |
1HZ..HZJ80 K=1.7,L=27.9,NO.2 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-54010 |
1HZ..HZJ80 |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
1HDT,1HZ..HDJ80,HZJ80 |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-54010 |
1HZ..HZJ80 |
1 | ||
| 22656-17840 |
1HZ..HZJ80 |
1 | ||
| 22656-54010 |
1HDT,1HZ..HDJ80,HZJ80..MTM |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17010 |
1HZ..HZJ80 NO.2 |
1 | ||
| 22658-17840 |
1H#..HDJ80,HZJ80 NO.1 |
1 | ||
| 22658-17020 |
1HD#,1HZ..HDJ80,HZJ80 NO.2 |
1 | ||
| 22658-17020 |
1HZ..HZJ80 NO.2 |
1 | ||
| 22658-54010 |
1HDT,1HZ..HDJ80,HZJ80 NO.1 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17010 |
1HZ..HZJ80 NO.2 |
1 | ||
| 22658-17840 |
1H#..HDJ80,HZJ80 NO.1 |
1 | ||
| 22658-17020 |
1HD#,1HZ..HDJ80,HZJ80 NO.2 |
1 | ||
| 22658-17020 |
1HZ..HZJ80 NO.2 |
1 | ||
| 22658-54010 |
1HDT,1HZ..HDJ80,HZJ80 NO.1 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-64150 |
1HZ..HZJ80 |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-56350 |
1H#..HDJ80,HZJ80..MTM MARK 247 |
1 | ||
| 22701-17010 |
1H#..HDJ80,HZJ80..MTM MARK 383 |
1 | ||
| 22701-17011 |
1HDT..HDJ80;1HZ..HZJ80..MTM MARK 384 |
1 | ||
| 22701-17011 |
1HDT,1HZ..HDJ80,HZJ80..MTM MARK 384 |
1 | ||
| 22701-17010 |
1HDT,1HZ..HDJ80,HZJ80..MTM MARK 383 |
1 | ||
| 22701-56350 |
1HDT,1HZ..HDJ80,HZJ80..MTM MARK 247 |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-55051 |
1HZ..HZJ80..MTM |
1 | ||
| 22703-55051 |
1HZ..HZJ80 |
1 | ||
| 22712 - NUT, ROCK | ||||
| 22775-77121 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22717-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.85 |
1 | ||
| 22715-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.45 |
1 | ||
| 22714-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.25 |
1 | ||
| 22716-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.65 |
1 | ||
| 22713-54010 |
1HD#,1HZ..HDJ80,HZJ80 T=1.05 |
1 | ||
| 22722 - NUT, GOVERNOR SHAFT ROCK | ||||
| 22722-54470 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-17010 |
1HZ..HZJ80 |
1 | ||
| 22728 - GUIDE, RETURN SPRING | ||||
| 22728-54010 |
1HDT,1HZ..HDJ80,HZJ80..MTM |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
1HD#,1HZ..HDJ80,HZJ80 |
2 | ||
| 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) | ||||
| 22378-64010 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-58480 |
1HZ..HZJ80 MARK 28 |
1 | ||
| 22740-54310 |
1HZ..HZJ80 MARK 14 |
1 | ||
| 22740-6A630 |
1HZ..HZJ80 MARK 24 |
1 | ||
| 22740-54010 |
1HZ..HZJ80 MARK 2 |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 90099-14048 |
1H#..HDJ80,HZJ80 |
1 | ||
| 22193-54770 |
1HDFT,1HZ..HDJ80,HZJ80 |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-54010 |
1HZ..HZJ80 |
4 | ||
| 22749 - COLLAR, SMOKE SET ADJUSTING | ||||
| 22749-55050 |
1H#..HDJ80,HZJ80..MTM |
1 | ||
| 22749-55050 |
1HZ..HZJ80 |
1 | ||
| 22749 - COLLAR, SMOKE SET ADJUSTING | ||||
| 22749-55050 |
1H#..HDJ80,HZJ80..MTM |
1 | ||
| 22749-55050 |
1HZ..HZJ80 |
1 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-17140 |
1H#..HDJ80,HZJ80..GX,VX |
1 | ||
| 22751-17470 |
1HZ..HZJ80..GX |
1 | ||
| 22751-17470 |
1HD#..HDJ80;1HZ..HZJ80..GX |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54020 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 22774-54270 |
1HDFT,1HZ..HDJ80,HZJ80 |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-54110 |
1HZ..HZJ80 |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 22193-54771 |
1H#..HDJ80,HZJ80 |
1 | ||
| 90099-14047 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54030 |
1HZ..HZJ80 L=3.7 |
1 | ||
| 22787-54028 |
1HZ..HZJ80 L=3.5 |
1 | ||
| 22787-54032 |
1HZ..HZJ80 L=3.9 |
1 | ||
| 22787-54026 |
1HZ..HZJ80 L=3.3 |
1 | ||
| 22787-64642 |
1HZ..HZJ80 L=3.1 |
1 | ||
| 22787-54029 |
1HDT,1HZ..HDJ80,HZJ80 L=3.6 |
1 | ||
| 22787-54033 |
1HDT,1HZ..HDJ80,HZJ80 L=4.0 |
1 | ||
| 22787-54031 |
1HDT,1HZ..HDJ80,HZJ80 L=3.8 |
1 | ||
| 22787-64640 |
1HDT,1HZ..HDJ80,HZJ80 L=4.1 |
1 | ||
| 22787-64643 |
1HDT,1HZ..HDJ80,HZJ80 L=3.2 |
1 | ||
| 22787-54027 |
1HDT,1HZ..HDJ80,HZJ80 L=3.4 |
1 | ||
| 22787-64642 |
1HDT,1HZ..HDJ80,HZJ80 L=3.1 |
1 | ||
| 22787-64641 |
1HDT,1HZ..HDJ80,HZJ80 L=3.0 |
1 | ||
| 22787-54030 |
1HDT,1HZ..HDJ80,HZJ80 L=3.7 |
1 | ||
| 22787-54032 |
1HDT,1HZ..HDJ80,HZJ80 L=3.9 |
1 | ||
| 22787-54028 |
1HDT,1HZ..HDJ80,HZJ80 L=3.5 |
1 | ||
| 22787-54026 |
1HDT,1HZ..HDJ80,HZJ80 L=3.3 |
1 | ||
| 22787-64680 |
1HDT,1HZ..HDJ80,HZJ80 L=4.2 |
1 | ||
| 22790 - COVER SUB-ASSY, TIMER | ||||
| 22790-17040 |
1HZ..HZJ80..MTM COLD SPEC |
1 | ||
| 22790-17040 |
1HZ..HZJ80 |
1 | ||
| 22790A - RING, O(FOR TIMER COVER) | ||||
| 90099-14105 |
1HZ..HZJ80 COLD SPEC |
1 | ||
| 22193-17840 |
1H#..HDJ80,HZJ80 |
1 | ||
| 90099-14051 |
1HZ..HZJ80 COLD SPEC |
1 | ||
| 90099-14105 |
1HZ..HZJ80 |
1 | ||
| Common parts | ||||
| 22149-56200 | ||||
| 22172-54264 | ||||
| 22172-6A330 | ||||
| 22331-58490 | ||||
| 22395-54010 | ||||
| 22395-54263 | ||||
| 22395-56351 | ||||
| 22395-56352 | ||||
| 22395-58200 | ||||
| 22625-17020 | ||||
| 22625-54272 | ||||
| 90092-05252 | ||||
| 90092-10608 | ||||
| 90093-00803 | ||||
| 90096-90024 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-05161 | ||||
| 90099-05225 | ||||
| 90099-18022 | ||||
| 90179-06009 | ||||
| 90201-12109 | ||||
| Linked diagrams | ||||
| 8301 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
