HZJ79L-TJMRSW (1999)

Toyota Land Cruiser

Production Aug 1999 - Aug 2001
Engine 1HZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

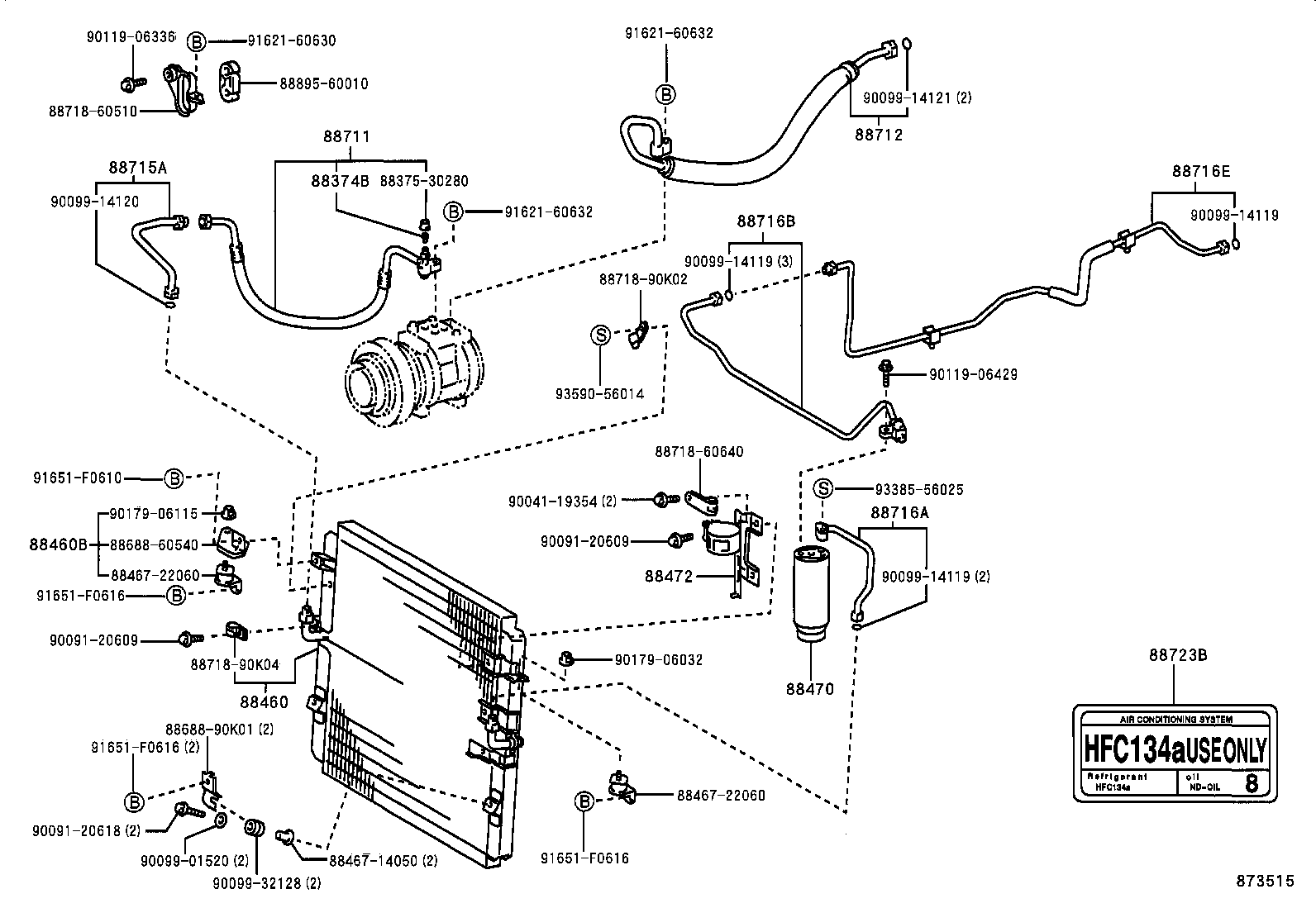

ILLUST NO. 1 OF 2(9908- )

Click highlighted areas on diagram

MAKER OPTION

diagram 88374B 8837530280 88460 88460B 8846714050 8846722060 8846722060 88470 88472 8868860540 8868890K01 88711 88712 88715A 88716A 88716B 88716E 8871860510 8871860640 8871890K02 8871890K04 88723B 8889560010 9004119354 9009120609 9009120609 9009120618 9009901520 9009914119 9009914119 9009914119 9009914120 9009914121 9009932128 9011906336 9011906429 9017906032 9017906115 9162160630 9162160632 9162160632 91651F0610 91651F0616 91651F0616 91651F0616 9338556025 9359056014
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

HZJ7#

 1
88460 - CONDENSER ASSY, COOLER
88460-60190

HZJ79

MAKER OPTION

 1
88460-60180

HZJ79

DEALER OPTION

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88409-60020

HZJ7#

 1
88409-90K01

HZJ7#,PZJ73,75

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-20070

HZJ7#,PZJ73,75

 1
88471-34010

HZJ7#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

HZJ7#,PZJ73,75

 2
88472-60090

HZJ7#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60550

HZJ7#

 1
88711-60220

HZJ7#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60220

HZJ7#

 1
88712-60890

HZJ7#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-60100

HZJ7#

 1
88715-60040

HZJ7#,LJ77,PZJ73,75

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60550

HZJ7#,PZJ73,75

 1
88716-6A290

HZJ7#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-60590

HZJ7#,LJ77,PZJ73,75

 1
88716-6A240

HZJ7#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-60580

HZJ7#,LJ77,PZJ73,75

 1
88716-6B150

HZJ7#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-22050

BJ73,HZJ7#,LJ7#,PZJ73,75..LHD..(LX,STD,VM)

 1
88723-20040

HZJ7#

 1
Common parts
88375-30280
88467-14050
88467-22060
88688-60540
88688-90K01
88718-60510
88718-60640
88718-90K02
88718-90K04
88895-60010
90041-19354
90091-20609
90091-20618
90099-01520
90099-14119
90099-14120
90099-14121
90099-32128
90119-06336
90119-06429
90179-06032
90179-06115
91621-60630
91621-60632
91651-F0610
91651-F0616
93385-56025
93590-56014

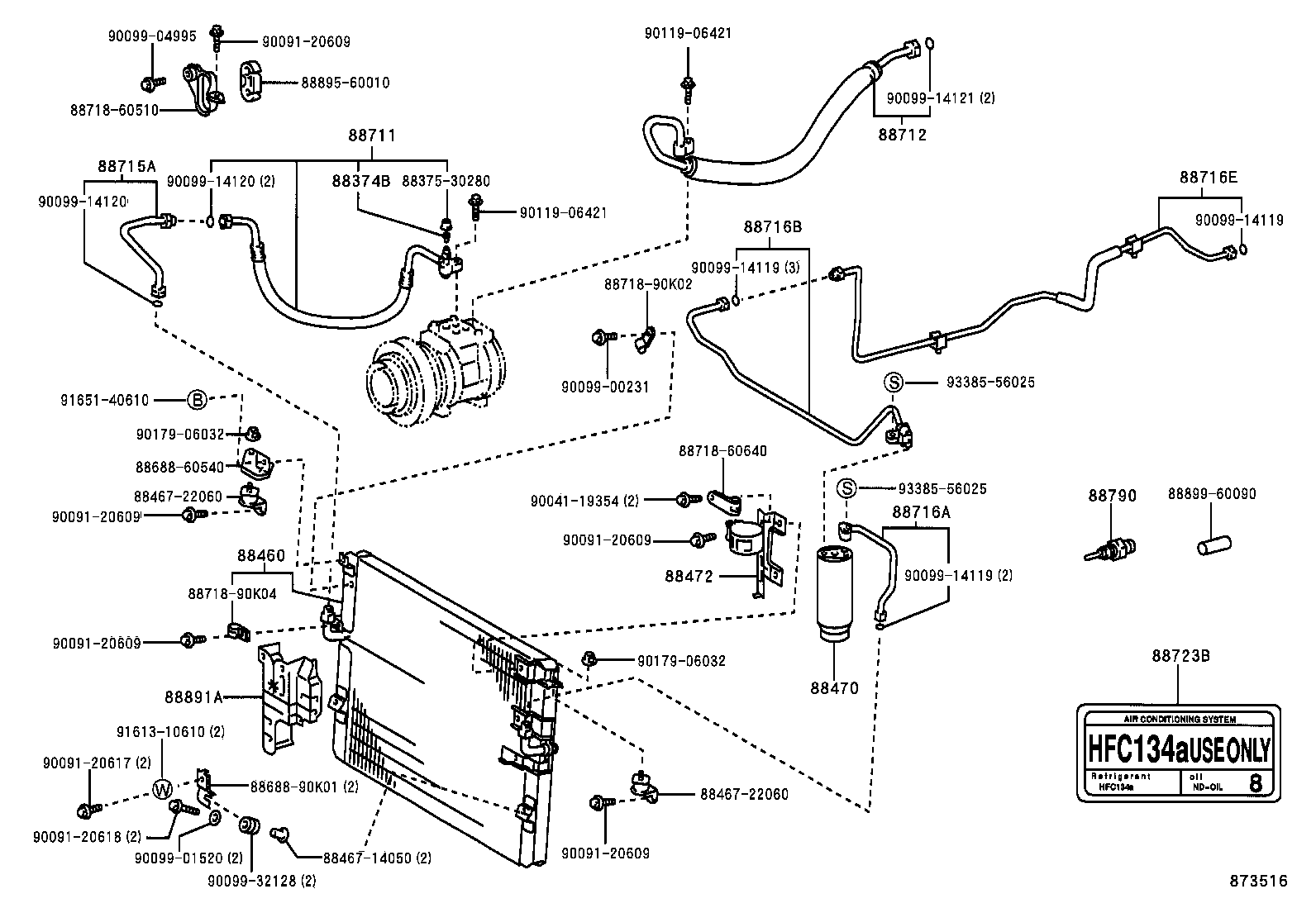

ILLUST NO. 1 OF 2(9908- )

Click highlighted areas on diagram

DEALER OPTION

diagram 88374B 8837530280 88460 8846714050 8846722060 8846722060 88470 88472 8868860540 8868890K01 88711 88712 88715A 88716A 88716B 88716E 8871860510 8871860640 8871890K02 8871890K04 88723B 88790 88891A 8889560010 8889960090 9004119354 9009120609 9009120609 9009120609 9009120609 9009120609 9009120617 9009120618 9009900231 9009901520 9009904995 9009914119 9009914119 9009914119 9009914120 9009914120 9009914121 9009932128 9011906421 9011906421 9017906032 9017906032 9161310610 9165140610 9338556025 9338556025
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

HZJ7#

 1
88460 - CONDENSER ASSY, COOLER
88460-60190

HZJ79

MAKER OPTION

 1
88460-60180

HZJ79

DEALER OPTION

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-20070

HZJ7#,PZJ73,75

 1
88471-34010

HZJ7#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

HZJ7#,PZJ73,75

 2
88472-60090

HZJ7#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-60550

HZJ7#

 1
88711-60220

HZJ7#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-60220

HZJ7#

 1
88712-60890

HZJ7#

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-60100

HZJ7#

 1
88715-60040

HZJ7#,LJ77,PZJ73,75

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-60550

HZJ7#,PZJ73,75

 1
88716-6A290

HZJ7#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-60590

HZJ7#,LJ77,PZJ73,75

 1
88716-6A240

HZJ7#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-60580

HZJ7#,LJ77,PZJ73,75

 1
88716-6B150

HZJ7#

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-22050

BJ73,HZJ7#,LJ7#,PZJ73,75..LHD..(LX,STD,VM)

 1
88723-20040

HZJ7#

 1
88790 - VALVE ASSY, MAGNET
88790-60060

HZJ7#

 1
88891A - PACKING A (FOR COOLER)
53291-90K00

HZJ7#

 1
Common parts
88375-30280
88467-14050
88467-22060
88688-60540
88688-90K01
88718-60510
88718-60640
88718-90K02
88718-90K04
88895-60010
88899-60090
90041-19354
90091-20609
90091-20617
90091-20618
90099-00231
90099-01520
90099-04995
90099-14119
90099-14120
90099-14121
90099-32128
90119-06421
90179-06032
91613-10610
91651-40610
93385-56025
