HZJ75LP-MRW (1992)
Toyota Land Cruiser
Production
Aug 1992
-
Aug 1999
Engine
1HZ
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9001-9908)HZJ75,PZJ75 ; (9908- )HZJ78

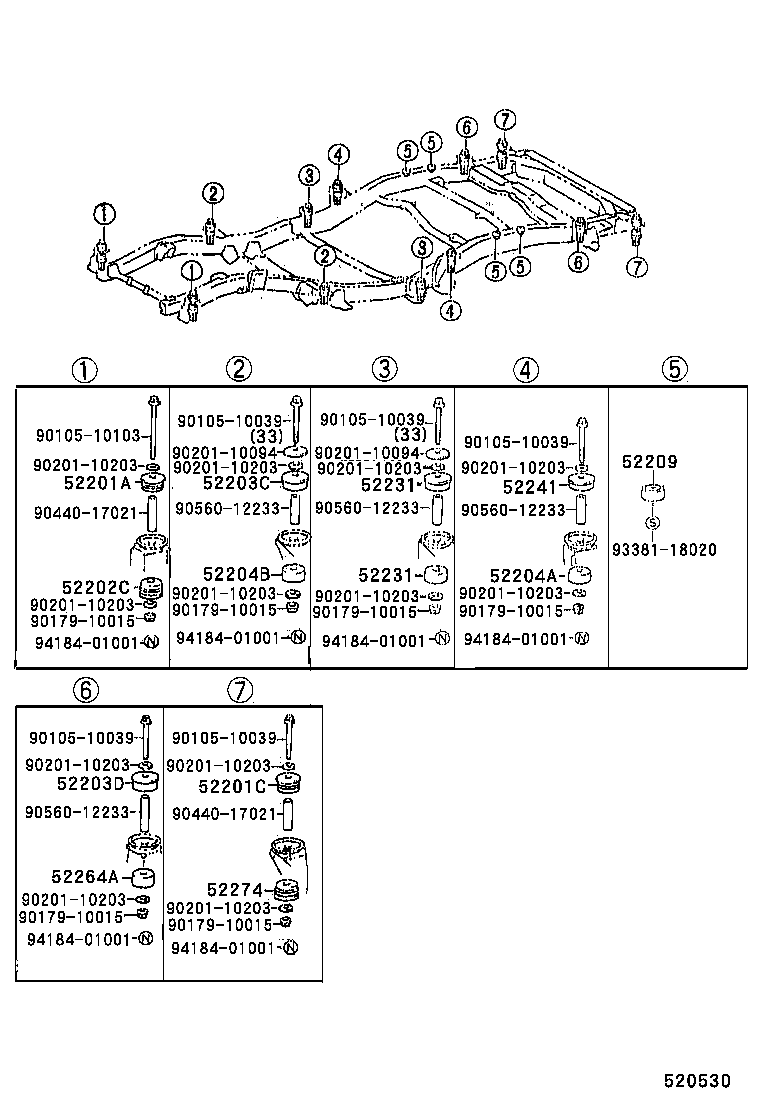

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52201A - CUSHION SUB-ASSY, CAB FRONT MOUNTING | ||||
| 52201-25020 |
BJ73,HZJ7#,KZJ7#,LJ7#,RJ7# |
2 | ||
| 52201-25020 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 52202C - CUSHION SUB-ASSY, CAB FRONT MOUNTING, LOWER | ||||
| 52202-25020 |
BJ73,HZJ7#,KZJ7#,LJ7#,RJ7# |
2 | ||
| 52202-25020 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 52203C - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER | ||||
| 52203-60030 |
HZJ75,PZJ75..PIC;BJ73,HZJ70,71,73,74,79,LJ7#,PZJ70,73,RJ7# |
2 | ||
| 52203-60030 |
HZJ75..PIC;BJ73,HZJ70,73,KZJ7#,LJ7#,RJ7# |
2 | ||
| 52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER | ||||
| 52204-60030 |
HZJ75,PZJ75..PIC;BJ73,HZJ70,73,LJ7#,PZJ70,73,RJ7# |
2 | ||
| 52204-60030 |
HZJ75..PIC;BJ73,HZJ70,73,KZJ7#,LJ7#,RJ7# |
2 | ||
| 52231 - CUSHION, BODY MOUNT, NO.3 UPPER | ||||
| 52204-60020 |
HZJ75,PZJ75..PIC LWR |
2 | ||
| 52204-60020 |
HZJ75..PIC LWR |
2 | ||
| 52203-60020 |
HZJ75..PIC UPR |
2 | ||
| 52203-60020 |
HZJ75,PZJ75..PIC UPR |
2 | ||
| 52207-60010 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# UPR |
2 | ||
| 52231 - CUSHION, BODY MOUNT, NO.3 UPPER | ||||
| 52204-60020 |
HZJ75,PZJ75..PIC LWR |
2 | ||
| 52204-60020 |
HZJ75..PIC LWR |
2 | ||
| 52203-60020 |
HZJ75..PIC UPR |
2 | ||
| 52203-60020 |
HZJ75,PZJ75..PIC UPR |
2 | ||
| 52207-60010 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# UPR |
2 | ||
| Common parts | ||||
| 90105-10039 | ||||
| 90105-10103 | ||||
| 90179-10015 | ||||
| 90201-10094 | ||||
| 90201-10203 | ||||
| 90440-17021 | ||||
| 90560-12233 | ||||
| 93381-18020 | ||||
| 94184-01001 | ||||
