HZJ75LP-MRW (1992)

Toyota Land Cruiser

Production Aug 1992 - Aug 1999
Engine 1HZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805-9908)

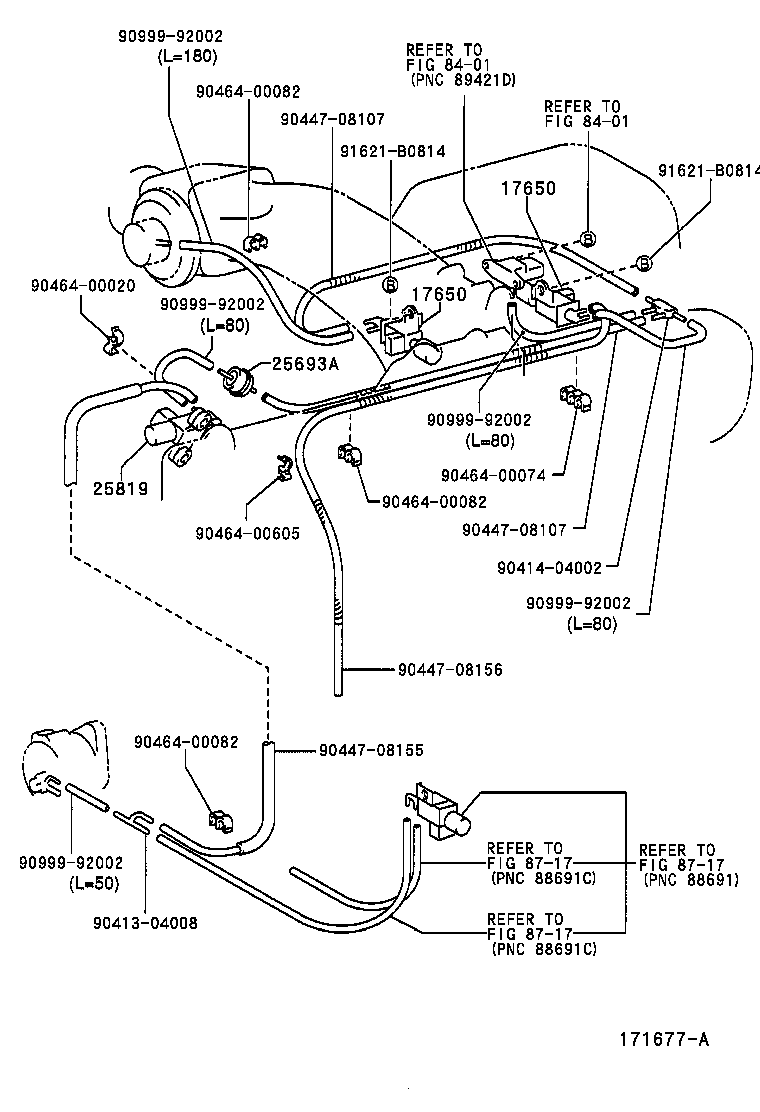

Click highlighted areas on diagram

diagram 17650 17650 25693A 25819 8401 8401 8717 8717 8717 9041304008 9041404002 9044708107 9044708107 9044708155 9044708156 9046400020 9046400074 9046400082 9046400082 9046400082 9046400605 9099992002 9099992002 9099992002 9099992002 9099992002 91621B0814 91621B0814
Part # Description Qty Price
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12167

1HZ..HZJ7#

 2
17650 - VALVE ASSY, VACUUM SWITCHING
90910-12167

1HZ..HZJ7#

 2
25693A - DAMPER, EGR VACUUM MODULATOR
25693-64010

1HZ..HZJ7#

 1
25819 - VALVE ASSY, VACUUM REGULATING
25819-17030

1HZ..HZJ7#

 1
Common parts
90413-04008
90414-04002
90447-08107
90447-08155
90447-08156
90464-00020
90464-00074
90464-00082
90464-00605
90999-92002
91621-B0814
Linked diagrams
8401
8717
