HZJ74L-FJMNSW (1999)

Toyota Land Cruiser

Production Aug 1999 - Aug 2001
Engine 1HZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

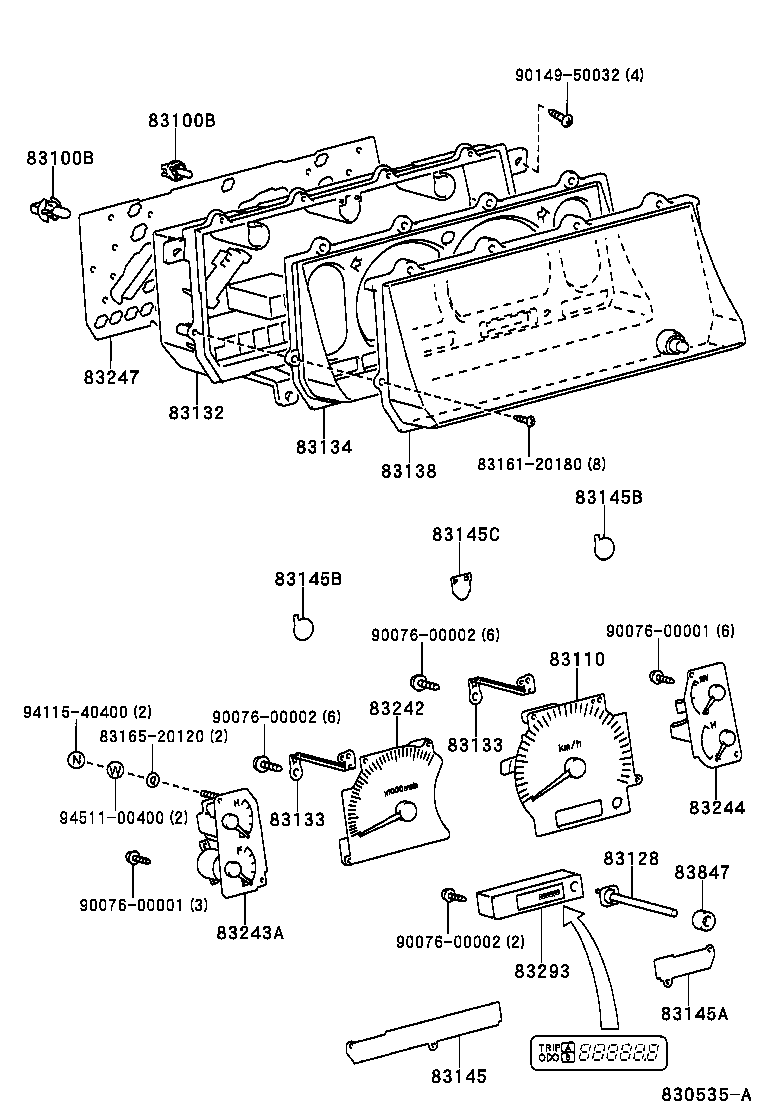

ILLUST NO. 1 OF 4(9908- )

Click highlighted areas on diagram

W(TACHOMETER)

diagram 83100B 83100B 83110 83128 83132 83133 83133 83134 83138 83145 83145A 83145B 83145B 83145C 8316120180 8316520120 83242 83243A 83244 83247 83293 83847 9007600001 9007600001 9007600002 9007600002 9007600002 9014950032 9411540400 9451100400
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99134-12030

HZJ7#,PZJ7#

24V 3W

 1
90981-11022

HZJ7#

24V 1.4W

 3
99132-12034

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

12V 3.4W

 1
90010-06003

HZJ7#

14V 3.0W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION

 1
83120-60020

HZJ7#

12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION

 1
90010-06044

HZJ7#

12V 2.0W,TYPE D:REFER TO ILLUSTRATION

 1
90010-06026

HZJ7#

12V 3.4W,W(BLUE CAP),TYPE C:REFER TO ILLUSTRATION

 1
83100B - BULB, COMBINATION METER, NO.1
99134-12030

HZJ7#,PZJ7#

24V 3W

 1
90981-11022

HZJ7#

24V 1.4W

 3
99132-12034

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

12V 3.4W

 1
90010-06003

HZJ7#

14V 3.0W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION

 1
83120-60020

HZJ7#

12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION

 1
90010-06044

HZJ7#

12V 2.0W,TYPE D:REFER TO ILLUSTRATION

 1
90010-06026

HZJ7#

12V 3.4W,W(BLUE CAP),TYPE C:REFER TO ILLUSTRATION

 1
83110 - SPEEDOMETER ASSY
83110-60420

HZJ7#

 1
83220-60790

HZJ71,74

 1
83128 - KNOB, TRIP COUNTER
83224-6B360

HZJ7#

 1
83132 - CASE, COMBINATION METER
83132-60260

HZJ7#,RJ7#

 1
83841-6B360

HZJ71,74

 1
83133 - PLATE, COMBINATION METER, NO.1
83811-6B360

HZJ71,74

 2
83133 - PLATE, COMBINATION METER, NO.1
83811-6B360

HZJ71,74

 2
83134 - COVER, COMBINATION METER, NO.1
83134-60200

BJ73,HZJ7#,RJ7#

 1
83821-6B360

HZJ71,74

 1
83138 - GLASS, SPEEDOMETER
83138-60040

HZJ7#,PZJ7#

 1
83852-6B360

HZJ7#

 1
83145 - LENS, METER, NO.1
83831-6B440

HZJ7#

 1
83145A - LENS, METER, NO.2
83832-6B360

HZJ7#

 1
83145B - LENS, METER, NO.3
83833-26010

HZJ7#

 2
83145B - LENS, METER, NO.3
83833-26010

HZJ7#

 2
83145C - LENS, METER, NO.4
83833-6B360

HZJ7#

 1
83242 - TACHOMETER ASSY, ENGINE
83242-60080

HZJ7#

W(DEFF LOCK) OR W(ELECTRIC FREE WHEEL HUB)

 1
83242-60060

HZJ7#

 1
83881-6B440

HZJ71,74

 1
83243A - GAUGE SUB-ASSY, FUEL RECEIVER
83243-90K06

HZJ7#

 1
83882-6B360

HZJ71,74

 1
83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83883-6B360

HZJ71,74

 1
83247 - PLATE, METER CIRCUIT
83247-60760

HZJ7#

 1
83861-6B460

HZJ71,74

 1
83293 - COMPUTER, TOTAL COUNTER MODULE
83293-60300

HZJ71,74

 1
83847 - CUSHION, COMBINATION SPEEDOMETER, NO.1
83847-21150

HZJ7#

 1
Common parts
83161-20180
83165-20120
90076-00001
90076-00002
90149-50032
94115-40400
94511-00400

ILLUST NO. 4 OF 4(9908- )

Click highlighted areas on diagram

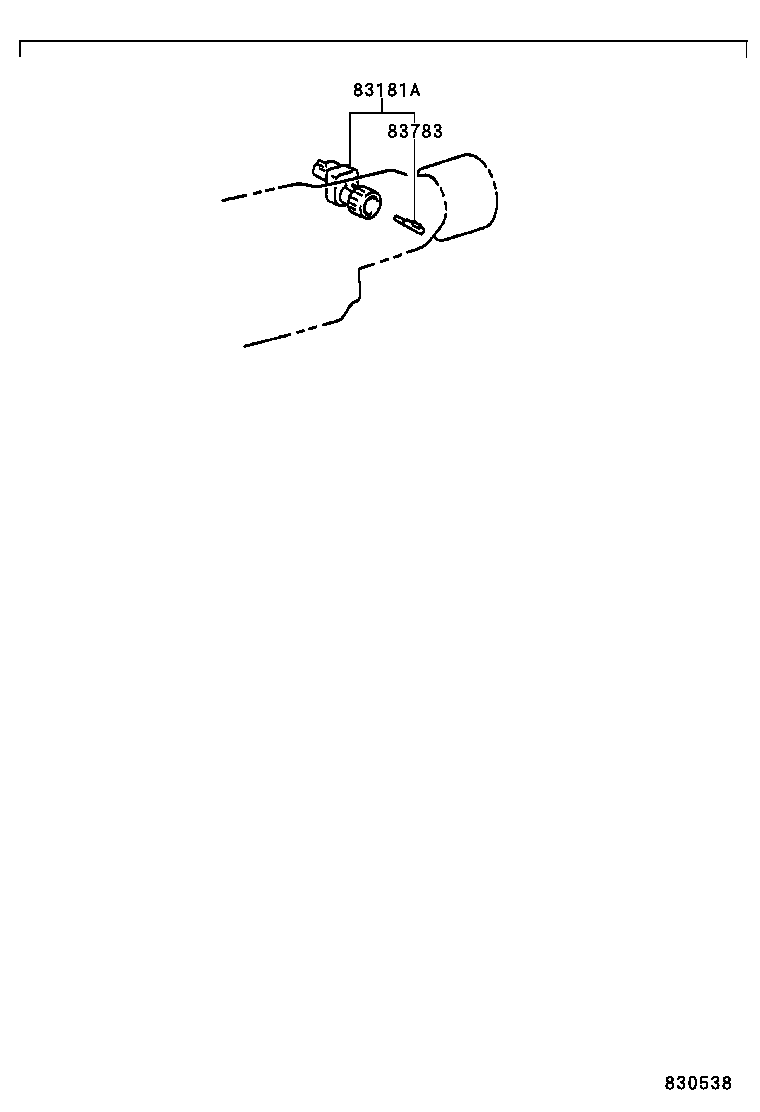

SPEED SENSOR

diagram 83181A 83783
Part # Description Qty Price
83181A - SENSOR, SPEEDOMETER
83181-20040

HZJ7#

 1
83783 - KEY, SPEEDMETER SENSOR
83783-22010

HZJ7#

 1

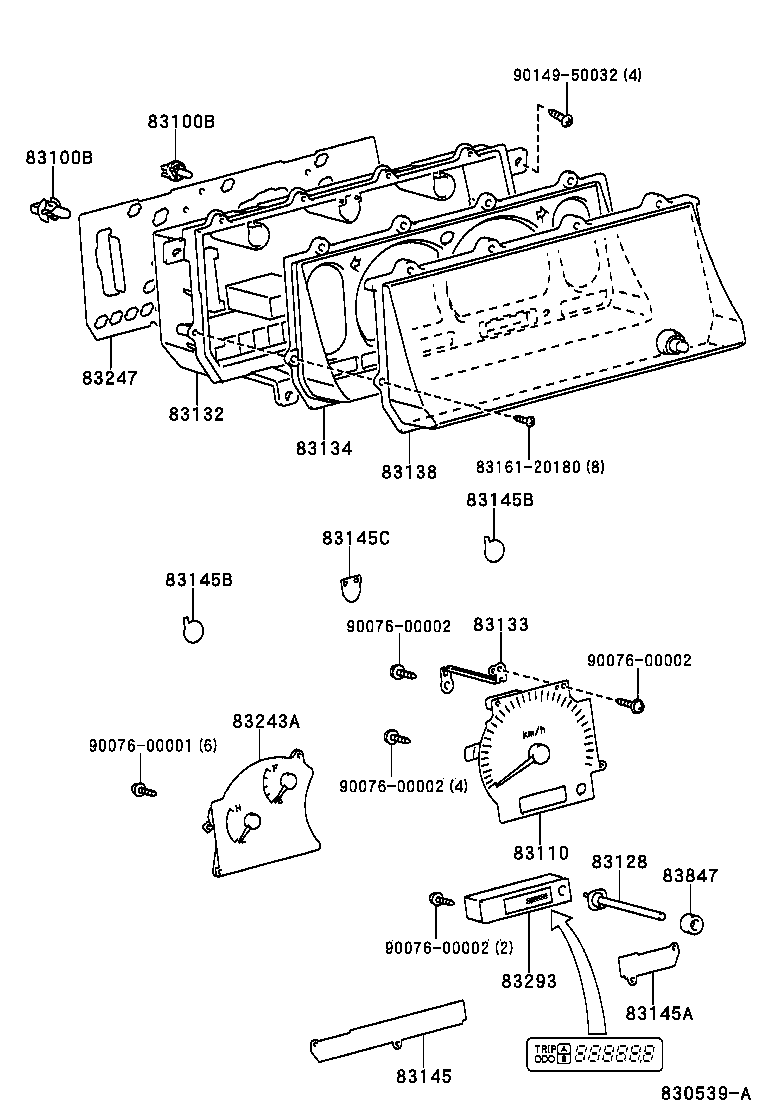

ILLUST NO. 1 OF 4(9908- )

Click highlighted areas on diagram

W/O(TACHOMETER)

diagram 83100B 83100B 83110 83128 83132 83133 83134 83138 83145 83145A 83145B 83145B 83145C 8316120180 83243A 83247 83293 83847 9007600001 9007600002 9007600002 9007600002 9007600002 9014950032
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99134-12030

HZJ7#,PZJ7#

24V 3W

 1
90981-11022

HZJ7#

24V 1.4W

 3
99132-12034

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

12V 3.4W

 1
90010-06003

HZJ7#

14V 3.0W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION

 1
83120-60020

HZJ7#

12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION

 1
90010-06044

HZJ7#

12V 2.0W,TYPE D:REFER TO ILLUSTRATION

 1
90010-06026

HZJ7#

12V 3.4W,W(BLUE CAP),TYPE C:REFER TO ILLUSTRATION

 1
83100B - BULB, COMBINATION METER, NO.1
99134-12030

HZJ7#,PZJ7#

24V 3W

 1
90981-11022

HZJ7#

24V 1.4W

 3
99132-12034

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

12V 3.4W

 1
90010-06003

HZJ7#

14V 3.0W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION

 1
83120-60020

HZJ7#

12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION

 1
90010-06044

HZJ7#

12V 2.0W,TYPE D:REFER TO ILLUSTRATION

 1
90010-06026

HZJ7#

12V 3.4W,W(BLUE CAP),TYPE C:REFER TO ILLUSTRATION

 1
83110 - SPEEDOMETER ASSY
83110-60420

HZJ7#

 1
83220-60790

HZJ71,74

 1
83128 - KNOB, TRIP COUNTER
83224-6B360

HZJ7#

 1
83132 - CASE, COMBINATION METER
83132-60260

HZJ7#,RJ7#

 1
83841-6B360

HZJ71,74

 1
83133 - PLATE, COMBINATION METER, NO.1
83811-6B360

HZJ71,74

 2
83134 - COVER, COMBINATION METER, NO.1
83134-60200

BJ73,HZJ7#,RJ7#

 1
83821-6B360

HZJ71,74

 1
83138 - GLASS, SPEEDOMETER
83138-60040

HZJ7#,PZJ7#

 1
83852-6B360

HZJ7#

 1
83145 - LENS, METER, NO.1
83831-6B440

HZJ7#

 1
83145A - LENS, METER, NO.2
83832-6B360

HZJ7#

 1
83145B - LENS, METER, NO.3
83833-26010

HZJ7#

 2
83145B - LENS, METER, NO.3
83833-26010

HZJ7#

 2
83145C - LENS, METER, NO.4
83833-6B360

HZJ7#

 1
83243A - GAUGE SUB-ASSY, FUEL RECEIVER
83243-90K06

HZJ7#

 1
83882-6B360

HZJ71,74

 1
83247 - PLATE, METER CIRCUIT
83247-60760

HZJ7#

 1
83861-6B460

HZJ71,74

 1
83293 - COMPUTER, TOTAL COUNTER MODULE
83293-60300

HZJ71,74

 1
83847 - CUSHION, COMBINATION SPEEDOMETER, NO.1
83847-21150

HZJ7#

 1
Common parts
83161-20180
90076-00001
90076-00002
90149-50032

ILLUST NO. 2 OF 4(9908- )

Click highlighted areas on diagram

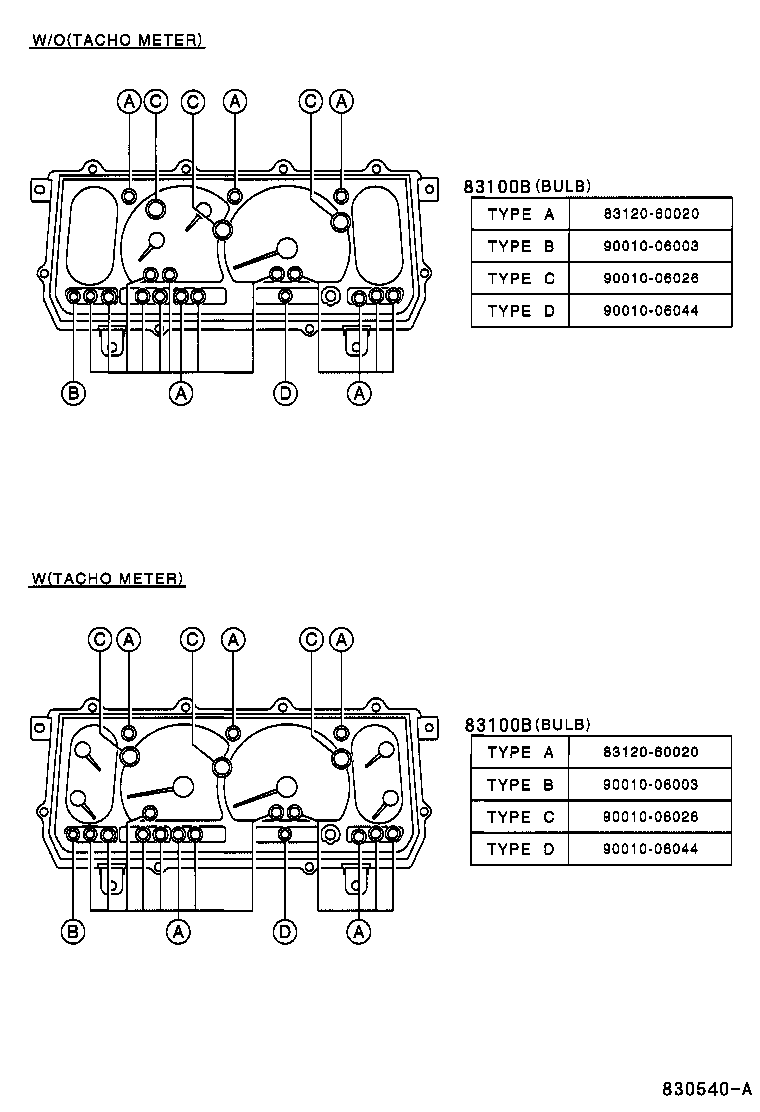

BULB

diagram 83100B 83100B
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99134-12030

HZJ7#,PZJ7#

24V 3W

 1
90981-11022

HZJ7#

24V 1.4W

 3
99132-12034

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

12V 3.4W

 1
90010-06003

HZJ7#

14V 3.0W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION

 1
83120-60020

HZJ7#

12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION

 1
90010-06044

HZJ7#

12V 2.0W,TYPE D:REFER TO ILLUSTRATION

 1
90010-06026

HZJ7#

12V 3.4W,W(BLUE CAP),TYPE C:REFER TO ILLUSTRATION

 1
83100B - BULB, COMBINATION METER, NO.1
99134-12030

HZJ7#,PZJ7#

24V 3W

 1
90981-11022

HZJ7#

24V 1.4W

 3
99132-12034

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

12V 3.4W

 1
90010-06003

HZJ7#

14V 3.0W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION

 1
83120-60020

HZJ7#

12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION

 1
90010-06044

HZJ7#

12V 2.0W,TYPE D:REFER TO ILLUSTRATION

 1
90010-06026

HZJ7#

12V 3.4W,W(BLUE CAP),TYPE C:REFER TO ILLUSTRATION

 1
