HZJ74L-FJMNSW (1999)

Toyota Land Cruiser

Production Aug 1999 - Aug 2001
Engine 1HZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

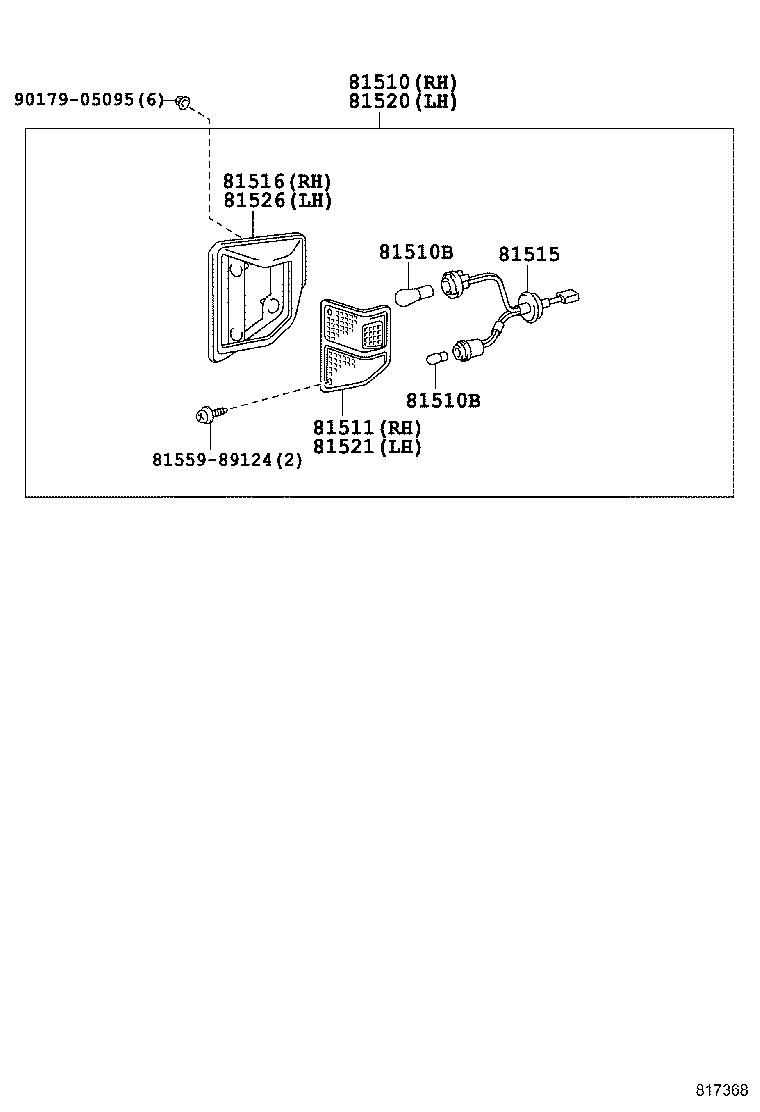

Click highlighted areas on diagram

diagram 81510 81510B 81510B 81511 81515 81516 81520 81521 81526 8155989124 9017905095
Part # Description Qty Price
81510 - LAMP ASSY, FRONT TURN SIGNAL, RH
81510-90K03

HZJ7#,PZJ7#

 1
81510-60540

HZJ7#

CHROME PLATED

 1
81510-60520

HZJ7#

 1
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

BJ73,HZJ71,74,78,79,LJ7#,RJ7#

12V 21W

 2
90981-16014

HZJ7#,PZJ7#

24V 21W

 2
90981-16016

HZJ7#,PZJ7#

24V 5W

 2
99132-11210

HZJ7#

12V 21W

 2
99132-12050

HZJ7#

12V 5W

 2
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-11210

BJ73,HZJ71,74,78,79,LJ7#,RJ7#

12V 21W

 2
90981-16014

HZJ7#,PZJ7#

24V 21W

 2
90981-16016

HZJ7#,PZJ7#

24V 5W

 2
99132-11210

HZJ7#

12V 21W

 2
99132-12050

HZJ7#

12V 5W

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-90K01

BJ73,HZJ7#,PZJ7#

 1
81511-60520

HZJ7#

 1
81511-60540

HZJ7#

CHROME PLATED

 1
81515 - WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY
81525-60390

HZJ7#

LH

 1
81515-60520

HZJ7#

RH

 1
81516 - RIM, FRONT TURN SIGNAL LAMP, RH
81516-60520

HZJ7#

 1
81516-60540

HZJ7#

CHROME PLATED

 1
81520 - LAMP ASSY, FRONT TURN SIGNAL, LH
81520-90K03

HZJ7#,PZJ7#

 1
81520-60410

HZJ7#

CHROME PLATED

 1
81520-60390

HZJ7#

 1
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-90K01

BJ73,HZJ7#,PZJ7#

 1
81521-60390

HZJ7#

 1
81521-60410

HZJ7#

CHROME PLATED

 1
81526 - RIM, FRONT TURN SIGNAL LAMP, LH
81526-60410

HZJ7#

CHROME PLATED

 1
81526-60390

HZJ7#

 1
Common parts
81559-89124
90179-05095
