HZJ74L-FJMNSW (1999)

Toyota Land Cruiser

Production Aug 1999 - Aug 2001
Engine 1HZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

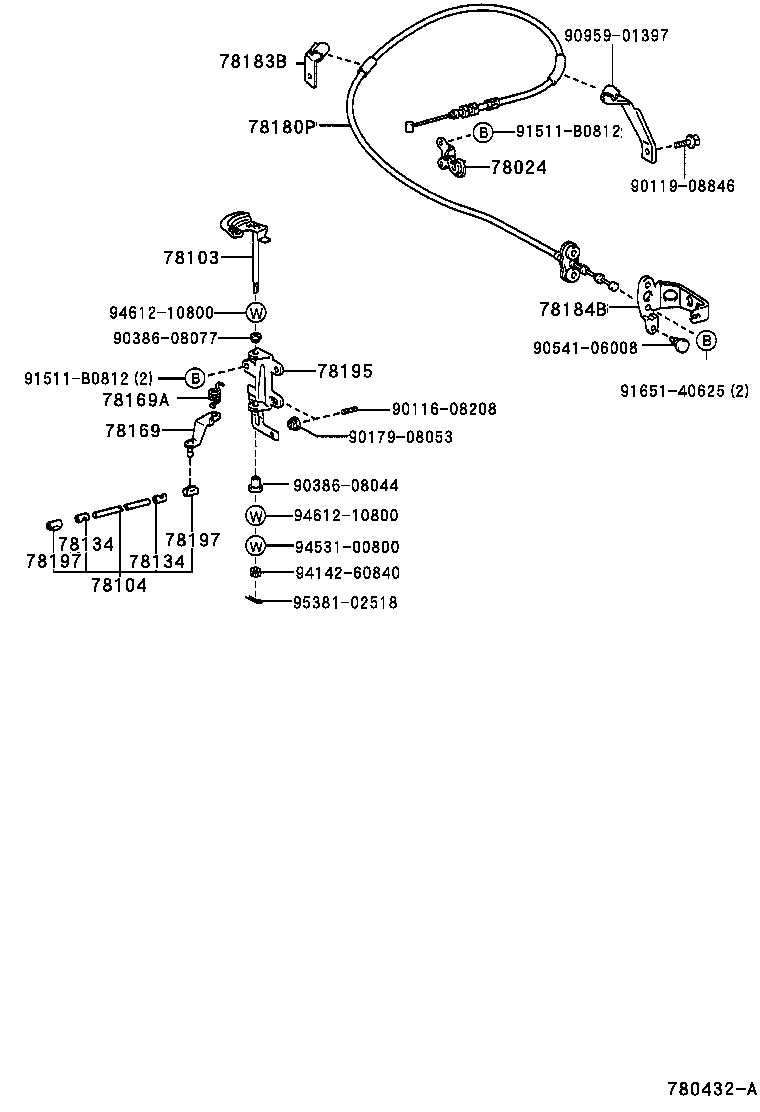

ILLUST NO. 1 OF 2(9908- )

Click highlighted areas on diagram

diagram 78024 78103 78104 78134 78134 78169 78169A 78180P 78183B 78184B 78195 78197 78197 9011608208 9011908846 9017908053 9038608044 9038608077 9054106008 9095901397 91511B0812 91511B0812 9165140625 9414260840 9453100800 9461210800 9461210800 9538102518
Part # Description Qty Price
78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78024-60010

HZJ7#,PZJ7#

 1
78024-60010

HZJ7#

 1
78103 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78103-60022

HZJ7#

 1
78103-60020

HZJ7#,PZJ7#

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-60010

HZJ7#

 1
78104-60010

HZJ7#

 1
78134 - END, ACCELERATOR CONNECTING ROD
78134-10010

HZJ7#

 2
78134 - END, ACCELERATOR CONNECTING ROD
78134-10010

HZJ7#

 2
78169 - HANGER, ACCELERATOR SPRING
78169-60010

HZJ7#,PZJ7#

 1
78169-60010

HZJ7#

 1
78169A - SPRING, CLAMP, NO.4
90508-16134

HZJ7#

 1
90508-16134

HZJ7#,PZJ7#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-60160

HZJ7#

 1
78180-60630

HZJ7#

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-60150

HZJ7#

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-90K01

HZJ7#

 1
78184-90K01

BJ73,HZJ7#,PZJ7#

 1
78195 - BRACKET, ACCELERATOR LINK
78195-60010

HZJ7#,PZJ7#

 1
78195-60011

HZJ7#

 1
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010

HZJ7#

 2
78197-10010

HZJ7#,LJ7#,PZJ7#

 2
78197 - CLIP, ACCELERATOR JOINT BALL
78197-10010

HZJ7#

 2
78197-10010

HZJ7#,LJ7#,PZJ7#

 2
Common parts
90116-08208
90119-08846
90179-08053
90386-08044
90386-08077
90541-06008
90959-01397
91511-B0812
91651-40625
94142-60840
94531-00800
94612-10800
95381-02518
