HZJ74L-FJMNSW (1999)
Toyota Land Cruiser

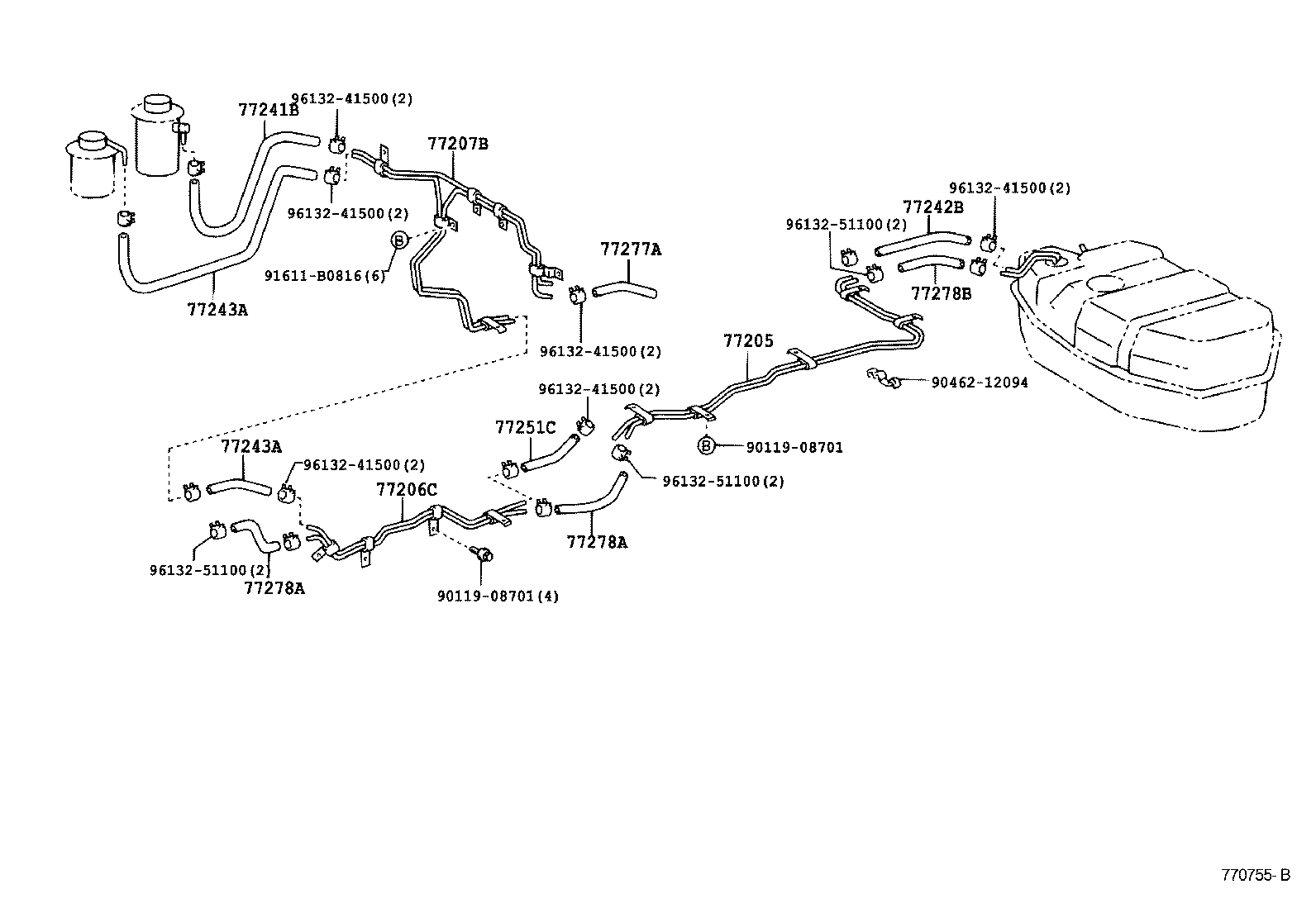

ILLUST NO. 2 OF 2(9908- )HZJ71,74
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-6A210 |
HZJ74 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-60180 |
HZJ71,74 |
1 | ||
| 77207B - TUBE SUB-ASSY, FUEL MAIN, NO.3 | ||||
| 77207-60050 |
HZJ7# |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-10030 |
HZJ7#,PZJ7# *H,L=280 |
1 | ||
| 95332-10020 |
HZJ7#,PZJ7# *H,L=200 |
1 | ||
| 95332-10030 |
HZJ7# *H,L=240 |
1 | ||
| 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) | ||||
| 90447-17005 |
HZJ7#,PZJ70,73 L=200,ID=9.5 |
1 | ||
| 95332-10030 |
HZJ71,74 *H,L=190 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-10030 |
HZJ7# *H,L=240 |
1 | ||
| 95332-10020 |
HZJ7# *H,L=200 |
1 | ||
| 95332-10030 |
HZJ7#,PZJ7# *H,L=260 |
1 | ||
| 77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) | ||||
| 95332-10030 |
HZJ7# *H,L=240 |
1 | ||
| 95332-10020 |
HZJ7# *H,L=200 |
1 | ||
| 95332-10030 |
HZJ7#,PZJ7# *H,L=260 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 95332-10020 |
HZJ71,74 *H,L=200 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95333-06040 |
HZJ7# *H,L=360 |
1 | ||
| 23273-17060 |
HZJ7# L=360 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HZJ71,74 *H,L=200 |
1 | ||
| 95333-06020 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ70..CBR,DSL *H,L=200 |
1 | ||
| 95333-06020 |
HZJ71,74 *H,L=200 |
1 | ||
| 77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HZJ71,74 *H,L=200 |
1 | ||
| 95333-06020 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ70..CBR,DSL *H,L=200 |
1 | ||
| 95333-06020 |
HZJ71,74 *H,L=200 |
1 | ||
| 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) | ||||
| 95333-06020 |
HZJ71,74 *H,L=170 |
1 | ||
| 90447-12082 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ70..CBR,DSL L=200 |
1 | ||
| 95333-06020 |
HZJ71,74 *H,L=180 |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90462-12094 | ||||
| 91611-B0816 | ||||
| 96132-41500 | ||||
| 96132-51100 | ||||

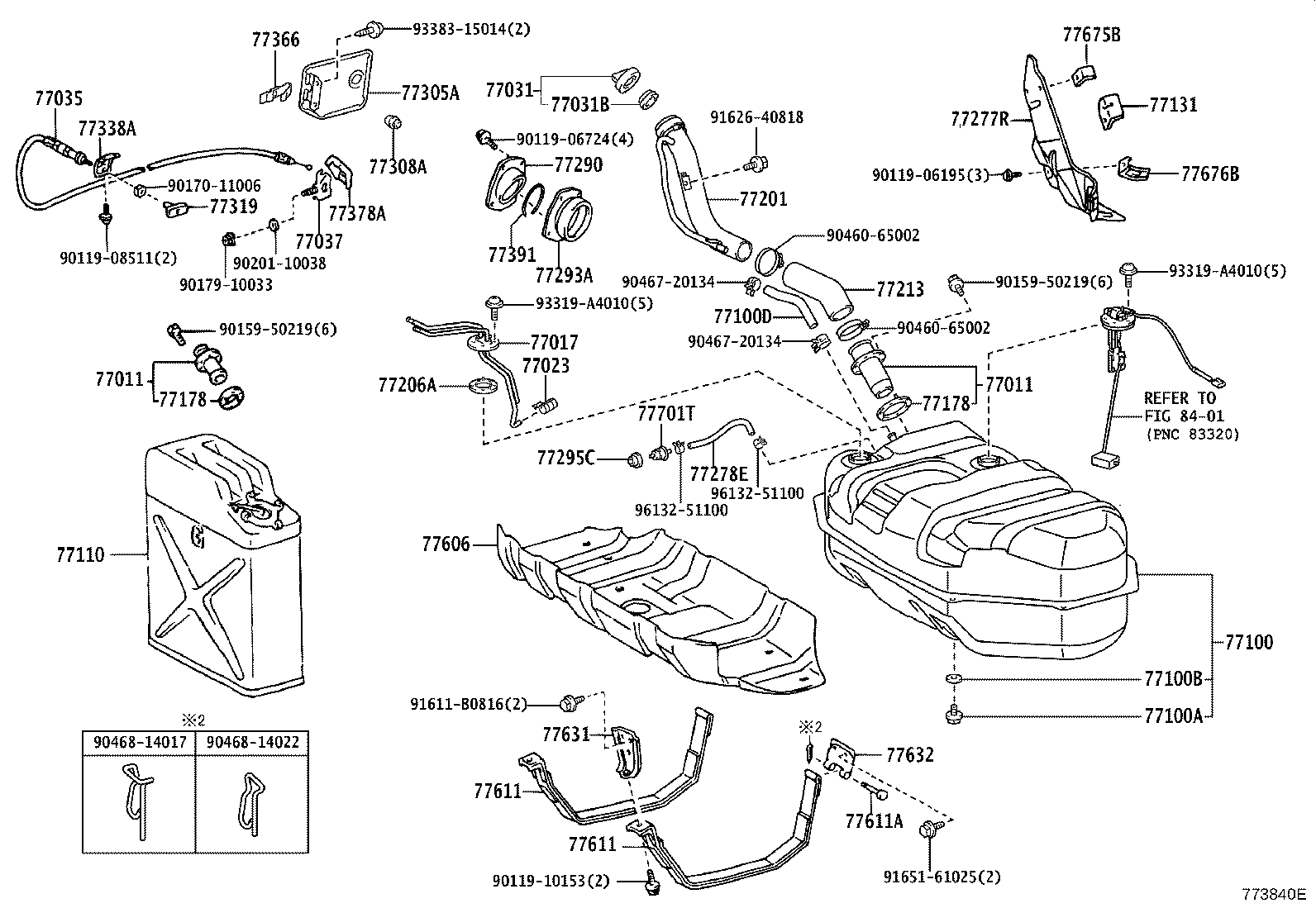

ILLUST NO. 1 OF 2(9908- )HZJ71,74
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60120 |
HZJ7# |
1 | ||
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-60120 |
HZJ7# |
1 | ||
| 77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT | ||||
| 77017-60400 |
HZJ71,74 |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-36010 |
HZJ7#,PZJ7# |
1 | ||
| 77023-36010 |
HZJ7# |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-35061 |
BJ73,HZJ7#,LJ7#,PZJ7#..HT,SOT |
1 | ||
| 77310-12150 |
HZJ71,74,78 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-16010 |
HZJ71,74,78 |
1 | ||
| 77316-12050 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-90K03 |
BJ73,HZJ73,74,LJ73,RJ73..LX,VM |
1 | ||
| 77035-90K03 |
HZJ74 |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-90K00 |
LJ73..LX;BJ73,HZJ70,71,73,74,LJ70,RJ7#..LX,VM,VX |
1 | ||
| 77037-90K00 |
HZJ71,74 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77100-60290 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ70..CBR,DSL |
1 | ||
| 77001-60580 |
HZJ71,74 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
HZJ7# |
1 | ||
| 90341-20004 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90430-12245 |
HZJ7# |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22024 |
HZJ71,74 L=220 |
1 | ||
| 90445-22024 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# L=220 |
1 | ||
| 77110 - TANK ASSY, AUXILIARY FUEL | ||||
| 77110-60011 |
HZJ7# |
1 | ||
| 77110-60011 |
HZJ7# W(AUXILIARY FUEL TANK X2) |
2 | ||
| 77131 - BRACKET, FUEL TANK FILLER PIPE SUPPORT | ||||
| 77131-90K00 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 77131-90K00 |
HZJ71,74 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
HZJ7# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20010 |
HZJ7# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-60200 |
BJ73,HZJ7#,LJ70,73,PZJ70,73,RJ70..CBR,DSL |
1 | ||
| 77201-60690 |
HZJ71,74 |
1 | ||
| 77206A - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ70..CBR,DSL |
1 | ||
| 77169-14020 |
HZJ7# |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-60160 |
HZJ71,74 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-90K01 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77277-90K01 |
HZJ71,74 |
1 | ||
| 77278E - HOSE, FUEL | ||||
| 95333-06030 |
HZJ71,74 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-90K00 |
BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 77290-60030 |
HZJ71,74 |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-90K00 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 77293-90K00 |
HZJ71,74 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-27010 |
HZJ71,74 |
1 | ||
| 77305A - LID SUB-ASSY, FUEL FILLER OPENING | ||||
| 77305-90K00 |
HZJ71,74 |
1 | ||
| 77305-90K00 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-05018 |
BJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
2 | ||
| 90541-05018 |
HZJ71,74,78 |
2 | ||
| 77319 - KNOB, FUEL TANK CAP | ||||
| 77319-90K00 |
HZJ71,74 |
1 | ||
| 77319-90K00 |
LJ73..LX;BJ73,HZJ70,71,73,74,LJ70,RJ7#..LX,VM,VX |
1 | ||
| 77338A - BRACKET, FUEL TANK CAP LOCK CONTROL ROD | ||||
| 77338-90K01 |
HZJ71,74 |
1 | ||
| 77338-90K01 |
LJ73..LX;BJ73,HZJ70,71,73,74,LJ70,RJ7#..LX,VM,VX |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-12010 |
HZJ71,74,78 |
1 | ||
| 77366-12010 |
BJ73,HZJ70,71,73,74,75,78,LJ7#,PZJ7#,RJ7#..HT,SOT |
1 | ||
| 77378A - COVER, FUEL FILLER OPENING LID LOCK | ||||
| 77378-90K00 |
HZJ71,74 |
1 | ||
| 77378-90K00 |
LJ73..LX;BJ73,HZJ70,71,73,74,LJ70,RJ7#..LX,VM,VX |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-32010 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 77391-32010 |
HZJ71,74 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-60030 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 77606-60030 |
HZJ71,74 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60240 |
HZJ71,74 |
2 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-60240 |
HZJ71,74 |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90240-10025 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# |
2 | ||
| 90240-10025 |
HZJ71,74 |
2 | ||
| 77631 - BRACKET, FUEL TANK, NO.1 | ||||
| 77614-60050 |
BJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7# |
2 | ||
| 77614-60050 |
HZJ71,74 |
2 | ||
| 77632 - BRACKET, FUEL TANK, NO.2 | ||||
| 77625-60020 |
HZJ71,74 |
2 | ||
| 77625-60020 |
BJ73,HZJ70,71,73,74,LJ70,73,PZJ70,73,RJ7# |
2 | ||
| 77675B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.1 | ||||
| 77675-90K00 |
HZJ71,74 |
1 | ||
| 77675-90K00 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 77676B - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2 | ||||
| 77676-90K00 |
BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7# |
1 | ||
| 77676-90K00 |
HZJ71,74 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10020 |
HZJ7# |
1 | ||
| 90917-10020 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| Common parts | ||||
| 90119-06195 | ||||
| 90119-06724 | ||||
| 90119-08511 | ||||
| 90119-10153 | ||||
| 90159-50219 | ||||
| 90170-11006 | ||||
| 90179-10033 | ||||
| 90201-10038 | ||||
| 90460-65002 | ||||
| 90467-20134 | ||||
| 90468-14017 | ||||
| 90468-14022 | ||||
| 91611-B0816 | ||||
| 91626-40818 | ||||
| 91651-61025 | ||||
| 93319-A4010 | ||||
| 93383-15014 | ||||
| 96132-51100 | ||||
