HZJ74L-FJMNSW (1999)

Toyota Land Cruiser

Production Aug 1999 - Aug 2001
Engine 1HZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

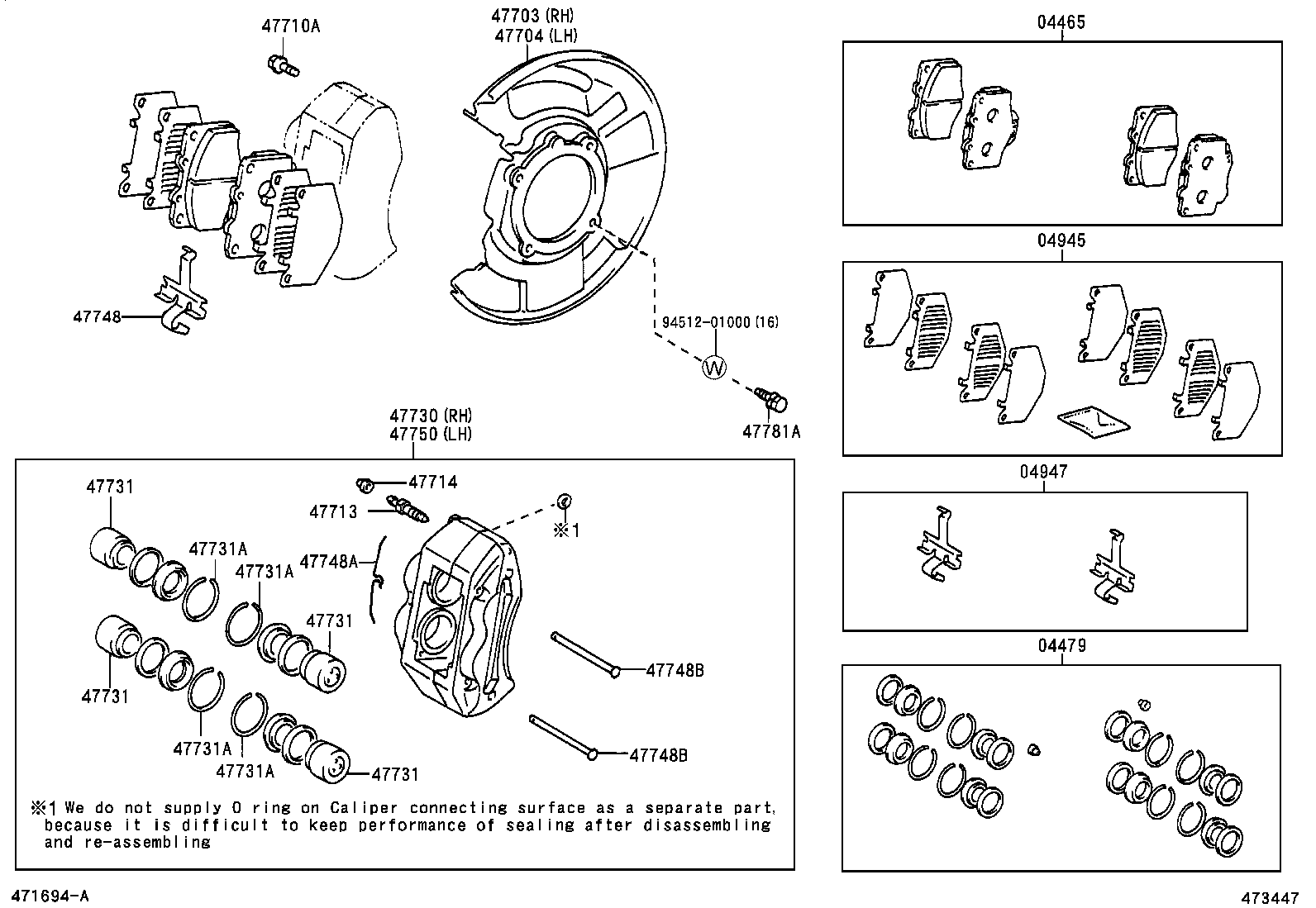

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 47703 47704 47710A 47713 47714 47730 47731 47731 47731 47731 47731A 47731A 47731A 47731A 47748 47748A 47748B 47748B 47750 47781A 9451201000
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-60030

BJ73,HZJ7#,LJ77,PZJ7#

 1
04465-60250

HZJ7#

MARK AISIN PC519

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-60070

HZJ7#

 1
04479-35010

BJ73,HZJ7#,LJ77,PZJ7#

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-60030

HZJ7#

 1
04945-35040

BJ73,HZJ7#,LJ77,PZJ7#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-60050

BJ73,HZJ7#,LJ77,PZJ7#

 1
04947-60090

HZJ7#

 1
47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH
47781-60100

HZJ7#

 1
47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH
47782-60100

HZJ7#

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12175

HZJ7#

*12-1.25PX35-27

 4
90101-12144

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

*12-1.25PX38-23

 4
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-60030

HZJ7#

 2
47547-20030

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 2
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 2
31478-30010

HZJ7#

 2
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-35080

BJ73,HZJ7#,LJ77,PZJ7#

 1
47730-60120

HZJ7#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-14110

HZJ7#

 8
47731-35010

BJ73,HZJ7#,LJ77,PZJ7#

 8
47731 - PISTON, FRONT DISC BRAKE
47731-14110

HZJ7#

 8
47731-35010

BJ73,HZJ7#,LJ77,PZJ7#

 8
47731 - PISTON, FRONT DISC BRAKE
47731-14110

HZJ7#

 8
47731-35010

BJ73,HZJ7#,LJ77,PZJ7#

 8
47731 - PISTON, FRONT DISC BRAKE
47731-14110

HZJ7#

 8
47731-35010

BJ73,HZJ7#,LJ77,PZJ7#

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

BJ73,HZJ7#,LJ77,PZJ7#

 8
90522-48044

HZJ7#

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

BJ73,HZJ7#,LJ77,PZJ7#

 8
90522-48044

HZJ7#

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

BJ73,HZJ7#,LJ77,PZJ7#

 8
90522-48044

HZJ7#

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-48044

BJ73,HZJ7#,LJ77,PZJ7#

 8
90522-48044

HZJ7#

 8
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-60010

BJ73,HZJ7#,LJ77,PZJ7#

 2
47748-60040

HZJ7#

 2
47748A - CLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)
90468-12015

BJ73,HZJ7#,LJ77,PZJ7#

 2
90468-12015

HZJ7#

 2
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06158

BJ73,HZJ7#,LJ77,PZJ7#

 4
90240-06024

HZJ7#

 4
47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
90240-06158

BJ73,HZJ7#,LJ77,PZJ7#

 4
90240-06024

HZJ7#

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-35080

BJ73,HZJ7#,LJ77,PZJ7#

 1
47750-60120

HZJ7#

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90101-10166

HZJ7#

 16
90101-10166

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 16
Common parts
94512-01000
