HZJ74L-FJMNSW (1999)

Toyota Land Cruiser

Production Aug 1999 - Aug 2001
Engine 1HZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

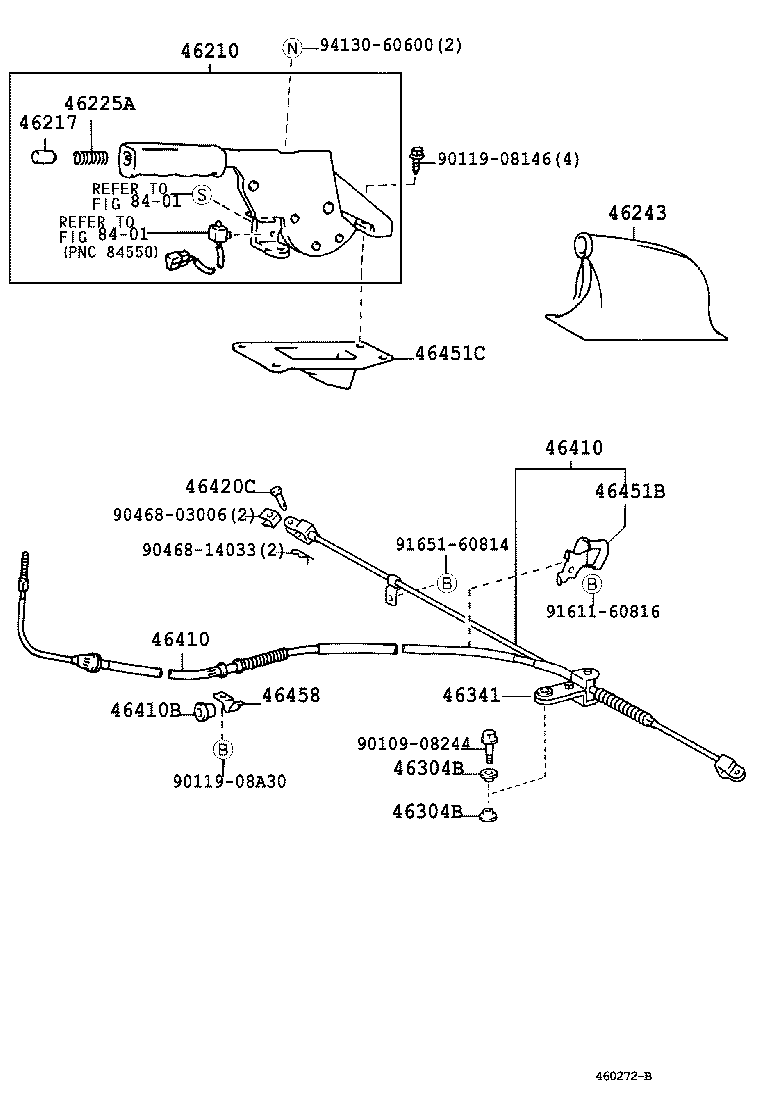

ILLUST NO. 1 OF 2(9908-0108)HZJ71,74

Click highlighted areas on diagram

diagram 46210 46217 46225A 46243 46304B 46304B 46341 46410 46410 46410B 46420C 46451B 46451C 46458 8401 8401 9010908244 9011908146 9011908A30 9046803006 9046814033 9161160816 9165160814 9413060600
Part # Description Qty Price
46210 - LEVER ASSY, PARKING BRAKE
46210-6006203

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

BLUEISH GRAY,TRIM1#

 1
46210-60230E0

HZJ7#

SANDAL WOOD,TRIM4#

 1
46210-6006206

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

SABLE,TRIM4#

 1
46210-60230B0

HZJ7#

SHADOW GRAY,TRIM1#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-2002046

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

SABLE,TRIM4#

 1
46217-20020B3

HZJ7#

SHADOW GRAY,TRIM1#

 1
46217-20020E4

HZJ7#

SANDAL WOOD,TRIM4#

 1
46217-2002053

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

BLUISH GRAY,TRIM1#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10138

HZJ7#

 1
90501-10138

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 1
46243 - COVER, PARKING BRAKE LEVER
46243-60060B0

HZJ7#

BLUISH GRAY,TRIM1#

 1
46243-6006003

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

BLUISH GRAY,TRIM1#

 1
46243-6006016

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

SABLE,TRIM4#

 1
46243-60060E0

HZJ7#

OAK,TRIM4#

 1
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12012

HZJ7#

 2
90385-12012

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 2
46304B - BUSH(FOR PARKING BRAKE EQUALIZER)
90385-12012

HZJ7#

 2
90385-12012

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 2
46341 - EQUALIZER, PARKING BRAKE
46341-35030

HZJ7#

 2
46341-35030

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 2
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-60810

HZJ74

 1
46410-60890

HZJ74

W(RR DISC BRAKE)

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-60810

HZJ74

 1
46410-60890

HZJ74

W(RR DISC BRAKE)

 1
46410B - GROMMET(FOR PARKING BRAKE FRONT CABLE)
90480-17158

BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7#

 1
90480-17158

HZJ71,74

 1
46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE)
90240-08042

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

 2
90240-08059

HZJ7#

 2
46451B - BRACKET, PARKING BRAKE CABLE SUPPORT
46451-60180

HZJ7#

 1
46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451-60070

BJ73,HZJ7#,LJ7#,PZJ70,73,RJ7#..HT

 1
46451-60130

HZJ71,74

 1
46458 - RETAINER, CABLE
46458-30020

HZJ71,74

 1
46458-30020

BJ73,HZJ70,71,73,74,LJ7#,PZJ70,73,RJ7#

 1
Common parts
90109-08244
90119-08146
90119-08A30
90468-03006
90468-14033
91611-60816
91651-60814
94130-60600
Linked diagrams
8401
