HZJ74L-FJMNSW (1999)

Toyota Land Cruiser

Production Aug 1999 - Aug 2001
Engine 1HZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )

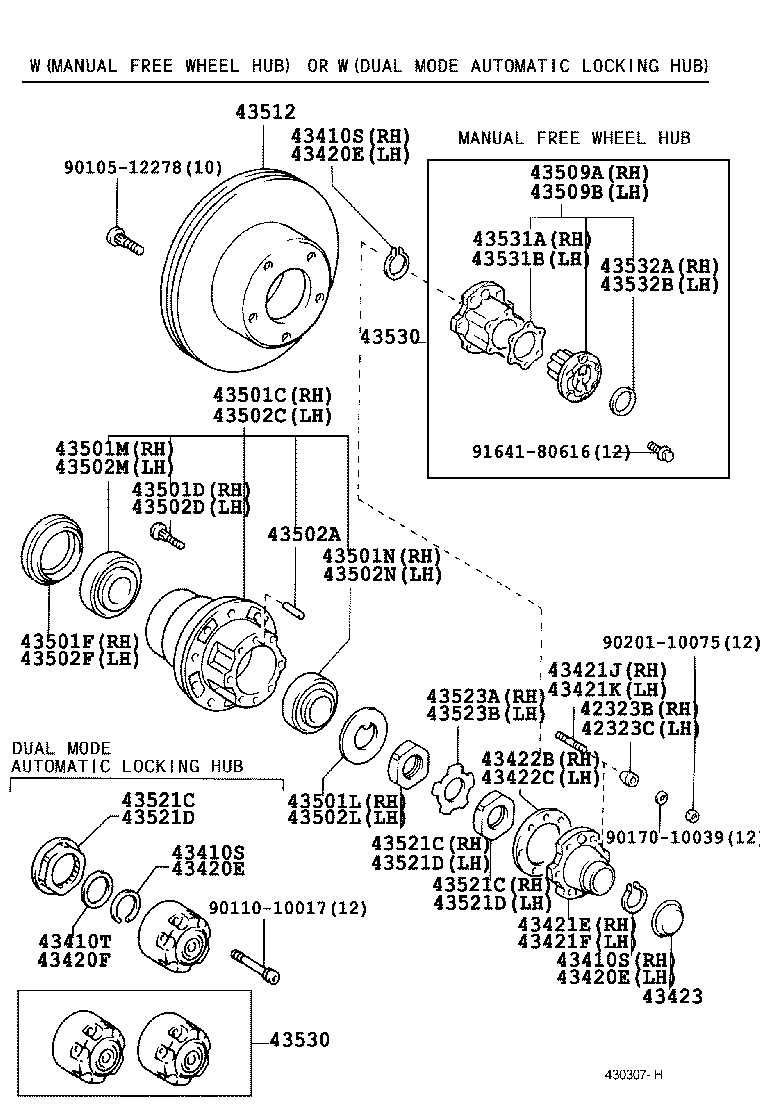

Click highlighted areas on diagram

diagram 42323B 42323C 43410S 43410S 43410S 43410T 43420E 43420E 43420E 43420F 43421E 43421F 43421J 43421K 43422B 43422C 43423 43501C 43501D 43501F 43501L 43501M 43501N 43502A 43502C 43502D 43502F 43502L 43502M 43502N 43509A 43509B 43512 43521C 43521C 43521C 43521D 43521D 43521D 43523A 43523B 43530 43530 43531A 43531B 43532A 43532B 9010512278 9011010017 9017010039 9020110075 9164180616
Part # Description Qty Price
42323B - WASHER, CONE (FOR FRONT AXLE SHAFT RH)
42323-60030

HZJ7#

 6
42323C - WASHER, CONE (FOR FRONT AXLE SHAFT LH)
42323-60030

HZJ7#

 6
43410S - RING, SNAP (FOR FRONT DRIVE SHAFT RH)
90520-31005

HZJ7#

T=2.8

 1
90520-31009

HZJ7#

T=2.0

 1
90520-31007

HZJ7#

T=2.4

 1
90520-31008

HZJ7#

T=2.2

 1
90520-31006

HZJ7#

T=2.6

 1
90520-31010

HZJ7#

T=1.8

 1
43410S - RING, SNAP (FOR FRONT DRIVE SHAFT RH)
90520-31005

HZJ7#

T=2.8

 1
90520-31009

HZJ7#

T=2.0

 1
90520-31007

HZJ7#

T=2.4

 1
90520-31008

HZJ7#

T=2.2

 1
90520-31006

HZJ7#

T=2.6

 1
90520-31010

HZJ7#

T=1.8

 1
43410S - RING, SNAP (FOR FRONT DRIVE SHAFT RH)
90520-31005

HZJ7#

T=2.8

 1
90520-31009

HZJ7#

T=2.0

 1
90520-31007

HZJ7#

T=2.4

 1
90520-31008

HZJ7#

T=2.2

 1
90520-31006

HZJ7#

T=2.6

 1
90520-31010

HZJ7#

T=1.8

 1
43410T - SPACER (FOR FRONT DRIVE SHAFT RH)
90560-33008

HZJ7#

 1
43420E - RING, SNAP (FOR FRONT DRIVE SHAFT LH)
90520-31006

HZJ7#

T=2.6

 1
90520-31005

HZJ7#

T=2.8

 1
90520-31007

HZJ7#

T=2.4

 1
90520-31008

HZJ7#

T=2.2

 1
90520-31009

HZJ7#

T=2.0

 1
90520-31010

HZJ7#

T=1.8

 1
43420E - RING, SNAP (FOR FRONT DRIVE SHAFT LH)
90520-31006

HZJ7#

T=2.6

 1
90520-31005

HZJ7#

T=2.8

 1
90520-31007

HZJ7#

T=2.4

 1
90520-31008

HZJ7#

T=2.2

 1
90520-31009

HZJ7#

T=2.0

 1
90520-31010

HZJ7#

T=1.8

 1
43420E - RING, SNAP (FOR FRONT DRIVE SHAFT LH)
90520-31006

HZJ7#

T=2.6

 1
90520-31005

HZJ7#

T=2.8

 1
90520-31007

HZJ7#

T=2.4

 1
90520-31008

HZJ7#

T=2.2

 1
90520-31009

HZJ7#

T=2.0

 1
90520-31010

HZJ7#

T=1.8

 1
43420F - SPACER (FOR FRONT DRIVE SHAFT LH)
90560-33008

HZJ7#

 1
43421E - FLANGE, FRONT AXLE OUTER SHAFT, RH
43421-60030

HZJ7#

 1
43421F - FLANGE, FRONT AXLE OUTER SHAFT, LH
43421-60030

HZJ7#

 1
43421J - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE RH)
90116-10201

HZJ7#

 6
43421K - BOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE LH)
90116-10201

HZJ7#

 6
43422B - GASKET, FRONT AXLE OUTER SHAFT FLANGE, RH
43422-60070

HZJ7#

 1
43422C - GASKET, FRONT AXLE OUTER SHAFT FLANGE, LH
43422-60070

HZJ7#

 1
43423 - CAP, FRONT AXLE OUTER SHAFT FLANGE
43423-35010

HZJ7#

 2
43423-35010

LJ70..STD;BJ73,HZJ71,74,75,78,79,PZJ7#

 2
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43502-69085

HZJ7#

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02077

HZJ7#

 5
90942-02077

HZJ7#

 5
43501F - SEAL, OIL (FOR FRONT AXLE HUB RH)
90311-62001

HZJ7#

 1
43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH)
90214-42030

HZJ7#

 1
43501M - BEARING (FOR FRONT AXLE HUB INNER RH)
90080-36064

HZJ7#

 1
43501N - BEARING (FOR FRONT AXLE HUB OUTER RH)
90080-36067

HZJ7#

 1
43502A - PIN, STRAIGHT (FOR FRONT AXLE HUB)
90250-10032

HZJ7#

 1
90250-10032

HZJ7#

 4
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43502-69085

HZJ7#

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02077

HZJ7#

 5
90942-02077

HZJ7#

 5
43502F - SEAL, OIL (FOR FRONT AXLE HUB LH)
90311-62001

HZJ7#

 1
43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH)
90214-42030

HZJ7#

 1
43502M - BEARING (FOR FRONT AXLE HUB INNER LH)
90080-36064

HZJ7#

 1
43502N - BEARING (FOR FRONT AXLE HUB OUTER LH)
90080-36067

HZJ7#

 1
43509A - COVER SUB-ASSY, FREE WHEEL HUB, RH
43509-60051

HZJ7#

 1
43509-60051

HZJ7#

 1
43509B - COVER SUB-ASSY, FREE WHEEL HUB, LH
43509-60051

HZJ7#

 1
43509-60051

HZJ7#

 1
43512 - DISC, FRONT
43512-60040

BJ73,HZJ7#,PZJ7#

 2
43512-60140

HZJ7#

 2
43521C - NUT, FRONT WHEEL ADJUSTING, RH
43521-60020

HZJ7#

*DMALH

 1
43521-60011

HZJ7#

 2
43521C - NUT, FRONT WHEEL ADJUSTING, RH
43521-60020

HZJ7#

*DMALH

 1
43521-60011

HZJ7#

 2
43521C - NUT, FRONT WHEEL ADJUSTING, RH
43521-60020

HZJ7#

*DMALH

 1
43521-60011

HZJ7#

 2
43521D - NUT, FRONT WHEEL ADJUSTING, LH
43521-60020

HZJ7#

 1
43521-60020

HZJ7#

*DMALH

 1
43521D - NUT, FRONT WHEEL ADJUSTING, LH
43521-60020

HZJ7#

 1
43521-60020

HZJ7#

*DMALH

 1
43521D - NUT, FRONT WHEEL ADJUSTING, LH
43521-60020

HZJ7#

 1
43521-60020

HZJ7#

*DMALH

 1
43523A - WASHER, FRONT WHEEL ADJUSTING LOCK, RH
90215-42025

HZJ7#

 1
43523B - WASHER, FRONT WHEEL ADJUSTING LOCK, LH
90215-42025

HZJ7#

 1
43530 - HUB ASSY, FREE WHEEL
43530-60060

HZJ7#

W(ELECTRICAL FREE WHEEL HUB)

 2
43530-60040

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

W(MANUAL FREE WHEEL HUB)

 2
43530-60130

HZJ7#

W(MANUAL FREE WHEEL HUB)

 2
43530-69065

HZJ7#

*DMALH

 1
43530 - HUB ASSY, FREE WHEEL
43530-60060

HZJ7#

W(ELECTRICAL FREE WHEEL HUB)

 2
43530-60040

BJ73,HZJ7#,LJ7#,PZJ7#,RJ7#

W(MANUAL FREE WHEEL HUB)

 2
43530-60130

HZJ7#

W(MANUAL FREE WHEEL HUB)

 2
43530-69065

HZJ7#

*DMALH

 1
43531A - GASKET, FREE WHEEL HUB, RH
43531-60010

HZJ7#

 1
43531B - GASKET, FREE WHEEL HUB, LH
43531-60010

HZJ7#

 1
43531-60010

HZJ7#

 2
43532A - RING, FREE WHEEL HUB, RH
43532-60010

HZJ7#

 1
43532B - RING, FREE WHEEL HUB, LH
43532-60010

HZJ7#

 1
43532-60010

HZJ7#

 2
Common parts
90105-12278
90110-10017
90170-10039
90201-10075
91641-80616
