HZJ74L-FJMNSW (1999)
Toyota Land Cruiser
(9908- )

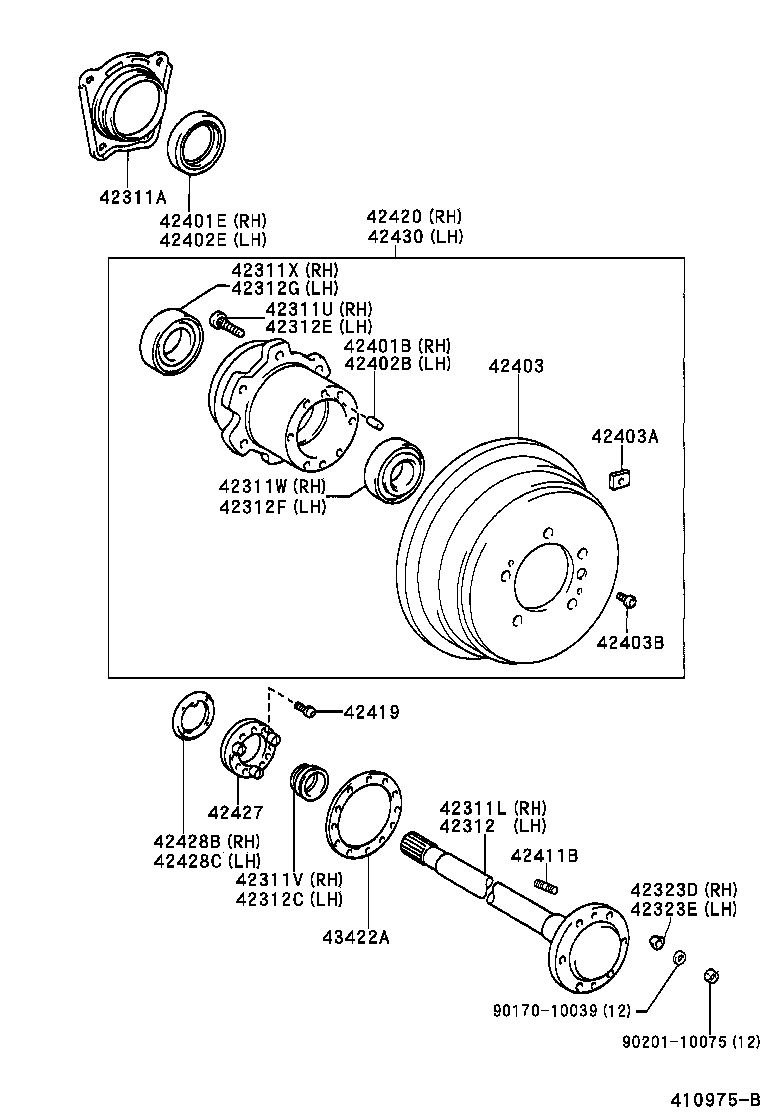

DRUM BRAKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90313-93001 |
BJ73,HZJ7#,PZJ7# |
2 | ||
| 90313-93001 |
HZJ7# |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-60062 |
HZJ7#,PZJ7# |
1 | ||
| 42311-60080 |
HZJ7#,PZJ7# W(FULL FLOATING AXLE & REAR DIFFERENTIAL LOCK) |
1 | ||
| 42311-60200 |
HZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 42311-60190 |
HZJ7# |
1 | ||
| 42311-60052 |
HZJ7#,PZJ7# W(FULL FLOATING AXLE) |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02052 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
6 | ||
| 90942-02077 |
HZJ7# |
5 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-36003 |
HZJ7# |
1 | ||
| 42311W - BEARING (FOR REAR AXLE SHAFT OUTER RH) | ||||
| 90080-36067 |
HZJ7# TIMKEN |
1 | ||
| 90368-45087 |
HZJ7# NSK |
1 | ||
| 42311X - BEARING (FOR REAR AXLE SHAFT INNER RH) | ||||
| 90368-49084 |
HZJ7# NSK |
1 | ||
| 90080-36064 |
HZJ7# TIMKEN |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42312-60042 |
HZJ7#,PZJ7# W(FULL FLOATING AXLE) |
1 | ||
| 42312-60072 |
HZJ7#,PZJ7# |
1 | ||
| 42312-60140 |
HZJ7# |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-36003 |
HZJ7# |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02077 |
HZJ7# |
5 | ||
| 90942-02052 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
6 | ||
| 42312F - BEARING (FOR REAR AXLE SHAFT OUTER LH) | ||||
| 90080-36067 |
HZJ7# TIMKEN |
1 | ||
| 90368-45087 |
HZJ7# NSK |
1 | ||
| 42312G - BEARING (FOR REAR AXLE SHAFT INNER LH) | ||||
| 90080-36064 |
HZJ7# TIMKEN |
1 | ||
| 90368-49084 |
HZJ7# NSK |
1 | ||
| 90080-36064 |
HZJ7# TIMKEN |
1 | ||
| 90368-49084 |
HZJ7# NSK |
1 | ||
| 42323D - WASHER, CONE (FOR REAR AXLE SHAFT RH) | ||||
| 42323-60030 |
HZJ7# |
6 | ||
| 42323E - WASHER, CONE (FOR REAR AXLE SHAFT LH) | ||||
| 42323-60030 |
HZJ7# |
6 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-07057 |
BJ73,HZJ7#,PZJ7# |
2 | ||
| 90250-10032 |
HZJ7# |
2 | ||
| 42401E - SEAL, OIL (FOR REAR AXLE HUB RH) | ||||
| 90311-62002 |
HZJ71,74 W(REAR DISC BRAKE) |
1 | ||
| 90311-62001 |
HZJ7# |
1 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-10032 |
HZJ7# |
2 | ||
| 90250-07057 |
BJ73,HZJ7#,PZJ7# |
2 | ||
| 42402E - SEAL, OIL (FOR REAR AXLE HUB LH) | ||||
| 90311-62001 |
HZJ7# |
1 | ||
| 90311-62002 |
HZJ71,74 W(REAR DISC BRAKE) |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-60070 |
HZJ7#,PZJ7# |
2 | ||
| 42431-60150 |
HZJ7#,PZJ7# W(FULL FLOATING AXLE) |
2 | ||
| 42431-60250 |
HZJ7# |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01118 |
HZJ7#,PZJ7# 20G |
1 | ||
| 90937-01119 |
HZJ7#,PZJ7# 30G |
1 | ||
| 90937-01117 |
HZJ7#,PZJ7# 10G |
1 | ||
| 90937-01196 |
HZJ7#,PZJ7# 50G |
1 | ||
| 90937-01414 |
HZJ7#,PZJ7# 80G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01408 |
HZJ7#,PZJ7# 20G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01197 |
HZJ7#,PZJ7# 60G |
1 | ||
| 90937-01195 |
HZJ7#,PZJ7# 40G |
1 | ||
| 90937-01411 |
HZJ7#,PZJ7# 50G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01409 |
HZJ7#,PZJ7# 30G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01412 |
HZJ7#,PZJ7# 60G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01413 |
HZJ7#,PZJ7# 70G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01418 |
HZJ7#,PZJ7# 120G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01419 |
HZJ7#,PZJ7# 10G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01416 |
HZJ7#,PZJ7# 100G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01410 |
HZJ7#,PZJ7# 40G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01417 |
HZJ7#,PZJ7# 110G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01415 |
HZJ7#,PZJ7# 90G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01196 |
HZJ7# 50G |
1 | ||
| 90937-01197 |
HZJ7# 60G |
1 | ||
| 90937-01118 |
HZJ7# 20G |
1 | ||
| 90937-01409 |
HZJ7# 30G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01119 |
HZJ7# 30G |
1 | ||
| 90937-01414 |
HZJ7# 80G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01117 |
HZJ7# 10G |
1 | ||
| 90937-01413 |
HZJ7# 70G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01415 |
HZJ7# 90G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01410 |
HZJ7# 40G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01416 |
HZJ7# 100G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01195 |
HZJ7# 40G |
1 | ||
| 90937-01417 |
HZJ7# 110G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01419 |
HZJ7# 10G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01408 |
HZJ7# 20G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01418 |
HZJ7# 120G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01412 |
HZJ7# 60G,W(FULL FLOATING AXLE) |
1 | ||
| 90937-01411 |
HZJ7# 50G,W(FULL FLOATING AXLE) |
1 | ||
| 42403B - BOLT, SET (FOR REAR BRAKE DRUM SETTING) | ||||
| 90113-10003 |
HZJ7# |
2 | ||
| 90113-10003 |
BJ73,HZJ7#,PZJ7# |
2 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-08325 |
BJ73,HZJ7#,PZJ7# |
12 | ||
| 90116-10201 |
HZJ7# |
12 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 42419-60011 |
HZJ7# |
4 | ||
| 42419-60011 |
BJ73,HZJ7#,PZJ7# |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-60140 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 42420-69015 |
HZJ7# |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-60021 |
BJ73,HZJ7#,PZJ7# |
2 | ||
| 42427-60021 |
HZJ7# |
2 | ||
| 42428B - PLATE, REAR AXLE LOCK NUT, RH | ||||
| 42428-60011 |
HZJ7# |
1 | ||
| 42428C - PLATE, REAR AXLE LOCK NUT, LH | ||||
| 42428-60011 |
HZJ7# |
1 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42420-69015 |
HZJ7# |
1 | ||
| 42420-60140 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 43422A - GASKET, REAR AXLE OUTER SHAFT FLANGE | ||||
| 43422-60070 |
HZJ7# |
2 | ||
| Common parts | ||||
| 90170-10039 | ||||
| 90201-10075 | ||||
(9908- )

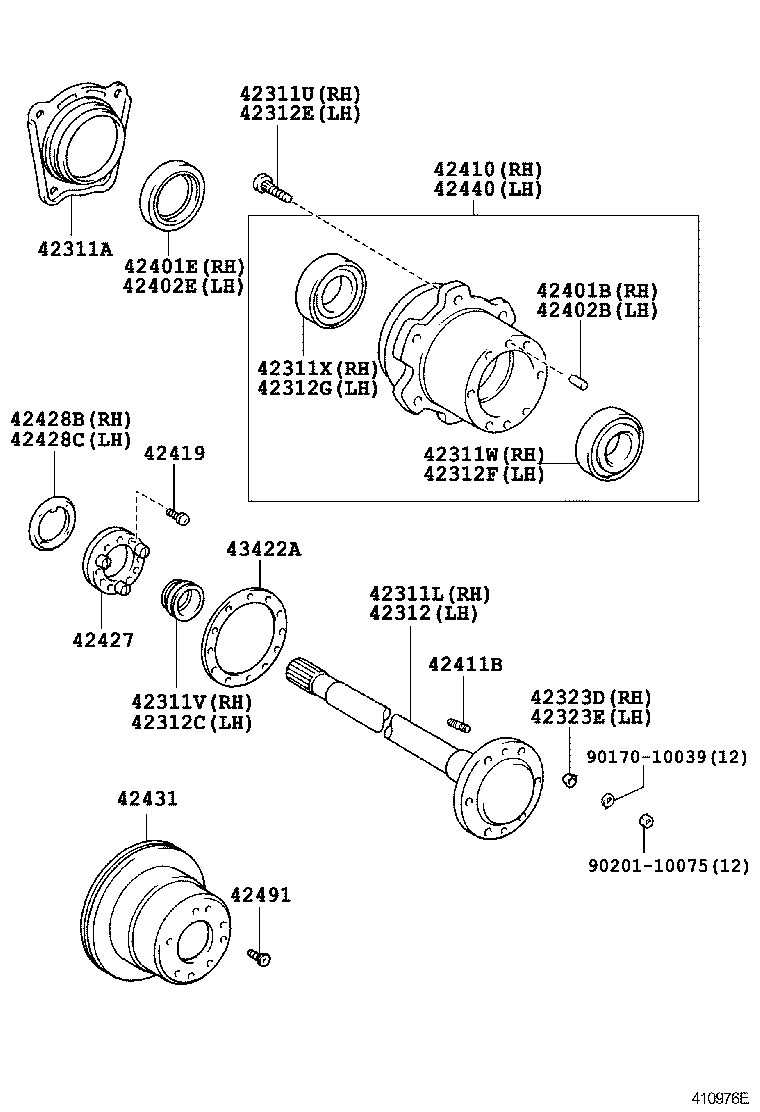

DISC BRAKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90313-93001 |
BJ73,HZJ7#,PZJ7# |
2 | ||
| 90313-93001 |
HZJ7# |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-60062 |
HZJ7#,PZJ7# |
1 | ||
| 42311-60080 |
HZJ7#,PZJ7# W(FULL FLOATING AXLE & REAR DIFFERENTIAL LOCK) |
1 | ||
| 42311-60200 |
HZJ7# W(DIFFERENTIAL LOCK) |
1 | ||
| 42311-60190 |
HZJ7# |
1 | ||
| 42311-60052 |
HZJ7#,PZJ7# W(FULL FLOATING AXLE) |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02052 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
6 | ||
| 90942-02077 |
HZJ7# |
5 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-36003 |
HZJ7# |
1 | ||
| 42311W - BEARING (FOR REAR AXLE SHAFT OUTER RH) | ||||
| 90080-36067 |
HZJ7# TIMKEN |
1 | ||
| 90368-45087 |
HZJ7# NSK |
1 | ||
| 42311X - BEARING (FOR REAR AXLE SHAFT INNER RH) | ||||
| 90368-49084 |
HZJ7# NSK |
1 | ||
| 90080-36064 |
HZJ7# TIMKEN |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42312-60042 |
HZJ7#,PZJ7# W(FULL FLOATING AXLE) |
1 | ||
| 42312-60072 |
HZJ7#,PZJ7# |
1 | ||
| 42312-60140 |
HZJ7# |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-36003 |
HZJ7# |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02077 |
HZJ7# |
5 | ||
| 90942-02052 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
6 | ||
| 42312F - BEARING (FOR REAR AXLE SHAFT OUTER LH) | ||||
| 90080-36067 |
HZJ7# TIMKEN |
1 | ||
| 90368-45087 |
HZJ7# NSK |
1 | ||
| 42312G - BEARING (FOR REAR AXLE SHAFT INNER LH) | ||||
| 90080-36064 |
HZJ7# TIMKEN |
1 | ||
| 90368-49084 |
HZJ7# NSK |
1 | ||
| 90080-36064 |
HZJ7# TIMKEN |
1 | ||
| 90368-49084 |
HZJ7# NSK |
1 | ||
| 42323D - WASHER, CONE (FOR REAR AXLE SHAFT RH) | ||||
| 42323-60030 |
HZJ7# |
6 | ||
| 42323E - WASHER, CONE (FOR REAR AXLE SHAFT LH) | ||||
| 42323-60030 |
HZJ7# |
6 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-07057 |
BJ73,HZJ7#,PZJ7# |
2 | ||
| 90250-10032 |
HZJ7# |
2 | ||
| 42401E - SEAL, OIL (FOR REAR AXLE HUB RH) | ||||
| 90311-62002 |
HZJ71,74 W(REAR DISC BRAKE) |
1 | ||
| 90311-62001 |
HZJ7# |
1 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-10032 |
HZJ7# |
2 | ||
| 90250-07057 |
BJ73,HZJ7#,PZJ7# |
2 | ||
| 42402E - SEAL, OIL (FOR REAR AXLE HUB LH) | ||||
| 90311-62001 |
HZJ7# |
1 | ||
| 90311-62002 |
HZJ71,74 W(REAR DISC BRAKE) |
1 | ||
| 42410 - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-69025 |
HZJ71,74 |
1 | ||
| 42411B - BOLT, STUD (FOR REAR AXLE HUB) | ||||
| 90116-08325 |
BJ73,HZJ7#,PZJ7# |
12 | ||
| 90116-10201 |
HZJ7# |
12 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 42419-60011 |
HZJ7# |
4 | ||
| 42419-60011 |
BJ73,HZJ7#,PZJ7# |
4 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-60021 |
BJ73,HZJ7#,PZJ7# |
2 | ||
| 42427-60021 |
HZJ7# |
2 | ||
| 42428B - PLATE, REAR AXLE LOCK NUT, RH | ||||
| 42428-60011 |
HZJ7# |
1 | ||
| 42428C - PLATE, REAR AXLE LOCK NUT, LH | ||||
| 42428-60011 |
HZJ7# |
1 | ||
| 42431 - DISC, REAR | ||||
| 42431-60090 |
HZJ7# |
2 | ||
| 42431-60260 |
HZJ71,74 |
2 | ||
| 42440 - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-69025 |
HZJ71,74 |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
HZJ7# |
2 | ||
| 47491-22020 |
HZJ71,74 |
2 | ||
| 43422A - GASKET, REAR AXLE OUTER SHAFT FLANGE | ||||
| 43422-60070 |
HZJ7# |
2 | ||
| Common parts | ||||
| 90170-10039 | ||||
| 90201-10075 | ||||
