HZJ74L-FJMNSW (1999)
Toyota Land Cruiser
(9908- )

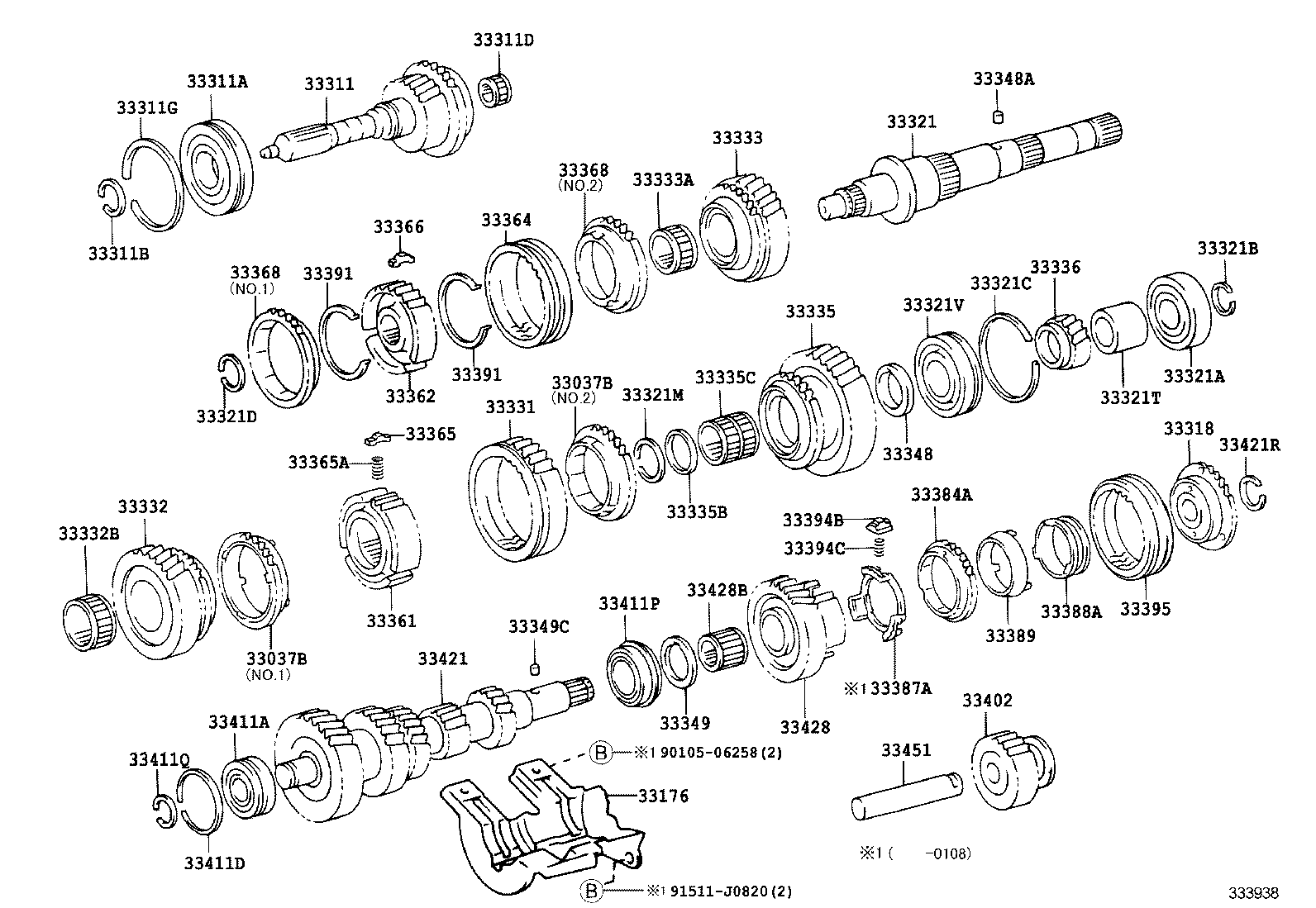

R151
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33037B - RING SET, SYNCHRONIZER, NO.1 | ||||
| 33037-60050 |
HZJ7# NO.2 |
1 | ||
| 33037-60040 |
HZJ7# NO.1 |
1 | ||
| 33037B - RING SET, SYNCHRONIZER, NO.1 | ||||
| 33037-60050 |
HZJ7# NO.2 |
1 | ||
| 33037-60040 |
HZJ7# NO.1 |
1 | ||
| 33176 - SEPARATOR, MANUAL TRANSMISSION OIL, NO.1 | ||||
| 33176-60010 |
HZJ7# |
1 | ||
| 33311 - SHAFT, INPUT | ||||
| 33311-60170 |
HZJ7# |
1 | ||
| 33301-35090 |
HZJ7# |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-40050 |
HZJ7# |
1 | ||
| 90363-40035 |
BJ73,HZJ7# |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-38009 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.15,MARK B |
1 | ||
| 90520-38008 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.10,MARK A |
1 | ||
| 90520-38010 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.20,MARK C |
1 | ||
| 90520-36016 |
BJ73,HZJ7# T=3.20-3.31 |
1 | ||
| 90520-38014 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.40,MARK G |
1 | ||
| 90520-38011 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.25,MARK D |
1 | ||
| 90520-38012 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.30,MARK E |
1 | ||
| 90520-36015 |
BJ73,HZJ7# T=3.31-3.42 |
1 | ||
| 90520-38013 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.35,MARK F |
1 | ||
| 90520-38010 |
HZJ7# T=2.20,MARK C |
1 | ||
| 90520-38008 |
HZJ7# T=2.10,MARK A |
1 | ||
| 90520-38013 |
HZJ7# T=2.35,MARK F |
1 | ||
| 90520-38009 |
HZJ7# T=2.15,MARK B |
1 | ||
| 90520-38011 |
HZJ7# T=2.25,MARK D |
1 | ||
| 90520-38014 |
HZJ7# T=2.40,MARK G |
1 | ||
| 90520-38012 |
HZJ7# T=2.30,MARK E |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-06049 |
BJ73,HZJ7# |
17 | ||
| 90364-25012 |
HZJ71,74,78,79,LJ7#,PZJ7# |
1 | ||
| 90364-25012 |
HZJ7# |
1 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-88001 |
HZJ71,74,78,79,LJ7#,PZJ7# |
1 | ||
| 90520-88001 |
HZJ7# |
1 | ||
| 33318 - PIECE, GEAR SPLINE, NO.5 | ||||
| 33318-60010 |
BJ73,HZJ7# |
1 | ||
| 33318-35040 |
HZJ7# |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-60071 |
BJ73,HZJ7# |
1 | ||
| 33321-35140 |
HZJ71,74,78,79,LJ7#,PZJ7# |
1 | ||
| 33321-35140 |
HZJ7# |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-35022 |
BJ73,HZJ7# |
1 | ||
| 90363-30075 |
HZJ7# |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-28033 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.75,MARK C |
1 | ||
| 90520-28031 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.65,MARK A |
1 | ||
| 90520-28035 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.85,MARK E |
1 | ||
| 90520-28037 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.90,MARK F |
1 | ||
| 90520-28045 |
HZJ71,74,78,79,LJ7#,PZJ7# T=3.10,MARK K |
1 | ||
| 90520-28042 |
HZJ71,74,78,79,LJ7#,PZJ7# T=3.00,MARK H |
1 | ||
| 90520-28043 |
HZJ71,74,78,79,LJ7#,PZJ7# T=3.05,MARK J |
1 | ||
| 90520-28034 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.80,MARK D |
1 | ||
| 90520-28039 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.95,MARK G |
1 | ||
| 90520-28032 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.70,MARK B |
1 | ||
| 90520-28048 |
HZJ71,74,78,79,LJ7#,PZJ7# T=3.25,MARK N |
1 | ||
| 90520-28047 |
HZJ71,74,78,79,LJ7#,PZJ7# T=3.20,MARK M |
1 | ||
| 90520-28051 |
HZJ71,74,78,79,LJ7#,PZJ7# T=3.40,MARK R |
1 | ||
| 90520-28050 |
HZJ71,74,78,79,LJ7#,PZJ7# T=3.35,MARK Q |
1 | ||
| 90520-28052 |
HZJ71,74,78,79,LJ7#,PZJ7# T=3.45,MARK S |
1 | ||
| 90520-28046 |
HZJ71,74,78,79,LJ7#,PZJ7# T=3.15,MARK L |
1 | ||
| 90520-28049 |
HZJ71,74,78,79,LJ7#,PZJ7# T=3.30,MARK P |
1 | ||
| 90520-28032 |
HZJ7# T=2.70,MARK B |
1 | ||
| 90520-28033 |
HZJ7# T=2.75,MARK C |
1 | ||
| 90520-28031 |
HZJ7# T=2.65,MARK A |
1 | ||
| 90520-28037 |
HZJ7# T=2.90,MARK F |
1 | ||
| 90520-28042 |
HZJ7# T=3.00,MARK H |
1 | ||
| 90520-28035 |
HZJ7# T=2.85,MARK E |
1 | ||
| 90520-28046 |
HZJ7# T=3.15,MARK L |
1 | ||
| 90520-28034 |
HZJ7# T=2.80,MARK D |
1 | ||
| 90520-28045 |
HZJ7# T=3.10,MARK K |
1 | ||
| 90520-28039 |
HZJ7# T=2.95,MARK G |
1 | ||
| 90520-28050 |
HZJ7# T=3.35,MARK Q |
1 | ||
| 90520-28051 |
HZJ7# T=3.40,MARK R |
1 | ||
| 90520-28052 |
HZJ7# T=3.45,MARK S |
1 | ||
| 90520-28043 |
HZJ7# T=3.05,MARK J |
1 | ||
| 90520-28049 |
HZJ7# T=3.30,MARK P |
1 | ||
| 90520-28048 |
HZJ7# T=3.25,MARK N |
1 | ||
| 90520-28047 |
HZJ7# T=3.20,MARK M |
1 | ||
| 33321C - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-81001 |
HZJ71,74,78,79,LJ7#,PZJ7# T=1.65,ID=81.4 |
1 | ||
| 90520-81001 |
HZJ7# T=1.65,ID=81.4 |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-30015 |
HZJ71,74,78,79,LJ7#,PZJ7# T=1.85,MARK B |
1 | ||
| 90520-30016 |
HZJ71,74,78,79,LJ7#,PZJ7# T=1.90,MARK C |
1 | ||
| 90520-30019 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.05,MARK F |
1 | ||
| 90520-30017 |
HZJ71,74,78,79,LJ7#,PZJ7# T=1.95,MARK D |
1 | ||
| 90520-30020 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.10,MARK G |
1 | ||
| 90520-30014 |
HZJ71,74,78,79,LJ7#,PZJ7# T=1.80,MARK A |
1 | ||
| 90520-30018 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.00,MARK E |
1 | ||
| 90520-30016 |
HZJ7# T=1.90,MARK C |
1 | ||
| 90520-30014 |
HZJ7# T=1.80,MARK A |
1 | ||
| 90520-30020 |
HZJ7# T=2.10,MARK G |
1 | ||
| 90520-30018 |
HZJ7# T=2.00,MARK E |
1 | ||
| 90520-30019 |
HZJ7# T=2.05,MARK F |
1 | ||
| 90520-30017 |
HZJ7# T=1.95,MARK D |
1 | ||
| 90520-30015 |
HZJ7# T=1.85,MARK B |
1 | ||
| 33321M - RING, SHAFT SNAP (FOR BEARING) | ||||
| 90520-36008 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.35,MARK B |
1 | ||
| 90520-36007 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.30,MARK A |
1 | ||
| 90520-36010 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.45,MARK D |
1 | ||
| 90520-36009 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.40,MARK C |
1 | ||
| 90520-36011 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.50,MARK E |
1 | ||
| 90520-36013 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.60,MARK G |
1 | ||
| 90520-36012 |
HZJ71,74,78,79,LJ7#,PZJ7# T=2.55,MARK F |
1 | ||
| 90520-36007 |
HZJ7# T=2.30,MARK A |
1 | ||
| 90520-36008 |
HZJ7# T=2.35,MARK B |
1 | ||
| 90520-36011 |
HZJ7# T=2.50,MARK E |
1 | ||
| 90520-36010 |
HZJ7# T=2.45,MARK D |
1 | ||
| 90520-36009 |
HZJ7# T=2.40,MARK C |
1 | ||
| 90520-36012 |
HZJ7# T=2.55,MARK F |
1 | ||
| 90520-36013 |
HZJ7# T=2.60,MARK G |
1 | ||
| 33321T - SPACER (FOR OUTPUT SHAFT) | ||||
| 90560-36001 |
BJ73,HZJ7# |
1 | ||
| 90561-30005 |
HZJ7# |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-40018 |
BJ73,HZJ7# |
1 | ||
| 90363-35039 |
HZJ7# |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-60040 |
HZJ7# |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-60050 |
HZJ7# |
1 | ||
| 33332-60020 |
BJ73,HZJ7# |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-47003 |
HZJ7# |
1 | ||
| 90364-44065 |
BJ73,HZJ7# |
1 | ||
| 90364-47003 |
HZJ71,74,78,79,LJ7#,PZJ7# |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33333-60030 |
BJ73,HZJ7# |
1 | ||
| 33034-60030 |
HZJ7# |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-38011 |
HZJ71,74,78,79,LJ7#,PZJ7# |
1 | ||
| 90364-38011 |
HZJ7# |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33335-60020 |
BJ73,HZJ7# |
1 | ||
| 33032-60110 |
HZJ7# |
1 | ||
| 33335B - SPACER(FOR 1ST GEAR BEARING) | ||||
| 90560-39002 |
HZJ7# |
1 | ||
| 90560-39002 |
HZJ71,74,78,79,LJ7#,PZJ7# |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-44065 |
BJ73,HZJ7# |
1 | ||
| 90364-39005 |
HZJ71,74,78,79,LJ7#,PZJ7# |
1 | ||
| 90364-39005 |
HZJ7# |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33336-60010 |
BJ73,HZJ7# |
1 | ||
| 33336-35100 |
HZJ7# |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-35010 |
HZJ71,74,78,79,LJ7#,PZJ7# |
1 | ||
| 33348-36012 |
BJ73,HZJ7# |
1 | ||
| 33348-35010 |
HZJ7# |
1 | ||
| 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) | ||||
| 90250-05202 |
BJ73,HZJ7# |
1 | ||
| 90250-05026 |
HZJ7# |
1 | ||
| 90250-05026 |
HZJ71,74,78,79,LJ7#,PZJ7# |
1 | ||
| 33349 - WASHER, 5TH GEAR THRUST | ||||
| 33346-35020 |
HZJ7# |
1 | ||
| 33346-36010 |
BJ73,HZJ7# |
1 | ||
| 33349C - PIN (FOR 5TH GEAR THRUST WASHER) | ||||
| 90250-05026 |
HZJ7# |
1 | ||
| 90250-06009 |
BJ73,HZJ7# |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-60050 |
HZJ7# |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-35030 |
HZJ71,74,78,79,LJ7#,PZJ7# |
1 | ||
| 33362-36021 |
BJ73,HZJ7# |
1 | ||
| 33362-35030 |
HZJ7# |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-36070 |
BJ73,HZJ7# |
1 | ||
| 33364-35050 |
HZJ7# |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-35040 |
HZJ7# |
3 | ||
| 33365A - SPRING, COMPRESSION | ||||
| 90501-08158 |
HZJ7# |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-35030 |
HZJ71,74,78,79,LJ7#,PZJ7# |
3 | ||
| 33366-36020 |
BJ73,HZJ7# |
3 | ||
| 33366-35030 |
HZJ7# |
3 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-35030 |
HZJ7# NO.2 |
1 | ||
| 33368-35040 |
HZJ7# NO.1 |
1 | ||
| 33368-20012 |
BJ73,HZJ7# |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-35030 |
HZJ7# NO.2 |
1 | ||
| 33368-35040 |
HZJ7# NO.1 |
1 | ||
| 33368-20012 |
BJ73,HZJ7# |
2 | ||
| 33384A - RING, SYNCHRONIZER, OUTER NO.3 | ||||
| 33384-35011 |
HZJ7# |
1 | ||
| 33387A - RING, REVERSE SYNCHRONIZER | ||||
| 33387-60050 |
HZJ7# |
1 | ||
| 33388A - RING, REVERSE SYNCHRONIZER PULL | ||||
| 33388-60010 |
HZJ7# |
1 | ||
| 33389 - RING, SYNCHRONIZER CONE | ||||
| 33389-60010 |
HZJ7# |
1 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-25030 |
HZJ71,74,78,79,LJ7#,PZJ7# |
2 | ||
| 33391-25030 |
HZJ7# |
2 | ||
| 33371-20010 |
BJ73,HZJ7# |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-25030 |
HZJ71,74,78,79,LJ7#,PZJ7# |
2 | ||
| 33391-25030 |
HZJ7# |
2 | ||
| 33371-20010 |
BJ73,HZJ7# |
2 | ||
| 33394B - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-35030 |
HZJ7# |
3 | ||
| 33394C - SPRING, COMPRESSION | ||||
| 90501-07104 |
HZJ7# |
3 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-60010 |
BJ73,HZJ7# |
1 | ||
| 33395-35031 |
HZJ7# |
1 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-60020 |
BJ73,HZJ7# |
1 | ||
| 33402-35060 |
HZJ7# |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25019 |
HZJ71,74,78,79,LJ7#,PZJ7# |
1 | ||
| 90365-32002 |
BJ73,HZJ7# |
1 | ||
| 90365-25019 |
HZJ7# |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-30216 |
BJ73,HZJ7# T=2.15,MARK 2 |
1 | ||
| 90520-56002 |
HZJ71,74,78,79,LJ7#,PZJ7# T=1.07,OD=62 |
1 | ||
| 90520-30214 |
BJ73,HZJ7# T=2.05,MARK 0 |
1 | ||
| 90520-30218 |
BJ73,HZJ7# T=2.25,MARK 4 |
1 | ||
| 90520-56002 |
HZJ7# T=1.07,OD=62 |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-34005 |
HZJ7# |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23057 |
HZJ7# T=2.10,MARK A |
1 | ||
| 90520-23060 |
HZJ7# T=2.25,MARK D |
1 | ||
| 90520-23061 |
HZJ7# T=2.30,MARK E |
1 | ||
| 90520-23059 |
HZJ7# T=2.20,MARK C |
1 | ||
| 90520-23058 |
HZJ7# T=2.15,MARK B |
1 | ||
| 90520-23062 |
HZJ7# T=2.35,MARK F |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-60060 |
BJ73,HZJ7# |
1 | ||
| 33421-60170 |
HZJ7# |
1 | ||
| 33421R - RING, SHAFT SNAP(FOR COUNTER GEAR REAR) | ||||
| 90520-22017 |
HZJ7# T=2.90,MARK B |
1 | ||
| 90520-22016 |
HZJ7# T=2.85,MARK A |
1 | ||
| 90520-22020 |
HZJ7# T=3.05,MARK E |
1 | ||
| 90520-22018 |
HZJ7# T=2.95,MARK C |
1 | ||
| 90520-22019 |
HZJ7# T=3.00,MARK D |
1 | ||
| 90520-22022 |
HZJ7# T=3.15,MARK G |
1 | ||
| 90520-22021 |
HZJ7# T=3.10,MARK F |
1 | ||
| 33428 - GEAR, COUNTERSHAFT 5TH | ||||
| 33046-60010 |
BJ73,HZJ7# |
1 | ||
| 33428-60030 |
HZJ7# |
1 | ||
| 33428B - BEARING (FOR COUNTER 5TH GEAR) | ||||
| 90364-32007 |
BJ73,HZJ7# |
1 | ||
| 90364-30009 |
HZJ7# |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-35030 |
HZJ71,74,78,79,LJ7#,PZJ7# |
1 | ||
| 33451-36022 |
BJ73,HZJ7# |
1 | ||
| 33451-35030 |
HZJ7# |
1 | ||
| Common parts | ||||
| 90105-06258 | ||||
| 91511-J0820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
