Toyota Land cruiser HZJ73 HEATING & AIR CONDITIONING - WATER PIPING

Manufacturers Home
Toyota
EU
LAND CRUISER
HZJ73LV-MNW (1990)
8716 - HEATING & AIR CONDITIONING - WATER PIPING

HZJ73LV-MNW (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1999

Engine 1HZ

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

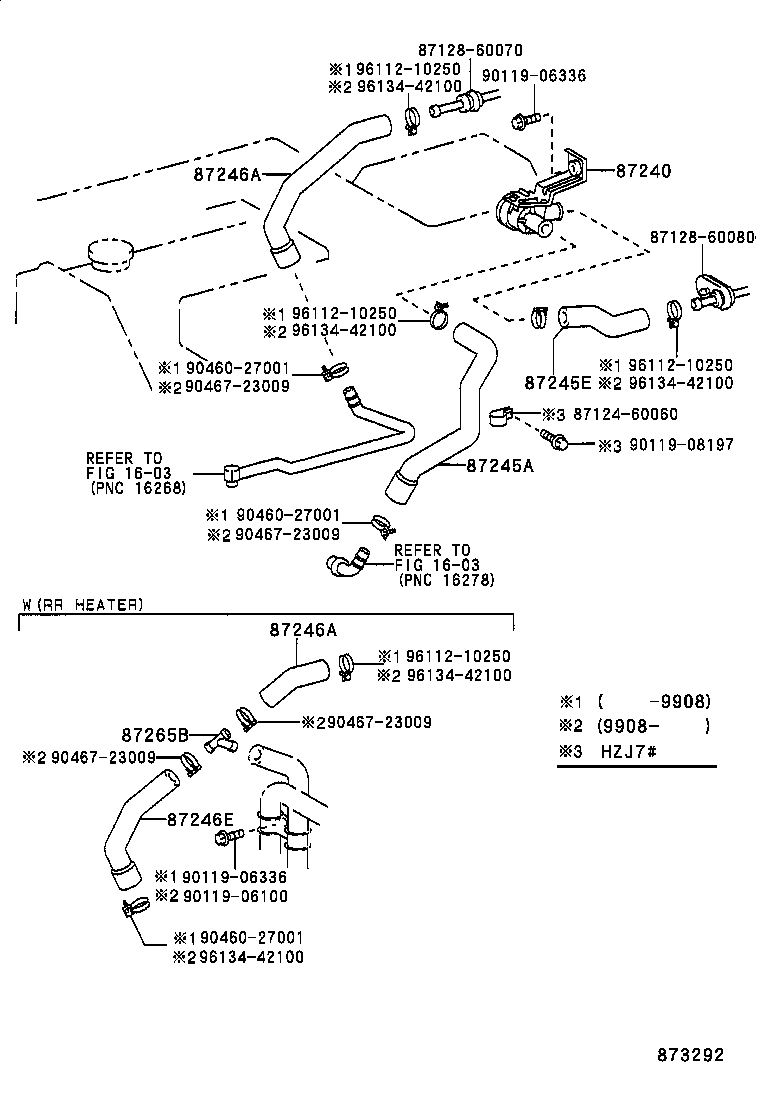

ILLUST NO. 1 OF 2(9001- )HZJ7#,PZJ7#

Click highlighted areas on diagram

Part #	Description	Period	Qty
87240 - VALVE ASSY, HEATER WATER
87240-60110	HZJ7#,PZJ7#	01/1990 - 08/2001	1
87240-60110	HZJ7#	05/1993 - 08/1999	1
87245A - HOSE, HEATER WATER, INLET A
87245-60160	HZJ7#	01/1990 - 08/2001	1
87245-60160	HZJ7#	05/1993 - 08/1999	1
87245E - HOSE, HEATER WATER, INLET E
87245-60290	HZJ7#,PZJ7#	01/1990 - 08/2001	1
87245-60290	HZJ7#	05/1993 - 08/1999	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-60170	HZJ7#	01/1990 - 05/1993	1
87245-60250	HZJ7#,PZJ7#..HT W(RR HEATER)	01/1990 - 05/1993	1
87245-60251	HZJ7#..HT W(RR HEATER)	05/1998 - 08/1999	1
87245-60170	HZJ7#	05/1993 - 05/1998	1
87245-60171	HZJ7#	05/1998 - 08/1999	1
87245-60250	HZJ7#..HT W(RR HEATER)	05/1993 - 05/1998	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-60170	HZJ7#	01/1990 - 05/1993	1
87245-60250	HZJ7#,PZJ7#..HT W(RR HEATER)	01/1990 - 05/1993	1
87245-60251	HZJ7#..HT W(RR HEATER)	05/1998 - 08/1999	1
87245-60170	HZJ7#	05/1993 - 05/1998	1
87245-60171	HZJ7#	05/1998 - 08/1999	1
87245-60250	HZJ7#..HT W(RR HEATER)	05/1993 - 05/1998	1
87246E - HOSE, HEATER WATER, OUTLET E
87245-60270	HZJ7#..HT W(RR HEATER)	01/1990 - 05/1993	1
87245-60270	HZJ7#..HT W(RR HEATER)	05/1993 - 08/1996	1
87245-60270	HZJ7#..HT	08/1996 - 05/1998	1
87245-60271	HZJ7#..HT	05/1998 - 08/1999	1
87265B - CONNECTOR, HEATER WATER HOSE, NO.2
87248-95400	BJ73,HZJ7#,RJ7#..HT	05/1993 - 08/1999	1
87248-95400	BJ73,HZJ70,71,73,74,75,78,PZJ7#,RJ7#..HT	01/1990 - 08/2001	1
Common parts
87124-60060
87128-60070
87128-60080
90119-06100
90119-06336
90119-08197
90460-27001
90467-23009
96112-10250
96134-42100
Linked diagrams
1603

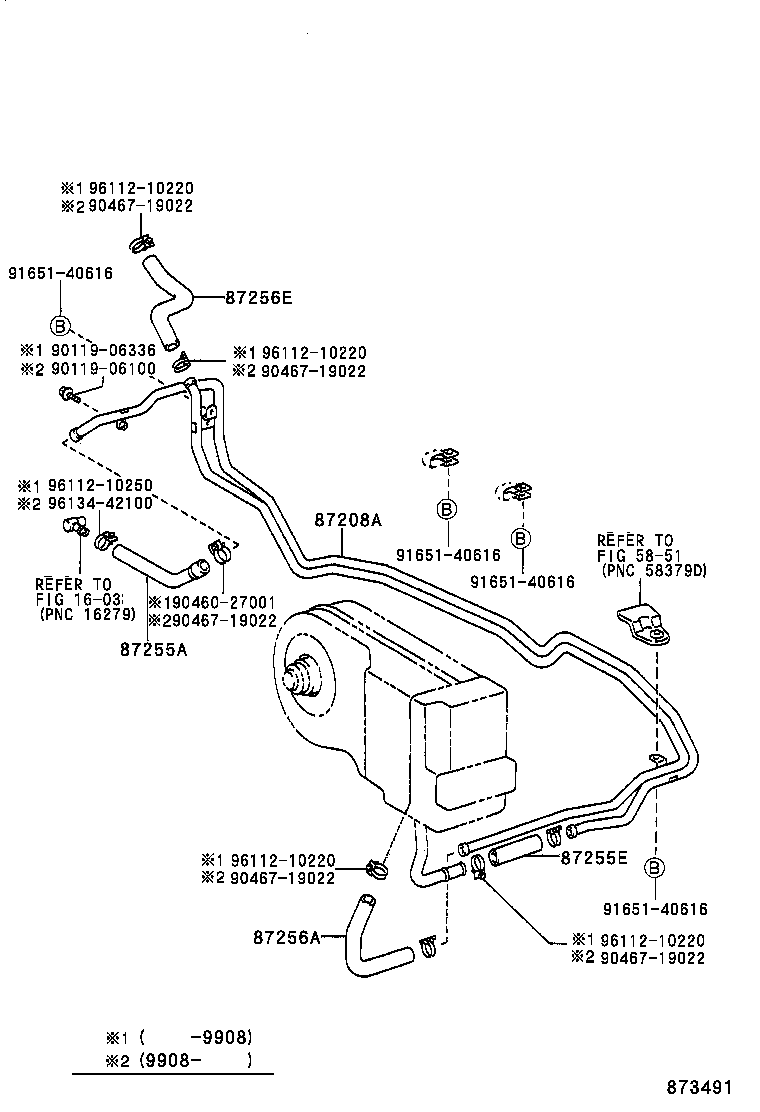

ILLUST NO. 2 OF 2(9001- )HZJ70,71,73,74,75,79,PZJ70,73

Click highlighted areas on diagram

Part #	Description	Period	Qty
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-60130	HZJ7#,PZJ70,73 W(RR HEATER),RR HEATER	01/1990 - 04/1990	1
87208-60130	HZJ70,73,PZJ70,73 W(RR HEATER)	04/1990 - 05/1993	1
87208-60130	HZJ70,73	08/1996 - 08/1999	1
87208-60130	HZJ70,73 W(RR HEATER)	05/1993 - 08/1996	1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-60180	HZJ7#..HT W(RR HEATER)	01/1990 - 05/1993	1
87245-60180	HZJ7#..HT W(RR HEATER)	05/1993 - 08/1996	1
87245-60180	HZJ7#..HT	08/1996 - 08/1999	1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
99556-20200	LJ70..LX,STD;LJ70..LHD..VX;HZJ70,73,LJ73,PZJ70,73,RJ7# *H,L=80,W(RR HEATER)	01/1990 - 05/1993	1
99556-20200	KZJ70..LX,STD;HZJ70,73,KZJ73;KZJ70..LHD..VX *H,L=80,W(RR HEATER)	01/1995 - 08/1996	1
99556-20200	KZJ70..LX,STD;KZJ70..LHD..VX;HZJ70,73,KZJ73,LJ7#,RJ7# *H,L=80,W(RR HEATER)	05/1993 - 01/1995	1
99556-20200	HZJ70,73 *H,L=80	08/1996 - 08/1999	1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-90K16	HZJ70,73	08/1996 - 08/1999	1
87245-90K16	LJ70..LX,STD;LJ70..LHD..VX;HZJ70,73,LJ73,PZJ70,73,RJ7# W(RR HEATER)	01/1990 - 05/1993	1
87245-90K16	KZJ70..LX,STD;HZJ70,73,KZJ73;KZJ70..LHD..VX W(RR HEATER)	01/1995 - 08/1996	1
87245-90K16	KZJ70..LX,STD;KZJ70..LHD..VX;HZJ70,73,KZJ73,LJ7#,RJ7# W(RR HEATER)	05/1993 - 01/1995	1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-60280	HZJ7#,PZJ7#..HT W(RR HEATER)	01/1990 - 05/1993	1
87245-60281	HZJ7#..HT	05/1998 - 08/1999	1
87245-60280	HZJ7#..HT W(RR HEATER)	05/1993 - 08/1996	1
87245-60280	HZJ7#..HT	08/1996 - 05/1998	1
Common parts
90119-06100
90119-06336
90460-27001
90467-19022
91651-40616
96112-10220
96112-10250
96134-42100
Linked diagrams
1603
5851
