HZJ71L-RJMNSW (1999)

Toyota Land Cruiser

Production Aug 1999 - Aug 2001
Engine 1HZ
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

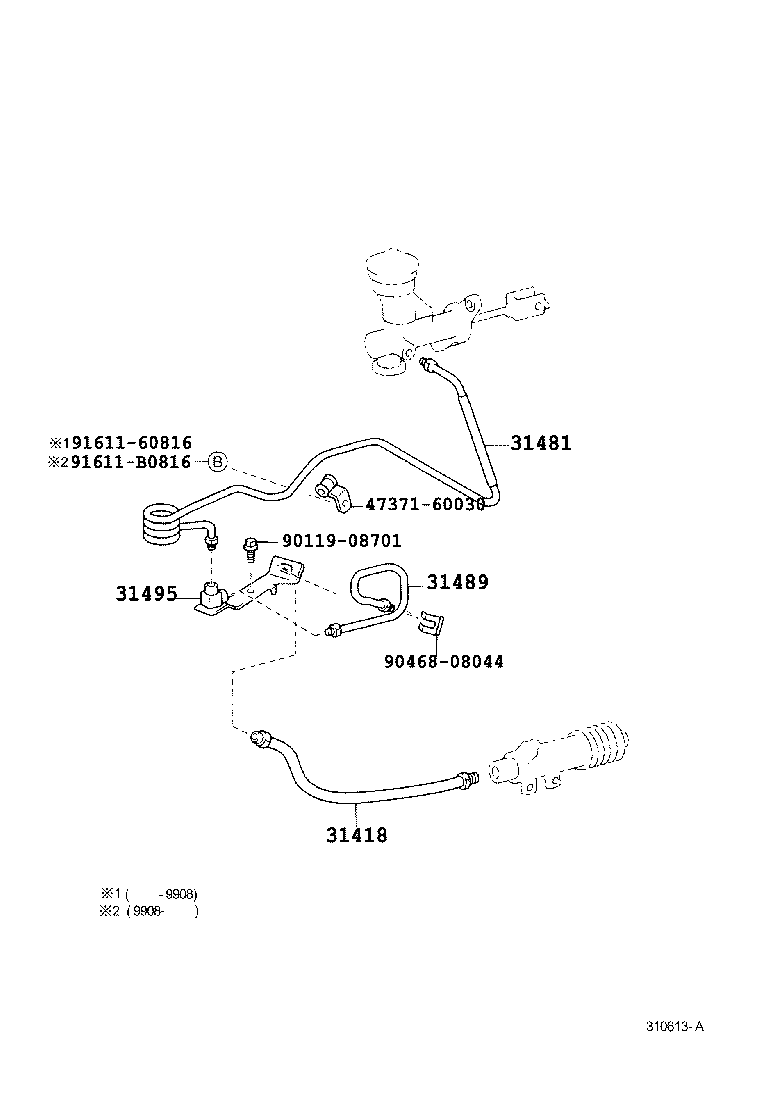

ILLUST NO. 2 OF 2(9908- )

Click highlighted areas on diagram

diagram 31418 31481 31489 31495 4737160030 9011908701 9046808044 9161160816 91611B0816
Part # Description Qty Price
31418 - HOSE, CLUTCH
96812-50260

HZJ7#

 1
90947-02B49

HZJ7#

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60441

HZJ7#,PZJ7#

 1
31481-60421

HZJ7#,PZJ7#

W(CLUTCH BOOSTER)

 1
31481-6A020

HZJ7#

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-60040

HZJ7#,PZJ7#

 1
31489-60090

HZJ7#

 1
31495 - WAY, CLUTCH TUBE
31495-60040

HZJ7#,PZJ7#

 1
31495-60090

HZJ7#

 1
Common parts
47371-60030
90119-08701
90468-08044
91611-60816
91611-B0816
