HZJ70LV-MNW (1990)
Toyota Land Cruiser
ILLUST NO. 3 OF 3(9001-9908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
KZJ70..LX,VX;BJ73,HZJ7#,KZJ73,LJ7#,RJ7# |
1 | ||
| 04477-60010 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-26040 |
BJ73,HZJ7# |
1 | ||
| 47910-26040 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-60050 |
BJ73,HZJ7# |
1 | ||
| 47920-60050 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90387-08099 |
BJ73,HZJ7#,KZJ7#,LJ7#,RJ7# |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90387-08099 |
BJ73,HZJ7#,KZJ7#,LJ7#,RJ7# |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 90467-31110 |
BJ73,HZJ7#,KZJ7#,LJ7#,RJ7# |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90202-10103 |
BJ73,HZJ7#,KZJ7#,LJ7#,RJ7# |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90202-10103 |
BJ73,HZJ7#,KZJ7#,LJ7#,RJ7# |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-60080 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 47931-60080 |
BJ73,HZJ7# |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-60080 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 47931-60080 |
BJ73,HZJ7# |
1 | ||
| 47932A - BRACKET, LOAD SENSING VALVE UNION | ||||
| 47932-60020 |
BJ73,HZJ7# |
1 | ||
| 47932-60020 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 47932A - BRACKET, LOAD SENSING VALVE UNION | ||||
| 47932-60020 |
BJ73,HZJ7# |
1 | ||
| 47932-60020 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-60100 |
BJ73,HZJ7# |
1 | ||
| 47933-60100 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 47933-60101 |
HZJ7# |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-60100 |
BJ73,HZJ7# |
1 | ||
| 47933-60100 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 47933-60101 |
HZJ7# |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 47935-35010 |
BJ73,HZJ7# |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
BJ73,HZJ7#,KZJ7#,LJ7#,RJ7# |
1 | ||
| 90387-08099 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 90385-10064 |
BJ73,HZJ7#,KZJ7#,LJ7#,RJ7# |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
BJ73,HZJ7#,KZJ7#,LJ7#,RJ7# |
2 | ||
| 90385-10064 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
BJ73,HZJ7# |
2 | ||
| 90948-02033 |
BJ73,HZJ7#,PZJ7# |
2 | ||
| 90201-08062 |
HZJ7# |
1 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
BJ73,HZJ7# |
2 | ||
| 90948-02033 |
BJ73,HZJ7#,PZJ7# |
2 | ||
| 90201-08062 |
HZJ7# |
1 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
BJ73,HZJ7# |
2 | ||
| 90948-02033 |
BJ73,HZJ7#,PZJ7# |
2 | ||
| 90201-08062 |
HZJ7# |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35010 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 47936-35010 |
BJ73,HZJ7# |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
1 | ||
| 47937-60010 |
BJ73,HZJ7#,KZJ7#,LJ7#,RJ7# |
1 | ||
| 47938 - INSULATOR, LOAD SENSING SPRING SHACKLE HAET | ||||
| 47938-60020 |
BJ73,HZJ7# |
1 | ||
| 47938-60010 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| Common parts | ||||
| 90119-08834 | ||||
| 90179-10132 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-B0816 | ||||
| 91651-60816 | ||||
| 94110-41000 | ||||
| 94130-00802 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||
ILLUST NO. 2 OF 3(9001-9908)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-60020 |
HZJ7#,PZJ7# |
1 | ||
| 47391-60020 |
HZJ7# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-60020 |
HZJ7#,PZJ7# |
1 | ||
| 47391-60020 |
HZJ7# |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-60020 |
HZJ7#,PZJ7# |
1 | ||
| 47391-60020 |
HZJ7# |
1 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-01069 |
HZJ70,71,LJ73,77,PZJ70,RJ73 |
5 | ||
| 90480-01069 |
HZJ70,KZJ70,LJ73,RJ73 |
5 | ||
| 47311H - GROMMET(FOR BRAKE TUBE) | ||||
| 90480-01069 |
HZJ70,71,LJ73,77,PZJ70,RJ73 |
5 | ||
| 90480-01069 |
HZJ70,KZJ70,LJ73,RJ73 |
5 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 47395-60020 |
HZJ7#,PZJ7# |
1 | ||
| 47395-60020 |
HZJ7# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 47395-60020 |
HZJ7#,PZJ7# |
1 | ||
| 47395-60020 |
HZJ7# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 47395-60020 |
HZJ7#,PZJ7# |
1 | ||
| 47395-60020 |
HZJ7# |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 47395-60031 |
BJ73,HZJ7# |
1 | ||
| 47395-60030 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 47395-60031 |
BJ73,HZJ7# |
1 | ||
| 47395-60030 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47354-60100 |
HZJ7#,PZJ7# |
1 | ||
| 47354-60100 |
HZJ7# |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-60150 |
HZJ7#,PZJ7# |
1 | ||
| 47351-60150 |
HZJ7# |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-60080 |
HZJ7#,PZJ7# |
1 | ||
| 47352-60080 |
HZJ7# |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60100 |
HZJ70,73,PZJ70,73 |
1 | ||
| 47355-60100 |
BJ73,HZJ70,73 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60100 |
HZJ70,73,PZJ70,73 |
1 | ||
| 47355-60100 |
BJ73,HZJ70,73 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-35010 |
HZJ7#,LJ7#,PZJ7#..LHD |
5 | ||
| 47372-60060 |
HZJ7#,KZJ7#,LJ7#..LHD |
5 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-60030 |
HZJ7#,PZJ7# |
1 | ||
| 47393-60031 |
HZJ7# |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90119-10121 | ||||
| 90179-10033 | ||||
| 90461-08706 | ||||
| 90461-10793 | ||||
| 90949-01183 | ||||
| 90949-01309 | ||||
| 90949-01854 | ||||
| 91111-41035 | ||||
| 91611-B0816 | ||||
| 91621-J0814 | ||||

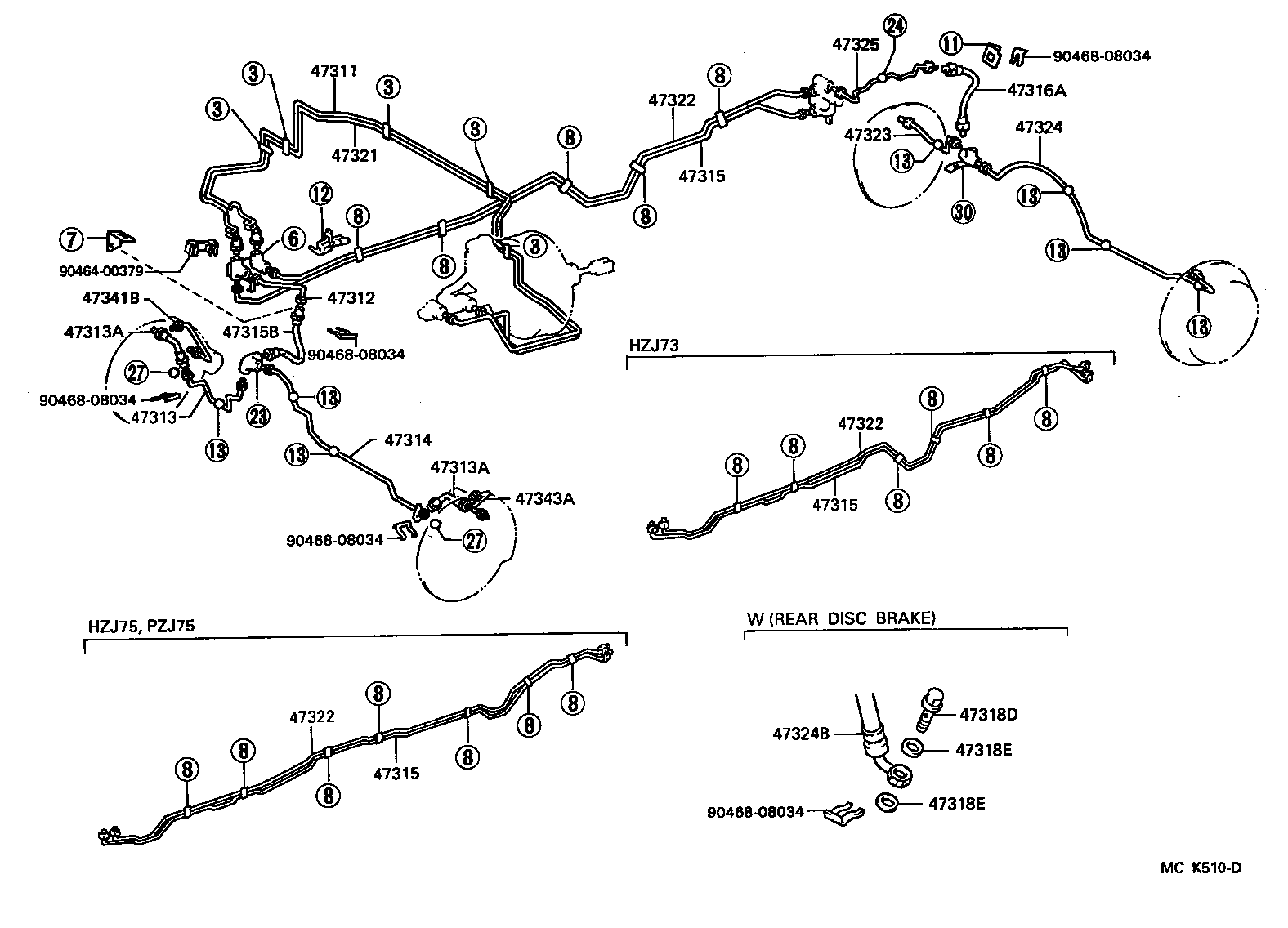

ILLUST NO. 1 OF 3(9001-9908)HZJ7#,PZJ7#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47312-60681 |
HZJ7#,PZJ75 |
1 | ||
| 47312-60681 |
HZJ7# |
1 | ||
| 47312-60680 |
HZJ7#,PZJ7# |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47313-60190 |
HZJ7#,PZJ7# |
1 | ||
| 47313-60190 |
HZJ7# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47314-60190 |
HZJ7#,PZJ7# |
1 | ||
| 47314-60210 |
HZJ7#,PZJ7# W(*DL) |
1 | ||
| 47314-60210 |
HZJ7# W(*DL) |
1 | ||
| 47314-60190 |
HZJ7# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-39855 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 96940-39855 |
HZJ7# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 96940-39855 |
BJ73,HZJ7#,LJ7#,PZJ7#,RJ7# |
2 | ||
| 96940-39855 |
HZJ7# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47315-60310 |
HZJ7#,PZJ7# |
1 | ||
| 47315-60310 |
HZJ7# |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47316-60320 |
HZJ70,PZJ70 |
1 | ||
| 47316-60321 |
HZJ70 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47316-60320 |
HZJ70,PZJ70 |
1 | ||
| 47316-60321 |
HZJ70 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47316-60320 |
HZJ70,PZJ70 |
1 | ||
| 47316-60321 |
HZJ70 |
1 | ||
| 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96940-33105 |
HZJ7#,PZJ7# |
1 | ||
| 96940-33105 |
HZJ7# |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-34405 |
HZJ7#,PZJ7# |
1 | ||
| 96940-34405 |
BJ73,HZJ7# |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
HZJ70,73,KZJ70,73,LJ7#,RJ7#..LX,VX |
2 | ||
| 90401-10015 |
PZJ70,73;HZJ70,71,73,74,LJ70,73,RJ7#..LX,VX |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
HZJ70,73,KZJ70,73,LJ7#,RJ7#..LX,VX |
4 | ||
| 90430-10074 |
PZJ70,73;HZJ70,71,73,74,LJ70,73,RJ7#..LX,VX |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
HZJ70,73,KZJ70,73,LJ7#,RJ7#..LX,VX |
4 | ||
| 90430-10074 |
PZJ70,73;HZJ70,71,73,74,LJ70,73,RJ7#..LX,VX |
4 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47322-60561 |
HZJ7#,PZJ75 |
1 | ||
| 47322-60560 |
HZJ7#,PZJ7# |
1 | ||
| 47322-60561 |
HZJ7# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60400 |
HZJ70,PZJ70 |
1 | ||
| 47323-60400 |
HZJ70 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60400 |
HZJ70,PZJ70 |
1 | ||
| 47323-60400 |
HZJ70 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47323-60400 |
HZJ70,PZJ70 |
1 | ||
| 47323-60400 |
HZJ70 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47324-60160 |
HZJ7#,PZJ70,73 W(REAR DISC BRAKE) |
1 | ||
| 47324-60201 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 47324-60161 |
HZJ70,73,PZJ70,73 W(REAR DISC BRAKE) |
1 | ||
| 47324-60161 |
HZJ70,73 W(REAR DISC BRAKE) |
1 | ||
| 47324-60200 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 47324-60201 |
BJ73,HZJ7# |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47325-60121 |
HZJ70,73,PZJ70,73 W(REAR DISC BRAKE) |
1 | ||
| 47325-60160 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 47325-60121 |
HZJ70,73 W(REAR DISC BRAKE) |
1 | ||
| 47325-60161 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 47325-60120 |
HZJ7#,PZJ70,73 W(REAR DISC BRAKE) |
1 | ||
| 47325-60161 |
BJ73,HZJ7# |
1 | ||
| 47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2) | ||||
| 90947-02615 |
HZJ70,73,KZJ70,73,LJ7#,RJ7#..LX,VX LH |
1 | ||
| 90947-02615 |
PZJ70,73;HZJ70,73,LJ70,73,RJ7#..LX,VX LH |
1 | ||
| 90947-02614 |
HZJ70,73,KZJ70,73,LJ7#,RJ7#..LX,VX RH |
1 | ||
| 90947-02614 |
PZJ70,73;HZJ70,73,LJ70,73,RJ7#..LX,VX RH |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47326-60091 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 47326-60091 |
BJ73,HZJ7# |
1 | ||
| 47326-60091 |
BJ73,HZJ70,75 |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-60031 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| 47341-60031 |
BJ73,HZJ7# |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-60021 |
BJ73,HZJ7# |
1 | ||
| 47343-60021 |
BJ73,HZJ7#,PZJ7# |
1 | ||
| Common parts | ||||
| 90464-00379 | ||||
| 90468-08034 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
